UWEI Handheld Infrared Thermal Imaging Camera – 300,000 Pixels with Colorful TFT Display
See the invisible with the UWEI Handheld Thermal Imager — a compact, professional-grade thermal imaging camera that delivers fast, accurate surface temperature readings across a wide range of applications. Whether you're a home inspector, HVAC technician, electrician, or DIY enthusiast, this device makes it easy to detect heat signatures in walls, circuits, pipes, mechanical components, and more — all from the palm of your hand.
Made in Mainland China.
Key Features
- 300,000-Pixel Visible Camera – Captures crisp visual images for reference alongside thermal data.
- Infrared Thermal Resolution: 32 × 32 Pixels – Detects subtle surface temperature differences with clarity.
- Visible Light Resolution: 128 × 128 Pixels – Provides a sharp standard image for context.
- 1.77" TFT Color Display – Vivid, easy-to-read screen even in varying light conditions.
- Wide Temperature Range: -30°C to +500°C (-22°F to 932°F) – Suitable for industrial, electrical, and building diagnostics.
- Adjustable Emissivity: 0.01 – 1.00 – Fine-tune accuracy across different surface materials (metal, wood, plastic, etc.).
- 3 Image Modes – Thermal imaging, visible light, and thermal/visible fusion for comprehensive analysis.
- 32 Color Palettes – Choose from Rainbow, Iron Red, Rock Red, White Hot, Black Hot, and more for optimal visualization.

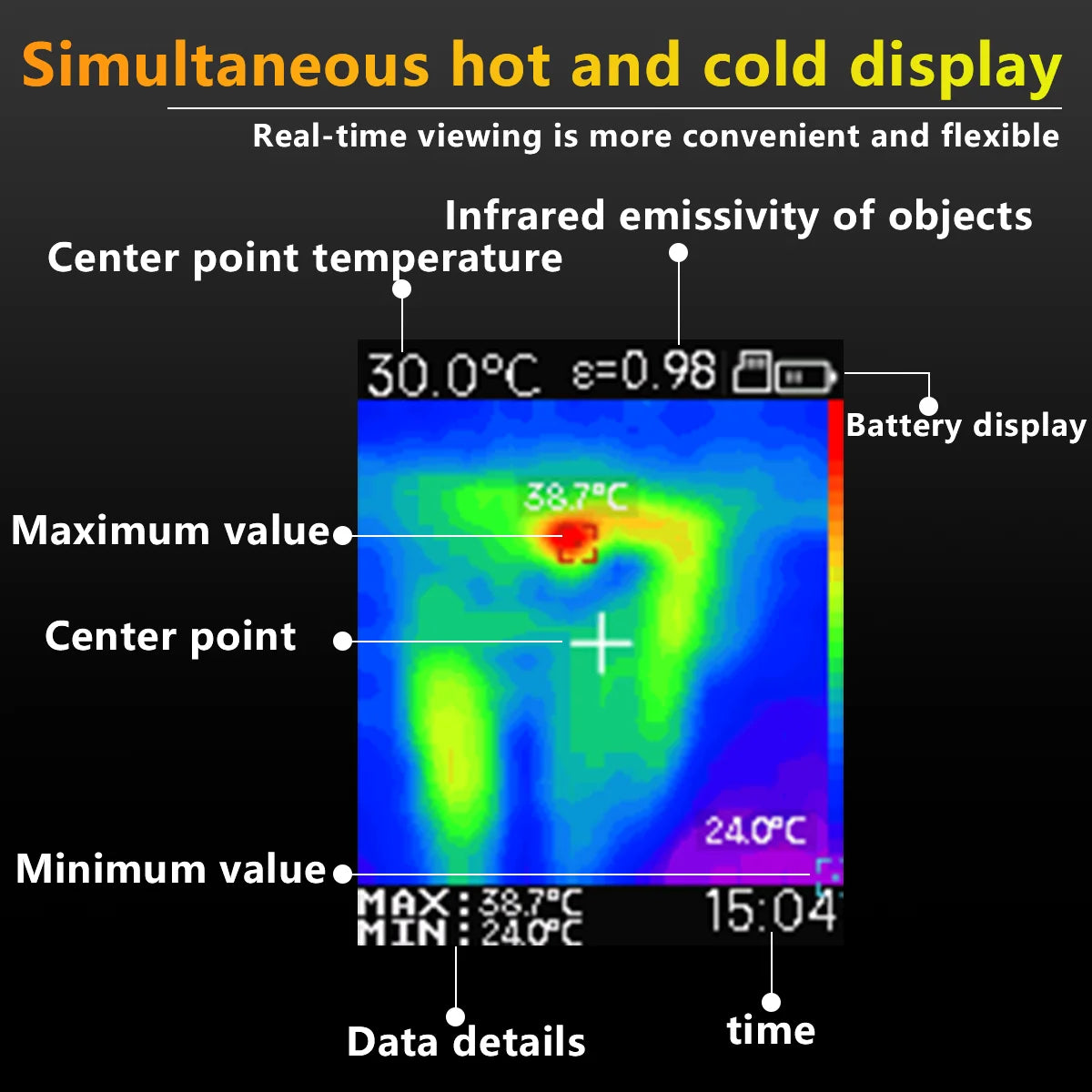

- Temperature Display Modes – Simultaneously shows minimum, center, and maximum temperature readings.
- USB Type-C Rechargeable – Built-in 1,000mAh lithium battery charged via modern USB-C interface; no proprietary charger needed.
- CE Certified – Meets European safety and performance standards.
- Compact & Handheld – Ergonomic design for one-handed use in the field or on-site.
Specifications
| Thermal IR Resolution | 32 × 32 Pixels |
| Visible Camera | 300,000 Pixels (128 × 128) |
| Display | 1.77" TFT Color Screen |
| Temperature Range | -30°C to +500°C / -22°F to 932°F |
| Emissivity | 0.01 – 1.00 (Adjustable) |
| Battery | 1,000mAh Built-in Lithium Battery |
| Charging Port | USB Type-C |
| Color Palettes | 32 options (Rainbow, Iron Red, Rock Red, White Hot, Black Hot) |
| Certification | CE |
| Brand | UWEI |
| Origin | Mainland China |
Ideal Use Cases
- Electrical panel inspections and circuit diagnostics
- HVAC system evaluation and duct leak detection
- Building envelope and insulation assessment
- Plumbing leak and moisture mapping
- Mechanical equipment and motor monitoring
- Automotive engine and component checks
For best practices in thermal imaging and building diagnostics, refer to guidance from the U.S. Department of Energy on thermographic inspections.
Frequently Asked Questions
Q: What is the thermal resolution of this handheld thermal imaging camera?
A: The UWEI thermal imager features a 32 × 32 pixel infrared thermal resolution combined with a 128 × 128 visible light camera, giving you both thermal and visual reference imagery. The overall camera module is 300,000 pixels for sharp visible-light capture.
Q: Can I adjust the emissivity on this thermal camera?
A: Yes. The emissivity is fully adjustable from 0.01 to 1.00, allowing you to calibrate the device for accurate readings across different surface materials — including metals, plastics, ceramics, wood, and more.
Q: How is the thermal imager charged?
A: It charges via a standard USB Type-C cable connected to the built-in 1,000mAh lithium battery. This means you can charge it using any compatible USB-C power adapter or power bank — no proprietary charger required.
Q: What image modes does this thermal camera support?
A: The camera offers three image modes: pure thermal imaging, visible light only, and a fusion mode that overlays thermal and visible light images for easier interpretation and more precise targeting.
Q: What is the maximum temperature this device can measure?
A: This thermal imager can measure surface temperatures up to 500°C (932°F), making it suitable for a wide range of industrial, electrical, and building inspection applications.
