Hall Sensor Brushless Motor Driver Module 12V DIY Board
Hall Sensor Brushless Motor Driver Module 12V DIY Board
Hall Sensor Brushless Motor Driver Module – 12V DIY Electric Motor Board

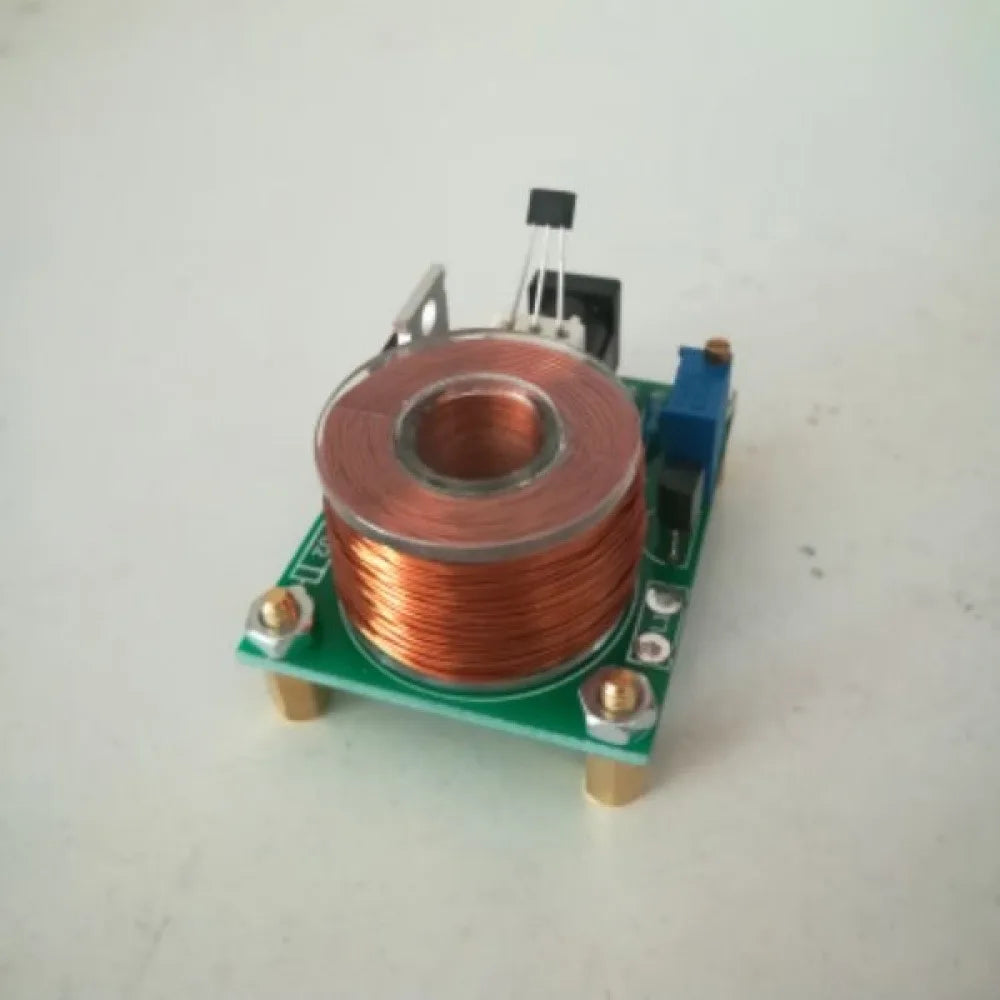

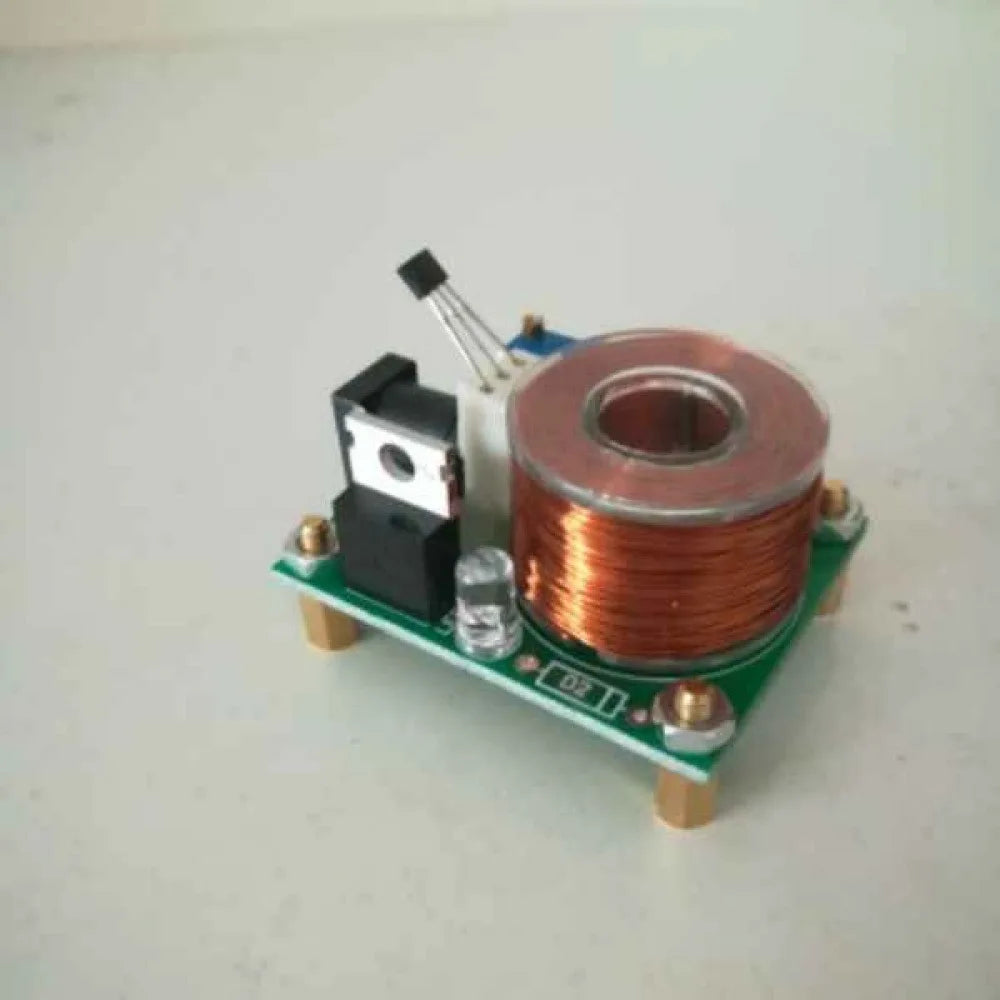

Take your electronics projects and classroom demonstrations to the next level with this compact Hall Sensor Brushless Motor Driver Module. Designed for makers, hobbyists, educators, and engineering students, this all-in-one driver board integrates the drive circuit directly with the coil for a streamlined, efficient setup — no extra wiring headaches required.
How It Works
When the S pole of a magnet approaches the onboard Hall sensor, the sensor triggers and energizes the coil, generating a controlled magnetic field. The polarity of that magnetic field is determined by the coil's winding direction — and you can easily flip the polarity by swapping the coil pins connected to the board, giving you hands-on control over motor behavior. It's an excellent hands-on way to visualize electromagnetic principles in action.
Key Features
- Modular Design: Drive circuit and coil are integrated into one compact unit for easy assembly and experimentation.
- Optimized Circuit Structure: Efficient driving mode for stable, reliable brushless motor operation.

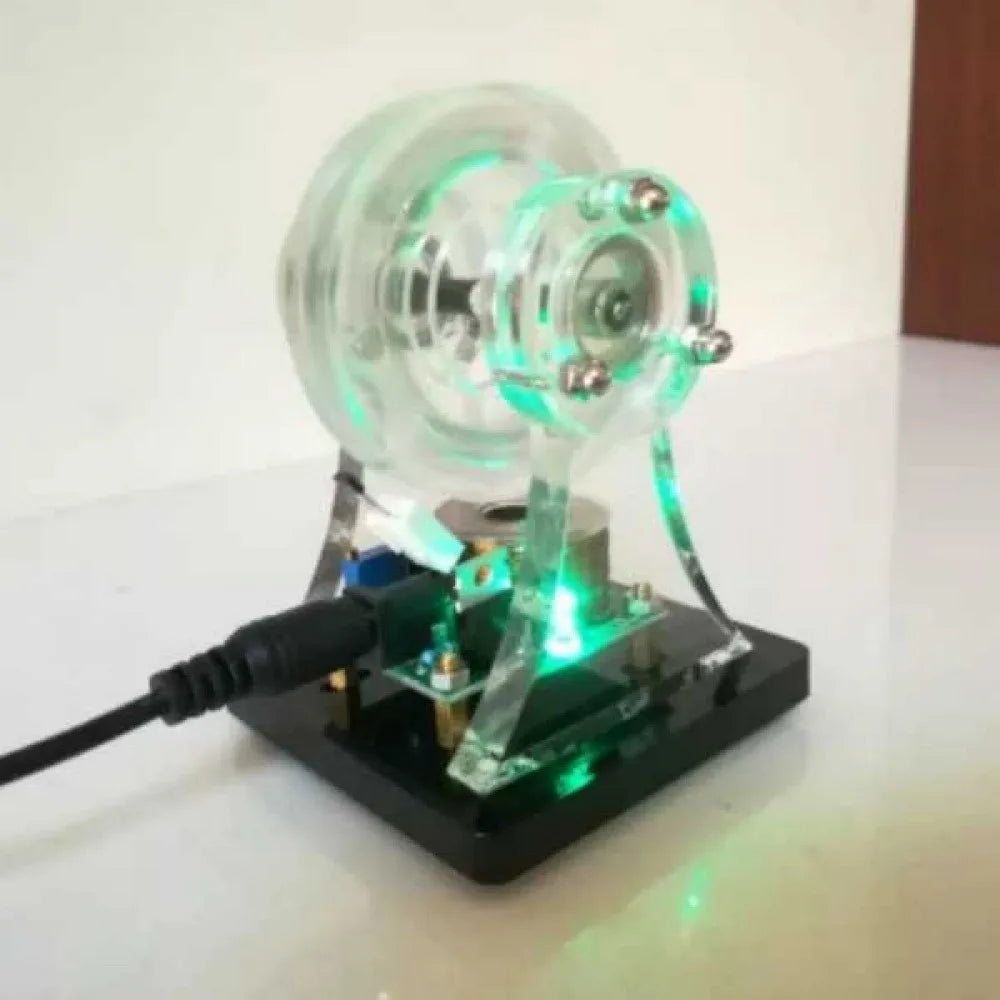

- Versatile Applications: Build magnetic motors, brushless motors, Hall motors, or use as a teaching and experimental demonstration tool.
- 12V Power Supply: Simple, standard power input suitable for most lab and DIY setups.
- Compact Form Factor: Fits neatly into breadboard projects, enclosures, or demonstration rigs.
Specifications
| Power Supply Voltage | 12V DC |
| Motor Type | Brushless DC Motor (Hall Sensor Driven) |
| Dimensions | 4.4 cm × 3.4 cm × 2.8 cm |
| Country of Origin | Made in China |
Package Includes
- 1× Hall Sensor Motor Driver Module
Important Notes
- Due to screen calibration and lighting differences, the actual item color may vary slightly from product images.
- Please allow 1 mm – 1 cm tolerance due to manual measurement.
Learn More About Electric Motor Principles
Want to deepen your understanding of how brushless DC motors and Hall effect sensors work? The U.S. Department of Energy's Electric Motors resource is a great starting point for exploring motor efficiency and technology fundamentals.
Learn more: Motor controller
Frequently Asked Questions
Q: What is a Hall sensor motor driver module used for?
A: A Hall sensor motor driver module is used to control brushless DC motors by detecting the magnetic field of a rotor magnet and triggering the coil at the right moment. It's widely used in DIY electronics projects, magnetic motor builds, and educational demonstrations to illustrate electromagnetic principles.
Q: What power supply does this brushless motor driver board require?
A: This motor driver board operates on a 12V DC power supply, making it compatible with standard lab bench power supplies and common DC adapters used in most maker and classroom environments.
Q: Can I change the direction of the magnetic field on this module?
A: Yes! You can reverse the polarity of the coil's magnetic field by swapping the coil pins connected to the circuit board, allowing you to experiment with both S-pole and N-pole orientations — perfect for hands-on learning and motor experimentation.
Q: Is this module suitable for beginners and students?
A: Absolutely. The modular, integrated design makes it straightforward to set up without complex wiring. It's an ideal tool for teaching labs, STEM projects, and anyone curious about how brushless motors and Hall effect sensors function in practice.
