H2D IP67 Waterproof 125KHz RFID Access Control Keypad Reader
H2D IP67 Waterproof 125KHz RFID Access Control Keypad Reader
H2D IP67 Waterproof 125KHz RFID Access Control Keypad Reader — Up to 10,000 Users

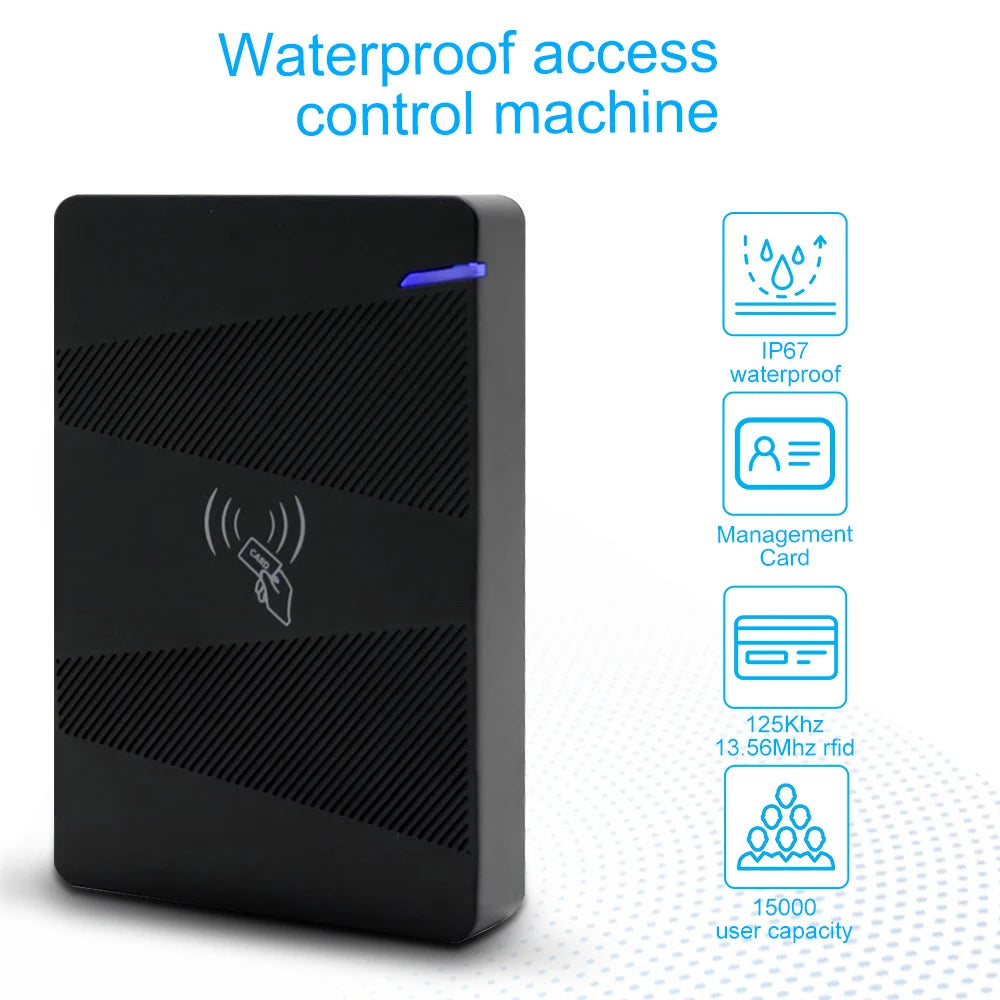

Take full control of who enters your space with the H2D Standalone RFID Access Control Reader. Designed for both indoor and outdoor environments, this proximity card reader combines rugged IP67 waterproof construction with a user-friendly keypad — making it a reliable, low-maintenance solution for homes, offices, warehouses, garages, and more. Supporting up to 10,000 users, it scales effortlessly from small businesses to large facilities.
Key Features
- 125KHz Proximity RFID Technology — Fast, contactless card reading with a read range of 2–8 cm for smooth, hands-free access
- IP67 Waterproof Rating — Solid epoxy-potted housing withstands rain, dust, and harsh outdoor conditions with confidence
- 10,000 User Capacity — Ideal for multi-user environments including apartment complexes, offices, and commercial buildings
- Anti-Vandal Design — Durable ABS plastic housing built to resist tampering and physical abuse
- Reverse Polarity Protection — Built-in safeguard prevents damage from accidental wiring errors during installation
- Ultra-Low Power Consumption — Standby current under 30 mA keeps energy costs minimal without sacrificing performance
- Infrared Remote Control Programming — Easily program and manage access credentials without complicated software
- Admin Card Included — Simplified management with a dedicated administrator card for adding or removing users
- Indoor & Outdoor Operation — Versatile design suited for a wide range of access control applications
- 0.5-Second Reader Interval — Rapid response time ensures smooth, efficient entry flow
Technical Specifications
| Model | H2D |
| Operating Voltage | DC 12V |
| Supported Card Type | 125KHz RFID / ID Cards |
| Read Range | 2–8 cm |
| User Capacity | Up to 10,000 Users |
| Waterproof Rating | IP67 |
| Reader Interval | 0.5 Seconds |
| Standby Current | < 30 mA |
| Interface | USB |
| Housing Material | ABS Plastic (Epoxy Potted) |
| Country of Origin | Made in China |
Who Is This For?
The H2D RFID Access Control Keypad is perfect for property managers, small business owners, IT administrators, and security-conscious homeowners who need a scalable, weatherproof, and easy-to-install access control solution. Whether you're securing a single entry point or managing a multi-door facility, this reader delivers professional-grade performance at an accessible price.
For general guidance on electronic security systems and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What type of cards does the H2D RFID Access Control Reader support?
A: The H2D supports standard 125KHz proximity RFID ID cards. These are widely available and compatible with most common access control card formats. The reader does not support 13.56MHz (MIFARE/HF) cards.
Q: Can the H2D be used outdoors in all weather conditions?
A: Yes. The H2D carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water. Its solid epoxy-potted construction makes it suitable for outdoor installation in rain, humidity, and dusty environments.
Q: How do I program users onto the H2D Access Control Keypad?
A: The H2D is programmed using an infrared remote control and the included Admin card. This allows you to add or remove users without additional software or a PC, making setup quick and straightforward even for non-technical users.
Q: How many users can the H2D system support?
A: The H2D supports up to 10,000 individual users, making it well-suited for large apartment buildings, office complexes, warehouses, or any facility requiring multi-user access management.
Q: What is the operating voltage for the H2D RFID reader?
A: The H2D operates on DC 12V power. Ensure your power supply meets this requirement for reliable, stable operation. The device also features reverse polarity protection to safeguard against accidental wiring errors.
