Elubor 450nm Focusable Blue Laser Dot Module 2W 4W DC12V
Elubor 450nm Focusable Blue Laser Dot Module 2W 4W DC12V
Elubor Focusable Blue Laser Dot Module — 445nm/450nm | 100mW / 2W / 4W
Take your stage lighting, laser engraving, or DIY projects to the next level with the Elubor 450nm Blue Laser Dot Module. This compact yet powerful focusable laser module delivers a crisp, vivid blue dot beam ideal for professional stage and DJ setups, scientific experimentation, optical alignment, and maker projects. Available in 100mW, 2W, and 4W output power configurations, it offers versatility for both low-intensity precision work and high-powered applications.
Made in Mainland China.
Key Features
- 445nm / 450nm Wavelength — Produces a brilliant, high-visibility blue laser dot beam
- Multiple Power Options — Choose from 100mW, 2W, or 4W output to match your exact project needs
- Focusable Optics — Adjustable focus lens lets you dial in a sharp, precise dot at varying distances
- Built-In Cooling Fan — Fan-cooled aluminum housing enables extended continuous operation (ideal operating temp: below 30°C / 86°F)
- Constant Current Circuit Control — Stable, reliable power delivery for consistent beam output
- TTL Modulation Support — Compatible with TTL modulation signals for advanced control and integration
- Reverse Polarity Protection — Automatic positive/negative identification prevents damage from accidental misconnection
- DC 12V Operation — Runs on a standard 12V DC power supply (AC adapter compatible)
- Durable Aluminum Body — Compact 60mm × 33mm × 33mm housing (including fan) in aluminum blue or black finish
Technical Specifications
| Wavelength | 445nm / 450nm |
| Output Power | 100mW / 2W / 4W |
| Laser Shape | Dot |
| Operating Voltage | DC 12V |
| Working Current | <4A |
| Cooling Method | Fan Cooling |
| Modulation | TTL Modulation |
| Module Size | 60mm × 33mm × 33mm (incl. fan) |
| Case Material | Aluminum (Blue or Black finish) |
| Operating Temperature | -10°C to +40°C |
| Power Source | AC Adapter (DC 12V output) |
| Origin | Mainland China |
Wiring Guide
Connecting this laser module is straightforward:
- Red wire → Positive (+) terminal
- Black wire → Negative (−) terminal
- Blue & White wires → TTL modulation (leave unconnected if TTL is not used)
⚠️ Safety Notice
Always wear appropriate 450nm laser safety goggles when operating this module. High-powered laser beams can cause serious and permanent eye injury if viewed directly or indirectly. For laser safety guidelines, refer to the FDA Laser Products and Instruments safety page.
Housing Color Notice
Please note: the housing color of this module may be either blue or black depending on stock availability at the time of dispatch. Both variants are identical in performance and specifications.
What's in the Box

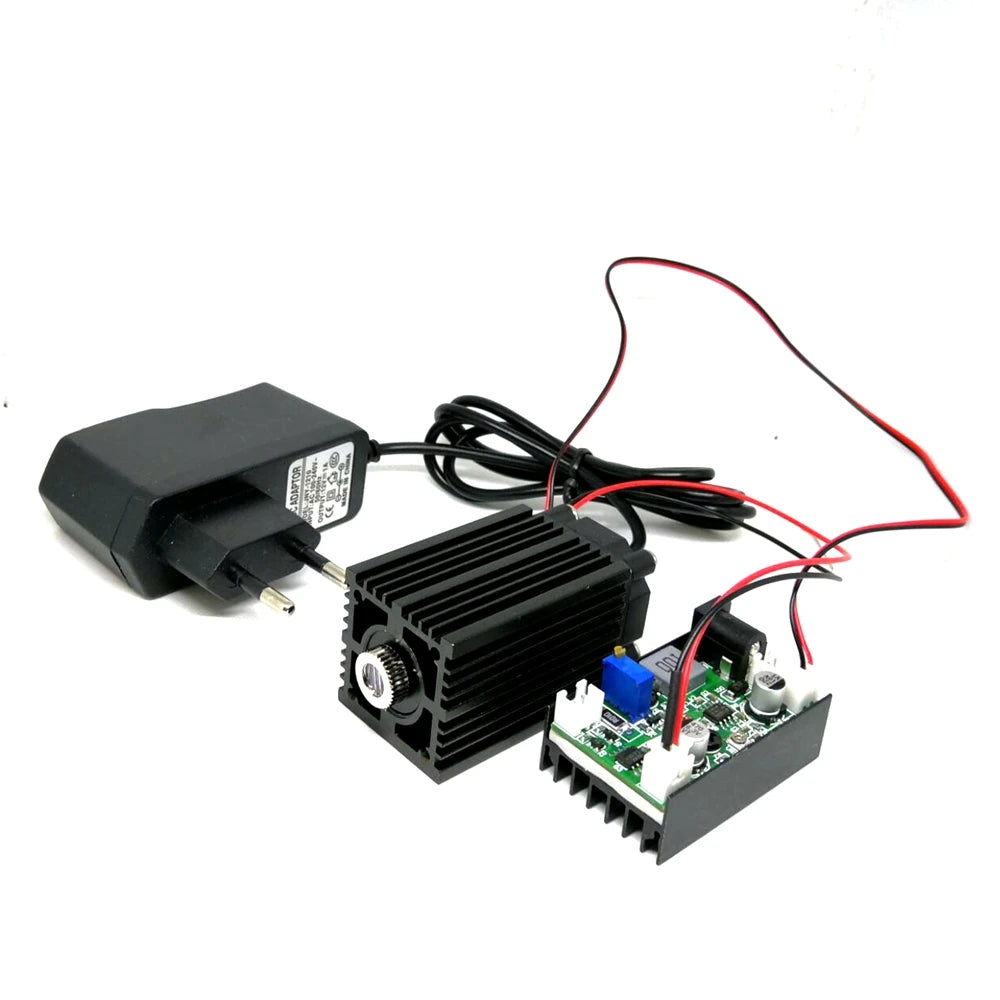

- 1× 450nm Blue Laser Diode Module (fan-cooled)
Frequently Asked Questions
Q: What power output levels are available for the 450nm blue laser dot module?
A: The Elubor focusable blue laser module is available in three output power options: 100mW, 2W, and 4W. Choose the power level that best suits your application — 100mW for low-intensity precision tasks, 2W for moderate power projects, or 4W for high-intensity stage lighting and engraving applications.
Q: Can this laser module run continuously without overheating?
A: Yes. This module features a built-in cooling fan and an aluminum housing designed for long-duration operation. However, for optimal performance and longevity, ensure the ambient operating temperature remains below 30°C (86°F) and that airflow around the fan is not obstructed.
Q: Does the module support TTL modulation?
A: Yes, the module supports TTL modulation frequency control, making it compatible with CNC laser engraver controllers and other TTL-enabled devices. If you do not require TTL, simply leave the blue and white wires unconnected and power the unit via the red (+) and black (−) wires only.
Q: Is a power supply included with the laser module?
A: The module requires a DC 12V power supply. Please check your selected variant — a DC 12V power adapter may be included depending on the option chosen. The module itself does not include batteries.
Q: What safety precautions should I follow when using this blue laser module?
A: Always wear 450nm wavelength laser safety goggles when the module is in operation. Never point the laser at people, animals, or reflective surfaces. Keep the adjustable lens cap in place to prevent dust contamination of the optics. Review the FDA's laser safety guidelines for comprehensive best practices.
