FOC Brushless Motor Driver 7-36V 5A 150W Hall ABZ Module

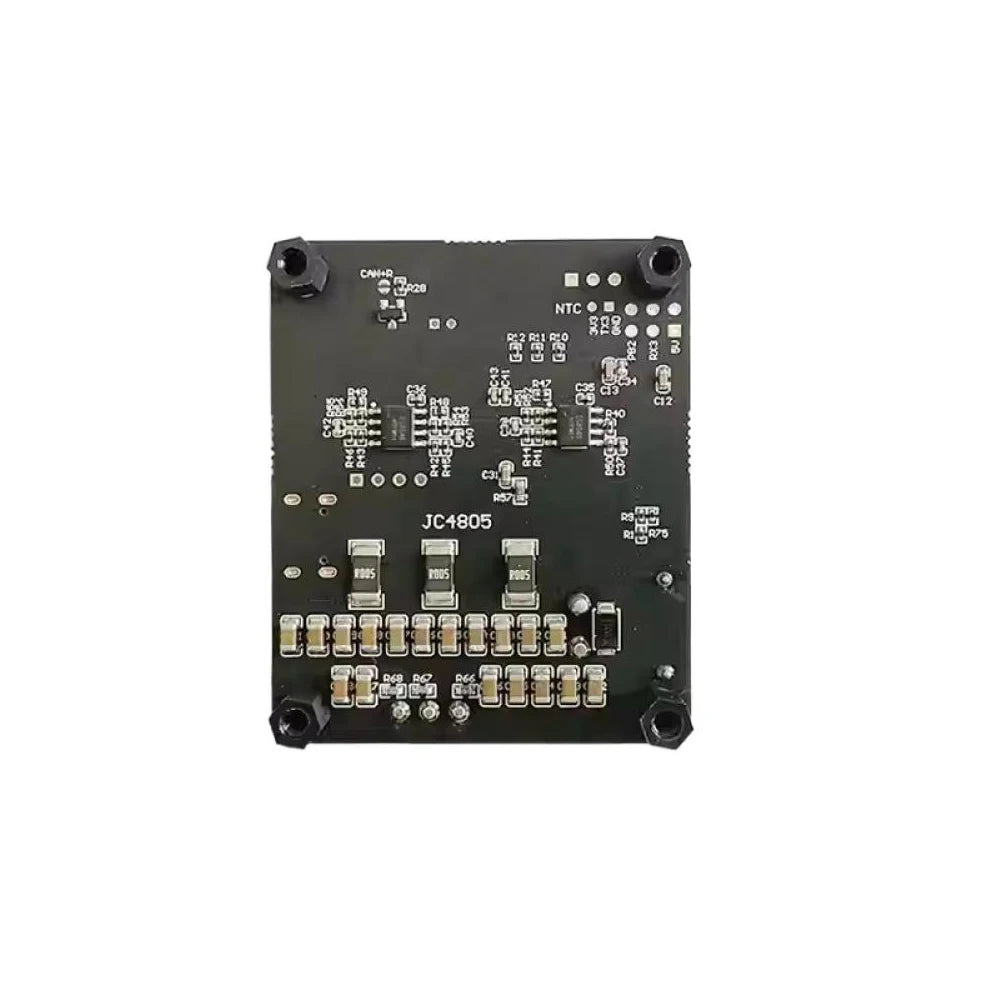

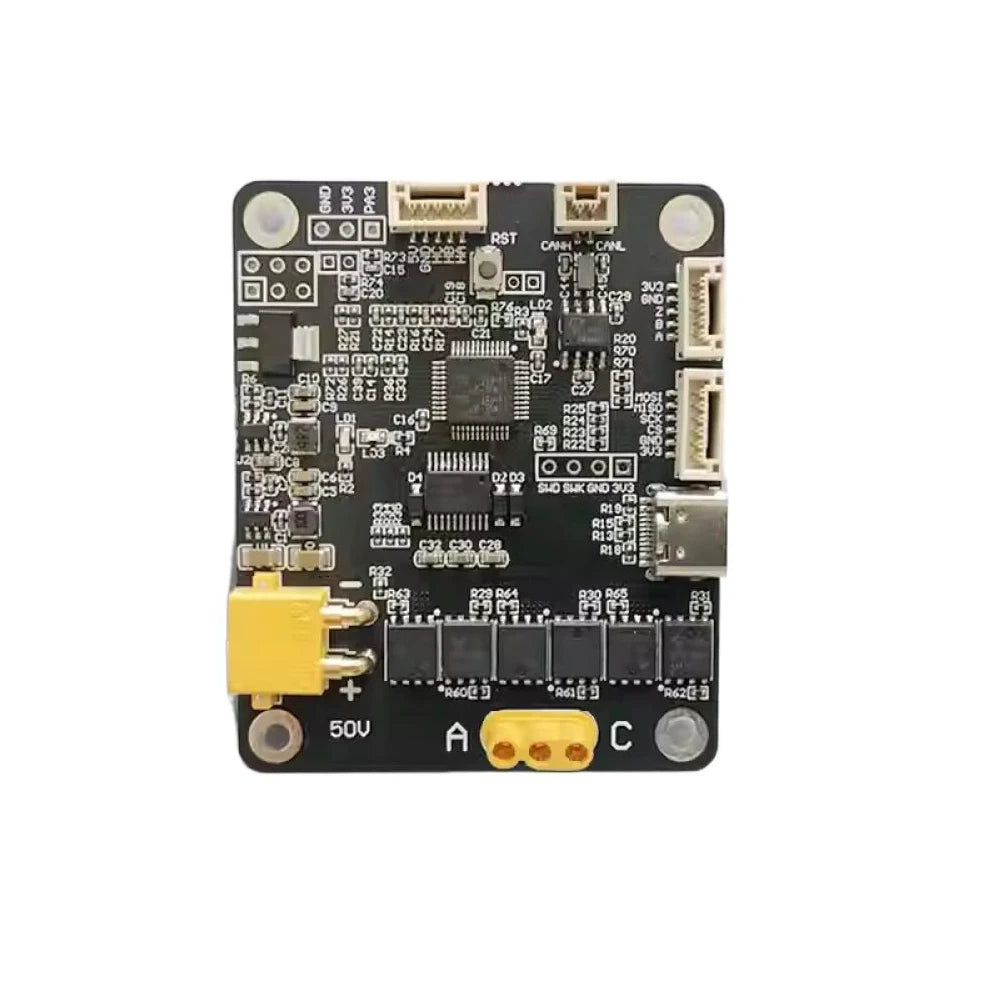

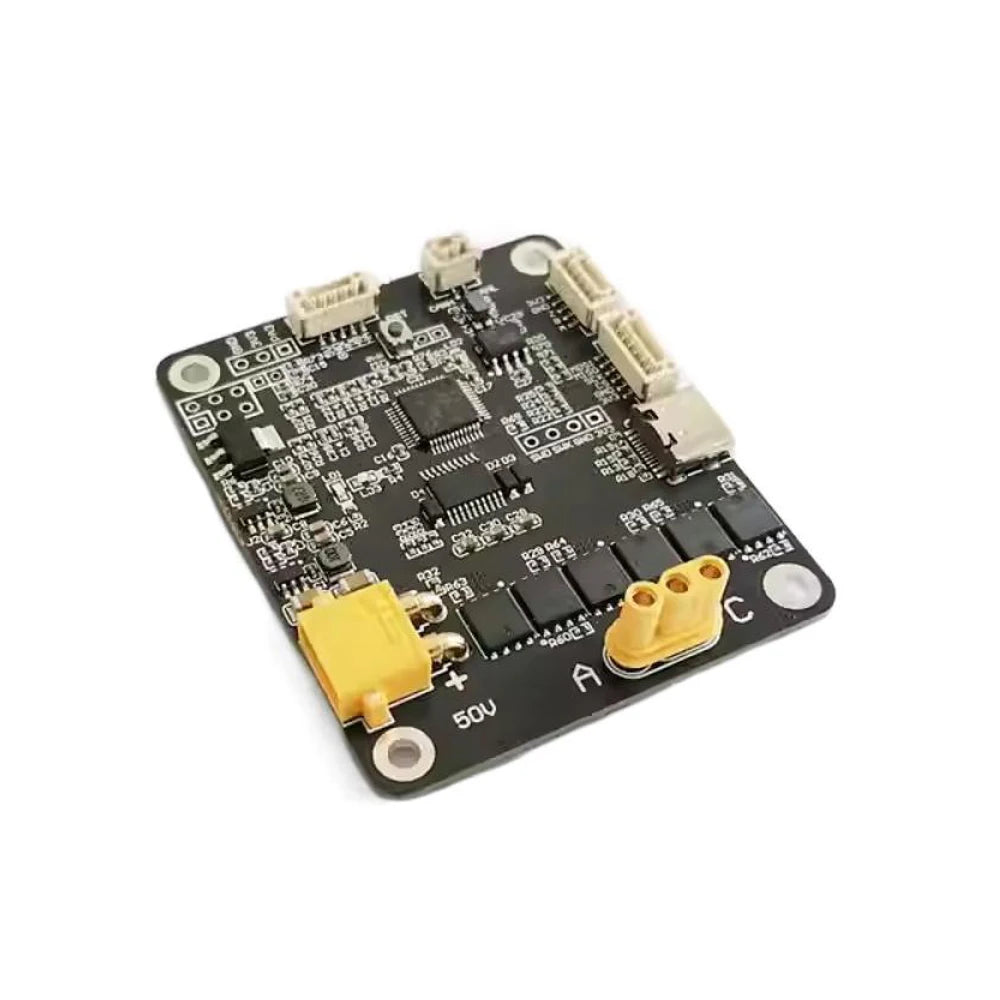

DC Brushless Motor Driver Board — 7–36V, 5A, 150W FOC Module

Take precise control of your brushless DC motors with this high-performance FOC (Field-Oriented Control) Motor Driver Module. Designed for makers, robotics engineers, and industrial hobbyists, this compact yet powerful board supports Hall motors, ABZ encoders, and PTZ/gimbal motors — all in one versatile package. With a Cortex-M4 + FPU MCU running at 200 MHz, it delivers smooth, efficient motor operation across torque, speed, and position control modes.

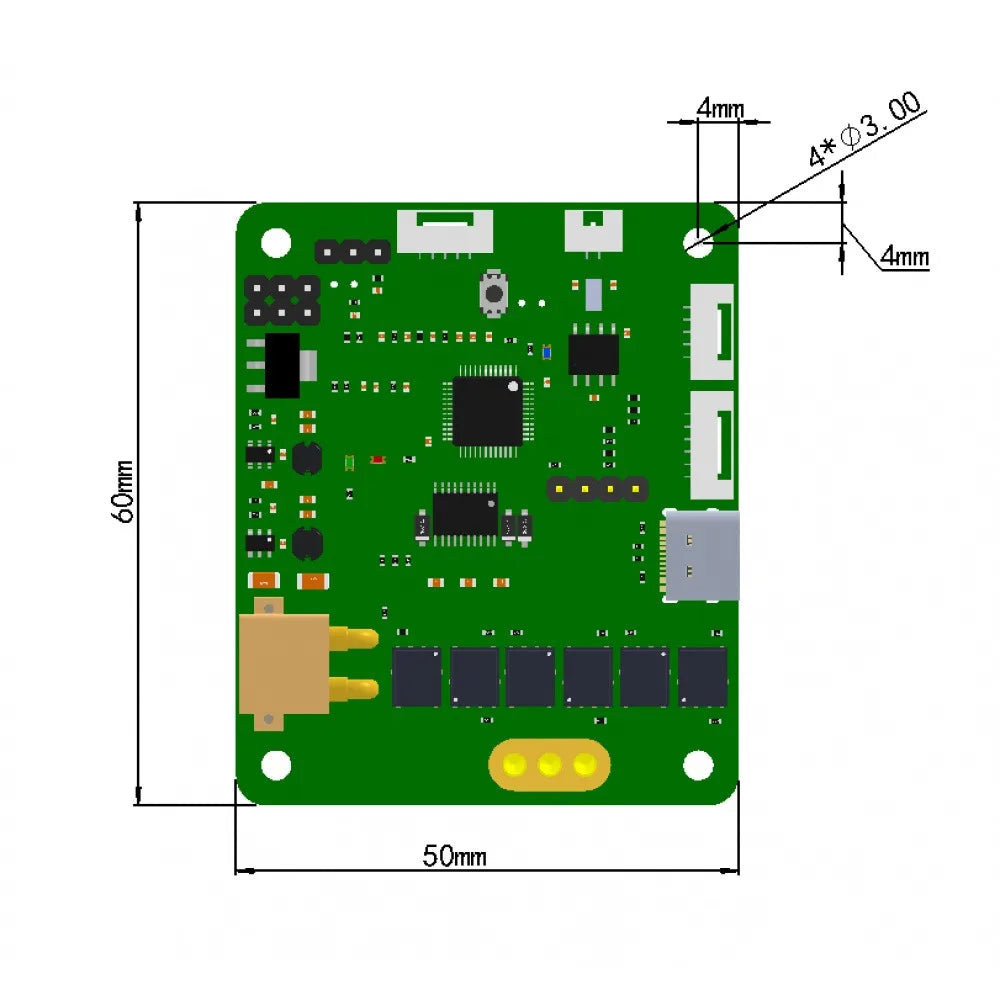

Key Specifications

• Operating Voltage: 7–36V DC
• Continuous Current: 5A
• Peak Current: 10A
• Max Power: 150W
• Maximum Speed: 10,000 RPM
• MCU: 200 MHz Cortex-M4 + FPU
• Speed & Position Loop Control Frequency: 8 kHz
• Drive PWM Frequency: 24 kHz
• Communication: USB, CAN (100K / 125K / 250K / 500K / 1 Mbps)

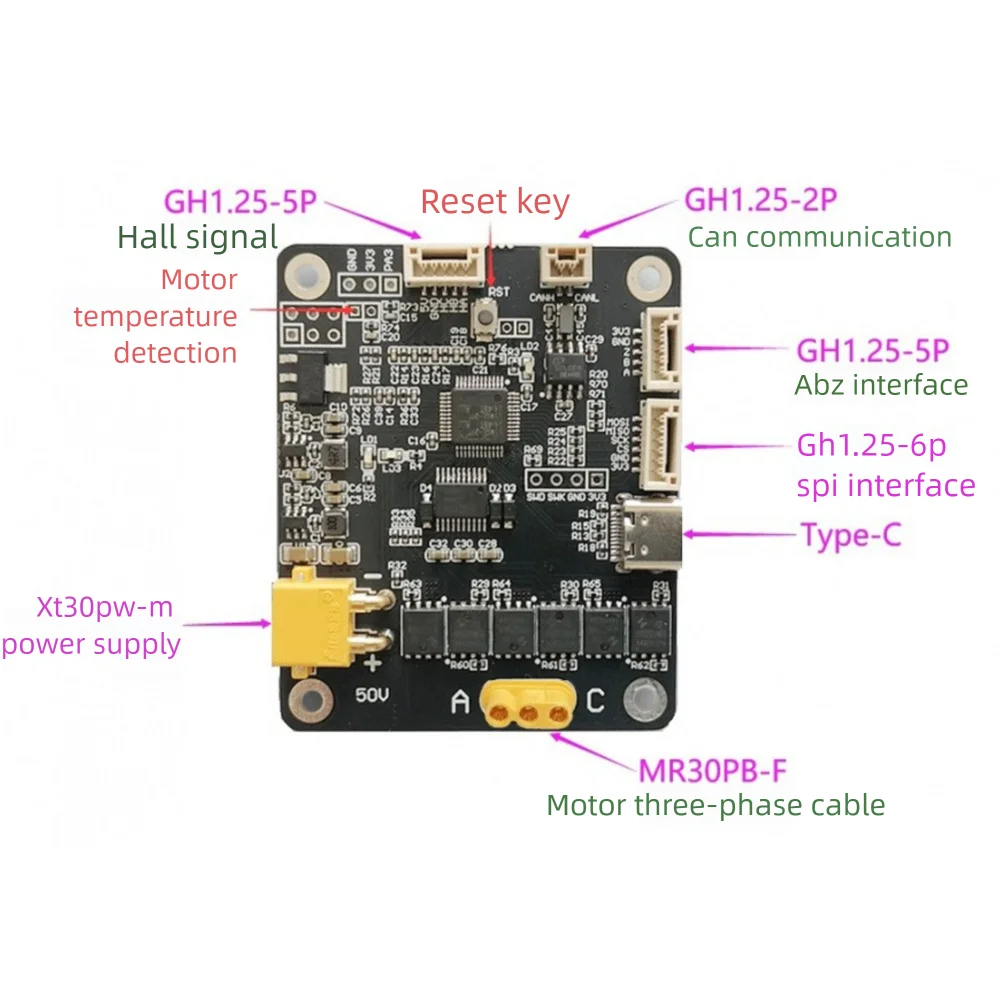

Motor & Encoder Compatibility

• Supported Motor Types: Hall motor, ABZ encoder motor, PTZ/gimbal motor, high-power DC brushless motor
• Magnetic Encoder Models: AS5047P, MT6701, MA730, TLE5012B, MT6835
• Current Sampling: Two-phase + bus current sampling
• Closed-Loop Control: Current loop, speed loop, position loop

Control Modes

• Torque Mode
• Speed Mode
• Position Ladder Track / Smooth Filter / Through Mode

Protection & Monitoring Features

• Under-voltage & over-voltage protection
• Over-current protection
• Drive temperature & motor temperature monitoring
• Onboard temperature sensor
• Status indicator LED + Error indicator LED

What's in the Box

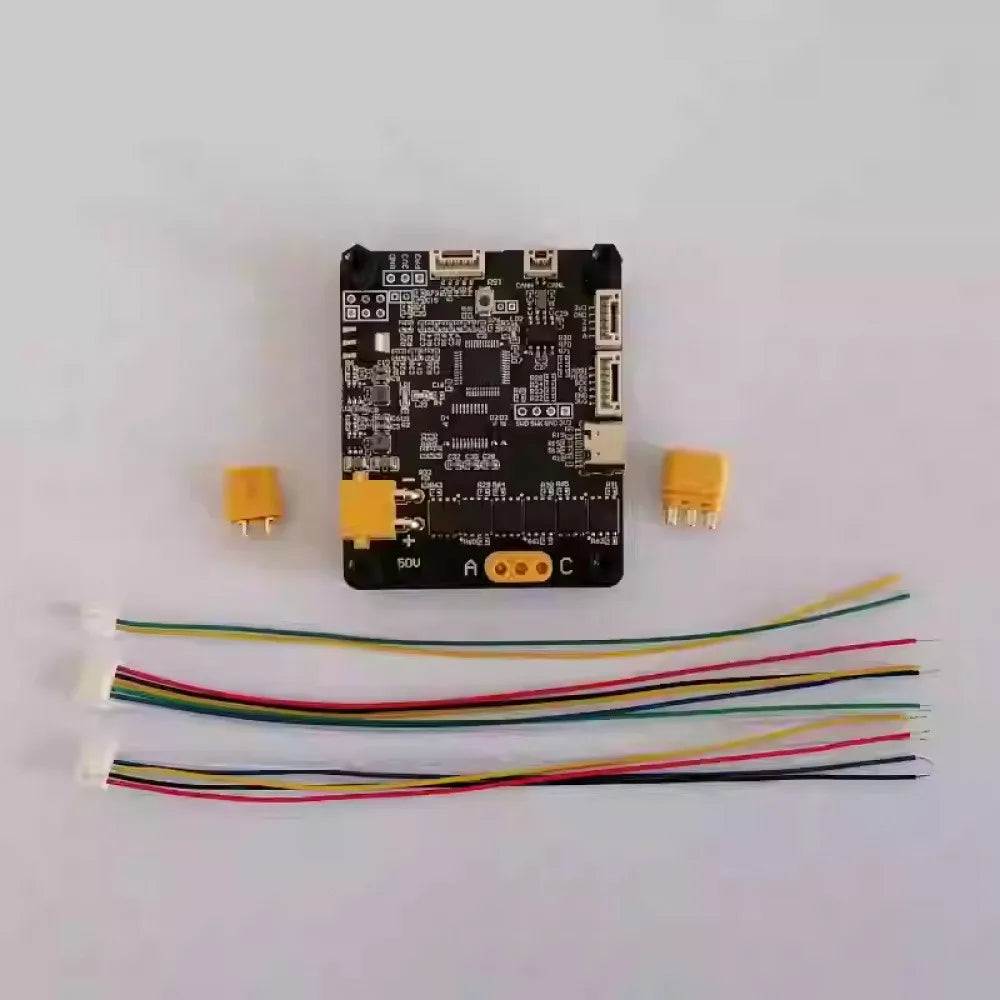

• 1× FOC Motor Driver Module
• 3× Cables

Notes

• Due to lighting and display differences, the actual color may vary slightly from product images.
• Please allow ±1–10 mm variation due to manual measurement.

Made in Mainland China.

For general guidance on safe electrical and electronics practices, visit the U.S. Consumer Product Safety Commission (CPSC). For standards related to electronics and motor drive systems, refer to NIST — National Institute of Standards and Technology.

Frequently Asked Questions

Q: What types of motors are compatible with this FOC motor driver module?

A: This driver board supports Hall-sensor brushless DC motors, ABZ encoder motors, PTZ/gimbal motors, and high-power DC brushless motors. It is also compatible with several magnetic encoder models including the AS5047P, MT6701, MA730, TLE5012B, and MT6835.

Q: What communication interfaces does this motor driver board support?

A: The board supports both USB and CAN communication. The CAN baud rate is configurable at 100K, 125K, 250K, 500K, or 1 Mbps, making it suitable for integration into multi-node robotics and automation systems.

Q: What built-in protections does this driver module include?

A: The module features under-voltage, over-voltage, over-current, drive temperature, and motor temperature protections. It also has onboard status and error indicator LEDs for real-time diagnostics, helping you monitor and safeguard your motor system during operation.

Q: Can this board handle 150W motors continuously?

A: The board supports a maximum power of 150W with a continuous current rating of 5A and a peak current of 10A. For sustained high-load applications, ensure adequate heat dissipation and stay within the specified operating voltage range of 7–36V DC.
