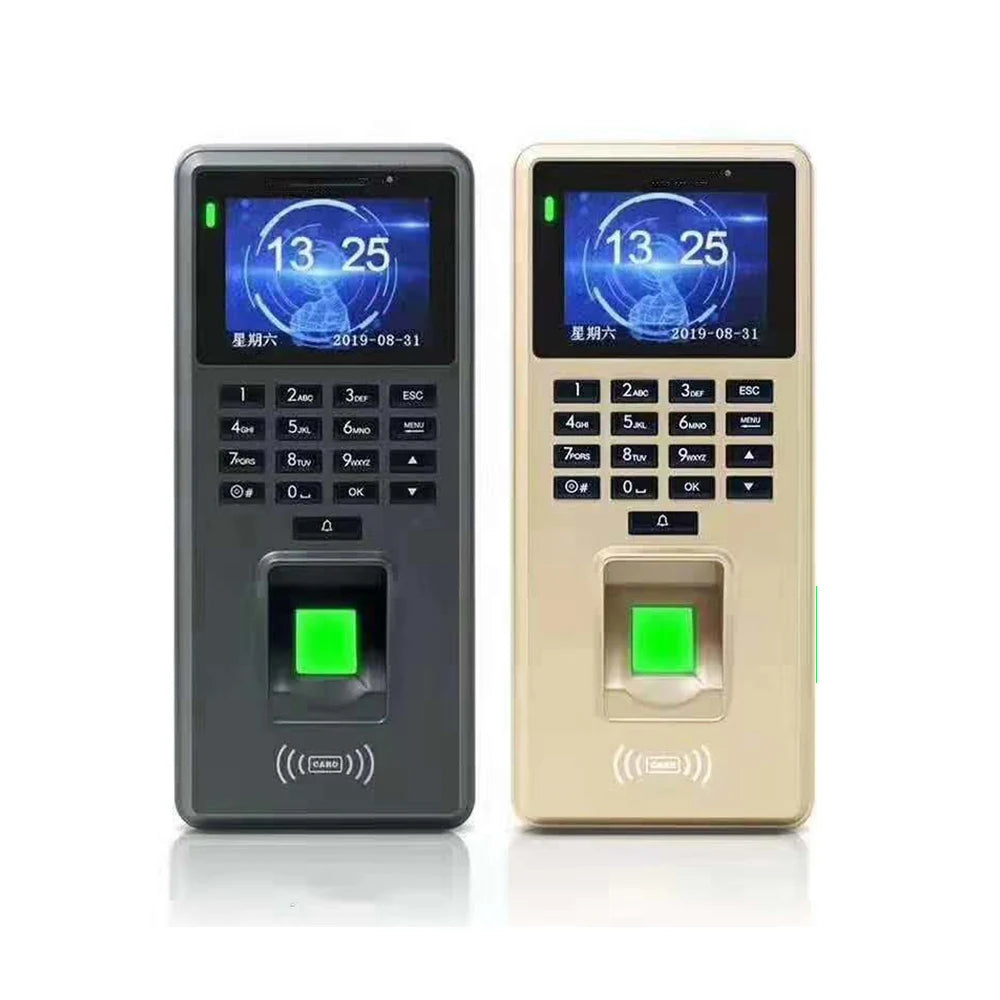

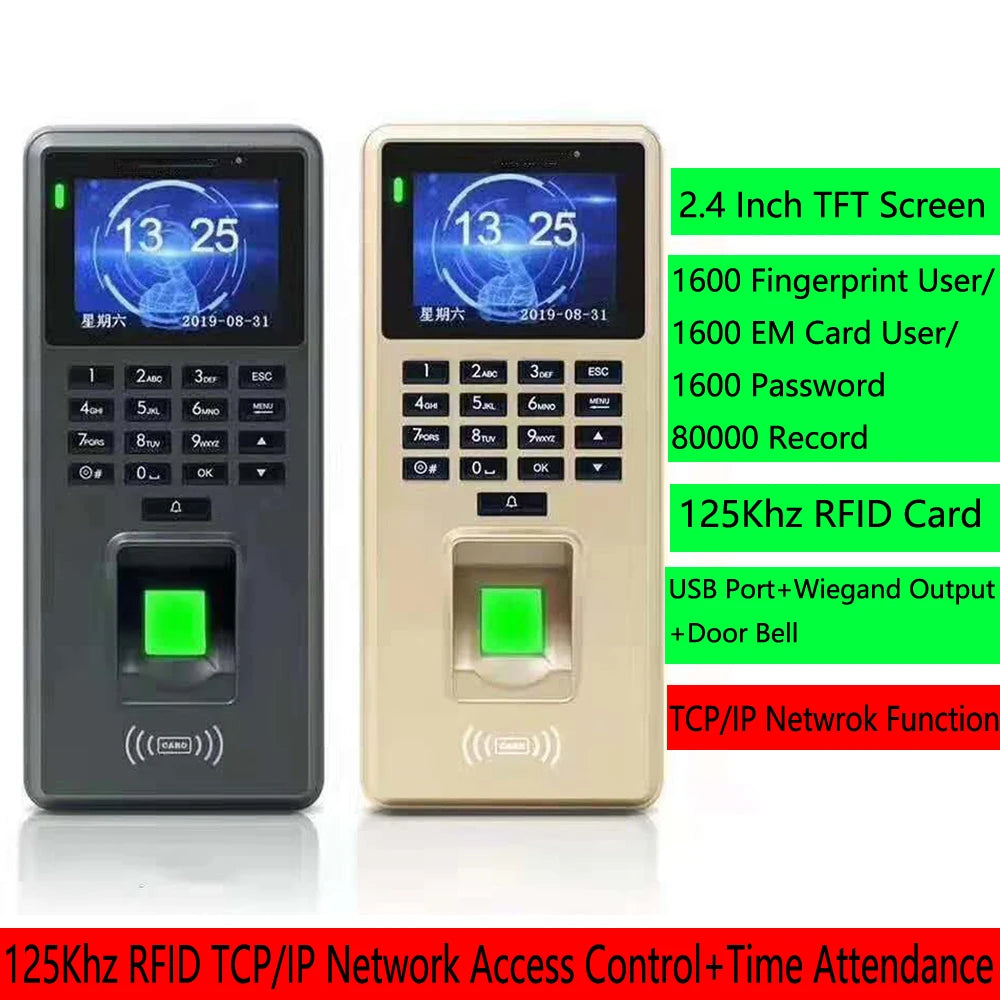

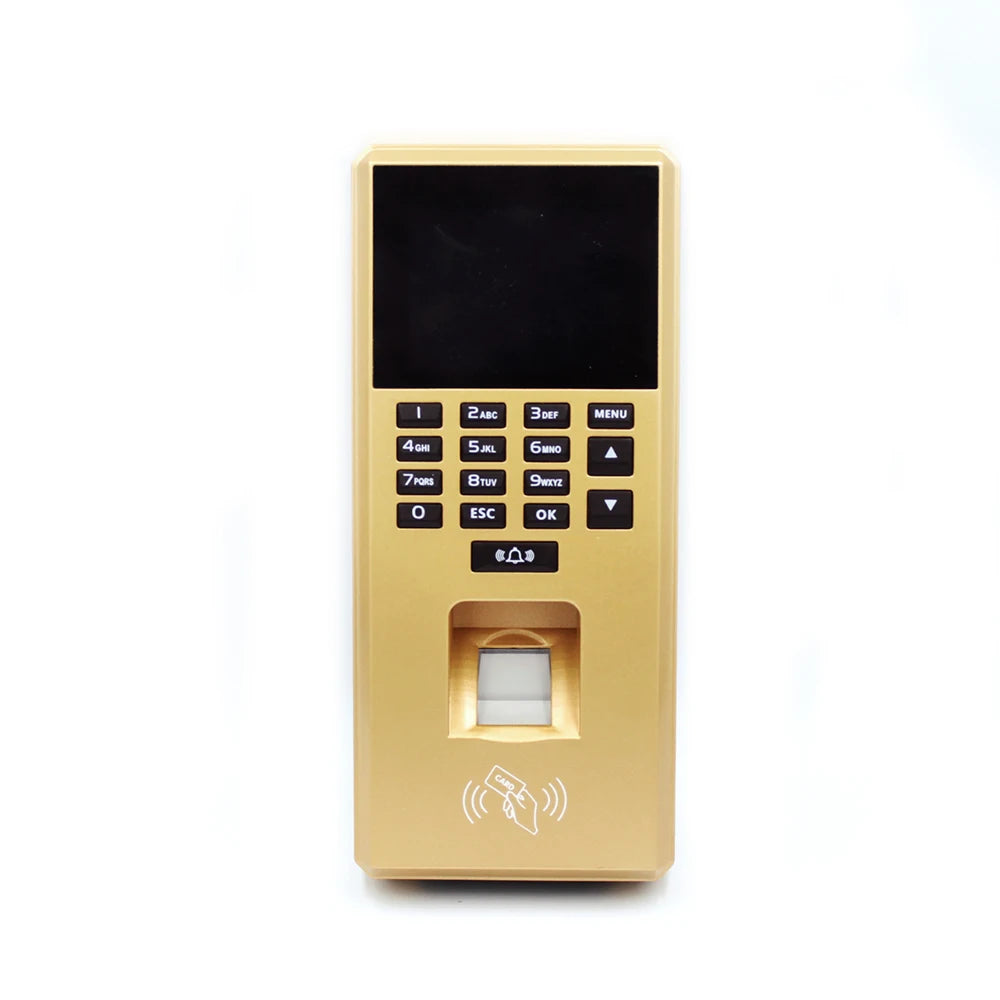

Asia-Teco F15 Fingerprint Time Attendance & Access Control System
Streamline workforce management with the Asia-Teco F15 — a feature-packed standalone biometric attendance recorder and access control terminal. Combining fingerprint recognition, RFID card scanning, and PIN-code entry on a bright 2.4-inch TFT color display, this all-in-one device is ideal for offices, factories, hotels, schools, and any facility that needs reliable, automated entry management and attendance tracking.
Made in Mainland China.
Why Choose the Asia-Teco F15?
- 3-in-1 Verification: Employees clock in via fingerprint, 125 kHz RFID card, or password — whichever suits your workflow.
- 80,000-Record Capacity: High-speed memory stores up to 80,000 attendance logs, supporting 1,600 fingerprints, 1,600 passwords, and 1,600 RFID cards — suitable for businesses of all sizes.

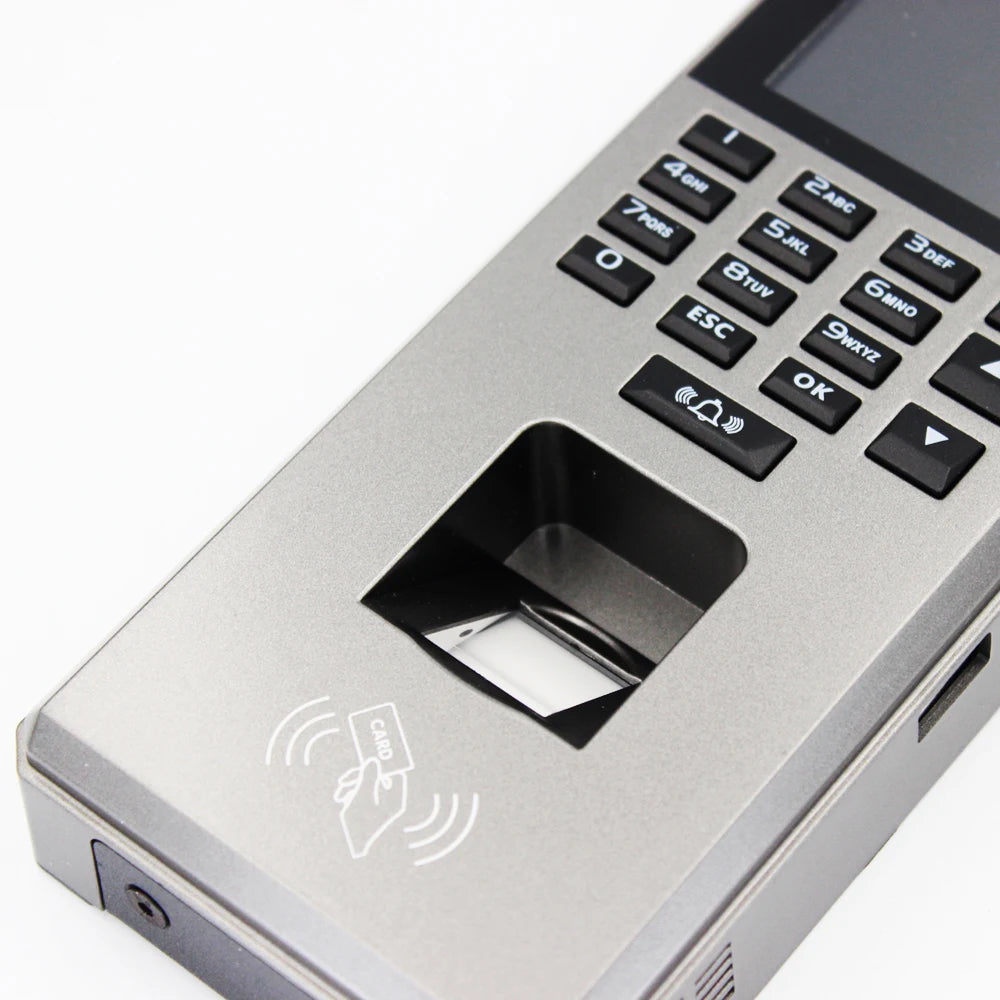

- 360° Full-Angle Fingerprint Recognition: The high-precision optical sensor accurately reads fingerprints from any angle in under 1 second, keeping entry lines moving efficiently.
- Flexible Connectivity: Supports TCP/IP, RS485, and USB flash drive data transfer — use it networked or completely offline. Download and upload attendance reports via USB drive (not included) without any wiring changes.
- Dual Function — Access Control + Attendance: Manages door access while simultaneously logging attendance data, eliminating the need for two separate systems.
- Wiegand 26/34 Output: Easily integrates with third-party electric locks, door sensors, exit buttons, alarm systems, and door bells for a complete access control setup.
- Energy-Saving Design: Built-in power management and an energy-efficient fingerprint sensor reduce operating costs over time.

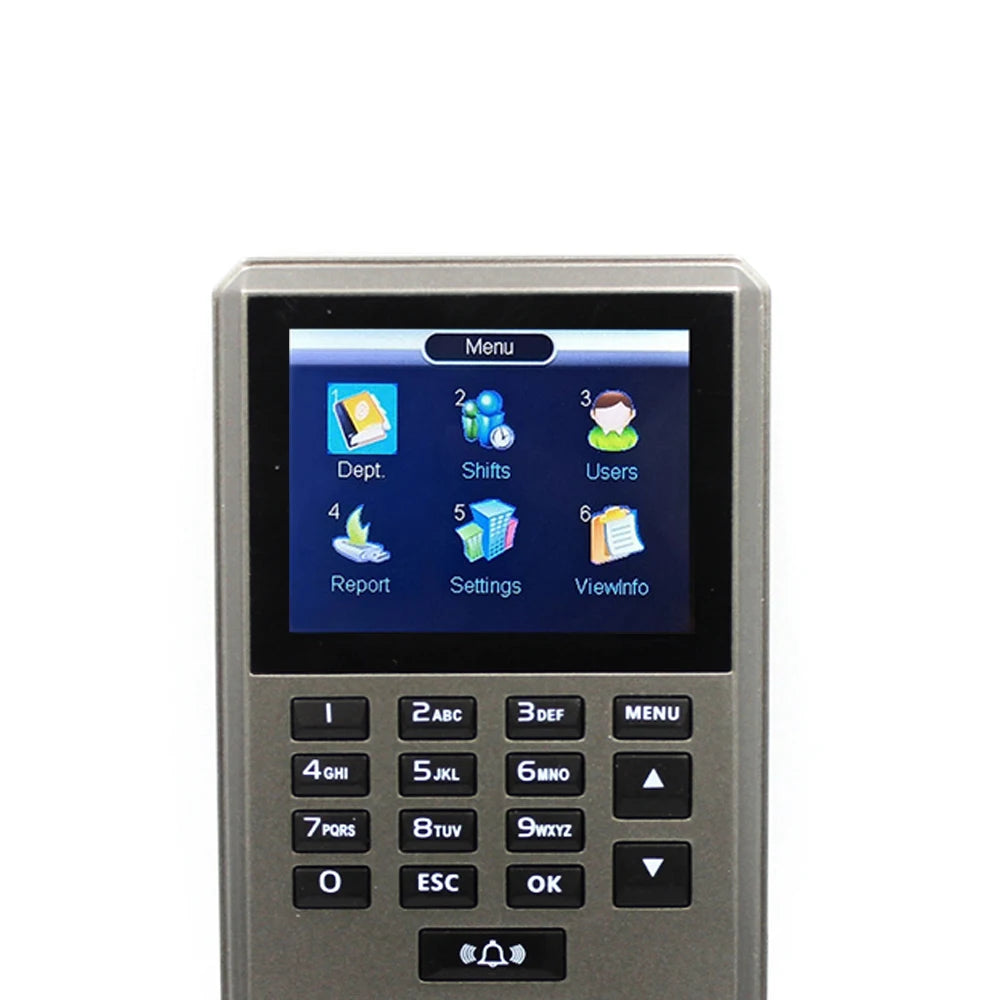

- Clear Reporting: T9 input method lets you label names, departments, and shifts directly on-device; attendance reports export directly to Excel-friendly formats for easy analysis.
- English & Chinese Language Support: Switch between languages to suit your team.
- HD Voice Prompts: High-definition audio feedback guides users through each verification step.
Full Technical Specifications
| Model | Asia-Teco F15 |
| Display | 2.4-inch TFT Color Screen |
| Fingerprint Sensor | High-precision anti-dry/wet optical collector, 16×16 mm effective area |
| User Capacity | 1,600 users |
| Fingerprint Capacity | 1,600 |
| Password Capacity | 1,600 |
| Card Capacity | 1,600 (125 kHz EM RFID cards) |
| Record Capacity | 80,000 entries |
| Identification Speed | ≤ 1 second |
| False Rejection Rate (FRR) | ≤ 0.1% |
| False Acceptance Rate (FAR) | ≤ 0.0001% |
| Communication | TCP/IP, RS485, USB Flash Drive |
| Verification Methods | Fingerprint, RFID Card, Password |
| Wiegand Output | 26/34 |
| Access Control Interface | Electric lock, door sensor, exit button, alarm, door bell |
| Working Mode | Online (TCP/IP) / Offline (USB) |
| Languages | English, Chinese |
| Operating Temperature | 0°C to +45°C |
| Dimensions | 190 mm (L) × 80 mm (W) × 25 mm (H) |
| Voice Prompt | HD human voice |
| Country of Origin | Mainland China |
Ideal Applications
The F15 is perfectly suited for controlling and monitoring access at:
- Corporate offices and co-working spaces
- Manufacturing plants and warehouses
- Hotels and hospitality venues
- Schools, universities, and educational institutions
- Healthcare facilities and clinics
- Retail stores and service centers
For additional guidance on workplace security best practices, visit the Cybersecurity & Infrastructure Security Agency (CISA) or explore physical security standards at NIST Cybersecurity Resources.
Frequently Asked Questions
Q: How many employees can the Asia-Teco F15 fingerprint time attendance recorder support?
A: The F15 supports up to 1,600 users, storing 1,600 fingerprints, 1,600 passwords, and 1,600 RFID cards simultaneously. Its 80,000-record capacity makes it suitable for small businesses as well as larger enterprises tracking attendance over extended periods.
Q: Can this fingerprint attendance machine work without a network connection?
A: Yes. The F15 operates in both online (TCP/IP/RS485 networked) and offline modes. In offline mode, attendance data is downloaded and uploaded via a USB flash drive (sold separately), making it easy to deploy in locations without a wired network infrastructure.
Q: What RFID cards are compatible with this access control system?
A: The F15 is compatible with standard 125 kHz EM RFID cards (EM4100 format). These are widely available and commonly used in workplace access control environments. Please note that not all machines sold under this product line include RFID functionality — confirm this feature is active on your unit before purchase.
Q: Does the F15 integrate with third-party door locks and security hardware?
A: Yes. The device features Wiegand 26/34 output along with relay output and dedicated interfaces for third-party electric locks, door sensors, exit push buttons, alarm systems, and door bells — giving you full flexibility to build a comprehensive access control setup.
Q: How do I export attendance reports from the F15?
A: You can export attendance data in two ways: (1) via TCP/IP network connection to your PC using compatible attendance management software, or (2) by inserting a USB flash drive directly into the device to copy the data, which can then be opened and analyzed in spreadsheet applications like Microsoft Excel.
