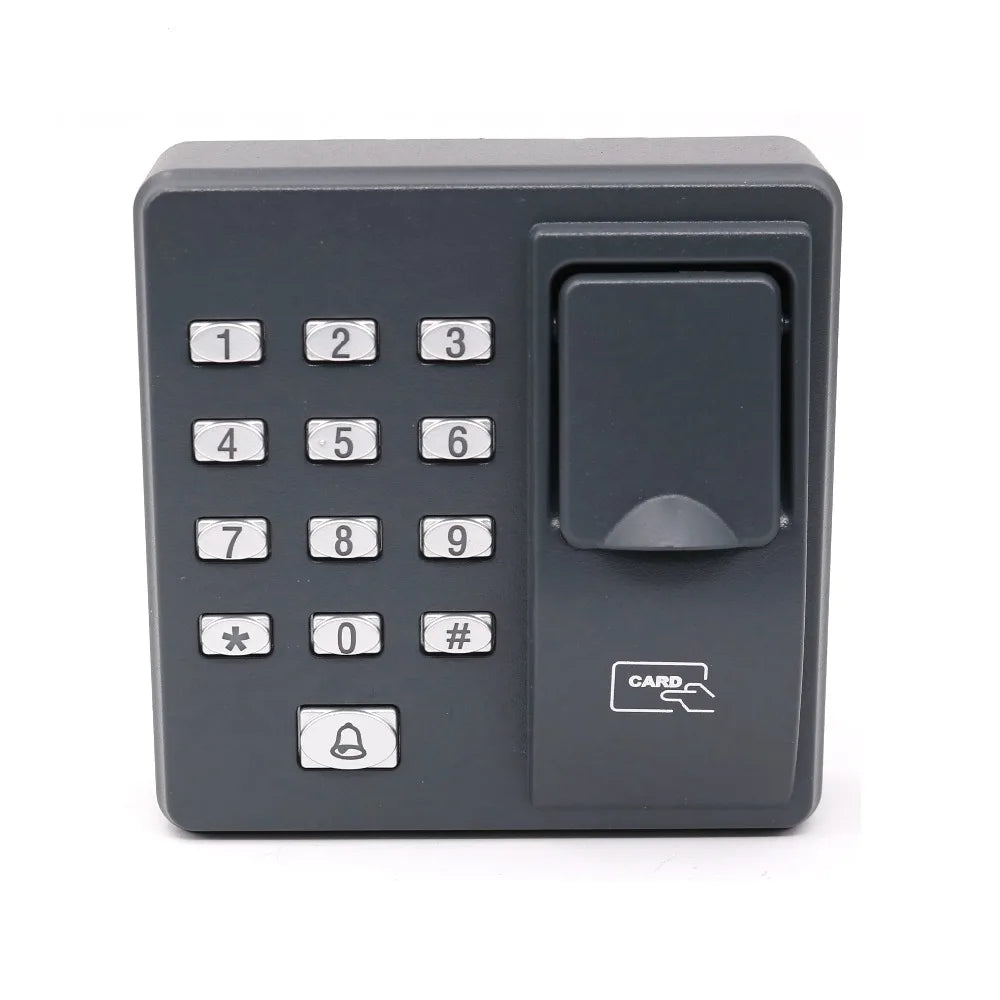

LIHTNE X6 Fingerprint & RFID Standalone Access Control System
Take control of who enters your space with the LIHTNE X6 Standalone Access Controller. This compact, rugged unit combines biometric fingerprint recognition with 125KHz EM4100 RFID card reading — giving you three flexible entry modes: fingerprint only, card only, or dual fingerprint + card verification for maximum security.
Whether you're securing an office, warehouse, server room, or residential property, the X6 delivers fast, reliable access management without the need for a connected PC or network — a true standalone solution.
Key Features
- 500 Fingerprint + 500 Card Users — ample capacity for small to mid-sized facilities
- Three Entry Modes — fingerprint, RFID card, or fingerprint + card combination
- Fast Identification — under 1.5 seconds even with a full 500-fingerprint database
- Optical Fingerprint Sensor — high-precision Algorithm V10.0 with FAR <0.0001% and FRR <0.01%
- 125KHz EM4100 RFID Cards — 10 ID cards included in the package
- Built-in Buzzer — audible feedback for granted and denied access events
- Anti-Tamper Protection — built-in Light Dependent Resistor (LDR) triggers an alarm if the unit is tampered with or removed
- Broad Access Control Interface — compatible with 3rd-party electric locks, exit buttons, door sensors, alarms, and bells
- Wide Operating Range — functions from -20°C to 60°C (-4°F to 140°F) and 20–80% humidity
- Compact Form Factor — 88mm × 88mm × 25mm; fits standard single-gang wall boxes
Technical Specifications
| Model | LIHTNE X6 |
| Sensor Type | Optical |
| Card Type | 125KHz EM4100 |
| Fingerprint Capacity | 500 |
| Card Capacity | 500 |
| Identification Speed | <1.5 seconds |
| Algorithm Version | V10.0 |
| FAR | <0.0001% |
| FRR | <0.01% |
| Input Voltage | 12V DC |
| Current Draw | <160mA max |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 20–80% RH |
| Dimensions | 88mm × 88mm × 25mm |
What's in the Box
- 1 × Fingerprint Access Controller (LIHTNE X6)
- 10 × 125KHz EM4100 ID Cards
- 1 × Power Cable
- 1 × User Manual
Made in Mainland China.
For general guidance on physical security systems and best practices, visit the Cybersecurity and Infrastructure Security Agency (CISA). You can also review access control standards and consumer safety information at the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can the LIHTNE X6 fingerprint access controller work without a computer or network connection?
A: Yes! The X6 is a fully standalone access control unit. All enrollment and management is done directly on the device — no PC, software, or network connection is required. This makes it ideal for small offices, server rooms, storage areas, and residential doors.
Q: How many users can be stored on the LIHTNE X6 RFID fingerprint access system?
A: The X6 supports up to 500 fingerprint users and 500 RFID card users simultaneously, making it well-suited for small to medium-sized facilities. You can also require both a fingerprint and a card for two-factor entry verification.
Q: What type of electric lock is compatible with the X6 access controller?
A: The X6 is compatible with most standard 3rd-party 12V DC electric locks, including electric strikes, magnetic locks (maglocks), and electric bolt locks. It also interfaces with exit buttons, door sensors, alarms, and bells for a complete access control setup.
Q: What does the anti-tamper LDR feature do on this fingerprint access controller?
A: The built-in Light Dependent Resistor (LDR) detects changes in light levels caused by unauthorized removal or tampering of the device. If someone attempts to pry the unit off the wall, an alert is triggered — adding an important extra layer of physical security.
