Asia-Teco Dual-Frequency Fingerprint Access Control System
Upgrade your door security with the Asia-Teco T886/TF886 Fingerprint Access Control System — a sleek, all-in-one standalone unit combining fingerprint recognition, RFID card access, and PIN entry into one compact, waterproof panel. Designed for high-end office buildings, residential complexes, and public facilities, this system offers a premium zinc alloy and tempered glass finish with powerful, reliable performance.
Made in Mainland China.
Triple Unlock Methods
Access your door three ways — scan a registered fingerprint in as little as 0.3 seconds, tap a compatible 125KHz EM or 13.56MHz M1 RFID card (read distance: 2–5 cm), or enter a secure PIN password. With capacity for up to 100 fingerprints and 2,300 RFID cards, this system scales easily for homes, small offices, or shared facilities.

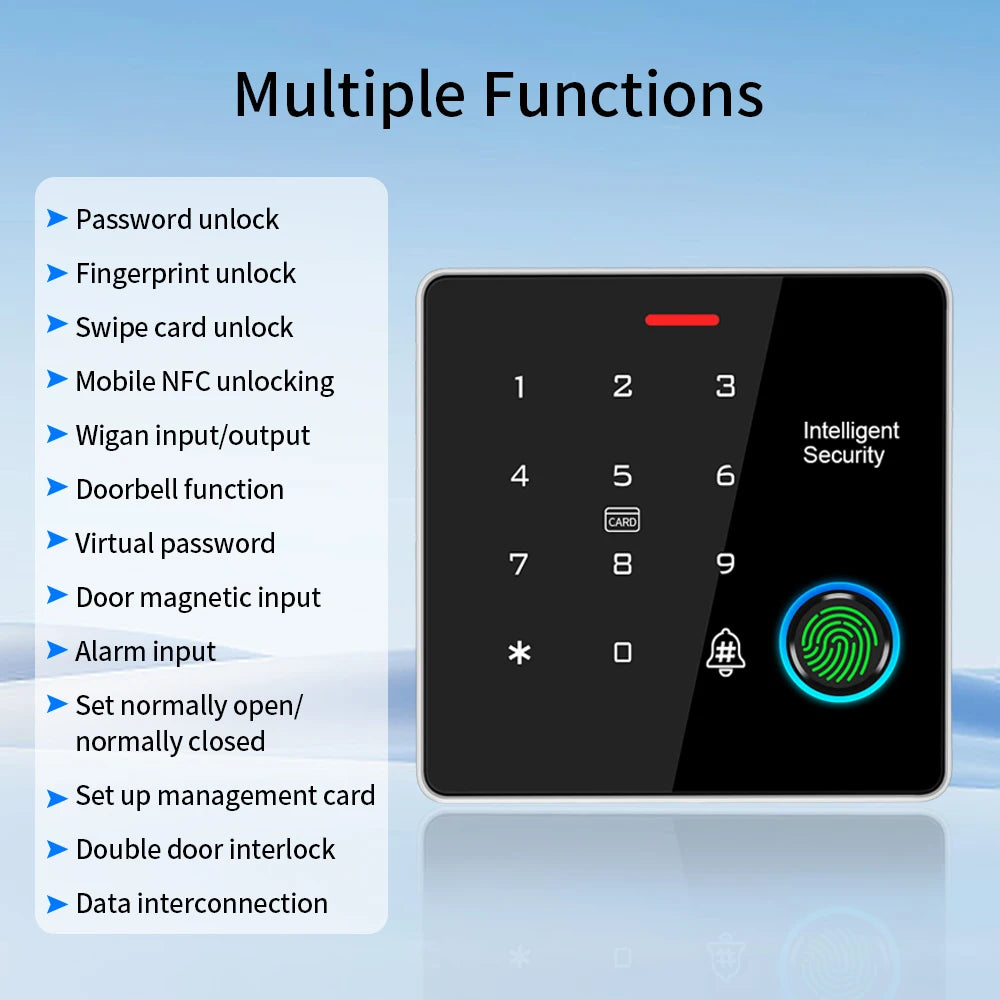

Key Features
- Dual-Frequency RFID: Compatible with both 125KHz EM cards and 13.56MHz M1 cards for maximum flexibility
- IP67 Waterproof Rating: Operates reliably in outdoor and harsh environments, rated for temperatures from -40°C to 60°C and humidity 10%–90%
- Fast Fingerprint Recognition: 0.3-second identification speed for smooth, seamless entry
- Adjustable Door Relay Time: Set the door open duration from 1 to 99 seconds to suit your setup
- Wiegand Output: Configurable from 26-bit to 34-bit for integration with existing access systems
- Administrator Control: Set a Master Card and Master Code for easy, autonomous user management
- Backlit Keypad: Enable or disable the backlight as needed for low-light environments
- Tamper-Evident Design: Zinc alloy body with durable tempered glass front panel deters tampering
- CE & FCC Certified: Meets international safety and electromagnetic compatibility standards
Technical Specifications
| Model | T886 / TF886 |
| Working Voltage | DC 12V |
| Standby Current | 30mA |
| Card Capacity | 2,300 cards |
| Fingerprint Capacity | 100 fingerprints |
| Card Types | 125KHz EM Card & 13.56MHz M1 Card |
| Card Read Distance | 2–5 cm |
| Recognition Speed | 0.3 seconds |
| Door Relay Time | 1–99 seconds (adjustable) |
| Wiegand Format | 26-bit to 34-bit |
| Waterproof Rating | IP67 |
| Operating Temperature | -40°C to 60°C |
| Humidity Range | 10%–90% |
| Dimensions | 86 × 86 × 13 mm |
| Material | Zinc alloy / Tempered glass panel |
| Certifications | CE, FCC |
Ideal Use Cases
- Home front doors and gates
- Office buildings and co-working spaces
- Residential community entrances
- Server rooms and secure storage areas
- Outdoor access points requiring weatherproof hardware
For general guidance on electronic access control standards and best practices, visit the NIST Cybersecurity Resource Center.
Frequently Asked Questions
Q: What card types are compatible with the Asia-Teco T886 access control system?
A: The Asia-Teco T886/TF886 supports both 125KHz EM cards and 13.56MHz M1 RFID cards, giving you dual-frequency compatibility with a wide range of standard access cards. The card reading distance is 2–5 cm.
Q: Is this fingerprint access control system waterproof for outdoor use?
A: Yes. The system carries an IP67 waterproof rating and is designed to operate in temperatures ranging from -40°C to 60°C with humidity levels between 10% and 90%, making it suitable for outdoor doors and gates.
Q: How many users can be registered on this access control unit?
A: The system supports up to 100 fingerprints and up to 2,300 RFID cards, making it well-suited for both small residential setups and larger multi-user office or commercial environments.
Q: Does this unit integrate with existing access control systems via Wiegand output?
A: Yes. The Asia-Teco T886 features a configurable Wiegand output format ranging from 26-bit to 34-bit, allowing seamless integration with most existing access control panels and systems.
