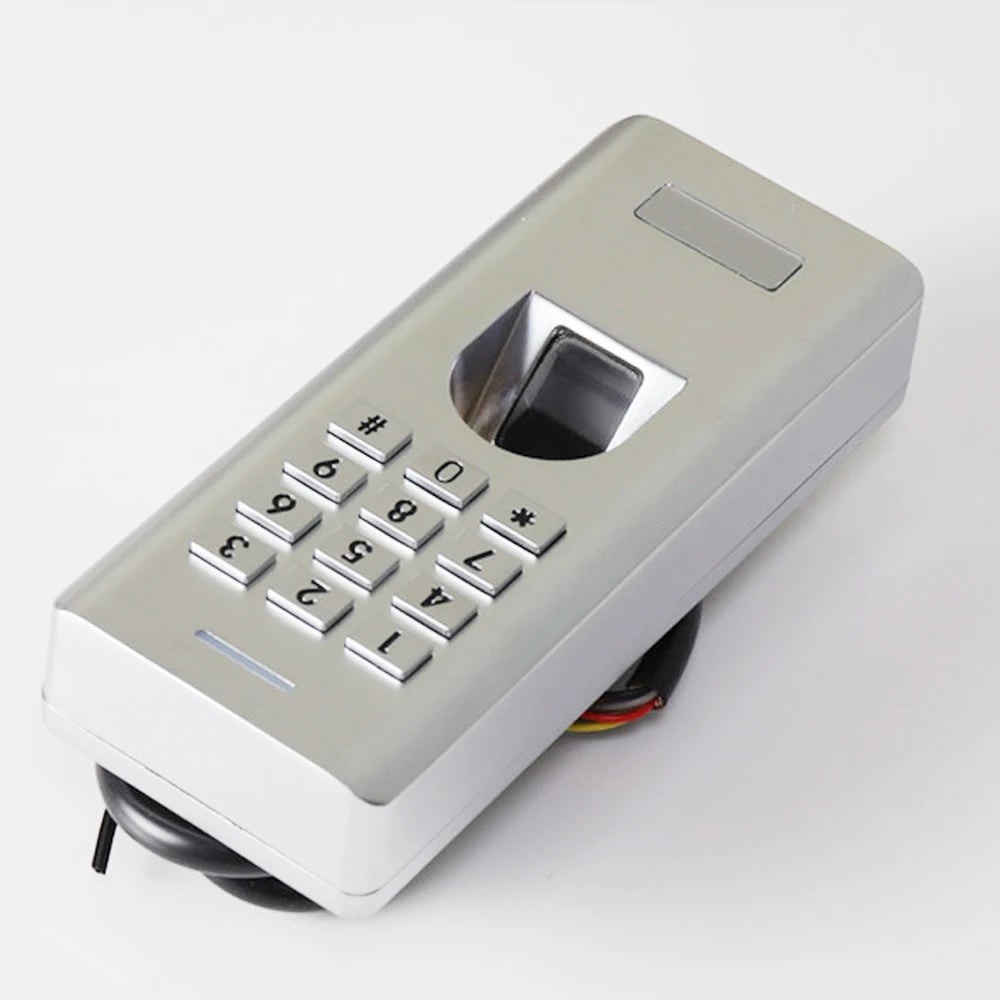

Asia-Teco SF2 Standalone Fingerprint & PIN Keypad Access Control Reader
Take full control of who enters your property with the Asia-Teco SF2 Standalone Fingerprint & Password Keypad Access Control Reader. Engineered for residential gates, commercial doors, and industrial entryways, this ruggedized IP66-rated reader combines biometric fingerprint scanning with a PIN keypad — giving you flexible, no-key-required entry for up to 1,000 fingerprint users and 2,000 PIN users. Made in Mainland China.
Why Choose the Asia-Teco SF2?
- Dual Authentication: Grant access via fingerprint, PIN, or a combination of both for added security layers.
- High Capacity: Supports up to 3,000 total users — 1,000 fingerprints and 2,000 PINs — ideal for businesses, apartment complexes, and shared facilities.

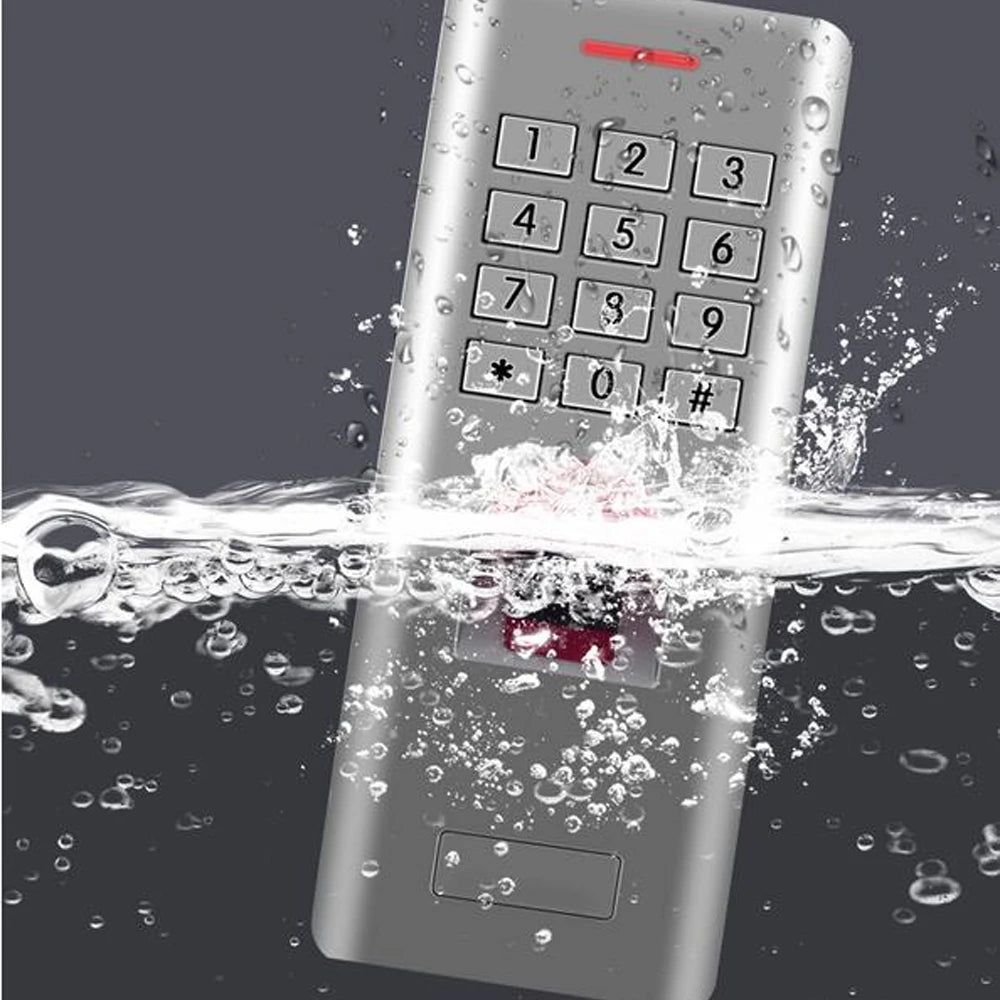

- IP66 Weatherproof Metal Housing: Built tough with a durable metal case rated to IP66, keeping moisture, dust, and the elements out — whether installed outdoors at a gate or exposed entryway.
- Ultra-Fast Identification: Optical fingerprint module with 500 DPI resolution identifies authorized users in under 1 second, with a False Acceptance Rate (FAR) below 0.001% and a False Rejection Rate (FRR) below 0.01%.
- Flexible PIN Lengths: Set 4–6 digit PINs to balance security and convenience for every user.
- Wiegand 26–44-bit Output: Integrates seamlessly with most existing access control panels, door lock systems, and gate openers.
- Anti-Tamper Alarm: Built-in alarm and buzzer output triggers immediately if the unit is tampered with, deterring unauthorized interference.
- Fail Secure Mode: In the event of a power interruption, the door defaults to the locked (secure) state — your premises stay protected.
- Interlock for 2 Doors: Link two SF2 units together to manage interlocked double-door entry systems with ease.
- Adjustable Relay Timing: Relay output time adjustable 0–99 seconds (default: 5 sec); alarm output time adjustable 0–3 minutes (default: 1 minute).
- Wide Operating Temperature: Reliable performance from -30°C to 60°C (-22°F to 140°F) standard, or -40°C to 60°C (-40°F to 140°F) optionally — suitable for harsh climates.
- Pulse & Toggle Modes: Choose the relay mode that best fits your lock or gate hardware setup.
Technical Specifications
| Model | Asia-Teco SF2 |
| Total User Capacity | 3,000 |
| Fingerprint Users | 1,000 |
| PIN Users | 2,000 |
| PIN Length | 4–6 digits |
| Fingerprint Module | Optical, 500 DPI |
| Identification Time | <1 second |
| FAR / FRR | <0.001% / <0.01% |
| Operating Voltage | 12V DC |
| Idle Current / Active Current | ≤45mA / ≤150mA |
| Relay | 1× (NO, NC, Common); Lock Output: 2A max; Alarm Output: 5A max |
| Wiegand Interface | 26–44-bit output |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand output |
| Security Mode | Fail Secure |
| IP Rating | IP66 (weatherproof) |
| Operating Temperature | -30°C to 60°C (standard) / -40°C to 60°C (optional) |
| Operating Humidity | 20%RH – 90%RH |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Residential entry doors and driveway gates
- Office and commercial building access control
- Warehouses, storage facilities, and server rooms
- Schools, gyms, and multi-tenant properties
- Any outdoor installation requiring weatherproof, keyless entry
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the National Institute of Standards and Technology (NIST) – Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: Can the Asia-Teco SF2 fingerprint keypad be used outdoors?
A: Yes. The SF2 features an IP66-rated metal housing, which means it is fully protected against powerful water jets and dust ingress, making it well-suited for outdoor gate and door installations in all weather conditions.
Q: Does the SF2 work as a standalone unit, or does it require a separate access control panel?
A: The SF2 is a standalone access control reader — it stores user fingerprints and PINs internally and controls a relay directly, so no separate access control panel is required. It also supports Wiegand 26–44-bit output for integration with third-party panels when needed.
Q: How many users can be registered on the SF2 fingerprint keypad?
A: The SF2 supports up to 3,000 total users — including up to 1,000 fingerprint users and up to 2,000 PIN-only users — making it suitable for both small homes and larger commercial or multi-tenant environments.
Q: What happens to the door lock if the power goes out?
A: The SF2 operates in Fail Secure mode. If power is lost, the relay defaults to the locked state, ensuring that access is denied and your premises remain secure during a power interruption.
Q: Can I connect the SF2 to an existing access control system?
A: Yes. The SF2 supports Wiegand 26–44-bit output, which is compatible with the vast majority of modern access control panels and gate opener systems, allowing easy integration into your existing security infrastructure.
