Fingerprint Keypad Access Control System – Zinc Alloy IP67
Fingerprint Keypad Access Control System – Zinc Alloy IP67
Zinc Alloy Fingerprint Keypad Standalone Access Control System
Upgrade your entry security with the Asia-Teco TF886/T886/TC886 all-in-one standalone access control unit. Crafted from premium zinc alloy with a durable tempered glass front panel, this sleek keypad combines fingerprint recognition, RFID card reading, and PIN code entry into one compact, tamper-evident device. Ideal for high-end office buildings, residential complexes, and public facilities requiring reliable, contactless door access.
Key Features

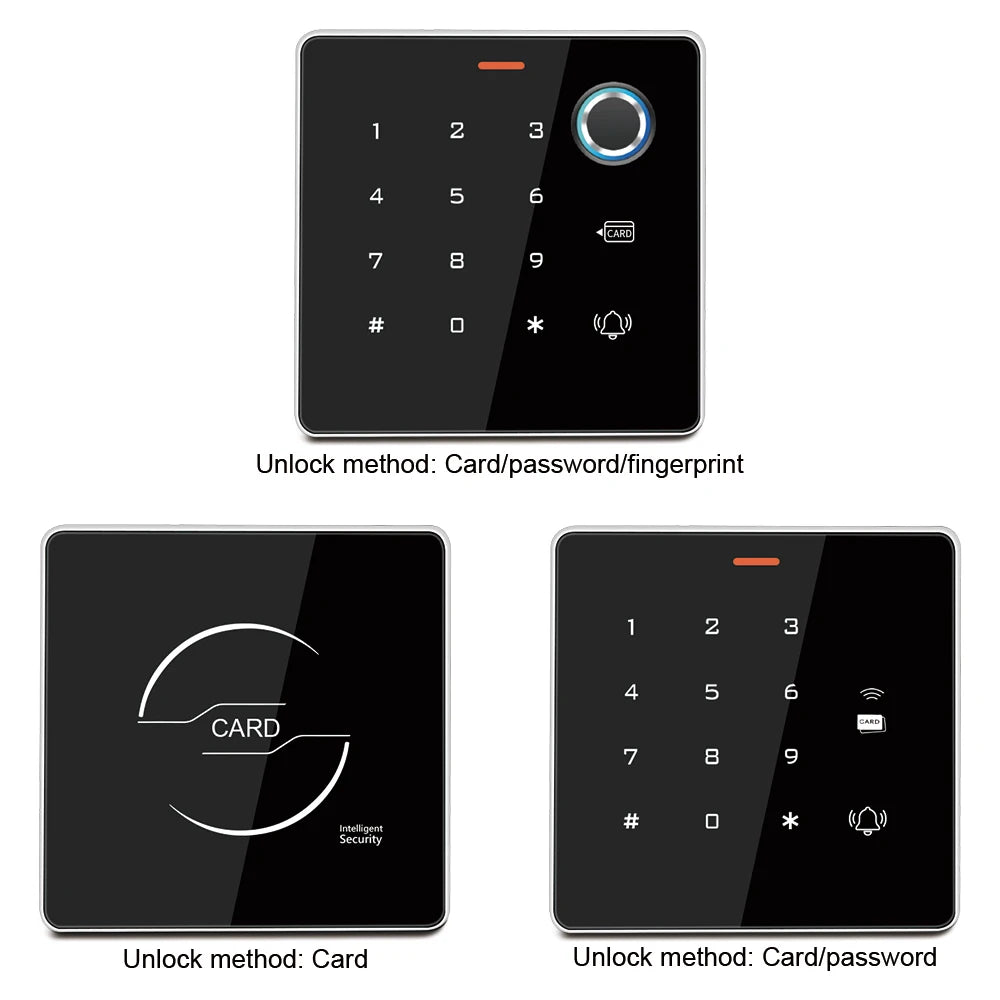

- Triple Unlock Methods: Fingerprint, 125KHz EM RFID card, or PIN password — choose any combination for flexible security.

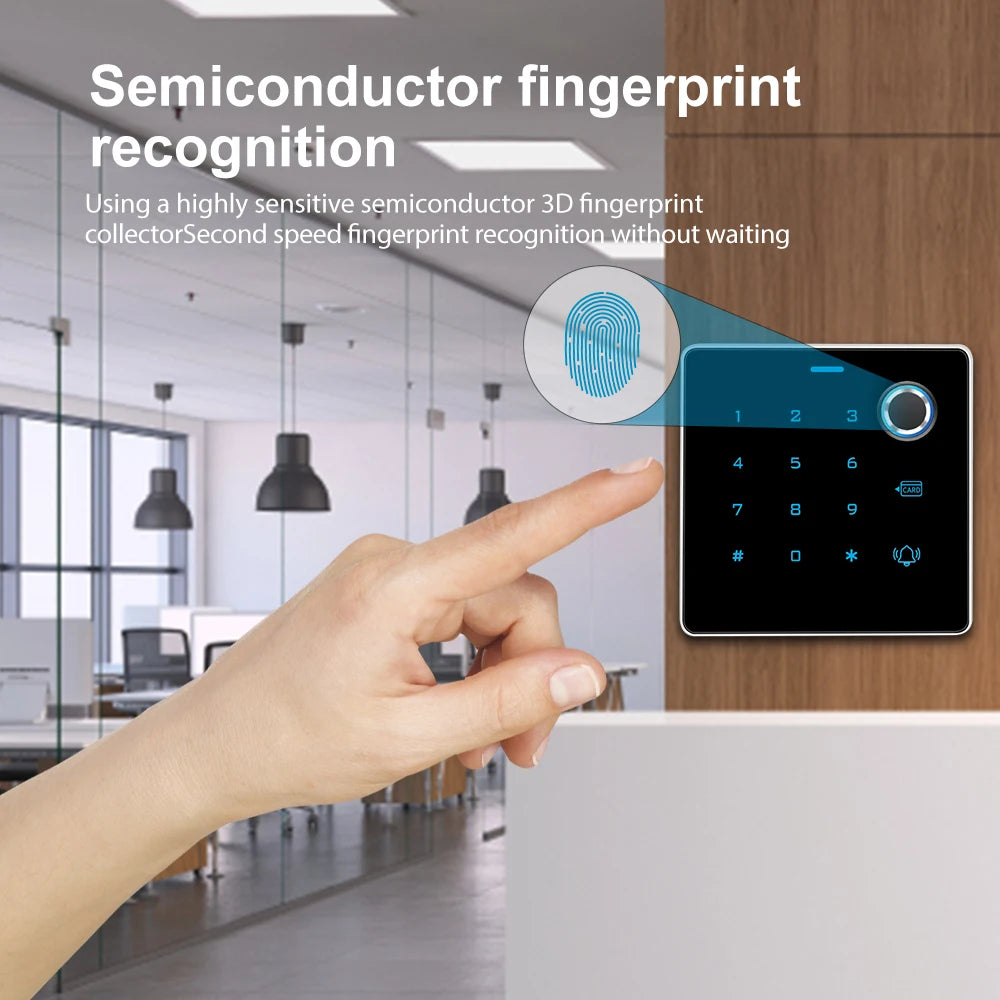

- Fast Fingerprint Recognition: Identifies registered fingerprints in ≤0.3 seconds with up to 100 fingerprint capacity and 1,000 card capacity.

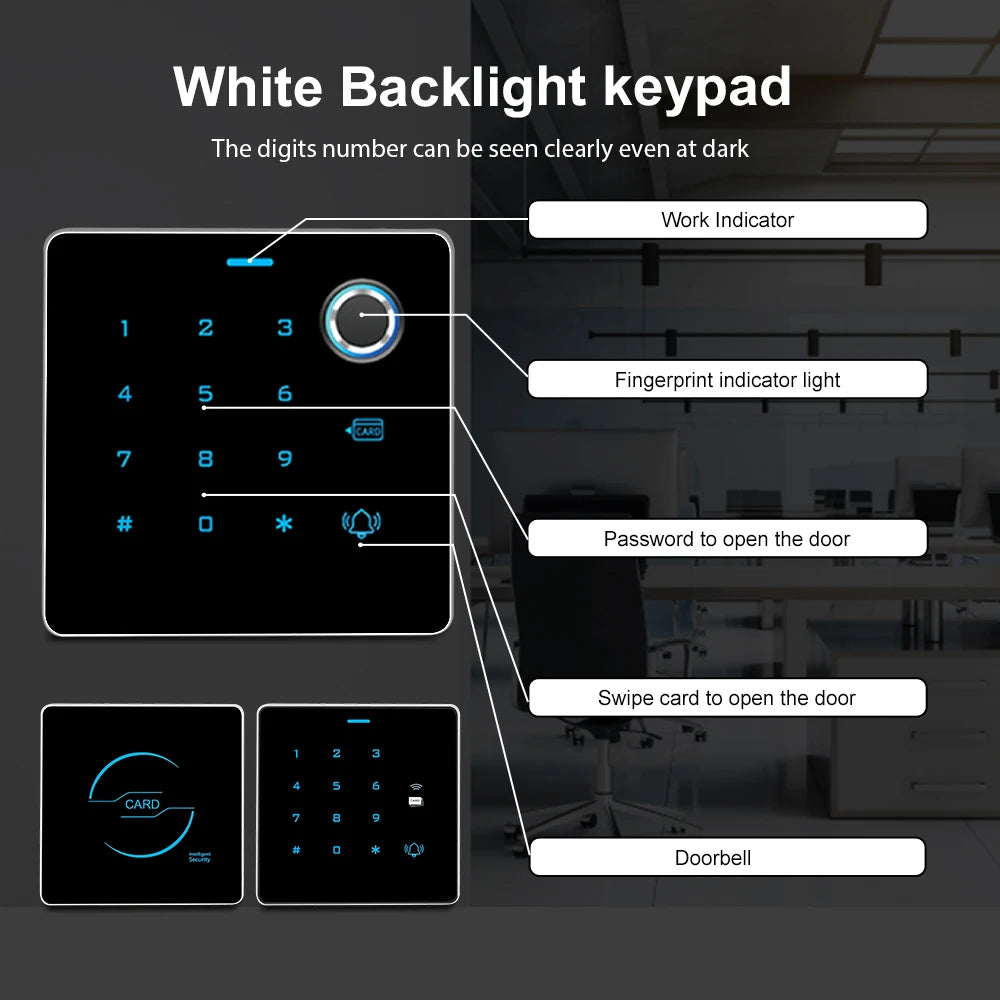

- Backlit Tempered Glass Keypad: Adjustable backlight setting for easy use in low-light environments — enable or disable as needed.

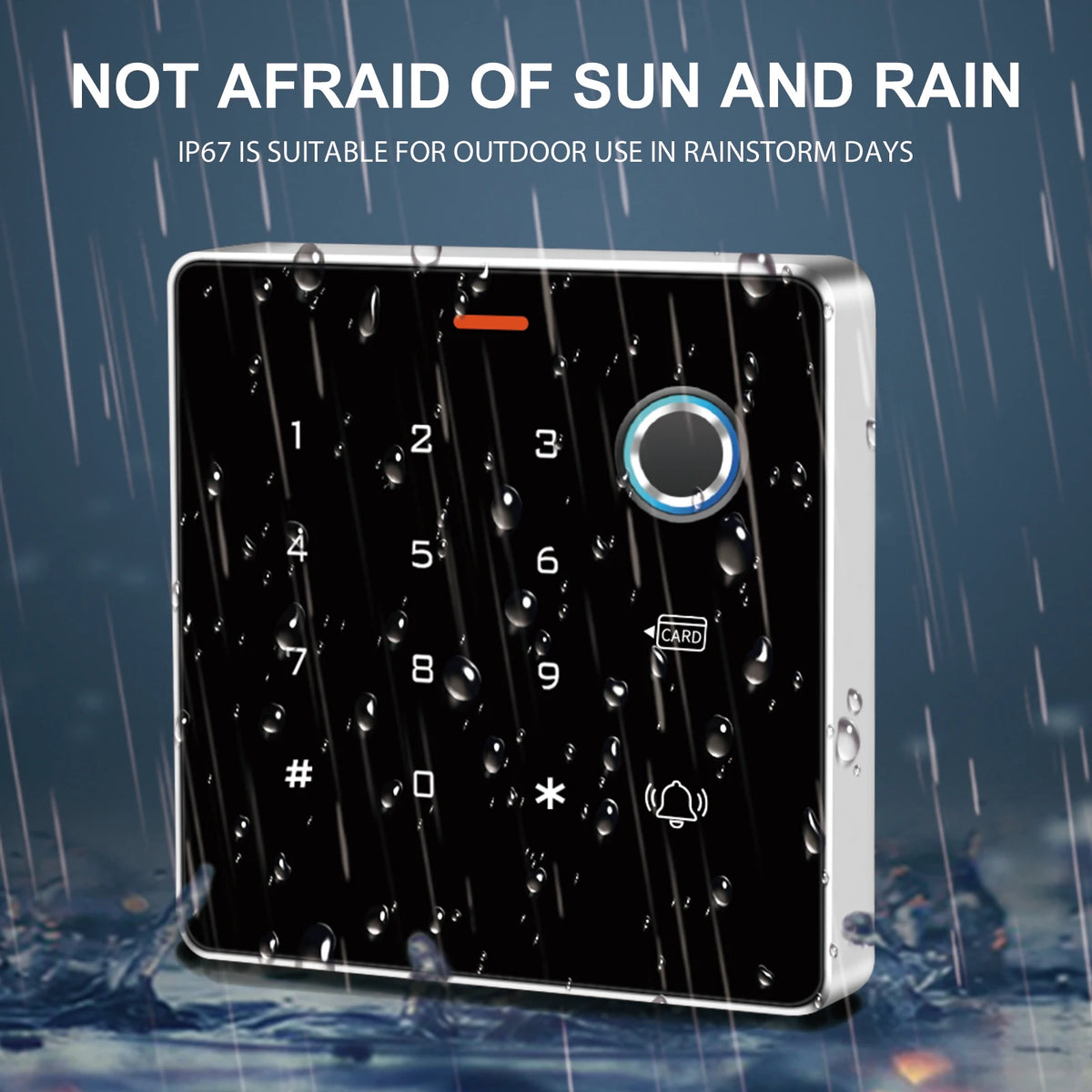

- IP67 Waterproof Rating: Fully sealed against dust and water ingress, making it suitable for both indoor and outdoor installations.
- Wide Temperature Range: Operates reliably from -40°C to 60°C, ensuring year-round performance in varying climates.
- Adjustable Door Relay Time: Set the door unlock duration anywhere from 1 to 99 seconds to match your specific access needs.
- Wiegand Output (26-bit to 34-bit): Compatible with a wide range of access control panels and systems. Note: For model TF886, Wiegand output supports cards and passwords only — fingerprint Wiegand output is not supported on this variant.
- Administrator Control: Supports autonomous MasterCard and Mastercode setup for streamlined administration.
- Strong Anti-Interference: CE and FCC certified, engineered for high security and reliable operation in electromagnetically demanding environments.
- Low Power Consumption: Standby current ≤30mA on DC 12V power supply.

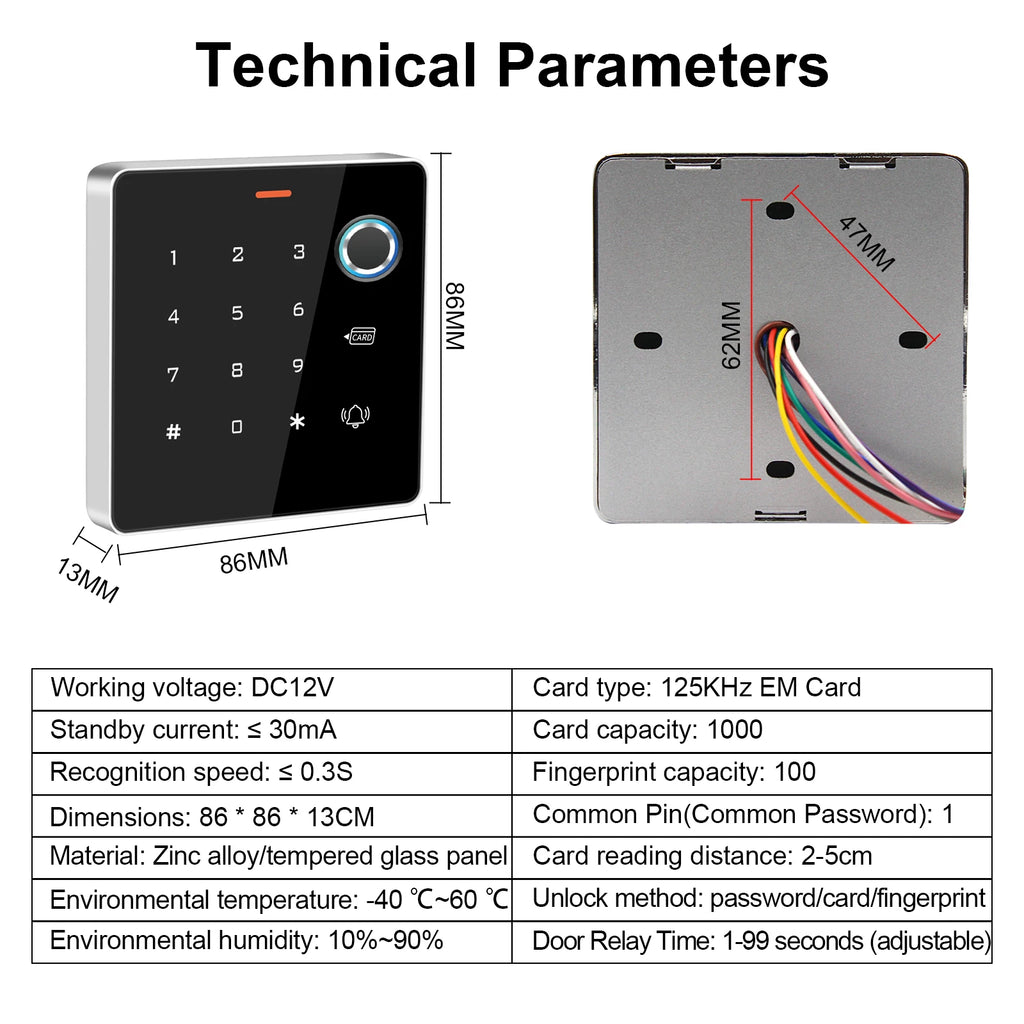

Technical Specifications
| Brand | Asia-Teco |
| Models | TF886 / T886 / TC886 |
| Material | Zinc Alloy + Tempered Glass Panel |
| Card Type | 125KHz EM Card |
| Card Capacity | 1,000 cards |
| Fingerprint Capacity | 100 fingerprints |
| Card Reading Distance | 2–5 cm |
| Recognition Speed | ≤ 0.3 seconds |
| Unlock Methods | Fingerprint / RFID Card / PIN Password |
| Door Relay Time | 1–99 seconds (adjustable) |
| Wiegand Format | 26-bit to 34-bit |
| Waterproof Rating | IP67 |
| Working Voltage | DC 12V |
| Standby Current | ≤ 30mA |
| Operating Temperature | -40°C to 60°C |
| Humidity | 10%–90% (non-condensing) |
| Dimensions | 86 × 86 × 13 mm |
| Certifications | CE, FCC |
| Country of Origin | Made in China |
Who Is This For?
This access control keypad is perfectly suited for apartments, condominiums, corporate offices, server rooms, warehouses, gyms, and any location where controlled, secure entry is essential. The elegant zinc alloy finish blends seamlessly into modern architectural aesthetics while delivering industrial-grade durability.
For guidance on physical security standards and best practices for electronic access control, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many users can this fingerprint access control keypad store?
A: The Asia-Teco TF886/T886/TC886 standalone access control unit stores up to 100 fingerprints and up to 1,000 RFID cards, making it well-suited for small-to-medium offices, residential buildings, and shared facilities.
Q: Is this access control keypad suitable for outdoor installation?
A: Yes. With an IP67 waterproof rating and an operating temperature range of -40°C to 60°C, this zinc alloy keypad is built to withstand harsh outdoor environments including rain, dust, and extreme temperatures.
Q: Does the fingerprint reader support Wiegand output?
A: Wiegand output (26-bit to 34-bit) is supported for cards and PIN passwords on all models. However, on the TF886 variant specifically, Wiegand output for fingerprints is not supported. If you require fingerprint Wiegand output, please contact customer service to discuss compatible reader options.
Q: What power supply does this door access control system require?
A: This unit operates on a DC 12V power supply with a standby current of ≤30mA. Ensure your access control power source provides a stable 12V DC output for optimal performance.
