Fingerprint & Face Recognition Access Control – 1000 Users
Fingerprint & Face Recognition Access Control – 1000 Users

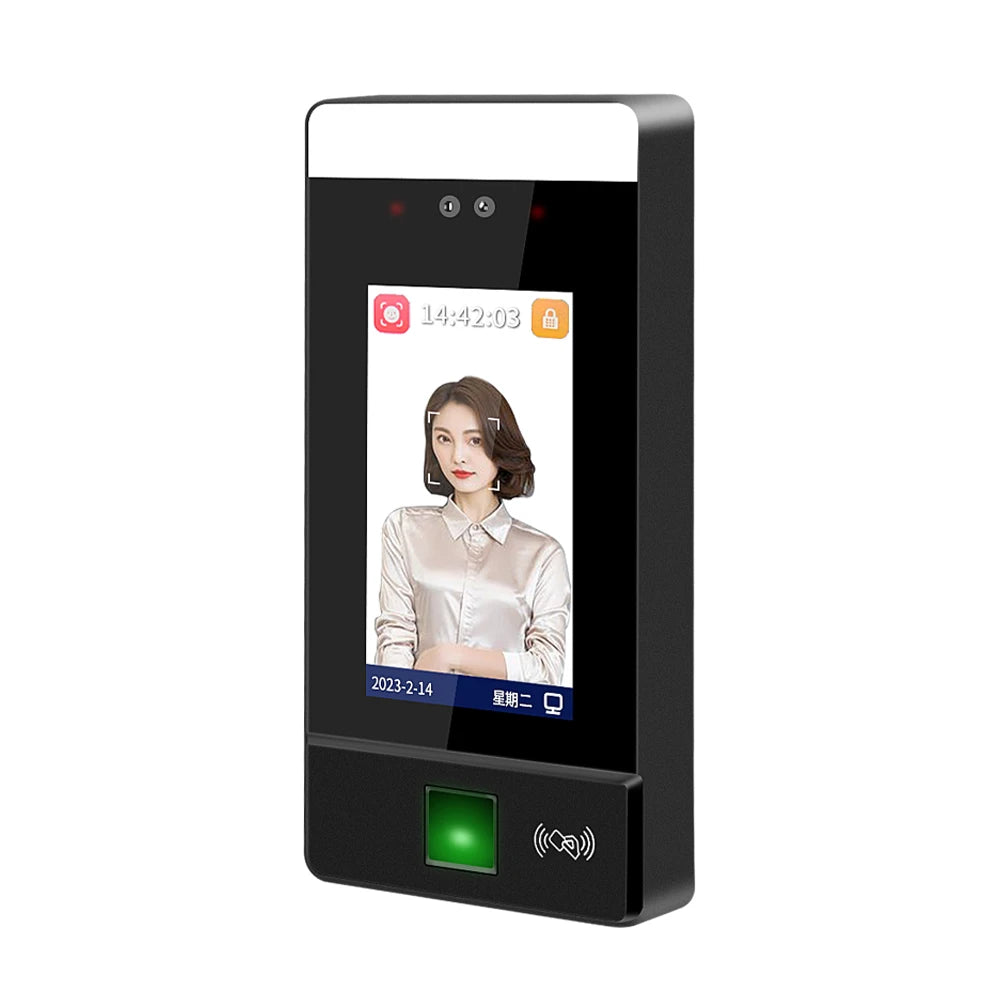

Asia-Teco Biometric Access Control System – Fingerprint & Dynamic Face Recognition
Upgrade your facility's security with the Asia-Teco ZF430-U Biometric Access Control System — a powerful, all-in-one entry management solution that combines dynamic face recognition, fingerprint scanning, RFID card access, and PIN code entry into a single sleek device. Designed for offices, warehouses, schools, gyms, and any space requiring reliable, touchless access management, this unit handles up to 1,000 fingerprint users, 600 face profiles, and 600 PIN cipher groups, with a massive 60,000 verification record log capacity.
With lightning-fast recognition in under 0.3 seconds and a recognition distance of 0.5–1.3 meters, entry is seamless and hands-free. The wide-angle face detection (±30° horizontal and vertical) ensures accurate identification even when users are not perfectly aligned with the camera — ideal for high-traffic doorways and gates.
Key Features

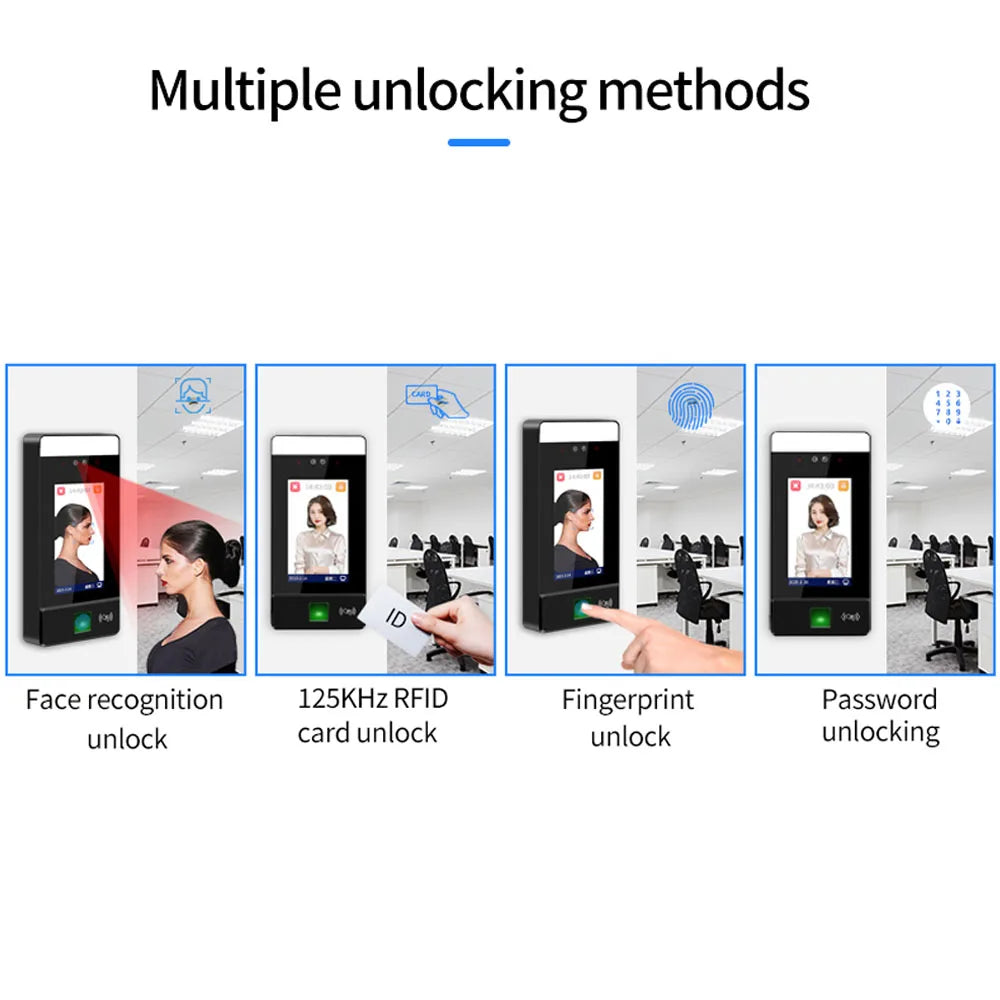

- Multi-Mode Authentication: Dynamic face recognition, fingerprint scan, 125KHz RFID/EM card, and PIN code — use one or combine for added security
- Large User Capacity: 1,000 fingerprint records, 600 face profiles, 600 PIN groups, and 60,000 attendance/verification logs

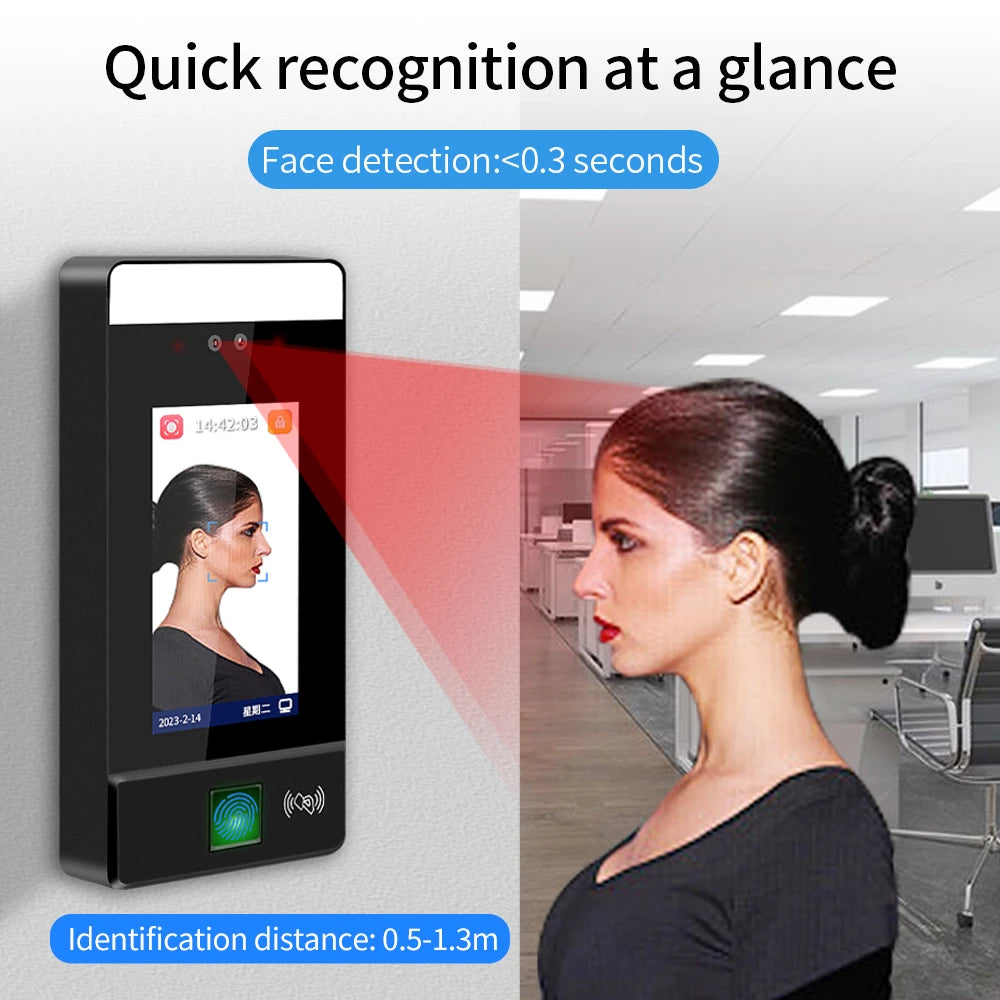

- Ultra-Fast Recognition: Verifies identity in under 0.3 seconds at 0.5–1.3 m distance
- 4.3" Color Display: Clear, intuitive touchscreen interface for easy enrollment and management
- Attendance Tracking: Built-in facial log attendance records exportable via USB Drive
- Voice Output: Continuous audio feedback confirms successful or denied access
- Wide Temperature Range: Operates reliably from -10°C to +60°C — suitable for indoor and covered outdoor installations
- CE Certified: Meets international safety and electromagnetic compatibility standards
- Bilingual Interface: Chinese/English out of the box; other languages available via customization
- USB Data Transfer: Easily export logs and update user data via USB Drive — no complex network setup required
Technical Specifications
| Model | ZF430-U |
| Brand | Asia-Teco |
| Display | 4.3-inch color screen |
| Fingerprint Capacity | 1,000 users |
| Face Capacity | 600 profiles |
| PIN/Cipher Groups | 600 groups |
| Log Capacity | 60,000 records |
| Recognition Speed | <0.3 seconds |
| Recognition Distance | 0.5 – 1.3 m |
| Face Recognition Angle | ±30° horizontal & vertical |
| RFID Card | 125KHz ID / EM Card |
| Communication | USB Drive |
| Working Voltage | DC 12V |
| Working Temperature | -10°C to +60°C |
| Operating Humidity | 20% – 80% RH |
| Language | Chinese / English (custom languages available) |
| Certification | CE |
| Country of Origin | Made in China (Mainland) |
Ideal For
- Office buildings and co-working spaces
- Schools, universities, and childcare centers
- Warehouses and manufacturing facilities
- Gyms, clubs, and membership-based venues
- Gates, turnstiles, and controlled entry points
For guidance on best practices in physical access control and security systems, visit the Cybersecurity & Infrastructure Security Agency (CISA) or review workplace safety standards at OSHA.gov.
Frequently Asked Questions
Q: How many users can the Asia-Teco ZF430-U access control system support?
A: The ZF430-U supports up to 1,000 fingerprint users, 600 dynamic face recognition profiles, and 600 PIN/cipher groups. It also stores up to 60,000 attendance and verification log records, making it well-suited for small to mid-sized organizations.
Q: Does this access control device require a network connection?
A: No dedicated network connection is required. The ZF430-U uses a USB Drive for data communication, allowing you to easily export attendance logs and update user records without complex IT infrastructure or wiring.

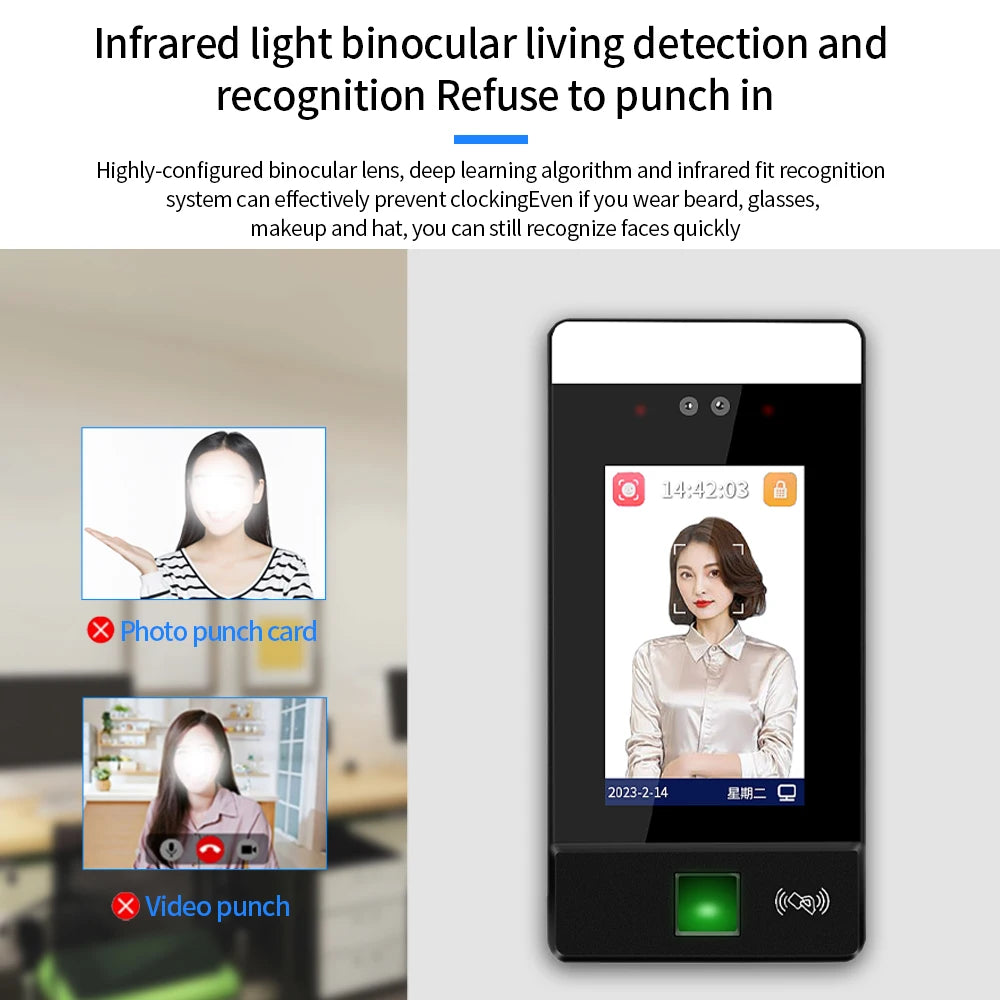

Q: Can the face recognition system be used in different lighting conditions?
A: Yes. The dynamic face recognition technology is designed to function across a wide range of lighting environments and can identify users within a ±30° horizontal and vertical angle at a distance of 0.5 to 1.3 meters, ensuring consistent performance in real-world entry scenarios.
Q: What types of entry credentials does this system support?
A: The system supports four authentication methods: dynamic face recognition, fingerprint scanning, 125KHz RFID/EM card, and PIN code. These can be used individually or combined for multi-factor access control.
Q: Is this access control device suitable for outdoor installation?
A: The ZF430-U operates between -10°C and +60°C with a humidity range of 20%–80% RH, making it appropriate for covered outdoor or semi-outdoor environments such as gated entryways, carports, or covered walkways.
