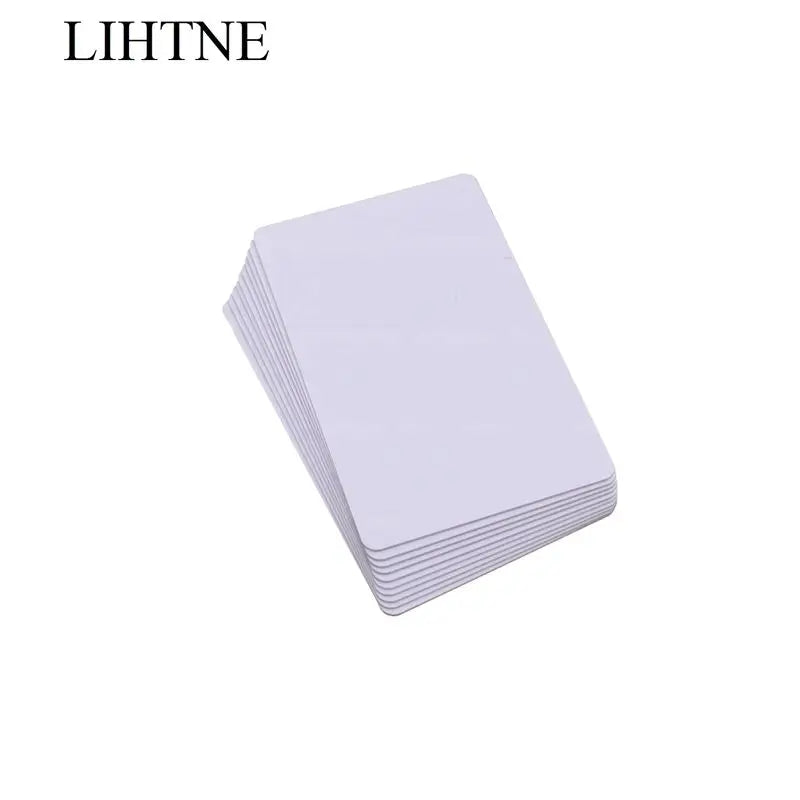

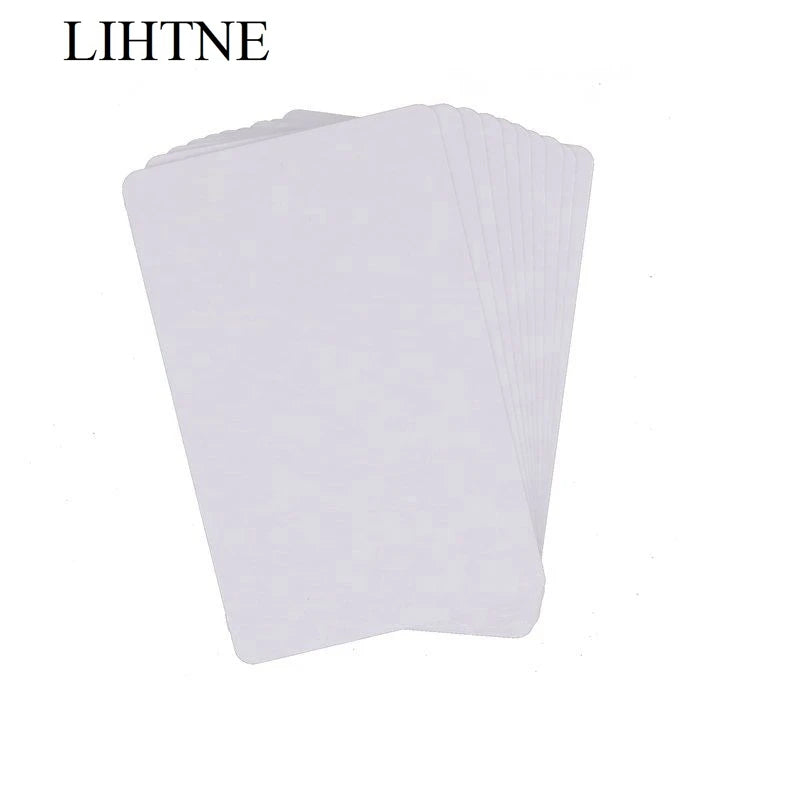

10-Pack FeliCa Lite-S RC-S966 NFC Cards 13.56MHz ISO18092 Type 3
10-Pack FeliCa Lite-S RC-S966 NFC Cards 13.56MHz ISO18092 Type 3
10-Pack FeliCa Lite-S RC-S966 NFC Type 3 Cards — 13.56MHz | ISO18092
Get more done with the FeliCa Lite-S RC-S966 NFC Cards — a professional-grade pack of 10 contactless smart cards operating at 13.56MHz with 252 bytes of user memory. Compliant with ISO18092 (NFC Forum Type 3), these PVC cards are built for developers, integrators, and hobbyists who need reliable, high-cycle NFC data storage for access control, automation, IoT projects, loyalty programs, and more.
With up to 100,000 write cycles and a read range of up to 20 cm, these cards deliver consistent, dependable performance in demanding real-world environments.
Key Specifications
- Model: FeliCa Lite-S RC-S966
- Quantity: 10 cards per pack
- Material: PVC
- Operating Frequency: 13.56 MHz
- Card Size: 85 × 54 mm (standard credit card size)
- Thickness: 0.84 mm
- Protocol: ISO18092
- NFC Forum Type: Type 3
- Memory: 252 Bytes
- Read Distance: Up to 20 cm
- Write Endurance: 100,000 cycles
- Operating Temperature: -40°C to 70°C, 5–95% RH (no condensation)
- Storage Condition: -20°C to 45°C, 5–95% RH (no condensation)
Supported FeliCa Command Set
| Command | Command Code | Response Code | Function |
|---|---|---|---|
| Polling | 00H | 01H | Detection and identification of card |
| Request Service | 02H | 03H | Verify that the specified domain or service exists on the card |
| Request Response | 04H | 05H | Verify if there is a card in the RF field |
| No Authentication Read | 06H | 07H | Read data blocks from a service that does not require authentication |
| No Authentication Write | 08H | 09H | Write data blocks to a service that does not require authentication |
| Request System Code | 0CH | 0DH | Read the registered system code on the card |
| Authentication 1 | 10H | 11H | Reader-to-card authentication (step 1) |
| Authentication 2 | 12H | 13H | Card-to-reader authentication (step 2) |
| Read (Authenticated) | 14H | 15H | Read data blocks from an authenticated service |
| Write (Authenticated) | 16H | 17H | Write data blocks to an authenticated service |
Common Applications
- Access control and building entry systems
- NFC-based loyalty and membership cards
- IoT and smart home automation projects
- Developer/prototyping environments
- Transit and ticketing system testing
- Data logging and contactless identification
Why Choose These NFC Cards?
The FeliCa Lite-S standard is widely adopted across Asia and increasingly used in global NFC infrastructure. The RC-S966 chip's combination of high write endurance, wide temperature tolerance, and compact credit-card form factor makes it a versatile choice for both field deployment and lab testing.
For more information on NFC standards and contactless technology guidelines, visit the National Institute of Standards and Technology (NIST) — Cybersecurity.
Frequently Asked Questions
Q: What NFC protocol do the FeliCa Lite-S RC-S966 cards support?
A: These cards comply with the ISO18092 standard and are classified as NFC Forum Type 3 cards. They operate at 13.56 MHz and are compatible with readers and devices that support the FeliCa protocol.
Q: How many times can I write data to these NFC cards?
A: Each card supports up to 100,000 write cycles, making them highly durable and suitable for long-term, high-frequency use in access control, automation, or development projects.
Q: Are these cards compatible with standard NFC-enabled smartphones?
A: These cards use the FeliCa Lite-S (NFC Type 3) protocol. Compatibility with smartphones depends on the device's NFC chipset. Many Android devices with NFC support Type 3 tags, while support on other platforms may vary. Always verify your reader/device supports ISO18092 / Type 3 before purchasing.
Q: What is the memory capacity of each RC-S966 NFC card?
A: Each card provides 252 bytes of user memory, organized into data blocks accessible via the FeliCa command set for both authenticated and non-authenticated read/write operations.
Q: What size are these NFC cards?
A: The cards measure 85 × 54 mm with a thickness of 0.84 mm — the same dimensions as a standard credit or ID card — making them ideal for use in card wallets, badge holders, and standard card readers.
