Asia-Teco Fail Secure 12V Electric Drop Bolt Lock – Model B9L

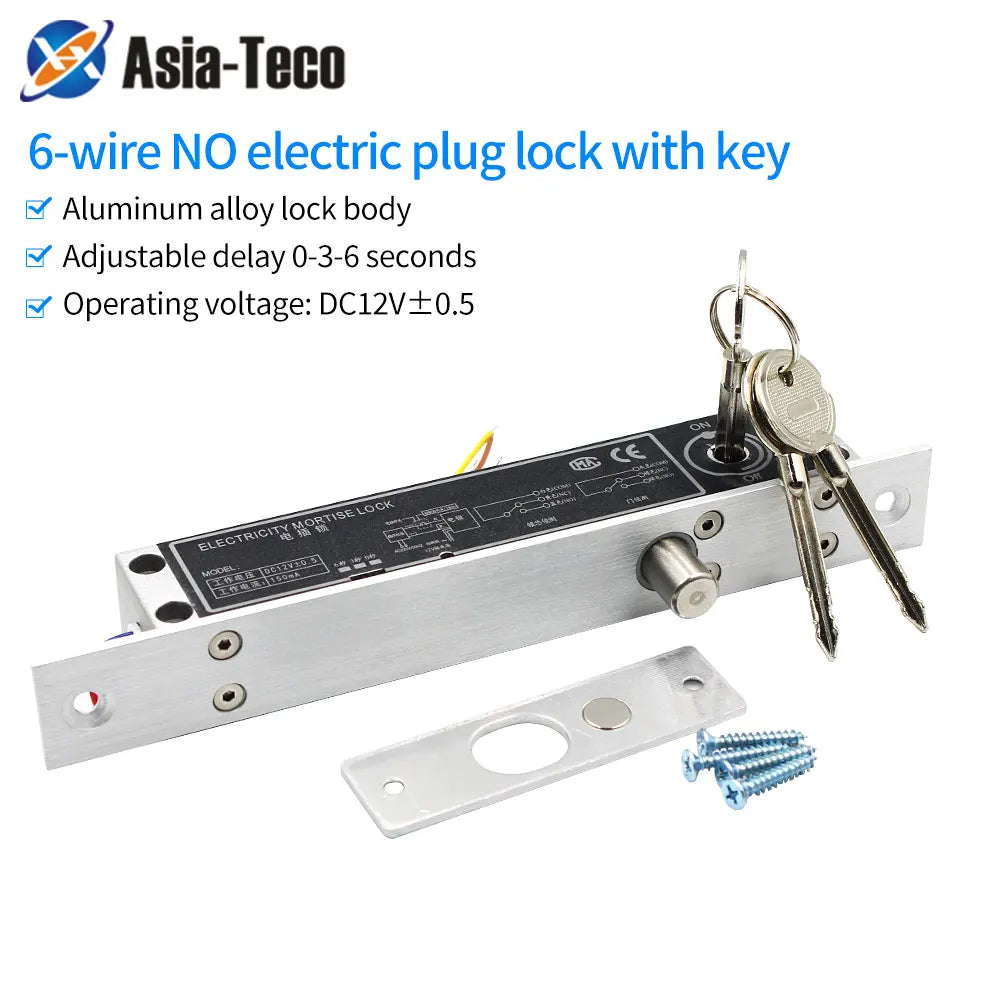

Upgrade your access control system with the Asia-Teco B9L Fail Secure Electric Drop Bolt Lock. Engineered for commercial and residential security applications, this 12V electronic deadbolt features a robust aluminum alloy body, a stainless steel locking tongue, and a 6-wire signal output for seamless integration with virtually any access control panel. With an adjustable time delay and dual LED status indicators, managing door security has never been easier or more reliable.

Key Features

• Fail Secure (NO Lock) Operation: Door remains locked when power is off — ideal for high-security environments where entry must be controlled at all times.
• Manual Key Override: Includes manual keys for emergency or backup entry without requiring power.
• 6-Wire Signal Output: Provides door status signal output contacts for real-time monitoring and integration with alarm or building management systems.

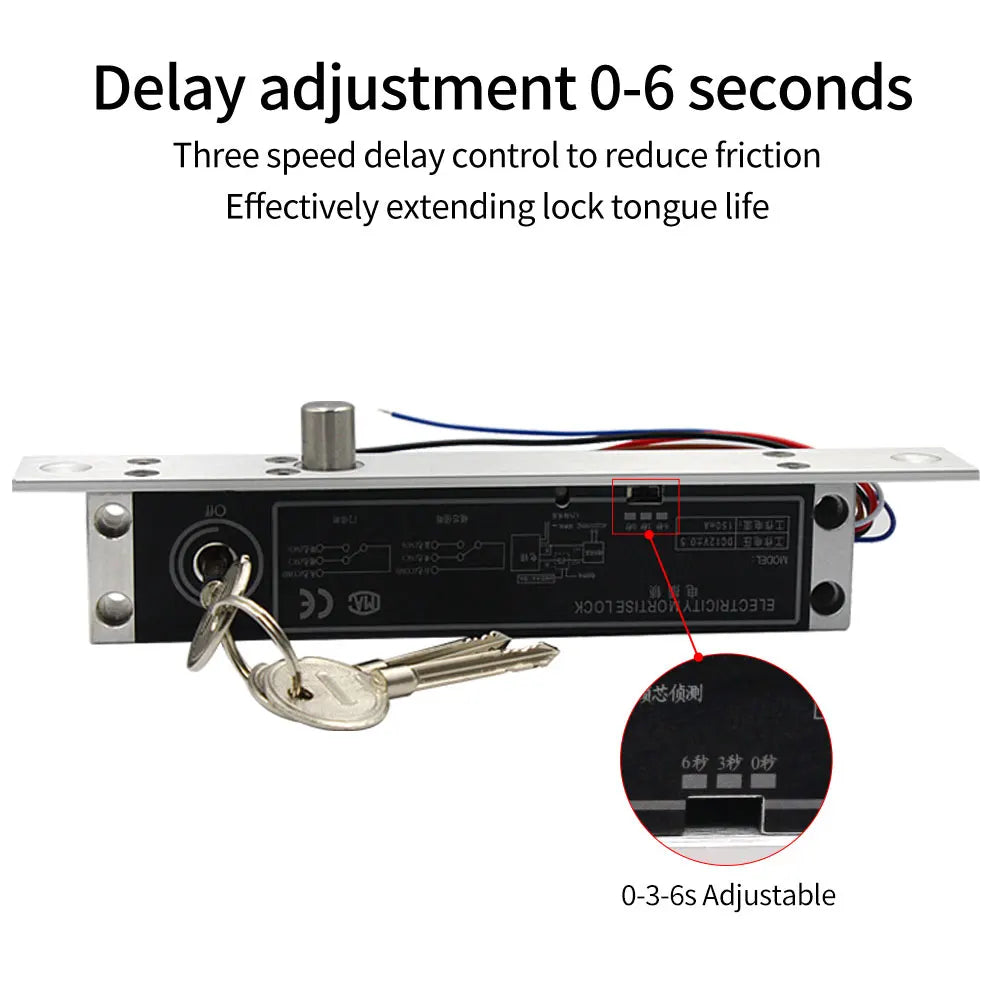

• Adjustable Time Delay: Selectable delay of 0, 3, or 6 seconds (0–6 seconds adjustable) to suit your specific door management requirements.
• Dual LED Status Indicators: Green LED signals unlocked state; Red LED signals locked state — instantly visible at a glance.
• Durable Stainless Steel Locking Tongue: 12.5 mm diameter tongue with a 15 mm (±1 mm) pop-up length for a strong, reliable bolt engagement.
• Wide Operating Temperature Range: Performs reliably from -10°C to +55°C (-14°F to 131°F).
• CE & FCC Certified: Meets international safety and electromagnetic compatibility standards.

Technical Specifications

Wiring Guide (6-Wire)

• Red Wire: Positive (+) DC 12V power input
• Black Wire: Negative (−) ground
• Remaining 4 wires: Door status signal output contacts for integration with access control panels, alarm systems, or building automation

What's in the Box

• 1 × Asia-Teco B9L Electric Drop Bolt Lock
• Manual keys for emergency override
• Mounting hardware

Ideal Applications

This electric deadbolt is well-suited for offices, server rooms, warehouses, residential entryways, glass doors, and any environment where a dependable access control solution is required. Its fail-secure design ensures the door stays locked during power outages — a critical feature for sensitive or restricted areas.

For general guidance on electronic access control and building security standards, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What does "fail secure" mean on the Asia-Teco B9L electric drop bolt lock?

A: "Fail secure" (also called Normally Open or NO) means the lock remains in the locked position when power is cut. This is the opposite of "fail safe" locks, which unlock when power is lost. A fail secure lock is ideal for high-security doors where you need to ensure the door stays locked during a power outage.

Q: Can I use the B9L drop bolt lock without an access control panel?

A: Yes. The lock includes manual keys for direct override, allowing you to lock or unlock the door without any power or access control system. This makes it versatile for both standalone use and integration into a larger access control setup.

Q: How do I set the time delay on the electric deadbolt?

A: The B9L features an adjustable time delay of 0, 3, or 6 seconds. This can be configured to control how long the bolt remains retracted (unlocked) after an access signal is received, giving users adequate time to pass through the door before it re-locks automatically.

Q: Is the Asia-Teco B9L compatible with standard 12V access control systems?

A: Yes. The lock operates on DC 12V and features a 6-wire output for door status monitoring, making it compatible with the vast majority of commercial and residential access control panels, intercoms, and keypads on the market.
