Face Recognition Fingerprint Time Attendance System – IP66
Face Recognition Fingerprint Time Attendance System – IP66

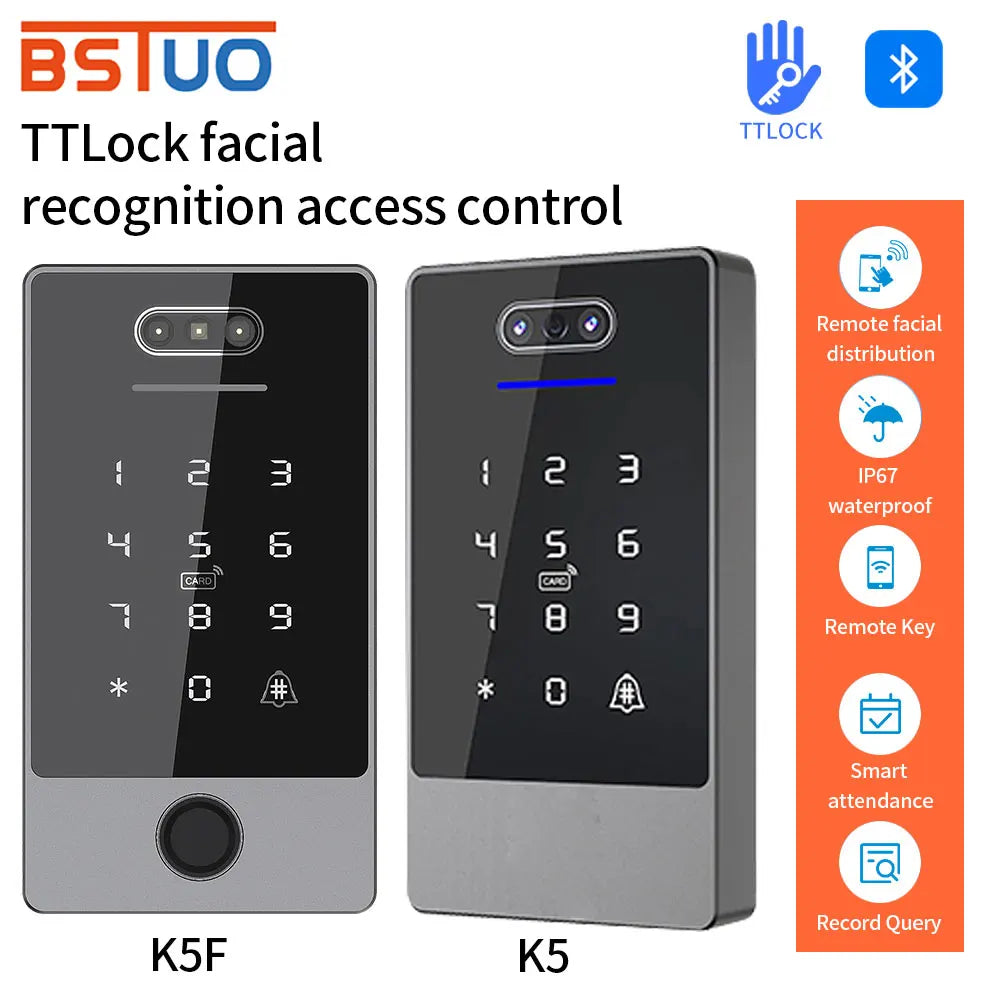

Smart Face Recognition & Fingerprint Time Attendance System (K5/K5F)
Upgrade your workplace access control with the Asia-Teco K5/K5F Face Biometric Time Attendance System — a professional-grade, IP66 waterproof device designed for both indoor and outdoor use. Manage employee clock-in records effortlessly, control access via multiple methods, and integrate seamlessly with the TTLock and TTRenting smart platforms. Made in Mainland China.
Key Features
- Multiple Access Modes: Face recognition (1.5-second unlock), fingerprint (K5F model), IC card (13.56 MHz), PIN password, TTLock app, and temporary passcode — giving you maximum flexibility for any environment.
- Time & Attendance Tracking: Built-in employee clock-in recording makes workforce management simple and accurate directly from the app.

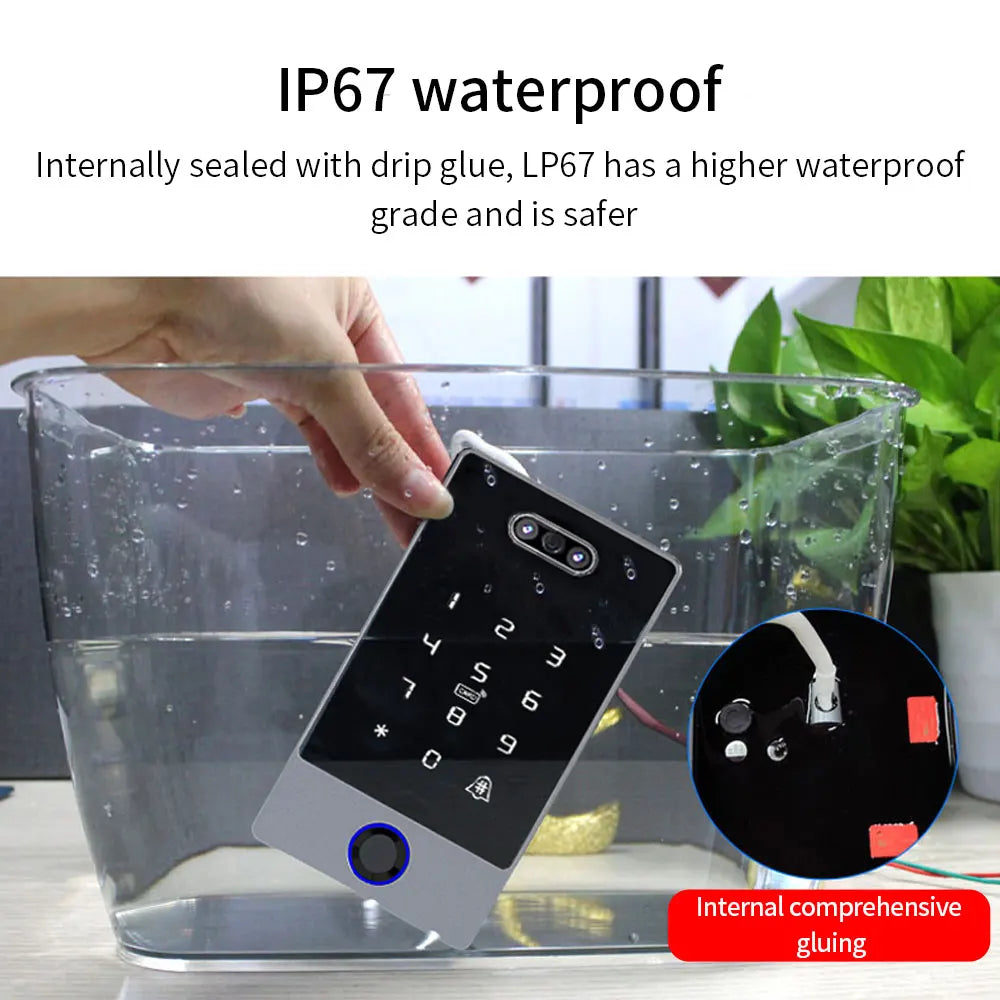

- IP66 Waterproof Rating: Engineered for outdoor use, this system withstands rain, dust, and harsh weather conditions with confidence.
- Bluetooth 5.0 Connectivity: Fast, stable Bluetooth pairing for app control. Add the optional G2 TTLock Bluetooth Gateway for full remote Wi-Fi access and control from anywhere.
- Smart Platform Integration: Compatible with TTLock App, TTRenting App, TTHotel, and Sciener Web System. Supports Android 4.3+ and iOS 7.0+.
- Voice Control Compatible: Works with Amazon Alexa and Google Assistant for hands-free operation.
- Cloud Data Storage: Add or remove users remotely; all access logs are stored securely in the cloud.
- eKey & Code Sharing: Share digital keys or temporary passcodes with visitors via social messaging apps.

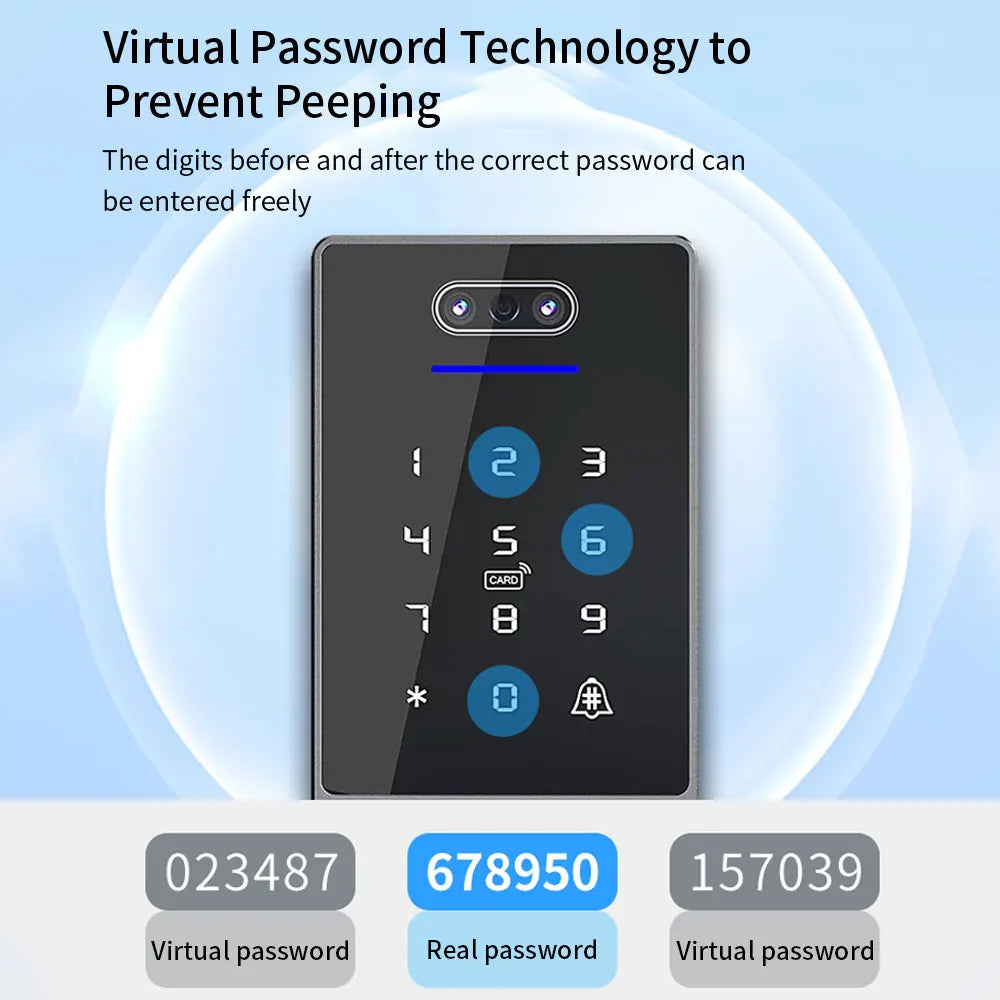

- Advanced Keypad Security: Pseudo-passcode protection and auto-lock after 5 wrong entries (5-minute lockout). Auto-locks within 5 seconds of unlocking.
- Real-Time Push Notifications: Administrators receive instant alerts when the lock is accessed or reset.
- Durable Aluminum Frame: Sleek, compact (W79mm × H145mm × T19mm), and built to last in demanding environments.
- CE Certified: Meets rigorous European safety and quality standards.
Specifications
| Model | K5 / K5F |
| Face Capacity | 100 faces |
| Fingerprint Capacity | 100 (K5F only) |
| Card Capacity | 1,000 cards |
| Communication | Bluetooth 5.0 |
| Power Supply | 12V DC |
| Waterproof Rating | IP66 |
| Unlock Speed | 1.5 seconds |
| Dimensions | W79mm × H145mm × T19mm |
| Material | Aluminum frame |
| Certification | CE |
| Country of Origin | Made in Mainland China |
What's in the Box
- Face Recognition Access Control Unit × 1
- Fixed Mounting Bracket × 1
- Expansion Tubes × 4
- Screws (4 + 1)
- Hexagon Screwdriver × 1
- User Manual × 1
- G2 Gateway × 1 (Optional — required for remote Wi-Fi access)
Note: For remote door opening and control from any location, the optional G2 TTLock Bluetooth Gateway must be purchased separately to enable Wi-Fi connectivity.
For general information on access control and workplace security standards, visit the U.S. Occupational Safety and Health Administration (OSHA).
Frequently Asked Questions
Q: Does the K5/K5F face recognition time attendance system work outdoors?
A: Yes. The system carries an IP66 waterproof rating, making it suitable for outdoor installation in rain, dust, and challenging weather conditions. Its durable aluminum frame further ensures long-term performance in demanding environments.
Q: What is the difference between the K5 and K5F models?
A: The K5 supports face recognition, IC card, and password access. The K5F adds fingerprint recognition (capacity: 100 fingerprints) for an extra layer of biometric security. Both models support up to 1,000 IC cards and 100 face profiles.
Q: Do I need additional hardware for remote access control and monitoring?
A: The device connects locally via Bluetooth 5.0. To enable remote access, real-time monitoring, and control from any location over Wi-Fi, you will need to add the optional G2 TTLock Bluetooth Gateway, which is sold separately.
Q: How does the time attendance feature work for employee management?
A: When employees clock in using face recognition, fingerprint, card, or PIN, each event is logged with a timestamp and stored in the cloud. Administrators can view, export, and manage these records remotely through the TTLock or TTRenting app, simplifying attendance tracking without additional software.
Q: Which smart home voice assistants are compatible with this system?
A: The K5/K5F is compatible with both Amazon Alexa and Google Assistant, allowing hands-free voice commands for access control when connected through the TTLock platform.
