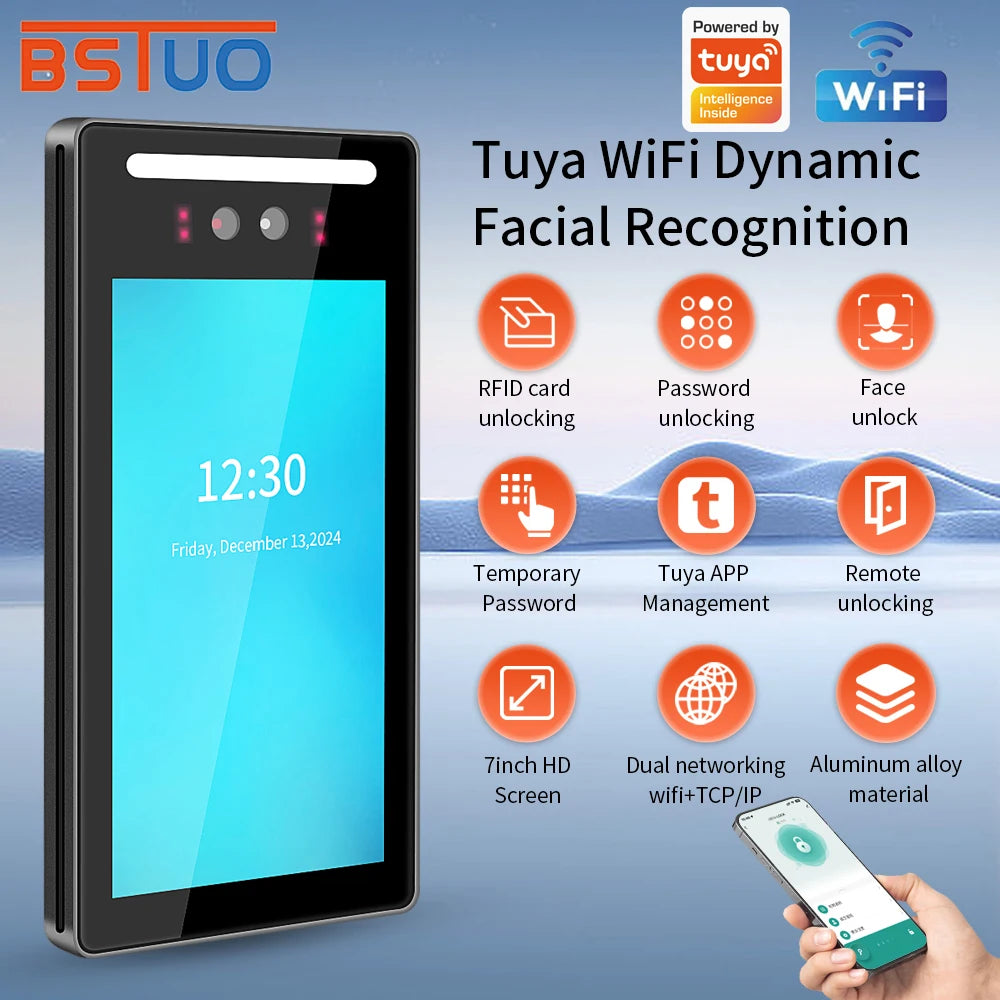

Asia-Teco AI701 – 7-Inch Biometric Face Recognition Access Control & Time Attendance Terminal
Meet the Asia-Teco AI701, a professional-grade smart access control and time attendance terminal built for offices, factories, schools, and residential complexes. Featuring a stunning 7-inch IPS touch display, a dual-lens 2MP wide-dynamic camera, and a powerful ARM Cortex-A7 800MHz processor running Linux, this terminal delivers fast, reliable biometric face recognition from 0.5 to 2 meters — all managed effortlessly via the Tuya App or free LAN software. Made in Mainland China.
Key Features
- Free Cloud & LAN Access: No subscription fees — connect via free cloud API or free local LAN software right out of the box.
- Tuya App Management: Use one smartphone to add/delete users, invite visitors, authorize multi-device management, open doors remotely, generate QR codes, and issue temporary passwords (Tuya version only).
- 7-Inch HD IPS Touch Screen: Crystal-clear 1024×600 mirror-finish display for a sleek, modern look at any entry point.
- Dual-Lens 2MP Wide-Dynamic Camera: Binocular camera system engineered for outdoor and variable-light environments, with a false-rejection rate of less than 0.1%.

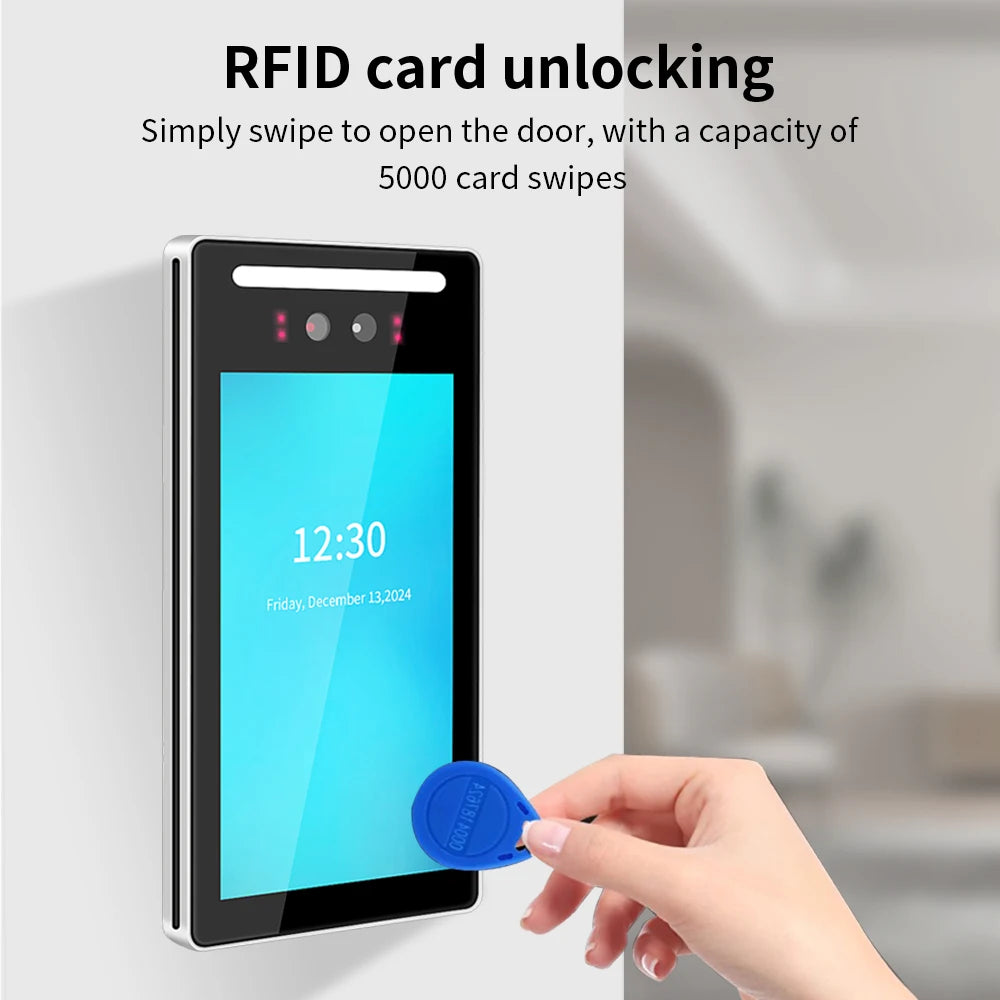

- Multiple Verification Modes: Combine face recognition, password, card (up to 5,000 cards), and multi-person authentication for flexible, layered access control.
- Built-In Time Attendance: Local shift scheduling, timed ringing, and up to 100,000 user records stored on-device.
- Flexible Connectivity: RJ45 Ethernet, Wi-Fi, USB, TCP, and optional 4G — suitable for virtually any site configuration.
- Wiegand Input/Output: Seamlessly integrates with existing access control infrastructure.
- Visitor & Stranger Management: Set time-limited visitor access windows and optionally save or unlock for unregistered visitors.
- Mask Detection: Identifies users wearing face coverings for added safety flexibility.
- Fire Alarm Integration: External fire alarm input for emergency door release.
- Anti-Tamper Alarm: Sounds an alert after a configurable number of failed access attempts.
- Doorbell Compatibility: Works with built-in and external wired doorbells.
- USB Data Transfer: Upload/download user records and update screensavers via USB flash drive.
- API & Platform Integration: Supports MQTT, HTTP, and cloud-to-cloud API protocols for enterprise system docking.
- Optional Customization: RS485, 4G, Bluetooth, custom languages, and fingerprint capacity available — contact us for details.
- Multi-Language Support: Simplified Chinese, English, and Japanese included; additional languages available on request.
- Durable Aluminum Alloy Body: Operates from -20°C to 60°C for indoor and outdoor installations.
Technical Specifications
| Model | AI701 |
| CPU | ARM Cortex-A7 800MHz |
| OS | Linux |
| Display | 7" IPS Touch, 1024×600 |
| Camera | Dual-lens 2MP wide-dynamic binocular |
| Recognition Distance | 0.5 – 2 meters |
| False Rejection Rate | <0.1% |
| Face / Card / Password Capacity | 5,000 each |
| User Records | 100,000 |
| Connectivity | TCP, Wi-Fi, USB, RJ45, 4G (optional) |

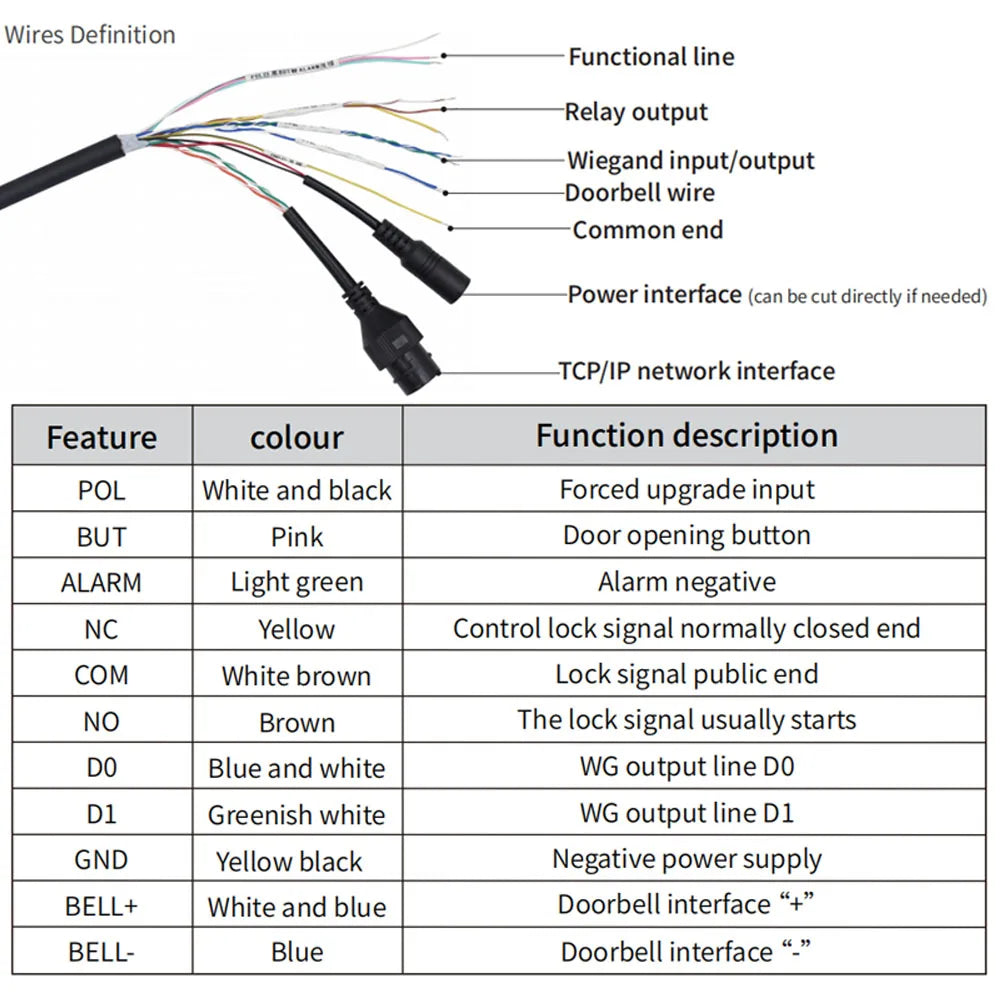

| Access Interface | 1× Switch signal, 1× Wiegand signal |
| Power Supply | 12V 2A |
| Material | Aluminum alloy |
| Operating Temperature | -20°C to 60°C |
| Certifications | CE, FCC |
| Origin | Made in Mainland China |
Who Is This For?
The AI701 is ideal for offices, warehouses, schools, apartment buildings, gyms, hotels, and any facility that requires reliable access control with built-in time-tracking. Its free cloud platform and Tuya App integration eliminate costly monthly fees while giving administrators full remote control from anywhere in the world.
For authoritative guidance on physical security and access control standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the Asia-Teco AI701 face recognition terminal require a monthly cloud subscription?
A: No. The AI701 includes free cloud API access and free LAN software — there are no ongoing subscription fees. You can manage the device remotely via the Tuya App (Tuya version) or locally via the free LAN software at no additional cost.
Q: How many users and records can the AI701 store?
A: The terminal supports up to 5,000 face profiles, 5,000 card entries, and 5,000 password entries, with a total of 100,000 attendance and access event records stored locally on the device.
Q: Can the AI701 access control terminal integrate with my existing security system?
A: Yes. The AI701 features Wiegand input/output, TCP/IP (RJ45 and Wi-Fi), and supports MQTT and HTTP protocols for direct platform integration, as well as cloud-to-cloud API for enterprise-level system docking. Optional RS485, 4G, and Bluetooth modules are also available.
Q: What verification methods does the AI701 support?
A: The AI701 supports face recognition, card (RFID), password, QR code, and remote unlocking via the Tuya App. You can also configure multi-person combination verification, requiring more than one authorized user to unlock the door simultaneously.
Q: Is the face recognition terminal suitable for outdoor installation?
A: Yes. The AI701's wide-dynamic dual-lens binocular camera is specifically designed to handle varying outdoor lighting conditions. The aluminum alloy body operates reliably in temperatures from -20°C to 60°C, making it well-suited for both indoor and outdoor entry points.
