AI Face Recognition Access Control & Time Attendance System

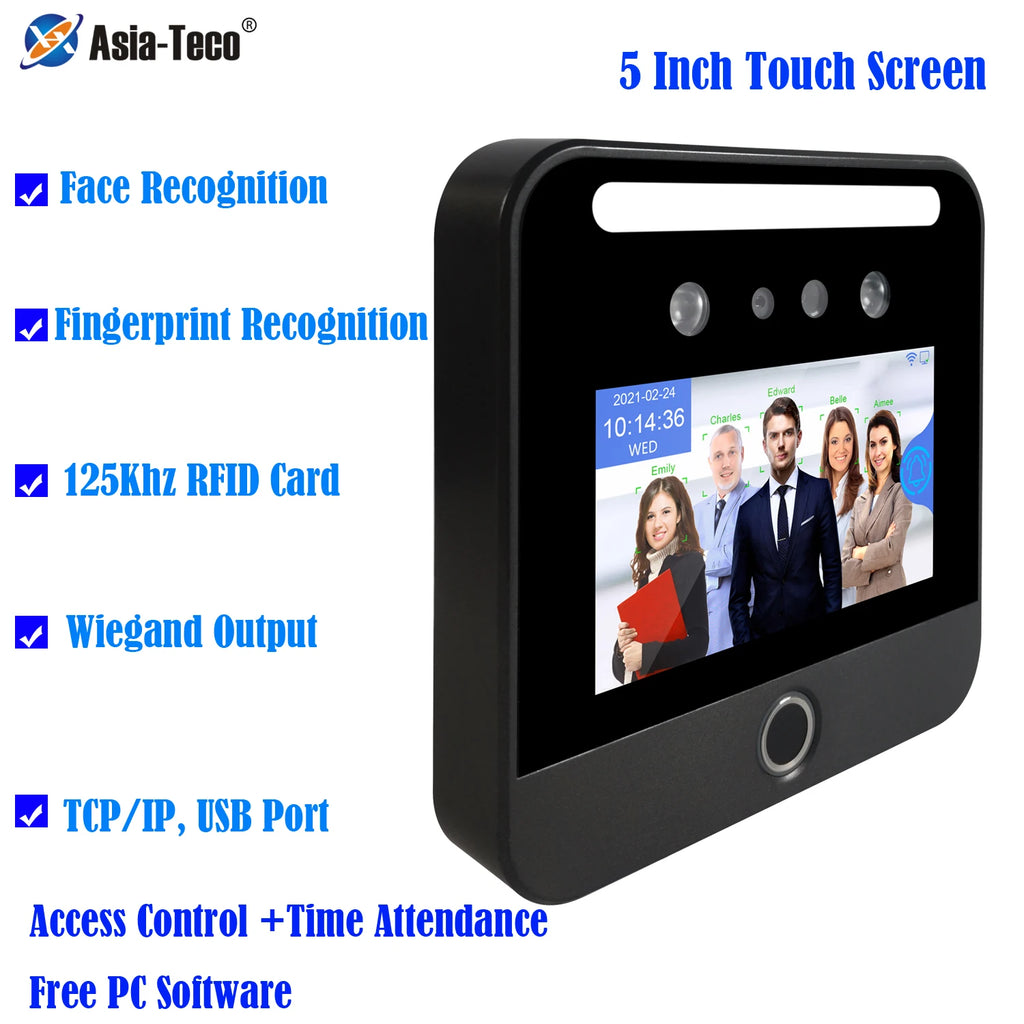

Upgrade your facility's security and workforce management with this advanced AI-powered face recognition access control terminal. Featuring dynamic binocular cameras, multi-mode verification, a 5-inch IPS touch screen, and TCP/IP connectivity, this all-in-one terminal delivers fast, contactless, and highly accurate identification for offices, factories, schools, and more. Made in Mainland China.
Why Choose This Terminal?
- Lightning-Fast Recognition: Identifies individuals in ≤0.2 seconds, with simultaneous multi-person recognition of up to 5 users at once — keeping entry queues moving efficiently.
- 99.70% Face Recognition Accuracy: Powered by a multi-task cascaded convolutional neural network (MTCNN) processing live video streams for dynamic face detection, tracking, and recognition.
- Dual Anti-Spoofing Cameras: Binocular WDR (Wide Dynamic Range) camera system prevents unauthorized access via printed photos, videos, or digital displays — only real, live faces are accepted.
- Multiple Verification Methods: Supports dynamic face recognition, capacitive fingerprint, PIN password, 125 KHz ID card (standard), and optional 13.56 MHz IC card (RFID) — choose the method that fits your environment.
- Large User & Record Capacity: Stores up to 5,000 face profiles (expandable to 20,000), 15,000 fingerprints, 15,000 cards, 15,000 passwords, and 500,000 event logs.
- QR Code Scanner Built-In: Enables contactless QR-based entry for visitors or temporary access scenarios.
- Wide Lighting Adaptability: WDR technology ensures accurate recognition under strong light, backlight, and low-light conditions (0–50,000 Lux ambient range), with automatic LED fill light in dark environments.
- 20 Language Support: Operates in 20 national languages and voice prompts including English, Spanish, French, Arabic, Portuguese, Italian, Japanese, Korean, Thai, Farsi, and more.
- Comprehensive Access Control I/O: Door sensor, relay output, alarm output, exit button, fire input, Wiegand 26/34 in/out, tamper detection, anti-passback, and interlock support.
- Flexible Connectivity: TCP/IP (standard) and optional Wi-Fi module for wireless network integration.
- Free Attendance Management: Export Excel attendance reports via USB drive; supports shift scheduling import; compatible with Desktop, Cloud, SDK, and Mobile APP management platforms.
Technical Specifications
| Screen | 5-Inch IPS Touch Screen, HD 720×1280 |
| OS | Linux 3.10 |
| CPU | 1.2 GHz Quad-Core ARM |
| RAM / ROM | 256 MB DDR3 / 4 GB Flash |
| Cameras | Binocular: 1/2.9" WDR color (200MP) + 1/5" infrared live (200MP), FOV 75° |
| Face Capacity | 5,000 (expandable to 20,000) |
| Fingerprint Capacity | 15,000 |
| Card Capacity | 15,000 (125 KHz ID standard; 13.56 MHz IC optional) |
| Password Capacity | 15,000 |
| Event Log Capacity | 500,000 |
| Recognition Accuracy | 99.70% |
| Recognition Speed | ≤0.2 seconds; up to 5 simultaneous users |
| Recognition Distance | 0.5–2.5 m (0.5–1.5 m with live detection active) |
| Connectivity | TCP/IP, USB 2.0; Wi-Fi optional (+$20) |
| Wiegand | Wiegand 26/34 In/Out |
| Power | DC 12V |
| Working Temperature | -15°C to +45°C |
| Working Humidity | 20%–90% RH |
| Languages | 20 languages including English, Spanish, Arabic, French, Portuguese, Japanese, Korean, Thai, Farsi, Italian |
| Installation | Wall mount (standard); desktop stand, turnstile bracket, floor stand (optional) |
Optional Add-Ons
- Wi-Fi Module: Add wireless connectivity (+$20/unit)
- 13.56 MHz IC Card (RFID) Reader: Upgrade to contactless smart card support (+$8/unit)
Ideal Applications
This terminal is an excellent fit for corporate offices, manufacturing plants, warehouses, schools, government facilities, residential communities, and any environment requiring reliable, contactless entry management combined with accurate attendance tracking.
For guidance on physical access control best practices and security standards, visit the NIST Identity & Access Management resource page.
Frequently Asked Questions
Q: Does this face recognition access control terminal work in low-light or backlit environments?
A: Yes. The system features Wide Dynamic Range (WDR) binocular cameras and automatic LED fill lighting, enabling accurate face recognition across an ambient light range of 0 to 50,000 Lux — including dim corridors, bright lobbies, and strong backlight conditions at entryways.
Q: Can this terminal be used for both door access control and employee time attendance simultaneously?
A: Absolutely. The system is designed as a unified access control and time attendance terminal. It controls door locks via relay and Wiegand outputs while logging all entry/exit events (up to 500,000 records). Attendance reports can be exported in Excel format via USB drive, or managed through Desktop, Cloud, SDK, or Mobile APP software.
Q: What verification methods does this access control system support?
A: The terminal supports dynamic face recognition, capacitive fingerprint scanning, PIN password entry, 125 KHz ID card (standard), and optional 13.56 MHz IC/RFID card. QR code scanning is also built in, providing a fully contactless access option for visitors and temporary users.
Q: How does the system prevent unauthorized access using a photo or video of a registered user?
A: The dual-camera anti-spoofing system uses one WDR color camera and one infrared live-detection camera simultaneously. This binocular approach detects whether a real, live face is present — effectively blocking access attempts using printed photos, digital screen displays, or video playback.
