Asia-Teco AI Face Recognition Access Control & Time Attendance Terminal
Upgrade your facility's entry management with the Asia-Teco AI06 Dynamic Face Recognition Access Control System — a contactless, multi-modal security terminal that combines advanced AI facial recognition, 125KHz RFID card reading, password authentication, and TCP/IP networking into one sleek 4.3-inch IPS touchscreen device. Designed for offices, warehouses, schools, and commercial facilities, this system supports up to 5,000 users (expandable to 20,000) and stores up to 500,000 event logs for comprehensive workforce tracking.
Made in Mainland China.
Why Choose This Access Control Terminal?
- 99.7% Face Recognition Accuracy — Powered by a multi-task cascaded convolutional neural network (MTCNN) algorithm for highly precise dynamic face detection, tracking, and recognition.
- Ultra-Fast <0.2s Recognition Speed — Simultaneously identifies up to 5 users at once, keeping high-traffic entry points flowing smoothly.
- Dual-Camera Anti-Spoofing (Liveness Detection) — A 200MP WDR color camera paired with an infrared liveness camera prevents unauthorized access via photos or videos.
- Wide Dynamic Range (WDR) — Delivers accurate recognition under challenging lighting — bright sunlight, low-light, and backlit environments (0–50,000 Lux).
- Contactless & Hygienic Operation — Face recognition works from 0.5 to 2.5 meters away; no physical contact required at the terminal.
- Multiple Verification Modes — Face, 125KHz RFID card (ID/IC), password, or QR code — flexible to your security policy.
- 20 Language Support — English, Spanish, Arabic, French, Italian, Portuguese, Japanese, Korean, Thai, Farsi, and more.
- Comprehensive Access Control I/O — Door sensor, relay output, exit button, fire input, Wiegand 26/34 in/out, external alarm, tamper detection, anti-passback, and interlock all supported.
- Flexible Management Software — Desktop app, Cloud platform, SDK integration, and Mobile APP — manage your entire access ecosystem from anywhere.

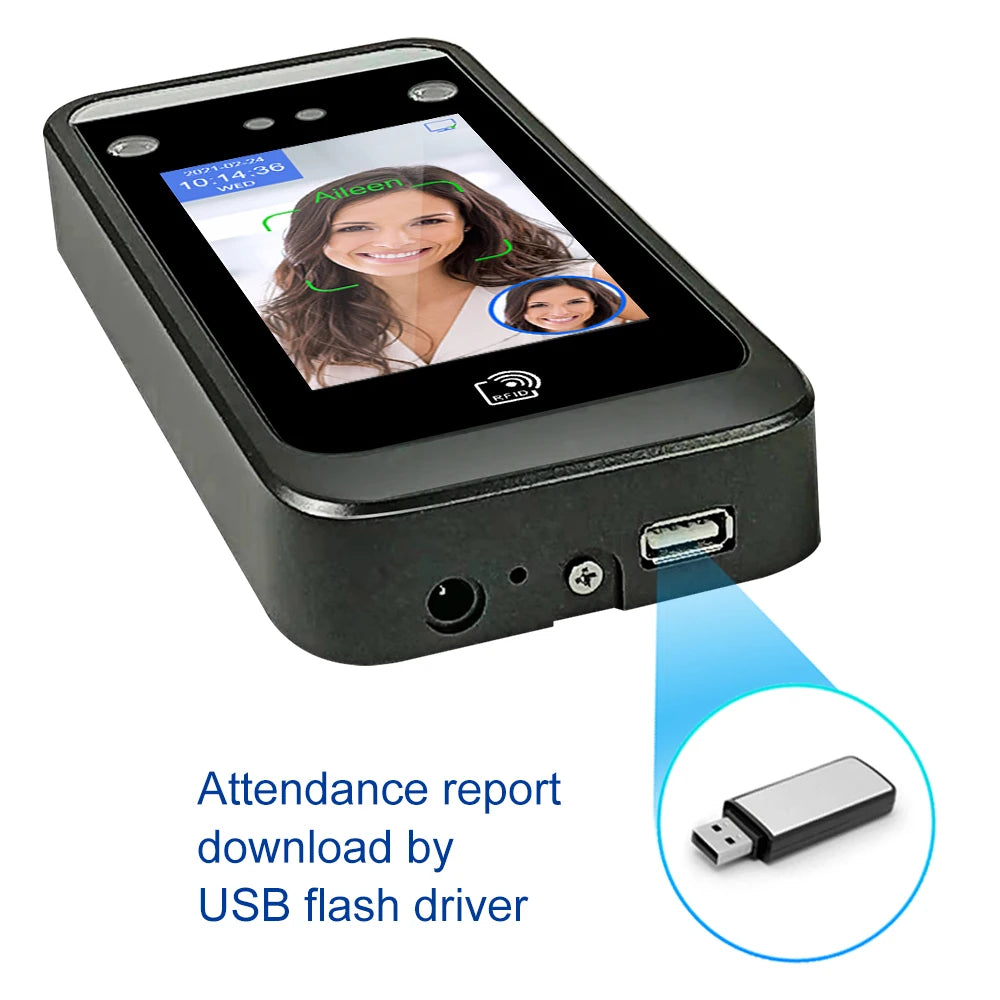

- Easy Data Import/Export — USB 2.0 port for U-disk data transfer; export attendance reports directly to Excel without additional software.
Full Technical Specifications

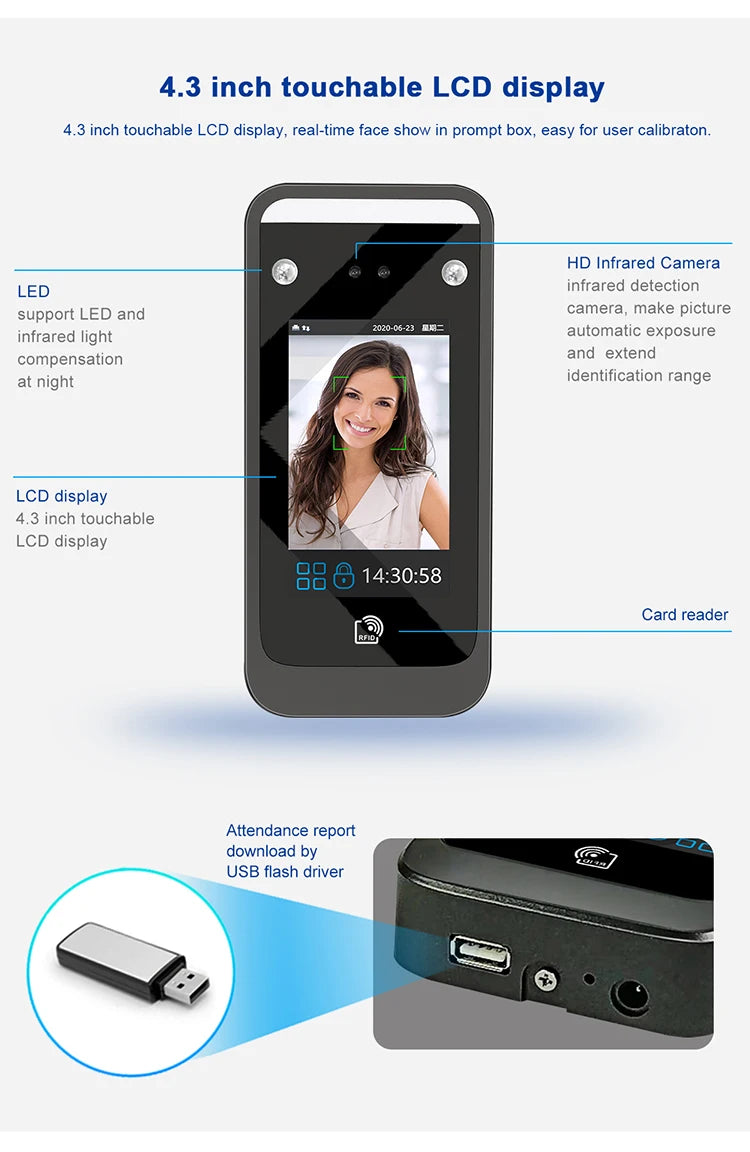

| Screen | 4.3" IPS Touch Screen, HD 720×1280 | Touch Keypad |
| Operating System | Linux |
| Processor / RAM / ROM | 1.2GHz 4-Core ARM CPU | 1GB DDR3 RAM | 4GB Flash |

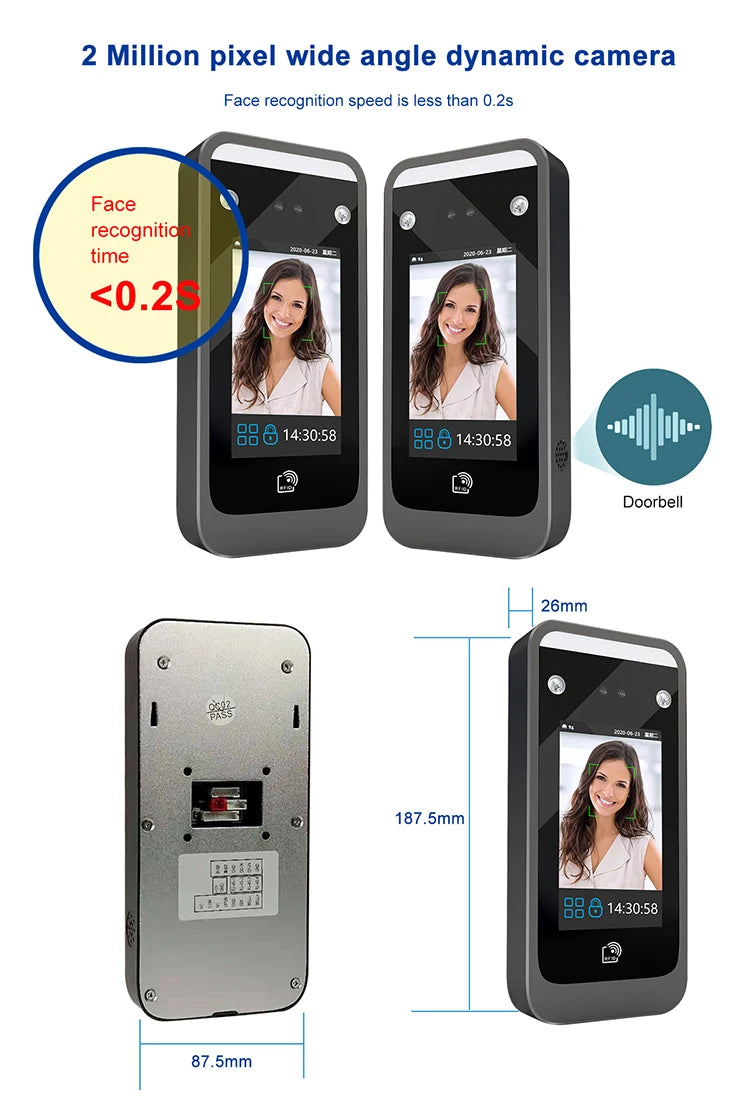

| Binocular Camera | 1/2.9" FOV 75° 2MP WDR Color Camera + 1/5" FOV 75° 2MP IR Liveness Camera |
| Face Capacity | 5,000 users (20,000 optional) |
| Card Capacity | 5,000 (125KHz ID Card standard; IC Card optional) |
| Password Capacity | 5,000 |
| Log Capacity | 500,000 records |
| Recognition Accuracy | 99.70% |
| Recognition Speed | ≤0.2 seconds; up to 5 simultaneous users |
| Recognition Distance | 0.5–2.5 m (0.5–1.5 m with liveness detection enabled) |
| Connectivity | TCP/IP (LAN), Wi-Fi optional | Wiegand 26/34 In/Out | USB 2.0 |
| Power Supply | DC 12V |
| Working Temperature | -15°C to +45°C (Storage: -40°C to +65°C) |
| Working Humidity | 20%–90% |
| Languages | 20 languages incl. English, Spanish, Arabic, French, Italian, Portuguese, Japanese, Korean, Thai, Farsi |
| Installation | Wall mount or desktop stand (bracket/floor stand optional) |
| Model | A106-TCP / A106-TCP-WIFI |
Access Control Features at a Glance
- Door sensor, alarm output, USB disk output, relay output
- Exit button input, fire input, Wiegand In/Out (26/34)
- External alarm, tamper-device detection, anti-passback, interlock
- Shift scheduling via U-disk import; Excel attendance report export
- QR Code scanner support
Learn More About Electronic Security Systems
For guidance on physical security best practices for businesses, visit the Cybersecurity & Infrastructure Security Agency (CISA). For workplace safety standards related to access control and security equipment, refer to OSHA's Workplace Safety resources.
Frequently Asked Questions
Q: How many users can the face recognition access control system store?
A: The standard configuration supports up to 5,000 face profiles, 5,000 RFID card users, and 5,000 password users. An optional upgrade expands face capacity to 20,000 users, making it suitable for larger enterprises or multi-site deployments. Up to 500,000 event log records can be stored onboard.
Q: Does this access control terminal work without an internet connection?
A: Yes. The system operates fully as a standalone device over a local TCP/IP LAN network and does not require internet connectivity for day-to-day operation. Data can be imported and exported via USB flash drive, and Wi-Fi connectivity is available as an optional add-on for added flexibility.
Q: Can the system recognize faces with masks or in low-light conditions?
A: The dual-camera setup with Wide Dynamic Range (WDR) technology allows accurate recognition from 0 to 50,000 Lux — covering everything from near-darkness to bright outdoor light. The infrared liveness camera assists in low-light environments, and automatic LED fill lighting activates based on ambient conditions. Note: recognition of masked faces depends on firmware configuration and may vary.
Q: What software is included for managing the access control system?
A: The Asia-Teco AI06 is compatible with Desktop software, a Cloud-based platform, a Mobile APP, and an SDK for custom integrations. Attendance reports can also be exported directly to Excel via USB drive, providing a simple standalone reporting option without additional software.
Q: What verification methods does this terminal support?
A: The terminal supports dynamic face recognition, 125KHz RFID card (ID card standard, IC card optional), numeric password, and QR code scanning. These modes can be used individually or in combination for multi-factor authentication.
