Asia-Teco F99 Fingerprint & RFID Access Control Kit — Embedded Metal Design
Upgrade your door or gate security with the Asia-Teco F99 Access Control Kit — a compact, embedded standalone unit combining 125KHz RFID proximity card reading and semiconductor fingerprint identification in one rugged zinc-alloy housing. Ideal for door frames, electric gates, office entrances, and commercial access points, this kit delivers reliable, keyless entry in a sleek silver finish.
Key Features
- Dual Authentication: Supports up to 100 fingerprints and 3,000 RFID cards/keyfobs (125KHz EM card technology)
- IP66 Waterproof & Weather-Resistant: Zinc-alloy metal housing meets IP66 ingress protection — suitable for outdoor and semi-outdoor installations
- Embedded Mini Design: Compact dimensions (115 × 40 × 30 mm) allow flush mounting directly into door frames for a clean, professional look
- Wide Operating Range: Functions in temperatures from -25°C to 60°C (-13°F to 140°F) and humidity from 20%RH to 98%RH
- Latch Mode: Hold door or gate open with the convenient latch function
- Tri-Colour LED Status Display: Instant visual feedback for granted access, denied access, and system status
- Fail-Safe Security Mode: Signal-triggered fail-safe relay for reliable operation during power events
- Flexible Wiring: Single relay output (NO, NC, Common) with exit button support — compatible with most electric locks and gate openers (2A max load)
- Low Power Consumption: Idle current ≤25mA; operating voltage DC 9–18V

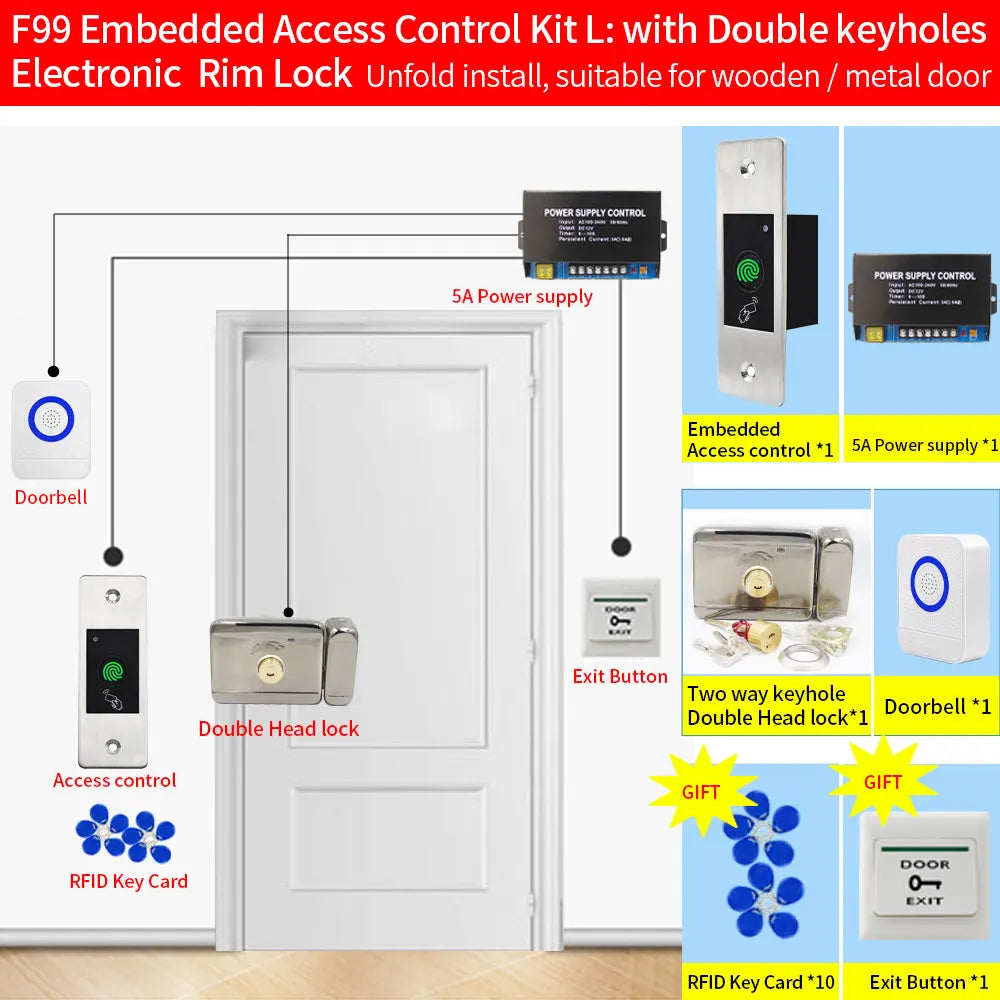

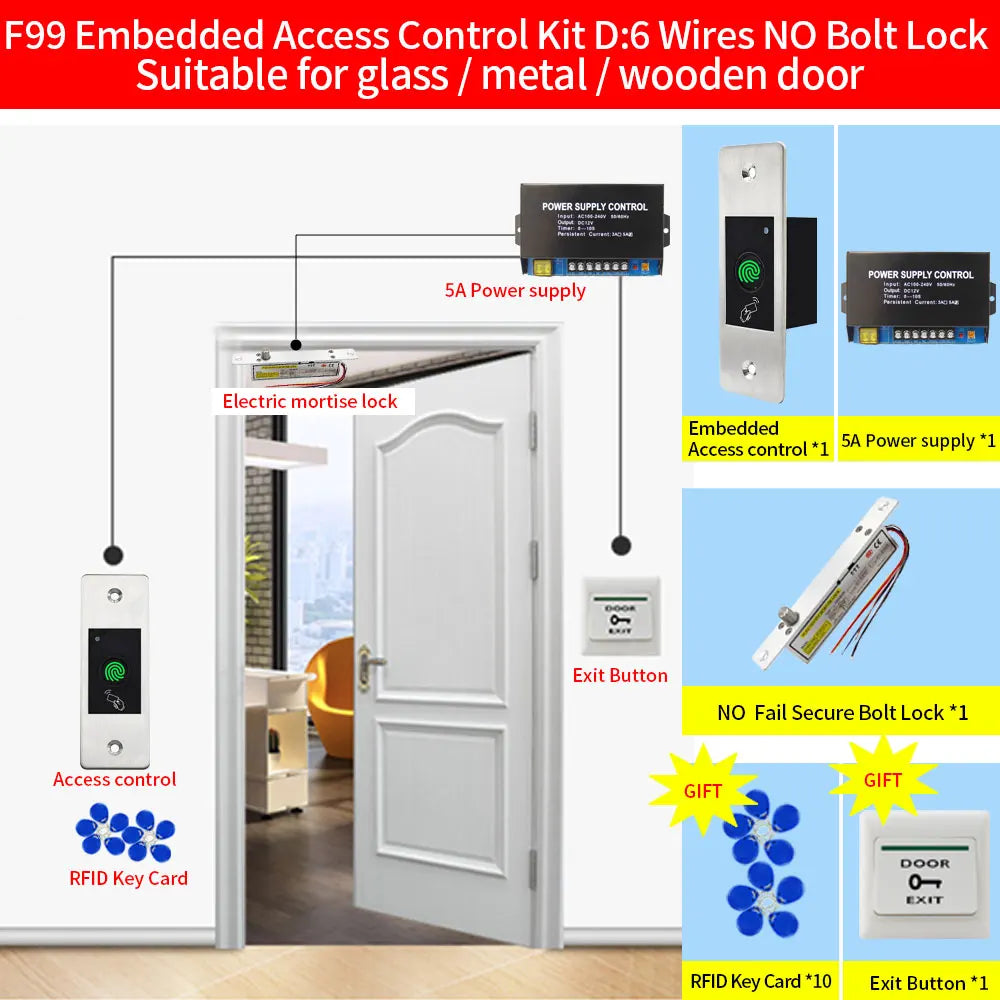

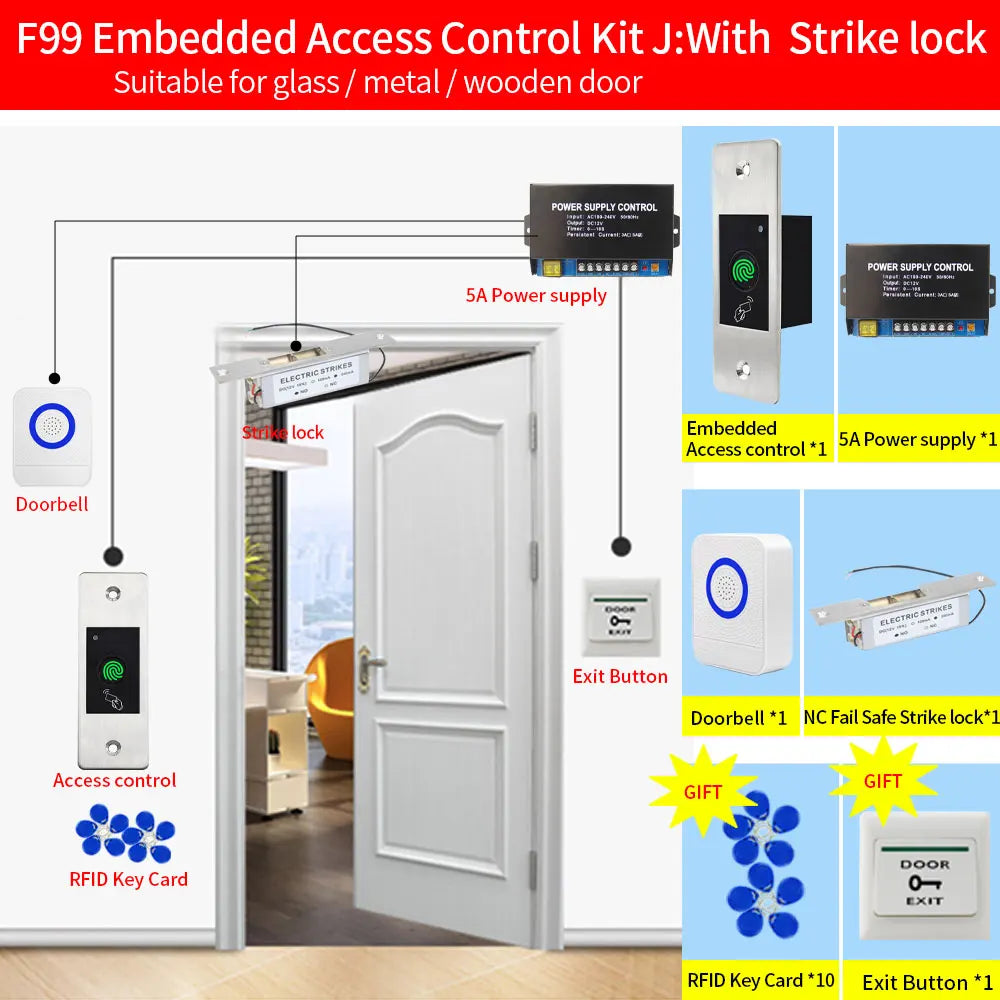

What's in the Kit

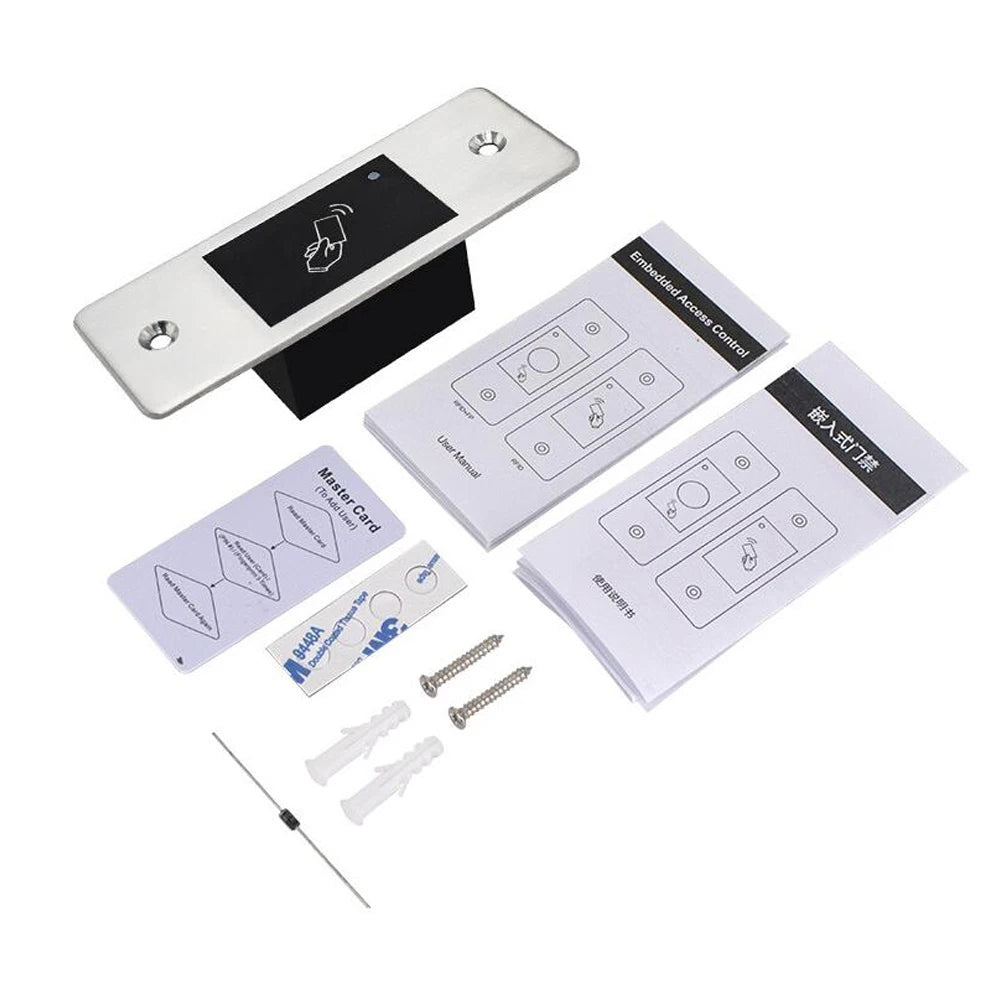

The F99 access control set includes the embedded metal reader/controller unit, enabling you to connect your preferred electric lock or gate opener directly via the relay output wiring connections.
Full Technical Specifications
| Model | F99 Access Control Kit |
| Card Capacity | 3,000 Cards |
| Fingerprint Capacity | 100 Fingerprints |
| Radio Technology | 125KHz EM Proximity Card |
| Read Range | ~2 cm |
| Operating Voltage | DC 9–18V |
| Idle Current | ≤25mA |
| Active Current | ≤100mA |
| Lock Output Load | 2A Maximum |
| Relay | One (NO, NC, Common) |
| Security Mode | Fail Safe with Signal |
| Waterproof Rating | IP66 |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operating Humidity | 20%RH – 98%RH |
| Housing Material | Zinc-Alloy |
| Colour | Silver |
| Dimensions | 115 × 40 × 30 mm |
| Country of Origin | Made in Mainland China |
Installation Tips & Safety
For guidance on best practices when installing electronic access control systems in commercial or residential properties, refer to U.S. Consumer Product Safety Commission (CPSC) resources on electrical safety.
Frequently Asked Questions
Q: How many users can the F99 access control kit support?
A: The F99 supports up to 100 fingerprints and 3,000 RFID cards or keyfobs simultaneously, making it suitable for small offices, apartment buildings, warehouses, and other multi-user environments.
Q: Is the F99 fingerprint reader suitable for outdoor installation?
A: Yes. The F99 features an IP66-rated zinc-alloy metal housing, which protects against powerful water jets and dust ingress. It operates across a wide temperature range (-25°C to 60°C), making it well-suited for outdoor gates, exterior doors, and covered entry points.
Q: What type of RFID cards does the F99 access control system use?
A: The F99 uses standard 125KHz EM proximity cards and keyfobs, which are widely available and compatible with most EM card-based access systems.
Q: Can the F99 be connected to any electric lock or gate opener?
A: The F99 includes a relay output (NO, NC, Common) with a maximum load of 2 Amps, compatible with most electric strikes, magnetic locks, and gate openers. Always verify your lock's current draw does not exceed 2A before connecting.
Q: What power supply does the F99 require?
A: The F99 operates on DC 9–18V, making it compatible with standard access control power supplies available at most security hardware suppliers.
