Asia-Teco F6 RFID Fingerprint Access Control System — Standalone, Waterproof IP66
Take control of who enters your property with the Asia-Teco F6 Standalone Access Control System. Combining 125 kHz EM RFID card reading with optical fingerprint recognition, this rugged metal-cased unit delivers fast, reliable dual-method entry management for offices, warehouses, server rooms, residential gates, and more — all without needing a separate controller or PC.
Built to IP66 waterproof standards, the F6 handles harsh outdoor conditions with ease, operating across a wide temperature range of -20 °C to 50 °C. Setup is straightforward, and with support for up to 500 card users and 200 stored fingerprints, it's ideal for small to medium-sized access points.
Key Features
- Dual Access Methods: ID card (125 kHz EM) and fingerprint recognition — use either or both for enhanced security
- Large User Capacity: Stores up to 500 card users and 200 fingerprint templates
- Ultra-Fast Recognition: Identifies users in under 1 second for smooth, uninterrupted entry

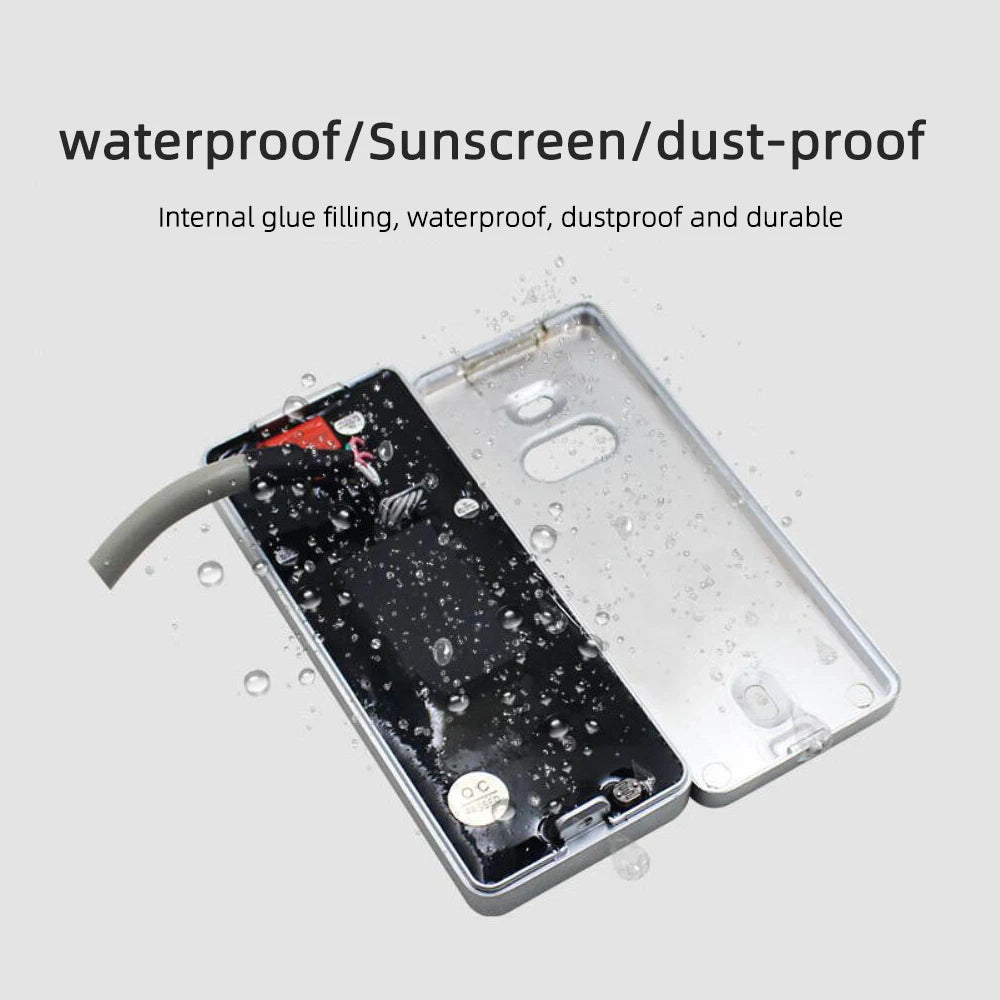

- IP66 Waterproof Rating: Fully weather-resistant for indoor and outdoor installation
- Robust Metal Housing: Durable construction stands up to daily use and tampering attempts

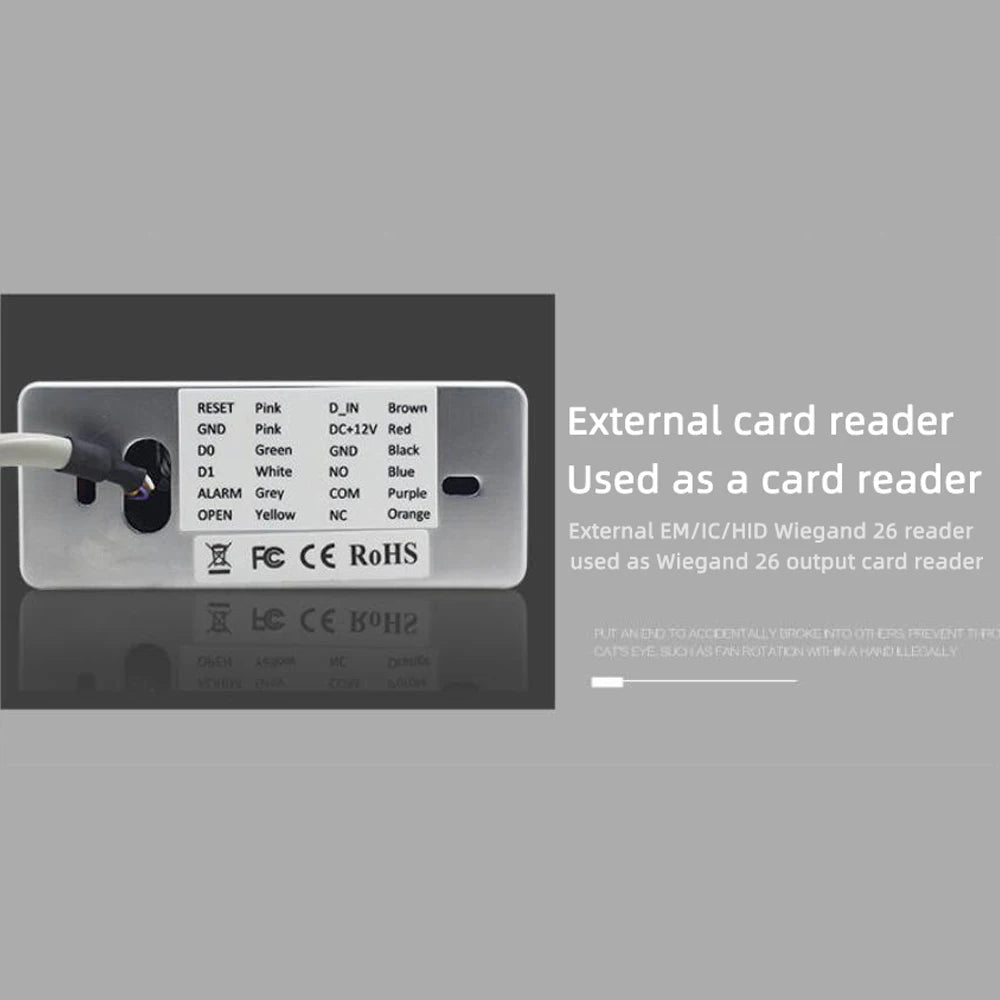

- Wiegand WG26 Output: Easily integrates with third-party access control panels and systems
- Fail-Safe Mode with Signal: Maintains security integrity in the event of power interruption
- Built-In Alarm Functions: Anti-tamper, forced-door-open, and door-open-overtime alerts
- Adjustable Timing: Door opening time 0–99 seconds; alarm output time 0–3 minutes — fully configurable
- High Accuracy: FAR ≤ 0.001% and FRR ≤ 0.1% at Security Level 3
- Wide Environmental Range: Operates from -20 °C to 50 °C, humidity 10%–90%
Full Technical Specifications
| Model | F6 |
| Brand | Asia-Teco |
| Power Supply | DC 12V |
| Working Current | ≤ 150 mA |
| Idle Current | ≤ 30 mA |
| Card Frequency | 125 kHz (EM / ID Card) |
| Reading Range | 3–8 cm |
| Fingerprint Capacity | 200 |
| Card Capacity | 500 |
| Recognition Speed | < 1 second |
| FAR | ≤ 0.001% (Security Level 3) |
| FRR | ≤ 0.1% (Security Level 3) |
| Lock Output Load | ≤ 3 A |
| Alarm Output Load | ≤ 20 A |
| Alarm Output Time | 0–3 min (Adjustable) |
| Door Opening Time | 0–99 s (Adjustable) |
| Wiegand Output | WG26 |
| Security Mode | Fail Safe with Signal |
| Alarm Functions | Anti-dismantle, Force-open door, Door-open overtime |
| Operating Temperature | -20 °C to +50 °C |
| Operating Humidity | 10% – 90% |
| Material | Metal Case |
| Waterproof Rating | IP66 |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × Asia-Teco F6 RFID Fingerprint Access Control Reader
- Installation hardware and wiring guide
Installation & Safety
The F6 is designed for wall-mounted installation at entry points. Always ensure power is isolated before wiring. For guidance on physical security best practices and electronic access control standards, refer to the U.S. Consumer Product Safety Commission (CPSC). For information on electrical safety during installation, visit OSHA Electrical Safety.
Frequently Asked Questions
Q: Can the F6 fingerprint access control reader be used outdoors?
A: Yes. The F6 carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust ingress. It also operates across a wide temperature range (-20 °C to +50 °C), making it well-suited for outdoor gates, building entrances, and exposed entry points.
Q: Does the F6 work as a standalone unit or does it require a separate access controller?
A: The F6 is a fully standalone access control system — it manages user data, fingerprint templates, and lock outputs directly, with no separate controller or PC required. It also supports WG26 Wiegand output for integration with third-party panels if needed.
Q: How many users and fingerprints can the F6 store?
A: The F6 supports up to 500 card users (125 kHz EM/ID cards) and up to 200 stored fingerprint templates, making it suitable for small to medium-sized access points such as offices, server rooms, storage areas, and residential gates.
Q: What alarm features does the F6 access control system include?
A: The F6 includes three built-in alarm triggers: anti-tamper/dismantle detection, forced-door-open detection, and door-open-overtime detection. The alarm output time is adjustable from 0 to 3 minutes, and it supports an alarm output load of up to 20 A for connection to external sirens or alert systems.
