ESP8266 ESP-01 DC 5V WiFi Relay Module – 1 & 2 Way Smart Home Remote Control
Take your DIY smart home projects to the next level with the ESP8266 ESP-01 WiFi Relay Module. Powered by the popular ESP-01/ESP-01S WiFi chip, this compact relay board lets you switch appliances and devices remotely straight from your smartphone — no complex configuration required. Simply connect, power on, and start controlling.
Key Features
- Plug-and-Play Setup: No programming or configuration needed — ready to use right out of the box.
- Smartphone Control: Operate your connected devices wirelessly via any WiFi-enabled mobile phone.

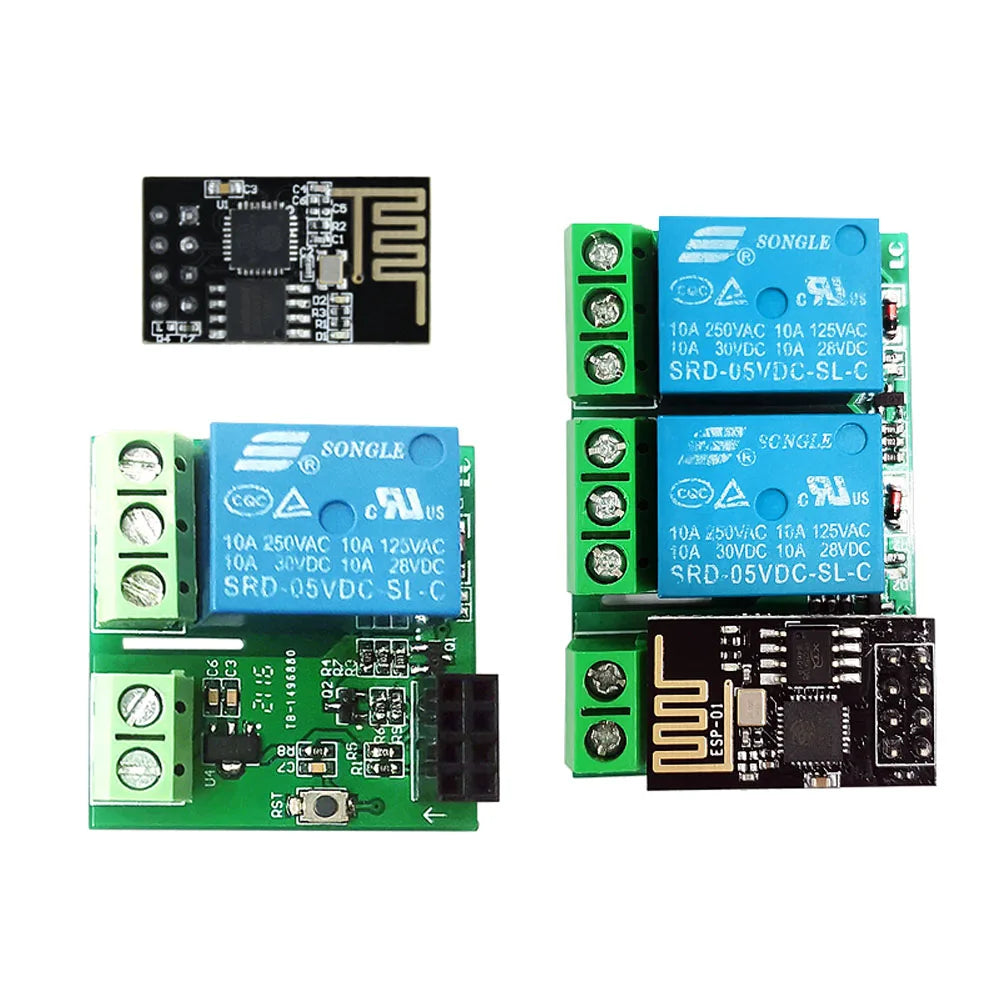

- Versatile Options: Available as a standalone ESP-01 WiFi module, a 1-way relay module, or a 2-way relay module to suit your project needs.
- Long Wireless Range: Stable transmission distance of up to 100 m in open environments.
- Built-in Safety Indicators: Onboard relay status LED and a dedicated reset button for easy operation.
- High-Durability Relay: Rated 10A/250V AC and 10A/30V DC, capable of 100,000 continuous switching cycles.
- Low-Level Trigger Control: Compatible with a wide range of microcontrollers and automation systems.
- Compact Form Factor: Separate base plate design keeps wiring neat and installation straightforward.
Specifications
| Working Voltage | DC 5V |
| Trigger Level | Low Level |
| Relay Rating | 10A / 250V AC & 10A / 30V DC |
| Relay Endurance | 100,000 continuous operations |
| Max Wireless Range (Open Area) | ~100 m |

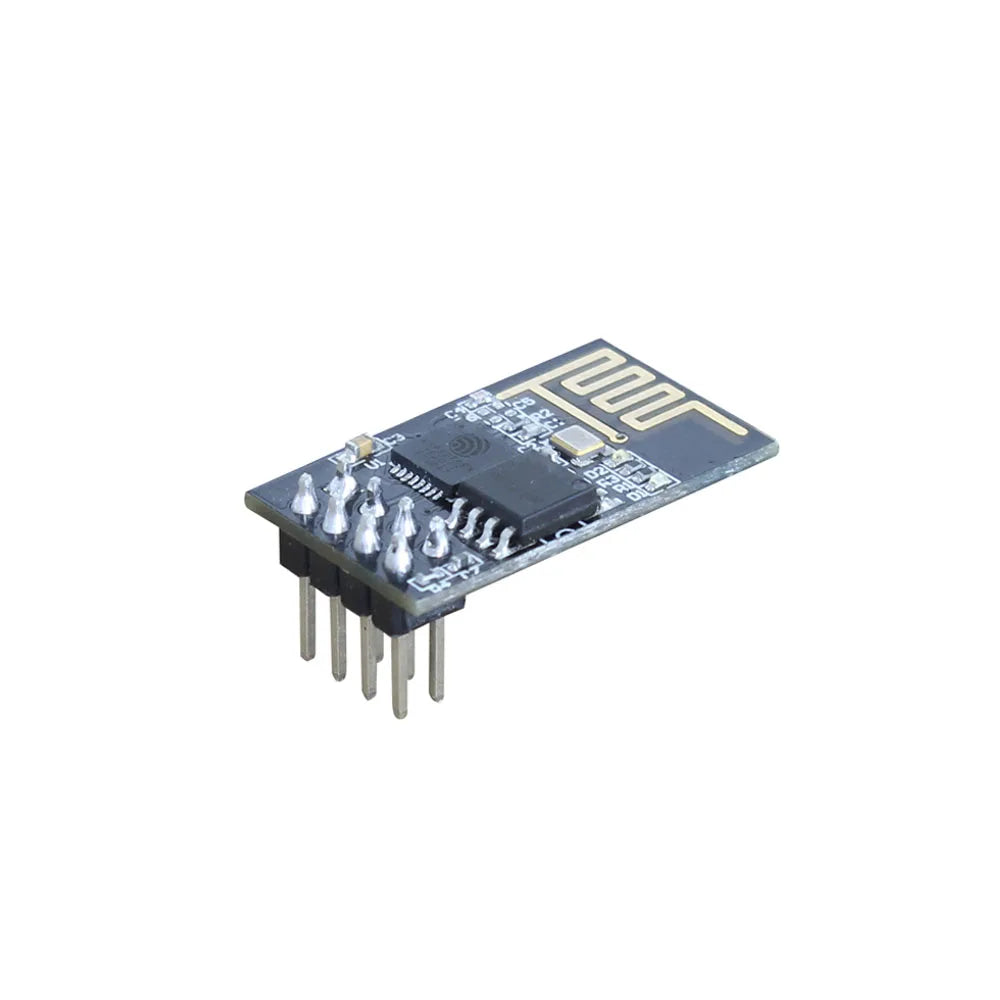

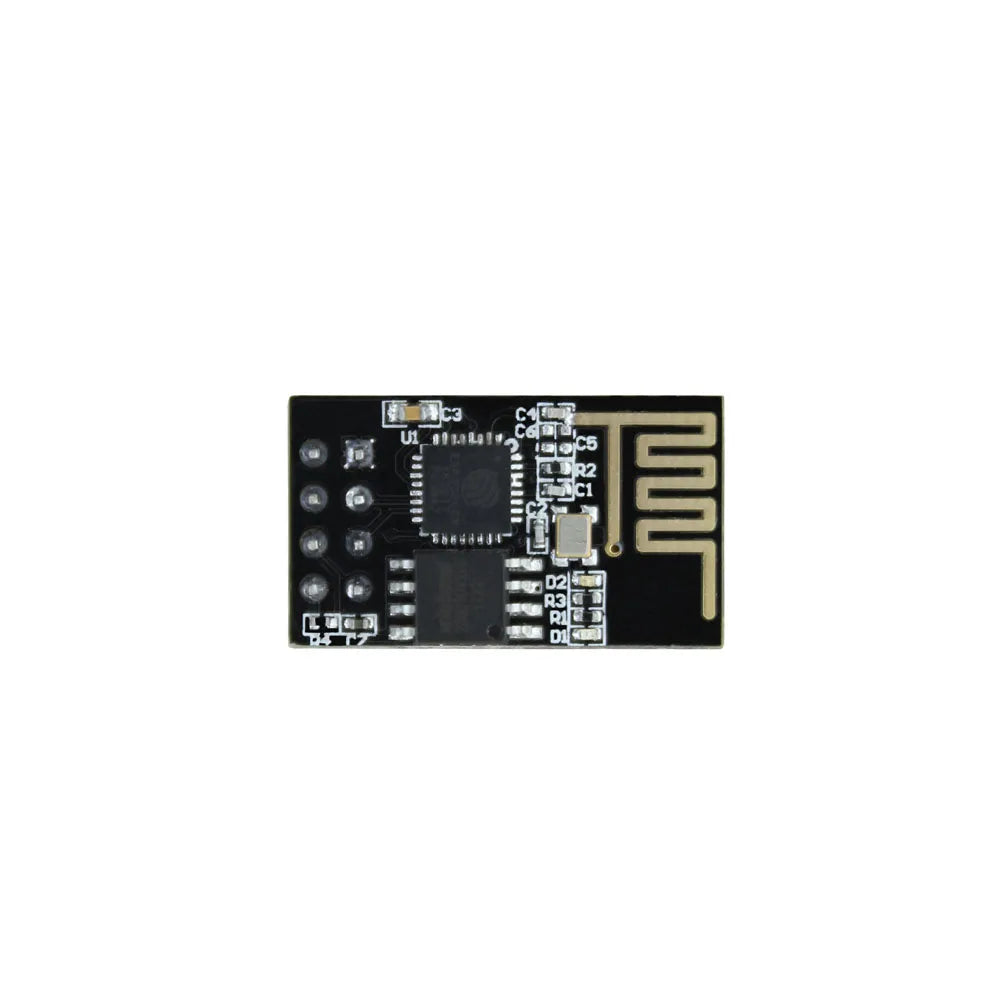

| ESP-01 Module Size | 14.5 × 24.7 mm |

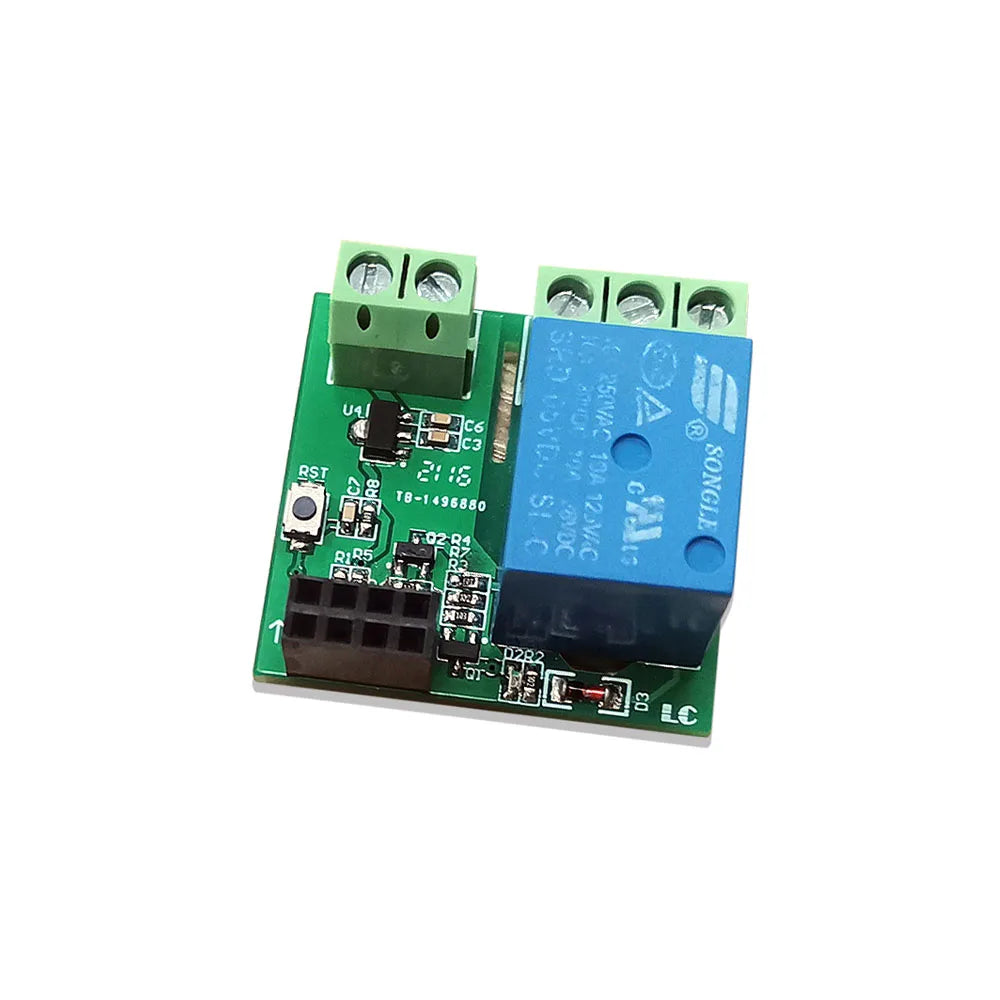

| 1-Way Relay Module Size | 32.1 × 50.7 mm |

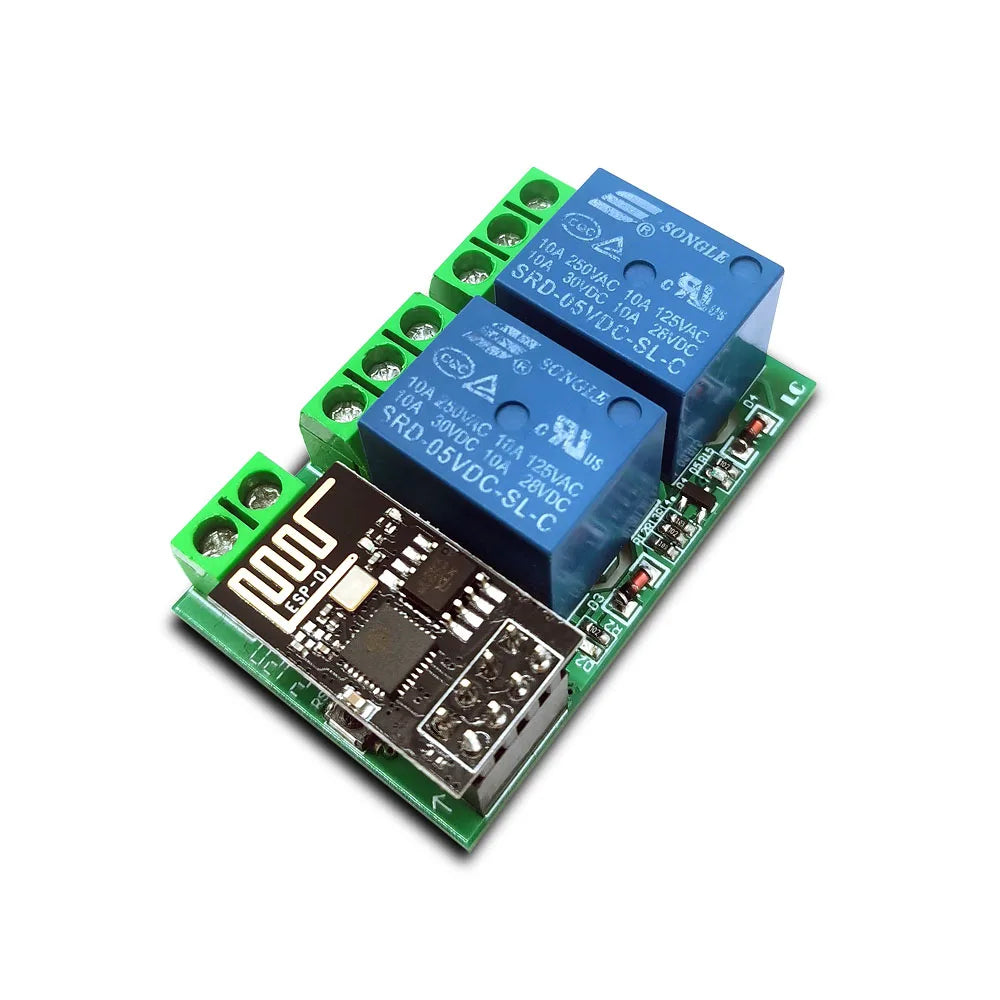

| 2-Way Relay Module Size | 32.1 × 33.7 mm |
What's in the Box?
- 1× ESP-01 WiFi Module OR 1× ESP8266 Relay Module (1-Way or 2-Way, depending on variant selected)
Perfect For
- Smart home automation projects
- Remote appliance switching
- Arduino, Raspberry Pi & other DIY electronics builds
- IoT (Internet of Things) development and prototyping
Made in Mainland China.
For general guidance on safe electrical wiring and device standards, refer to the U.S. Consumer Product Safety Commission (CPSC).
Note: Due to screen and lighting variations, colours may appear slightly different from the actual product. Please allow 1–3 cm measurement tolerance.
Frequently Asked Questions
Q: Does the ESP8266 ESP-01 WiFi relay module require any programming to set up?
A: No! This ESP-01 relay module is designed to be plug-and-play. It comes pre-configured and ready to use straight out of the box — simply connect it to your 5V power supply, pair it with your WiFi network via your smartphone, and start controlling your devices remotely. No coding experience is required.
Q: What is the difference between the 1-way and 2-way relay module versions?
A: The 1-way relay module (32.1 × 50.7 mm) controls a single circuit or device, making it ideal for switching one appliance on or off. The 2-way relay module (32.1 × 33.7 mm) controls two independent circuits simultaneously, giving you more flexibility for multi-device automation projects — both are controlled wirelessly via the ESP-01 WiFi module.
Q: What is the maximum WiFi control range for this relay module?
A: In an open outdoor environment, the ESP-01 WiFi relay module can maintain a stable wireless connection of up to 100 metres. Indoor range may vary depending on walls, obstacles, and interference from other wireless devices.
Q: Is this relay module compatible with Arduino or Raspberry Pi projects?
A: Yes. The ESP8266 ESP-01 relay module uses low-level triggering and standard 5V DC logic, making it compatible with Arduino, Raspberry Pi, and most other popular microcontroller platforms used in DIY electronics and IoT projects.
