ESP32-C3 SuperMini Dev Board – WiFi Bluetooth Arduino Compatible

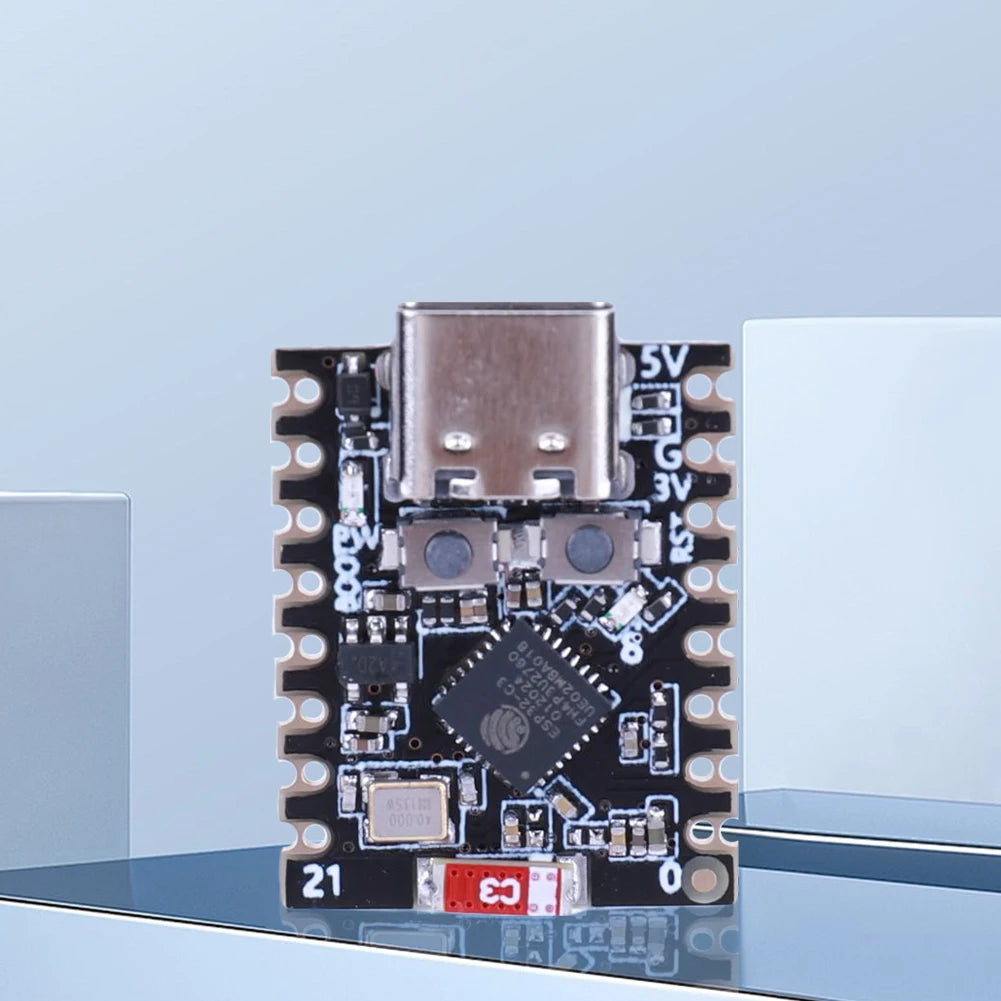

ESP32-C3 SuperMini Development Board – Compact IoT Powerhouse

Meet the ESP32-C3 SuperMini Development Board — a high-performance, ultra-compact microcontroller board built around Espressif's powerful ESP32-C3 chip. Whether you're prototyping IoT devices, building wireless wearables, or experimenting with Arduino-compatible projects, this tiny board packs serious capability into a thumb-sized footprint (22.52 × 18 mm).

Made in Mainland China.

Why Choose the ESP32-C3 SuperMini?

• 32-Bit RISC-V Processor: Runs at up to 160 MHz with a floating-point unit (FPU) for 32-bit single-precision operations — delivering strong computing power for embedded applications.
• Dual Wireless Connectivity: Built-in WiFi 802.11b/g/n (2.4 GHz) supporting Station, SoftAP, SoftAP+Station, and mixed modes, plus Bluetooth 5.0 (LE) for seamless wireless communication.
• Ultra-Low Power Design: Deep sleep current consumption of approximately 43 µA, making it ideal for battery-powered and energy-sensitive applications.
• Generous On-Board Resources: 400 KB SRAM, 384 KB ROM, and an integrated 4 MB Flash — plenty of space for your sketches, data, and applications.
• Advanced Hardware Security: Supports AES-128/256, hash encryption accelerators, RSA, HMAC, digital signatures, and secure boot to protect your IoT solutions.
• Rich Interface Options: 11× GPIO (PWM-capable), 4× ADC, 1× I²C, 1× SPI, 2× UART — ready for a wide range of sensors, displays, and peripherals.
• Arduino Compatible: Easily integrates with the Arduino IDE for fast development and prototyping.
• Onboard LED: Blue LED on GPIO8 for quick status indication and testing.
• Surface-Mount, Single-Sided Design: Clean, compact PCB layout with an onboard reset button and bootloader mode button.

Technical Specifications

Package Contents

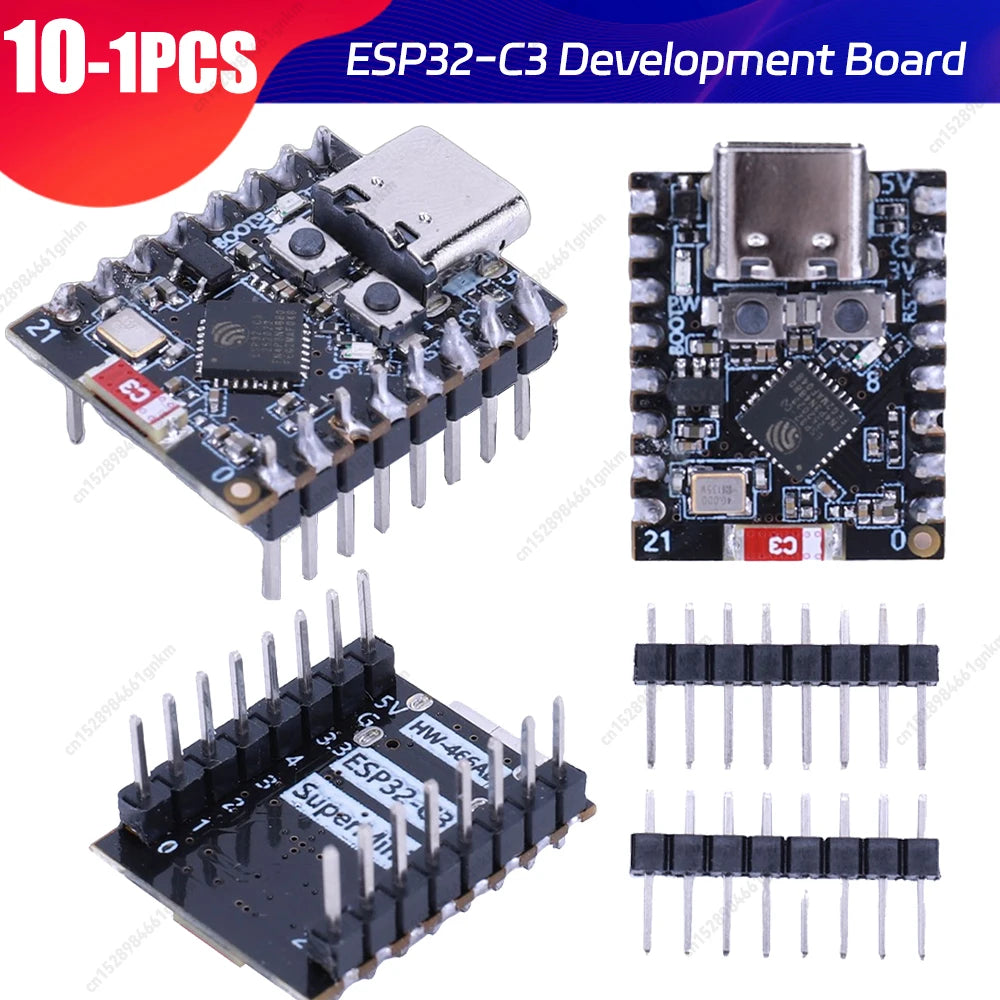

• 1× ESP32-C3 SuperMini Development Board (choose: Soldered Pins or Unsoldered Pins)

Available in packs of 1–10 boards — ideal for individuals, classrooms, and maker teams.

Learn More About IoT & Wireless Standards

For background on the wireless communication protocols used by this board, visit the NIST Wireless Networks Division for technical standards, or explore Energy.gov's IoT in Buildings resource for real-world IoT applications.

Note: Due to monitor calibration and lighting conditions, the actual product color may vary slightly from images. Please allow ±1–2 cm tolerance due to manual measurement.

Frequently Asked Questions

Q: Is the ESP32-C3 SuperMini board compatible with the Arduino IDE?

A: Yes! The ESP32-C3 SuperMini is fully compatible with the Arduino IDE. You can add ESP32 board support via the Arduino Board Manager, then upload sketches just as you would with any Arduino-compatible board. It also works with PlatformIO and other popular development environments.

Q: What is the difference between the soldered and unsoldered pin versions?

A: The soldered pins version comes with header pins already attached, so you can plug it directly into a breadboard or use jumper wires immediately. The unsoldered version ships without header pins, giving you the flexibility to solder custom connectors or integrate the board directly into your PCB design.

Q: Can I use this board for battery-powered or wearable IoT projects?

A: Absolutely. The ESP32-C3 SuperMini is specifically engineered for low-power applications. With a deep sleep current of approximately 43 µA and its ultra-compact 22.52 × 18 mm footprint, it is well-suited for wearable devices, remote sensors, and other battery-operated IoT projects where size and power efficiency are critical.

Q: How many boards can I order, and does the price cover multiple units?

A: This listing offers packs of 1 to 10 boards, making it a convenient option for individual makers, educators, and small development teams. Select your preferred quantity at checkout to stock up for multiple projects.
