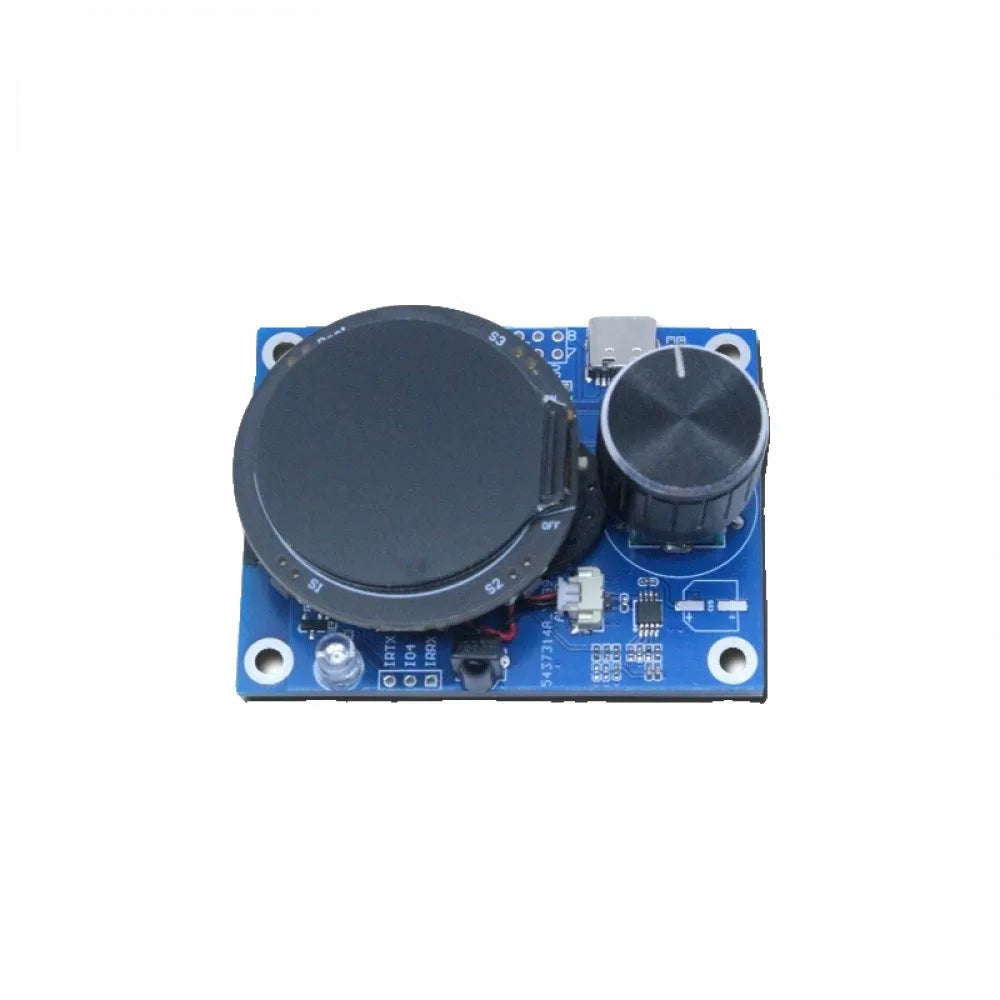

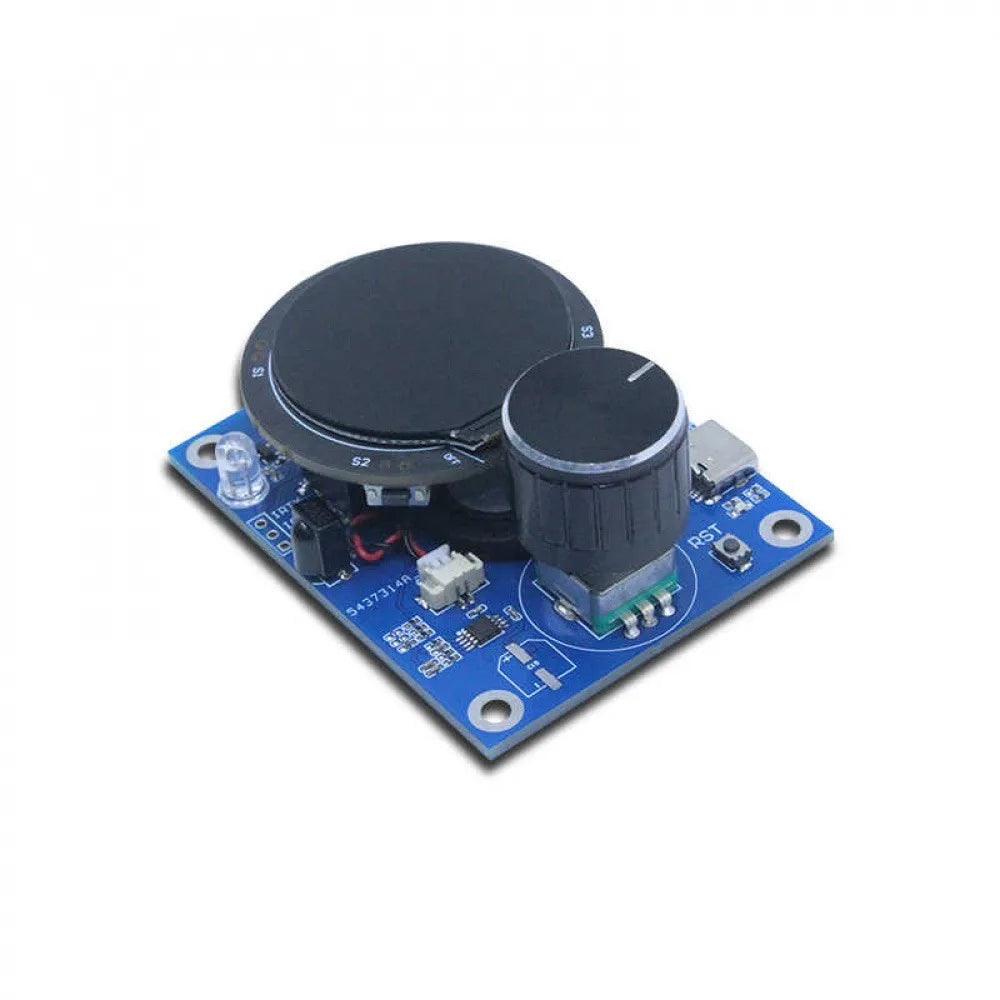

ESP32-C3 Rotary Screen LCD Evaluation & Development Board
Take your embedded projects to the next level with this compact ESP32-C3 LCD Evaluation Development Board. Built around the powerful ESP32-C3 chip and featuring a rotary encoder interface, SPI display screen, audio playback, and infrared wireless control, this all-in-one kit is ideal for hobbyists, engineers, and makers who want to prototype and evaluate interactive display-driven applications quickly and efficiently.
Key Features
- ESP32-C3 Chip: A capable RISC-V single-core 32-bit microcontroller with Wi-Fi and Bluetooth LE connectivity built in — perfect for IoT and smart device projects.
- SPI Interface LCD Screen: High-speed SPI communication ensures smooth and responsive display rendering for your UI and graphical applications.
- Rotary Encoder Interaction: Navigate and control on-screen menus and settings intuitively using the integrated rotary encoder switch — no touchscreen required.
- Audio Playback Function: On-board audio capability lets you add sound alerts, music, or voice prompts directly to your project.
- Infrared Wireless Control: Built-in IR transmitter/receiver support enables remote control functionality right out of the box.

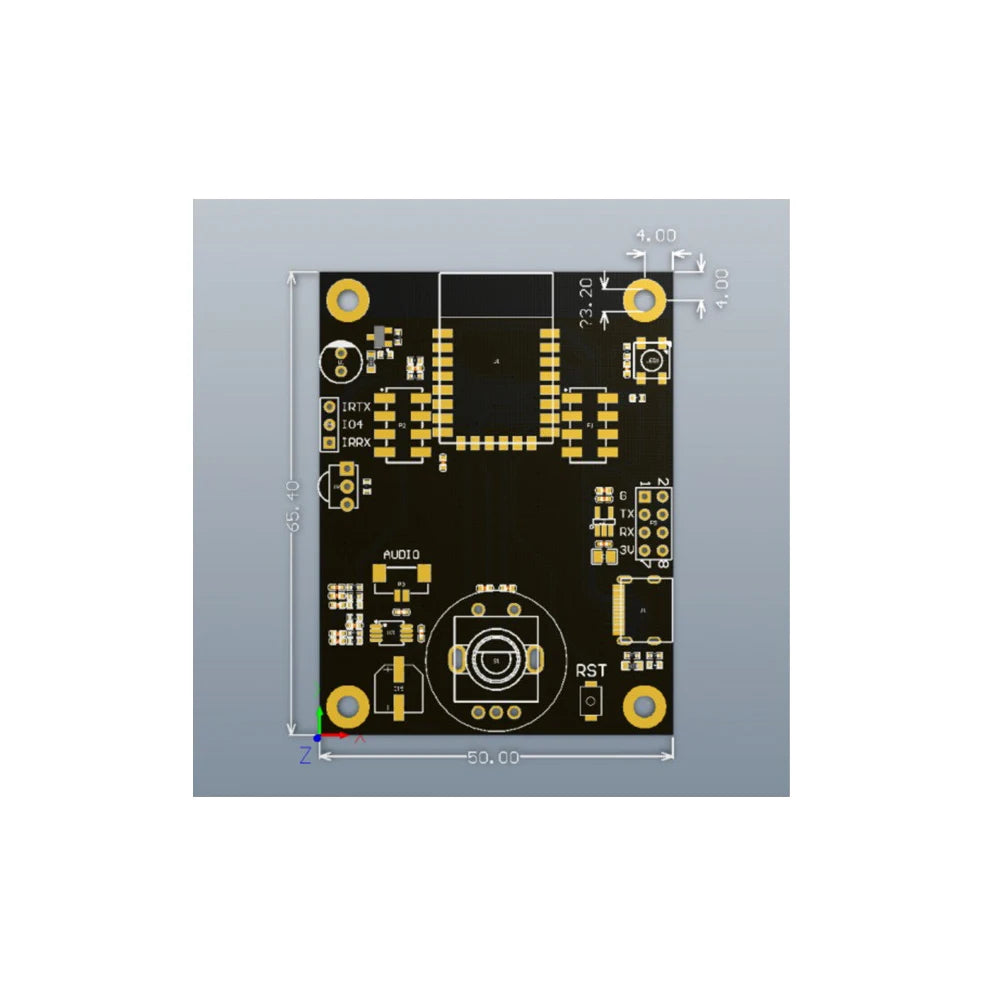

- Compact Form Factor: At just 65.4 × 50 mm, this board fits neatly into enclosures and portable builds without sacrificing features.
- Evaluation & Prototyping Ready: Designed as a full evaluation kit, making it easy to test firmware, display layouts, and peripheral integrations before moving to production.
Specifications
| Chip | ESP32-C3 |
| Display Interface | SPI |
| Input Method | Rotary Encoder Switch |
| Additional Features | Audio Playback, Infrared Wireless Control |
| Board Dimensions | 65.4 × 50 mm |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× ESP32-C3 LCD Evaluation & Development Board
Notes
- Due to lighting and screen differences, actual board color may vary slightly from product images.
- Please allow ±1–10 mm variation due to manual measurement.
Learn More About ESP32 & IoT Development
For background on wireless and embedded standards relevant to this board's Wi-Fi and Bluetooth capabilities, visit the NIST Communications Technology Laboratory.
Frequently Asked Questions
Q: What display types are compatible with this ESP32-C3 LCD development board?
A: This board is designed specifically for SPI interface LCD screens. It evaluates and develops applications using SPI-driven displays, making it compatible with a wide range of small-to-medium SPI LCD panels commonly used in embedded and IoT projects.
Q: Does the ESP32-C3 development board support Wi-Fi and Bluetooth?
A: Yes! The ESP32-C3 chip includes integrated 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth LE 5.0 support, making this board an excellent choice for connected smart device prototyping and IoT evaluation projects.
Q: Is this board suitable for beginners in embedded development?
A: This board is primarily designed as an evaluation and prototyping kit for developers and engineers familiar with microcontroller programming. However, hobbyists with some experience using Arduino or ESP-IDF frameworks will find it very approachable, especially given the all-in-one feature set including the rotary encoder, audio, and infrared control functions.
Q: What programming environments are supported?
A: The ESP32-C3 is supported by Espressif's ESP-IDF framework as well as the Arduino IDE (via the ESP32 Arduino core), giving you flexibility to code in C/C++ using whichever toolchain you prefer.
