Encrypted RFID Access Control Kit – Anti-Copy 125kHz Reader
Encrypted RFID Access Control Kit – Anti-Copy 125kHz Reader
Asia-Teco Encrypted RFID Access Control System Kit
Take your facility's security to the next level with the Asia-Teco S20X Encrypted RFID Access Control Kit. Engineered with advanced copy-protection technology, this 125kHz system makes unauthorized card duplication virtually impossible — giving you genuine peace of mind for offices, server rooms, apartment buildings, and any access-controlled space.
Unlike standard proximity card readers that can be easily cloned with off-the-shelf tools, this kit uses proprietary encrypted anti-duplication RFID technology. Each card communicates with the reader using a unique encrypted handshake, meaning even if someone attempts to copy the card, the cloned version will be rejected by the system.

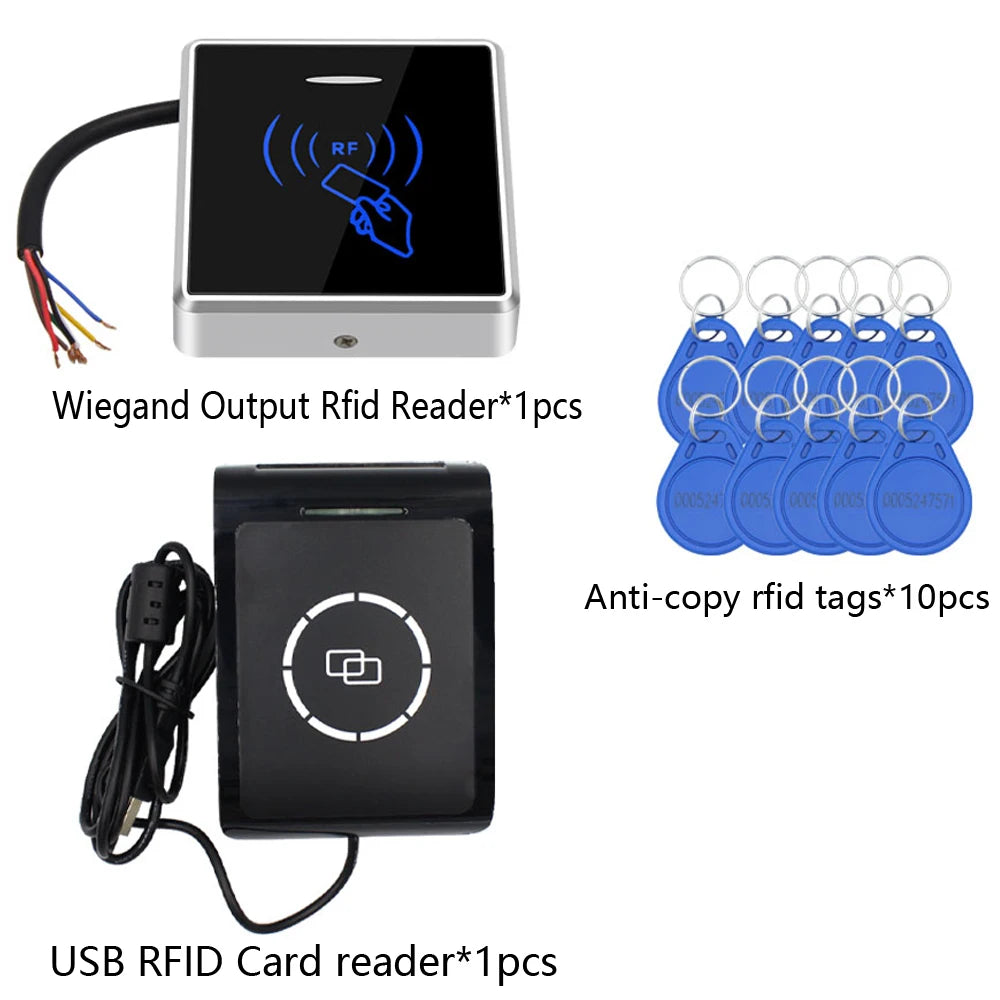

What's in the Box
- 1x Encrypted Anti-Copy RFID Card Reader (Model S20X)
- 1x USB Card Issuer / Enrollment Reader
- 10x Anti-Clone 125kHz RFID Proximity Cards
Key Features
- Anti-Duplication Encryption: Proprietary encrypted protocol prevents card cloning and unauthorized access attempts
- 125kHz RFID Technology: Reliable short-range communication with a transfer distance of 2–8 cm

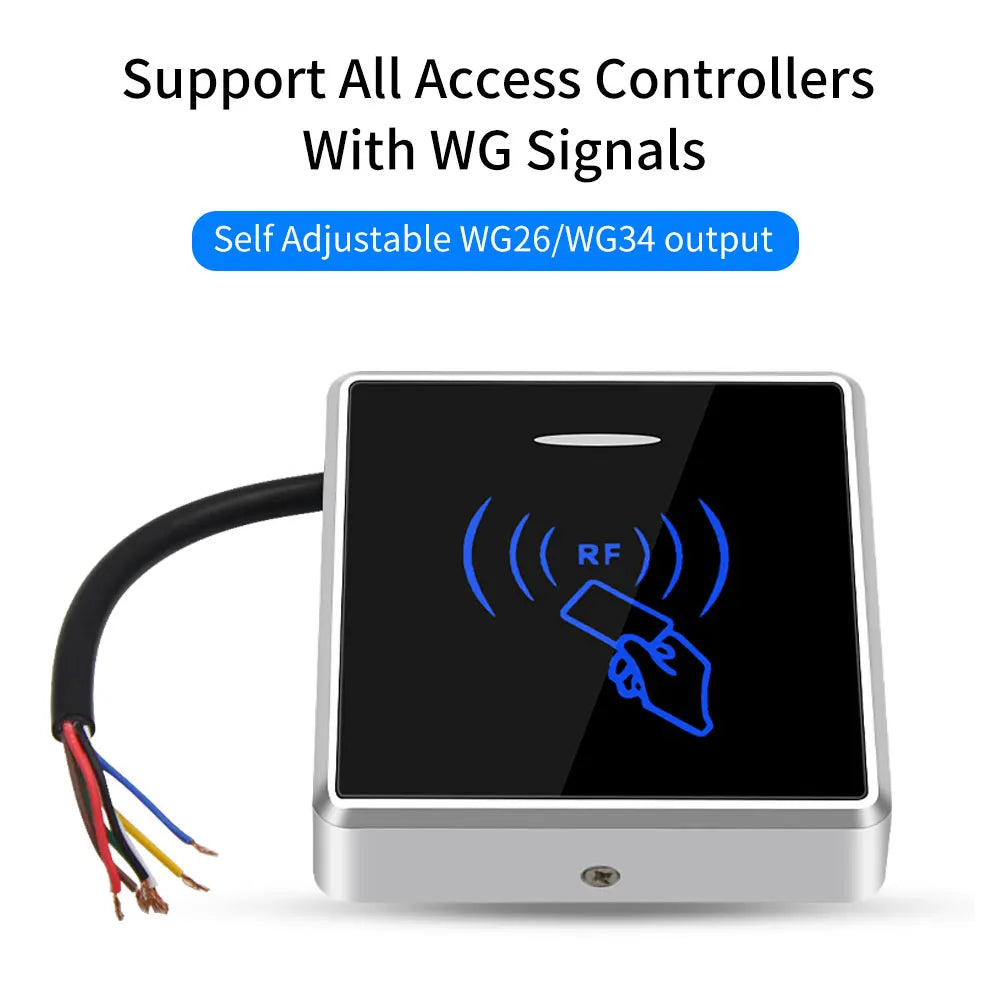

- Wiegand Output (WG26/WG34): Compatible with a wide range of access control panels and systems
- USB Card Issuer Included: Easily enroll and manage authorized cards directly from your computer

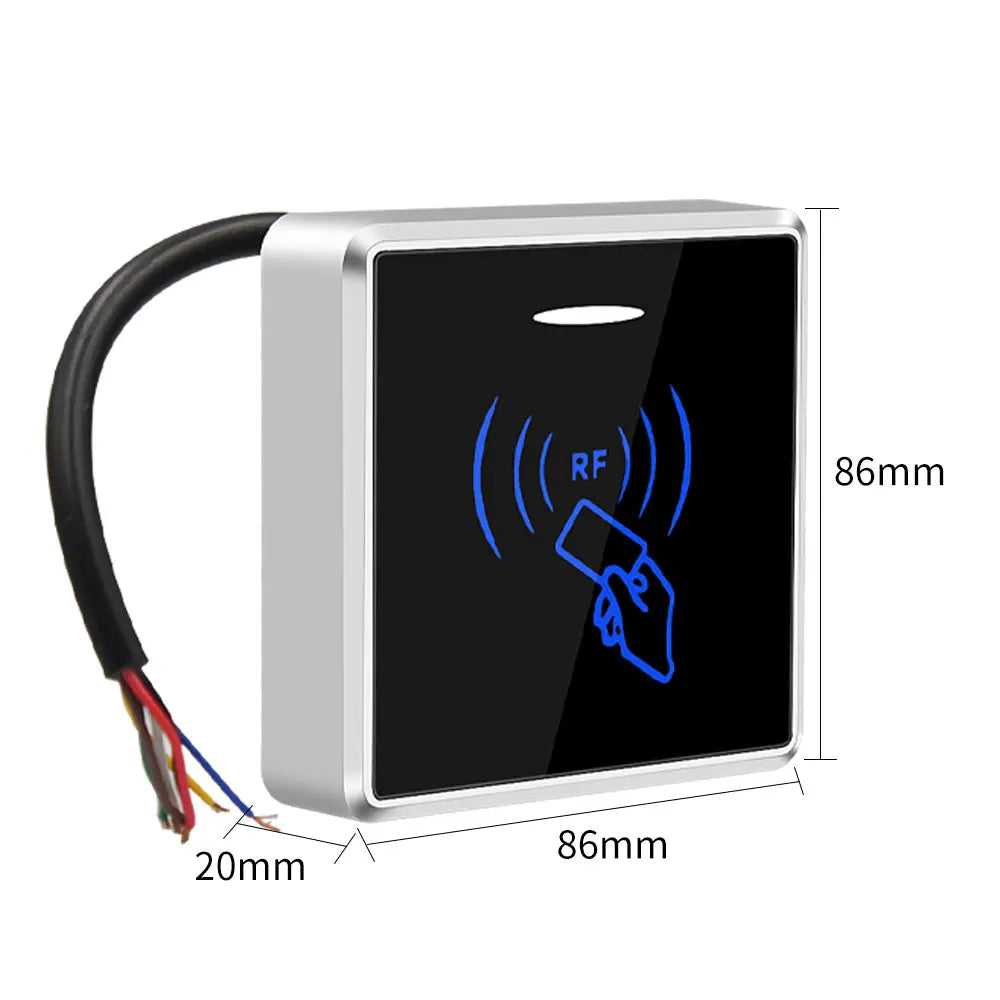

- Compact Reader Housing: 86 × 86 × 20 mm sleek panel design fits standard wall boxes
- Wide Operating Voltage: DC 9–12V input; static current <100mA for energy-efficient operation
- Wide Temperature Range: Functions reliably from −20°C to +50°C, suitable for indoor and sheltered outdoor installation
- No High-Concern Chemicals: Compliant and safe for standard commercial and residential environments
Technical Specifications
| Brand | Asia-Teco |
| Model | S20X |
| Card Type | Anti-replication 125kHz RFID ID Card |
| Reader Size | 86 × 86 × 20 mm |
| Transfer Distance | 2–8 cm |
| Transfer Format | Wiegand WG26 / WG34 |
| Operating Voltage | DC 9–12V |
| Static Current | <100mA |
| Operating Temperature | −20°C to +50°C |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office and corporate buildings
- Apartment complexes and gated communities
- Data centers and server rooms
- Schools, gyms, and healthcare facilities
- Warehouses and storage facilities
Security Resources
For best practices in physical access control and electronic security systems, refer to the U.S. Consumer Product Safety Commission (CPSC) and NIST's cybersecurity and physical security guidelines.
Frequently Asked Questions
Q: What makes this RFID access control kit different from a standard 125kHz card reader system?
A: The Asia-Teco S20X uses proprietary encrypted anti-duplication technology. Standard 125kHz EM cards can be copied with widely available tools, but these encrypted cards employ a unique handshake protocol between the card and reader, so cloned cards are automatically rejected — significantly strengthening your access control security.
Q: Is this kit compatible with my existing access control panel?
A: Yes. The reader outputs standard Wiegand WG26 or WG34 signals, which are supported by the vast majority of access control panels on the market. Check your panel's input specifications to confirm WG26 or WG34 compatibility before installation.
Q: How do I issue new cards to authorized users?
A: The included USB Card Issuer Reader connects to your computer and allows you to enroll, program, and manage authorized RFID cards. This makes it straightforward to add or revoke access without replacing any hardware.
Q: Can this system be used outdoors?
A: The reader is rated for operating temperatures of −20°C to +50°C, making it suitable for sheltered outdoor installations such as covered entryways or porticos. For fully exposed outdoor use, consider adding a weatherproof enclosure for added protection.
Q: How many cards are included, and can I add more?
A: The kit includes 10 anti-clone 125kHz RFID proximity cards. Additional compatible encrypted cards can be issued using the included USB Card Issuer Reader, allowing you to scale the system as needed.
