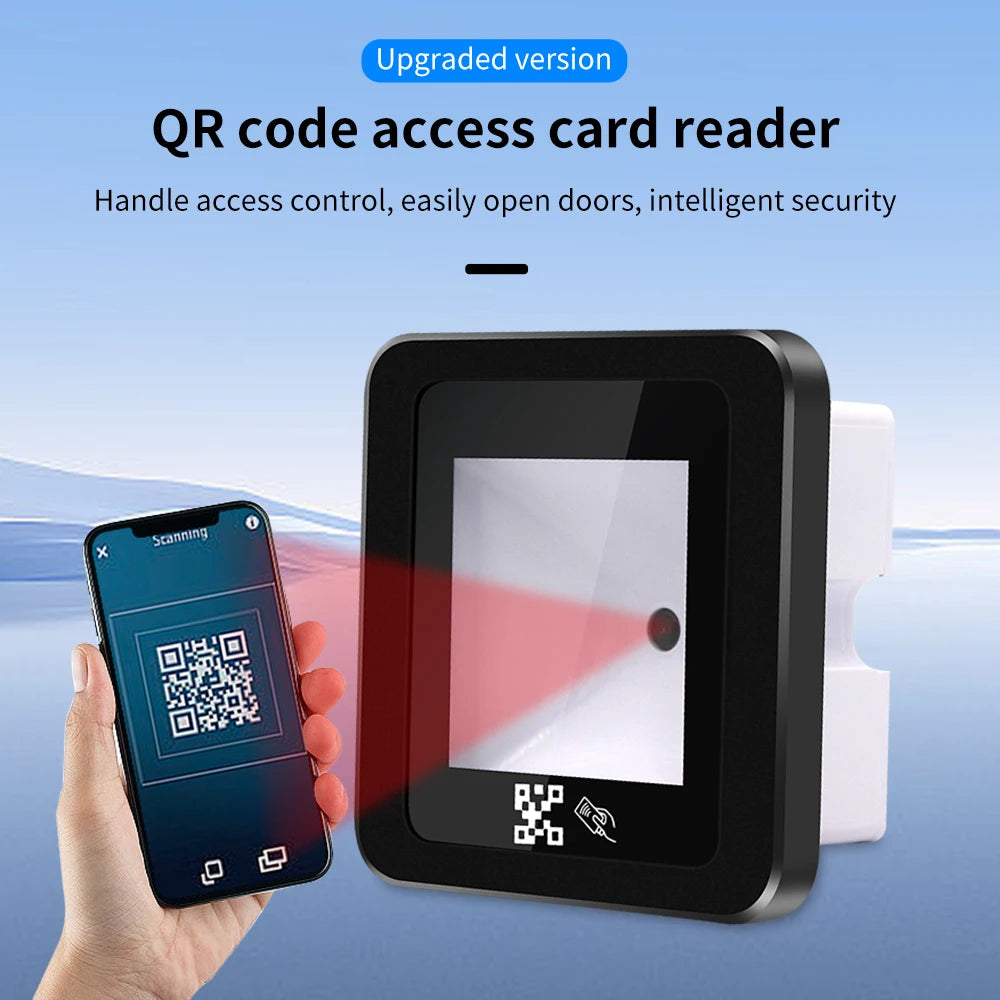

LUCKING DOOR Embedded Barcode Scanner & RFID Card Reader Module (Model R35)
Meet the LUCKING DOOR R35 — a professional-grade embedded scanning module that combines high-speed 1D/2D/QR code reading with multi-protocol RFID card reading in a single, sleek unit. Whether you're integrating access control, kiosk check-in, attendance systems, or smart gate solutions, this all-in-one module delivers fast, reliable performance with minimal setup. Made in Mainland China.
Key Features

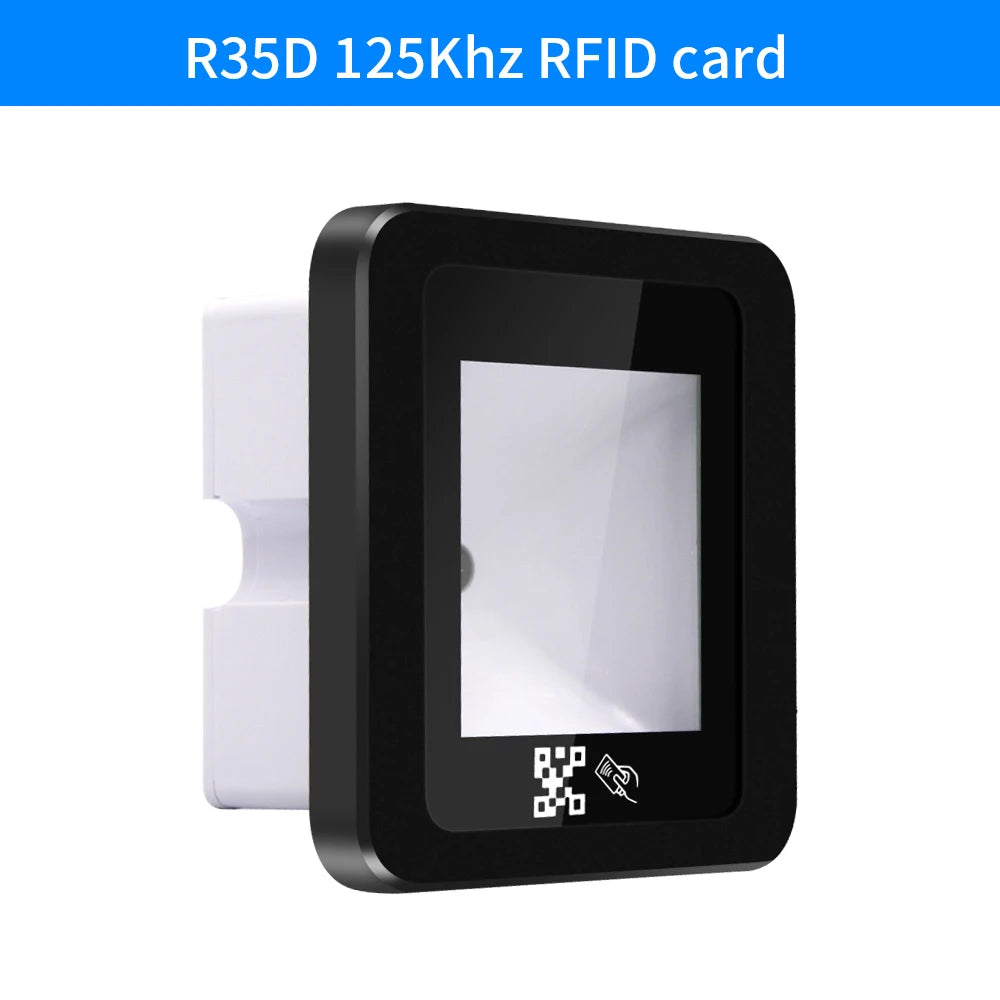

- Multi-Card Compatibility: Supports ID cards, IC cards, mobile NFC, citizen cards, physical ID card numbers, and ISO 14443A/14443B proximity cards — available in ID and IC versions.

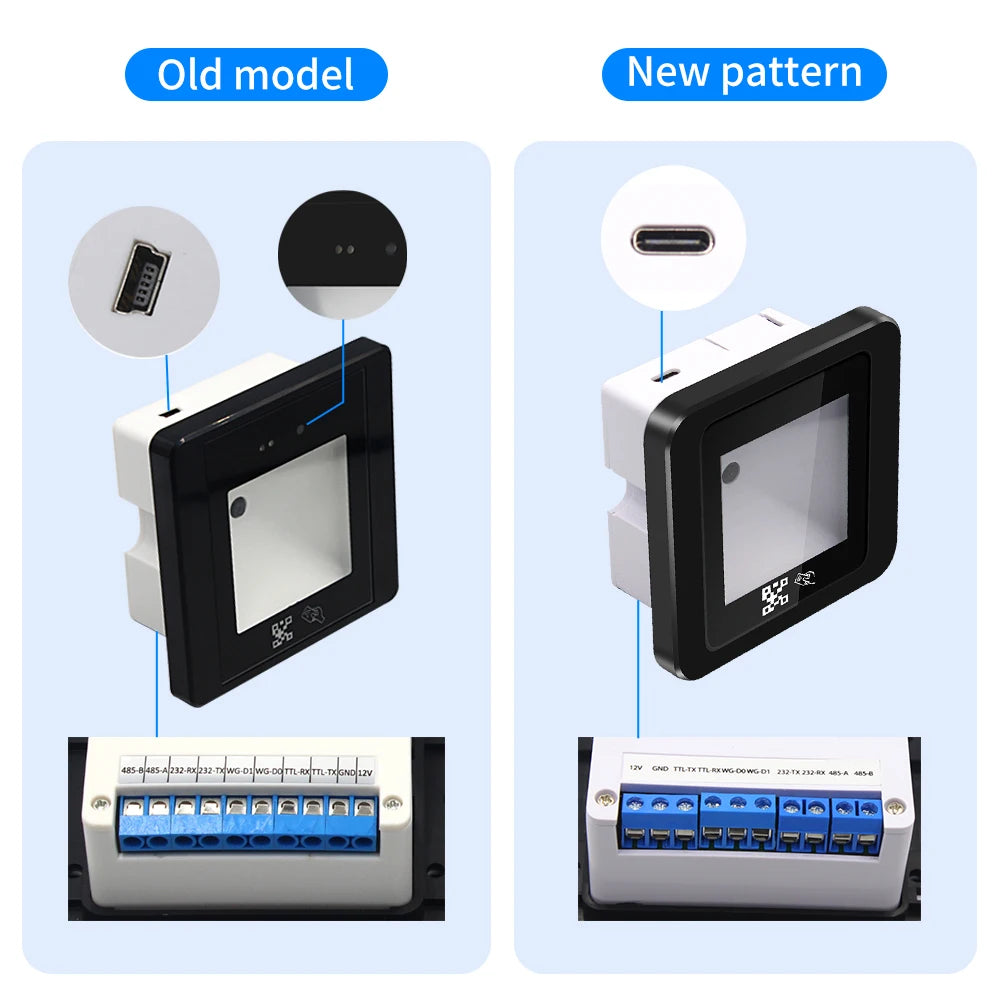

- 5 Simultaneous Signal Outputs: RS232, RS485, TTL, Wiegand (WG), and USB — choose the interface that matches your controller for maximum flexibility.
- Versatile Code Reading: Handles 1D barcodes, static QR codes, and dynamic QR codes with a powerful multi-code-system decoding engine. Reading distance: 0–20 cm for QR codes, 3–6 cm for cards.
- Lightning-Fast Recognition: 0.1-second decode speed with multi-angle recognition (±45° lens angle) — no focusing required.

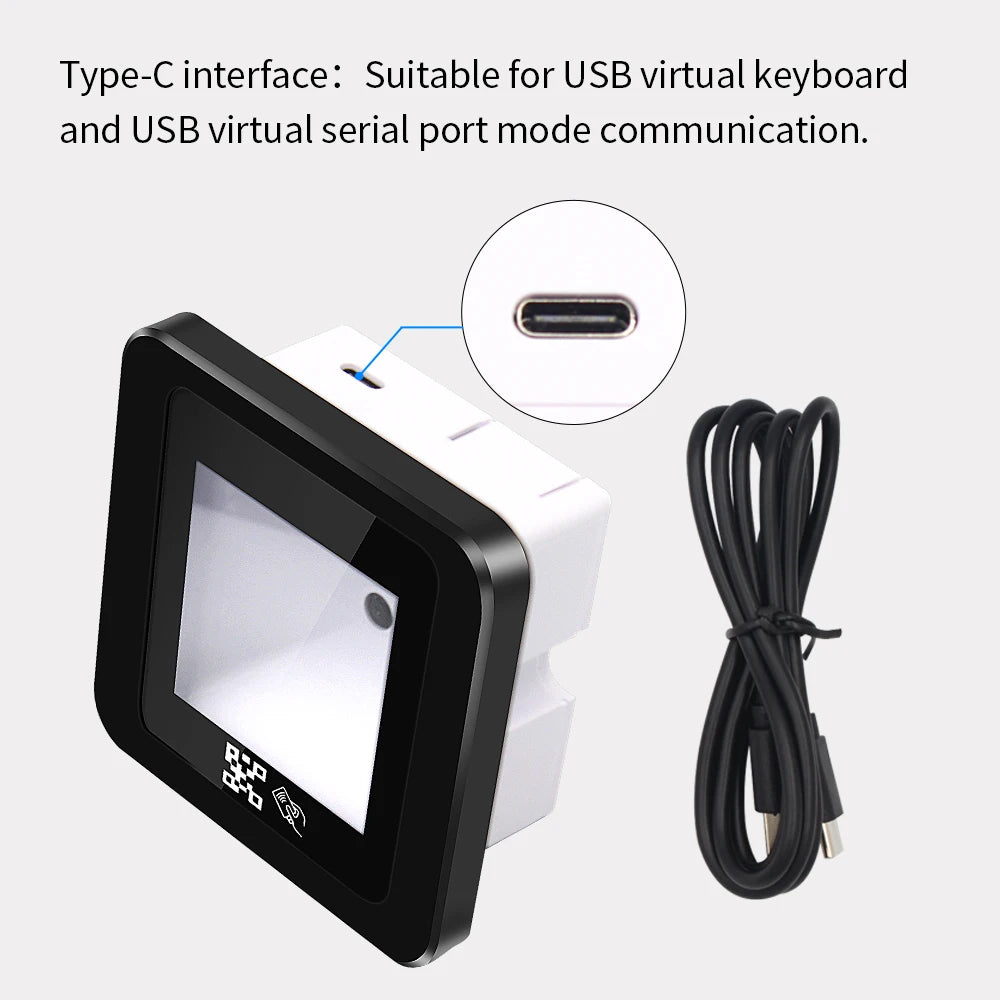

- Plug & Play via USB-C: Type-C interface for instant connectivity. Compatible with Windows XP/7/8/10 and Linux.
- IC Card Sector Encryption: Supports encrypted IC card sectors for secure, professional deployments.
- Scan-to-Configure: Adjust output format by simply scanning a configuration code — no special software needed for most changes.
- Dual Function: Acts as both a card reader and card dispenser, adding versatility to your installation.
- Built-In LED Fill Light: Integrated LED illumination provides consistent scanning performance even in variable lighting conditions.

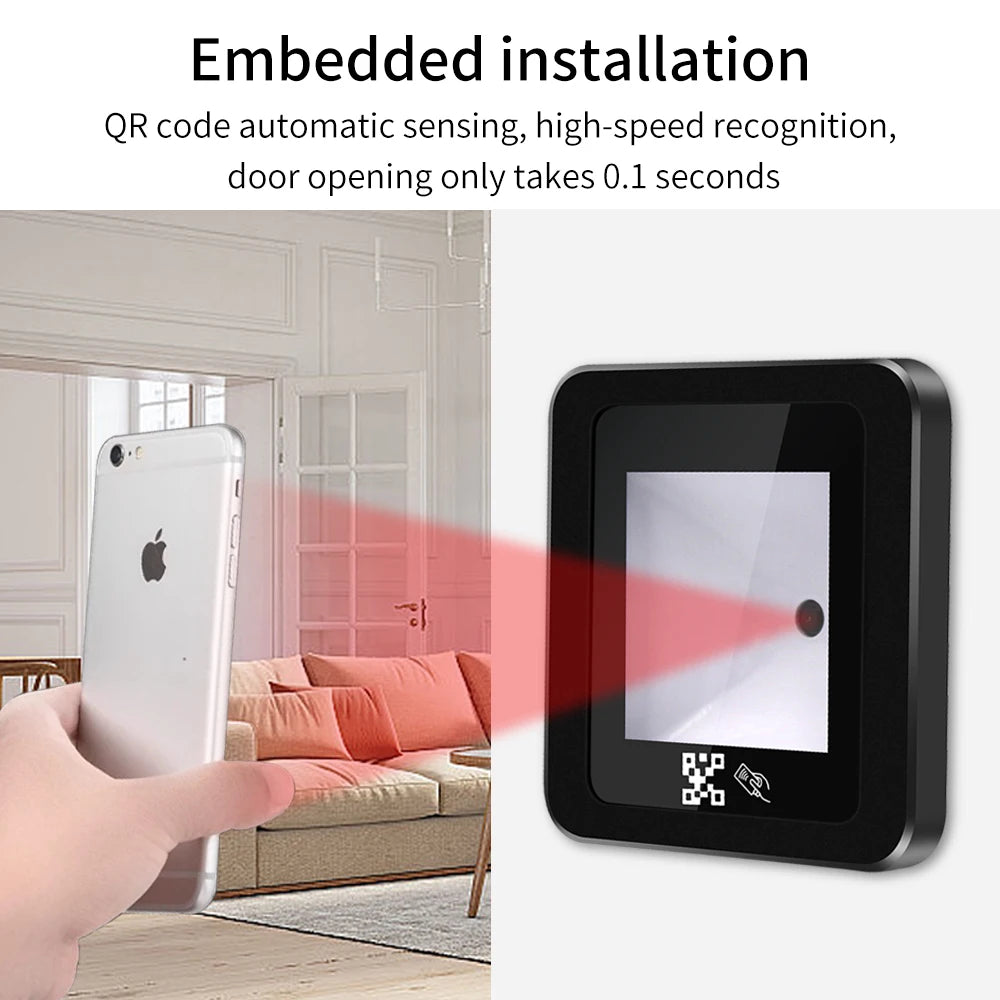

- Embedded Installation Ready: Fits standard 86-type pre-embedded junction boxes and gate panels — ideal for access control doors, turnstiles, and kiosks.
- Premium Build: Tempered glass panel with a clean, modern aesthetic that suits professional and public environments.
- Developer Friendly: Supports secondary development with full interface specifications provided.
Technical Specifications
| Specification | Details |
|---|---|
| Model | R35 |
| Barcode Types | 1D, 2D, QR Code (static & dynamic) |
| Card Types | EM Card, MIFARE Card, NFC, ISO 14443A/B |
| Communication Interfaces | Wiegand / USB / RS232 / TCP-IP / RS485 |
| Operating Voltage | 8–12V |
| QR Code Reading Distance | 0–20 cm |
| Card Reading Distance | 3–6 cm |
| Decoding Mode | Image Decoding |
| Reading Angle | ±45° from lens center |
| Operating Humidity | 10%–90% |
| OS Compatibility | Windows XP/7/8/10, Linux |
| Indicator Lights | Red (working), Green (feedback), Emerald (network) |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Use Cases
- Access control doors and smart gates
- Attendance management systems
- Self-service kiosks and check-in terminals
- Retail point-of-sale integrations
- Ticketing and event entry systems
For guidance on best practices for RFID and barcode-based access control security, refer to the NIST Cybersecurity Resources.
Frequently Asked Questions
Q: What barcode types does the LUCKING DOOR R35 embedded scanner support?
A: The R35 supports a wide range of code types including standard 1D barcodes, static 2D QR codes, and dynamic QR codes. Its multi-code-system decoding engine ensures efficient recognition across different symbologies, all with a 0.1-second response time.
Q: Which communication interfaces are available on this scanning module?
A: The module simultaneously outputs five signal types: RS232, RS485, TTL, Wiegand (WG), and USB. This makes it highly adaptable to a wide variety of access control boards, PLCs, and computer systems without additional adapters.
Q: Can this module be embedded into existing access control hardware or gate panels?
A: Yes. The R35 is specifically designed for embedded installation and is compatible with standard 86-type pre-embedded junction boxes and gate panels. Its tempered glass front panel gives it a professional look suited to both indoor and outdoor installations.
Q: Is the R35 compatible with NFC-enabled smartphones?
A: Yes. The module supports mobile NFC cards, making it compatible with NFC-enabled Android and iOS devices when used with the appropriate app or virtual card. This allows for convenient contactless access using a smartphone.
Q: What operating systems are supported for USB plug-and-play use?
A: The R35 supports Windows XP, Windows 7, Windows 8, Windows 10, and Linux operating systems. With its USB-C interface, setup is straightforward — simply connect and the device is recognized without requiring additional drivers in most environments.
