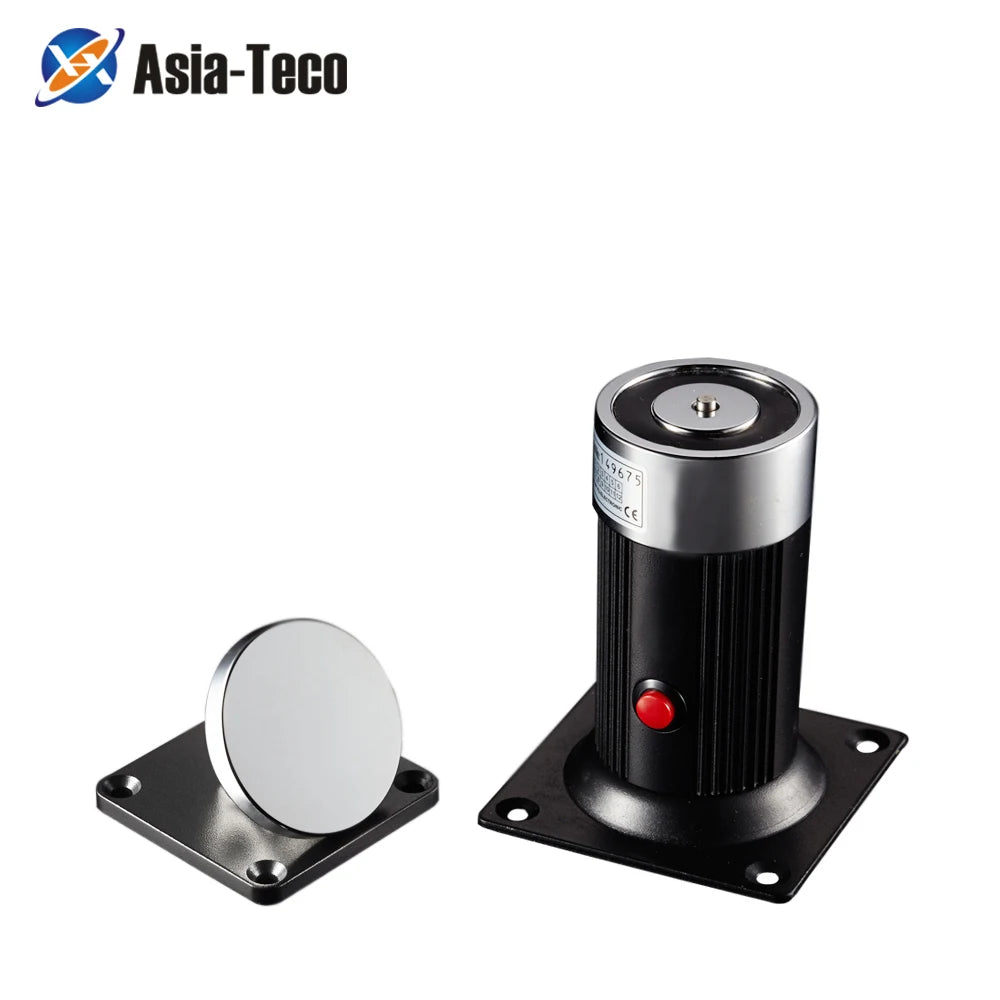

Asia-Teco Extended Wall Mount Electromagnetic Fire Door Holder (Model F32)
Keep fire doors safely held open during normal operations — and count on them to close automatically when it matters most. The Asia-Teco F32 Extended Wall Mount Electromagnetic Door Holder is a professional-grade, low-power magnetic door holder engineered for single and double smokeproof fire doors in commercial, industrial, and residential buildings.
Why Choose the Asia-Teco F32?
- Powerful 50 kg (110 lbs) Holding Force — Securely holds heavy fire doors open without drift or creep.
- Automatic Fire Alarm Release — Instantly releases the door upon fire alarm activation, ensuring compliant, unobstructed evacuation routes.
- Low Power Consumption — Operates at 12V/140mA or 24V/70mA (adjustable ±10%), making it energy-efficient and cost-effective for continuous 24/7 operation.
- Anti-Residual Magnetism Design — Professional engineering eliminates residual magnetism for the highest operational security and reliable door release every time.
- Built-In MOV Reverse Current Protection — Protects the unit and your electrical system from voltage spikes and reverse current surges.

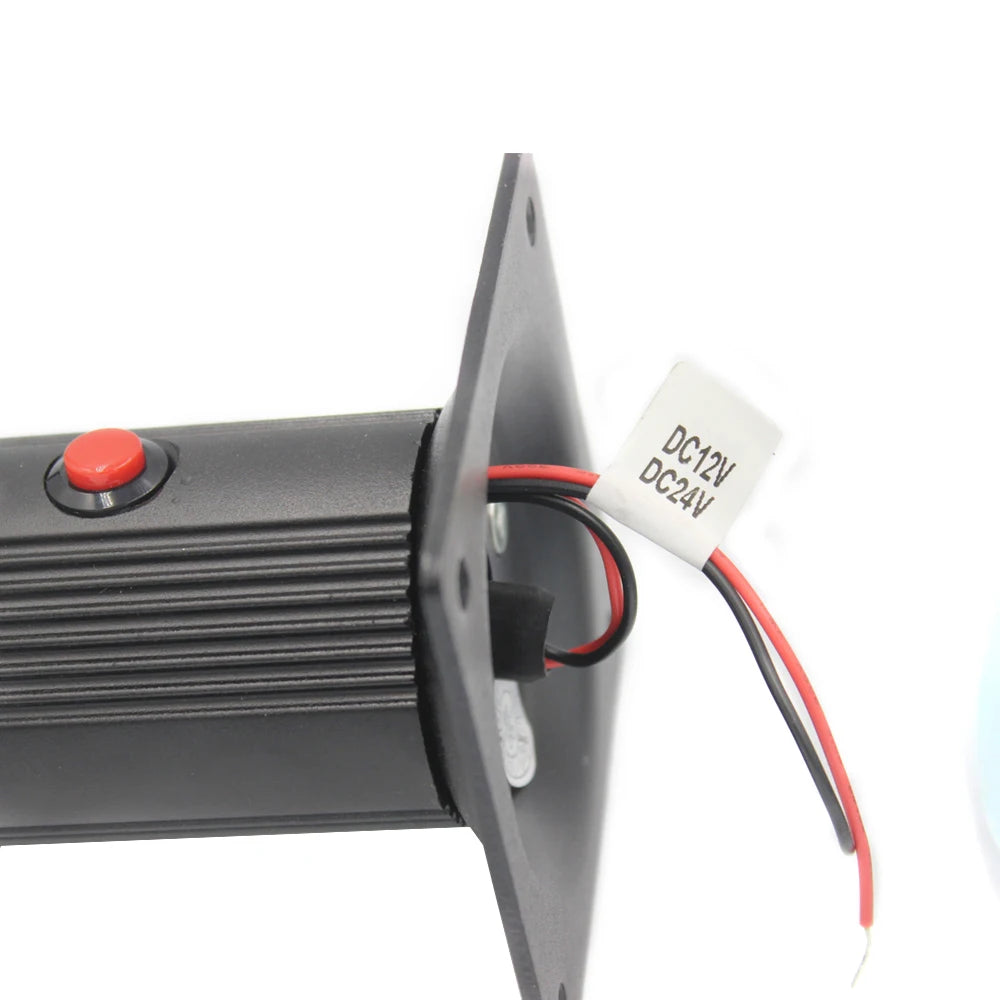

- Built-Out Manual Release Button — Allows quick, convenient manual testing and manual door release without disrupting the alarm system.
- Durable, Eco-Friendly Finish — Zinc armature finish and high-temperature paint with environmental-protection zinc shell coating for long service life.
- Wide Humidity Tolerance — Rated for 0–90% relative humidity, suitable for stairwells, lobbies, corridors, and other varied environments.
Full Specifications
| Brand | Asia-Teco |
| Model Number | F32 |
| Voltage | 12/24V DC ±10% (Adjustable) |
| Current Draw | 12V / 140mA | 24V / 70mA |
| Holding Force | 50 kg (110 lbs) |
| Dimensions | 80 × 80 × 105 mm |
| Weight | 1.0 kg |
| Armature Finish | Zinc |
| Shell Finish | High-Temperature Paint & Environmental-Protection Zinc |
| Suitable Humidity | 0–90% (Relative Humidity) |
| Surface Temperature | ≤ +20°C |
| Suitable For | All Kinds of Single & Double Smokeproof Fire Doors |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
What's in the Box?

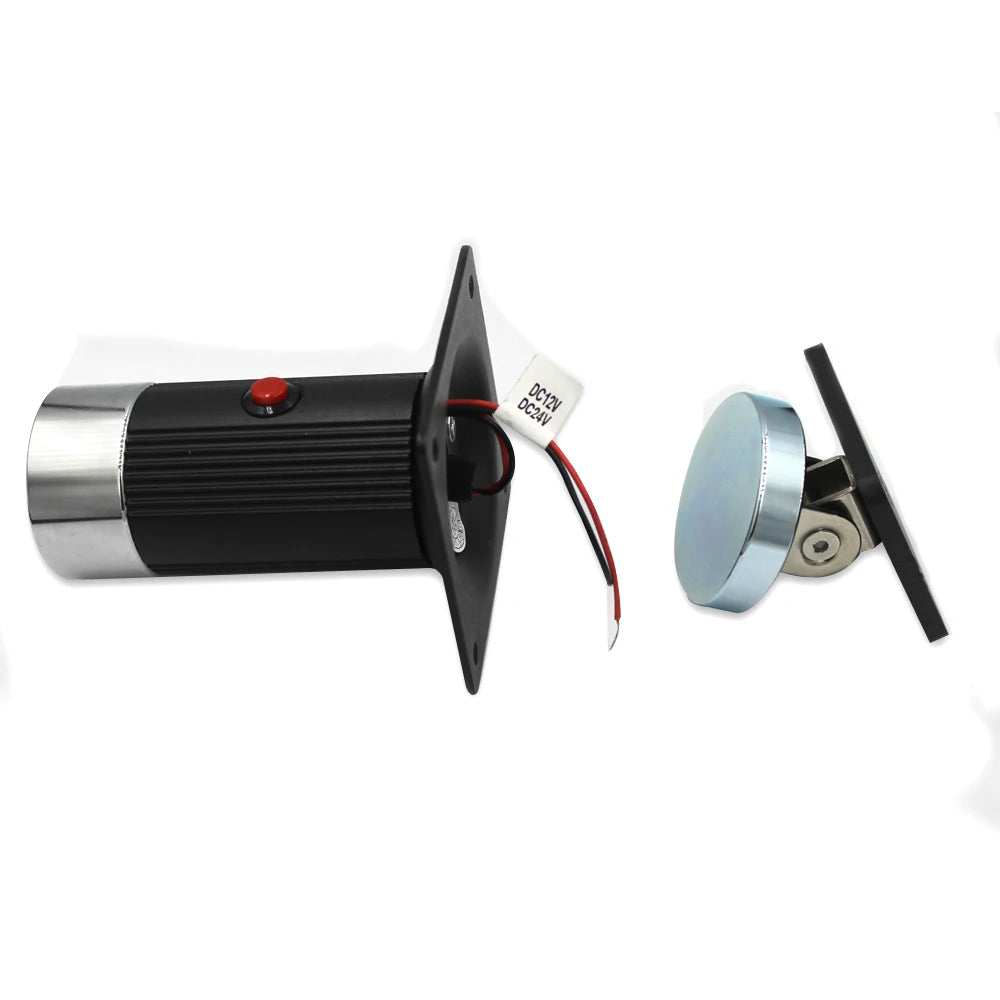

- 1 × Asia-Teco F32 Extended Wall Mount Electromagnetic Door Holder
- Optional: Manual door release button (see product variant selection)
Safety & Compliance Resources
Proper installation of fire door holders is an important part of building fire safety. For guidance on fire door requirements and life safety standards, visit the U.S. Consumer Product Safety Commission (CPSC) and consult your local building code authority.
Frequently Asked Questions
Q: What types of doors is the Asia-Teco F32 electromagnetic door holder compatible with?

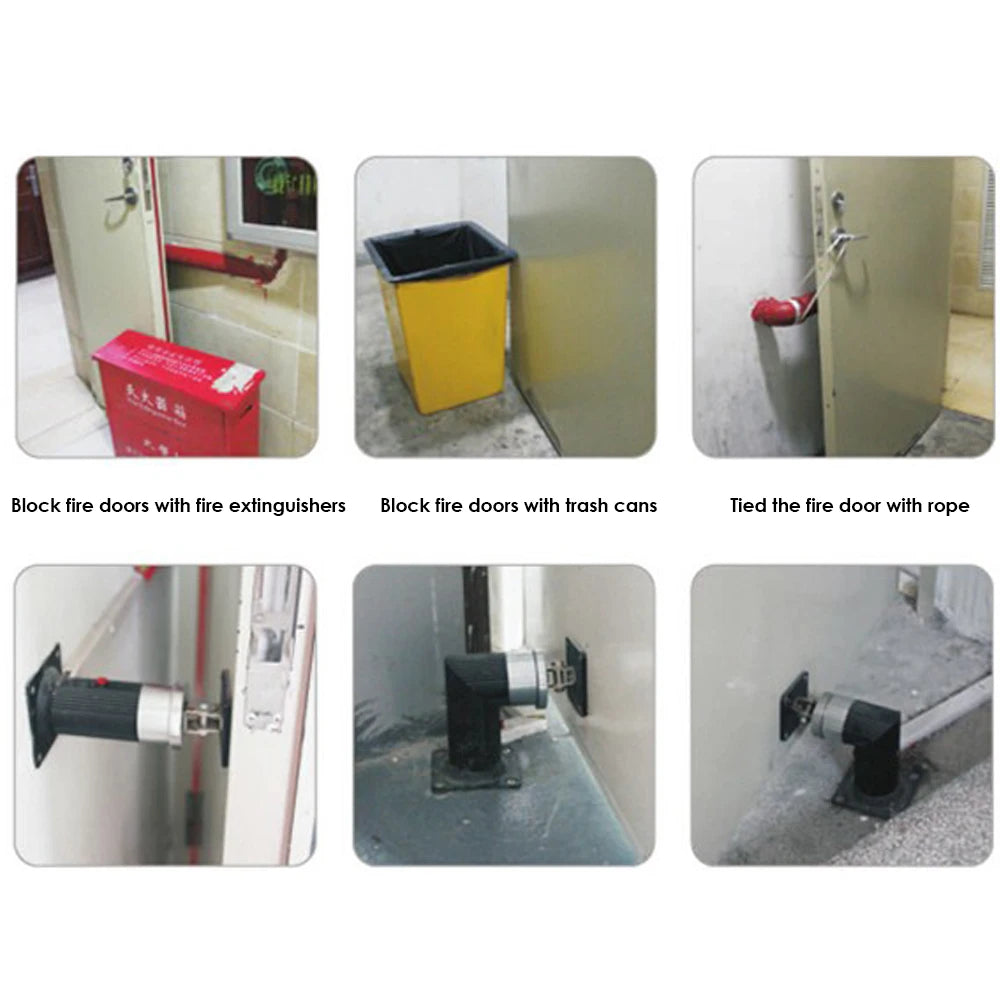

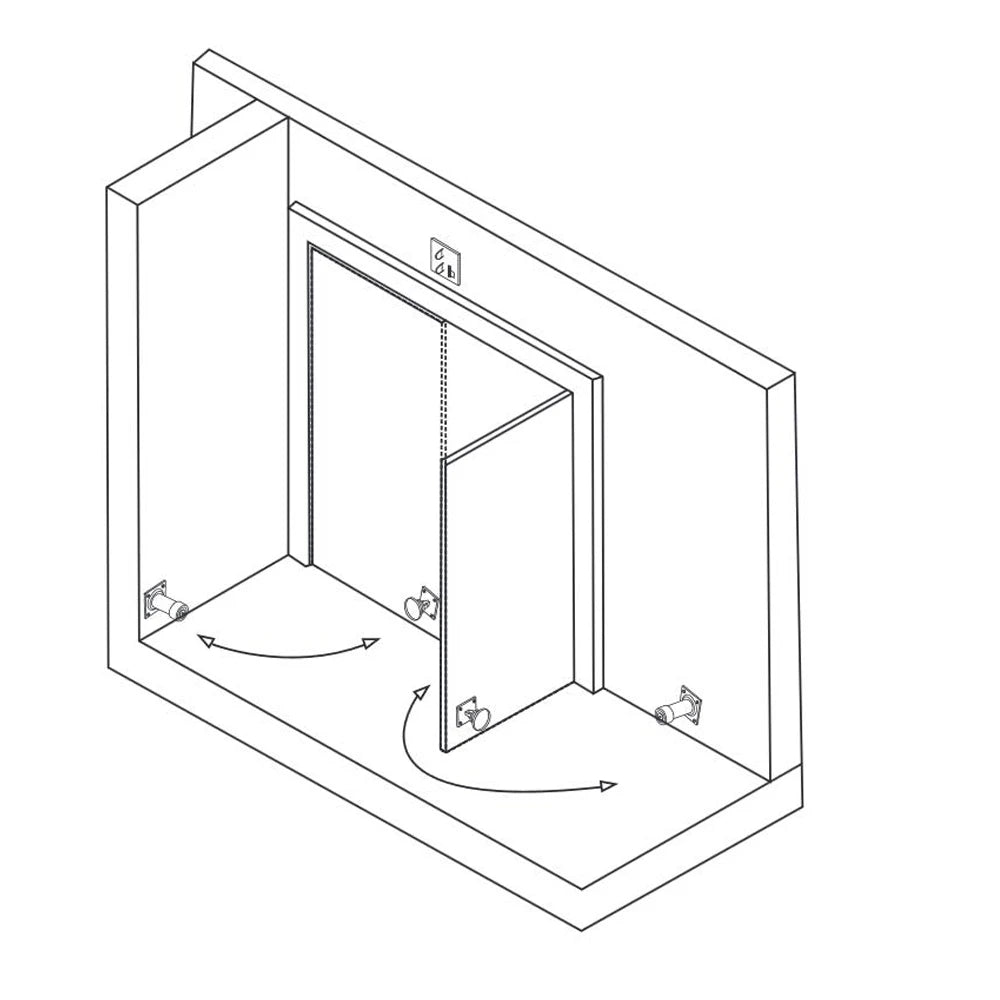

A: The F32 is designed for all kinds of single and double smokeproof fire doors. Its extended wall-mount design makes it ideal for commercial buildings, office corridors, stairwells, and anywhere fire doors need to be held open during normal use and released automatically during a fire alarm event.
Q: How does the electromagnetic door holder release the fire door during an alarm?
A: The F32 operates on a "fail-safe" principle — it holds the door open while power (12V or 24V DC) is supplied. When the fire alarm system is triggered, power to the unit is cut, instantly demagnetizing the holder and allowing the door to close under its own closer mechanism. The anti-residual magnetism design ensures there is no delay in release.
Q: Can I test the door holder without triggering the fire alarm system?
A: Yes. The F32 includes a built-out manual release button that lets you test the door release function independently of the alarm system — ideal for routine maintenance checks and compliance inspections.
Q: What voltage does the F32 door holder require?
A: The F32 accepts 12V DC or 24V DC input, adjustable within ±10%. At 12V it draws 140mA, and at 24V it draws 70mA, making it compatible with most standard access control and fire alarm power supplies.
