Electromagnetic Door Holder Wall Mount 60kg 12/24V – Model F39A

Asia-Teco Electromagnetic Wall Mount Door Holder – Model F39A

Keep your interior or fire-rated doors open safely and conveniently with the Asia-Teco F39A Electromagnetic Door Holder. This wall-mount door stopper uses powerful electromagnetic force — up to 60 kg (120 lbs) of holding force — to keep doors securely in the open position, releasing automatically when needed. Ideal for commercial, industrial, and residential applications, including single and double smokeproof or fireproof doors.

Key Features

• Dual Voltage Compatibility: Operates on DC 12V or 24V (±10%), offering flexible installation across a wide range of access control and fire-safety systems.

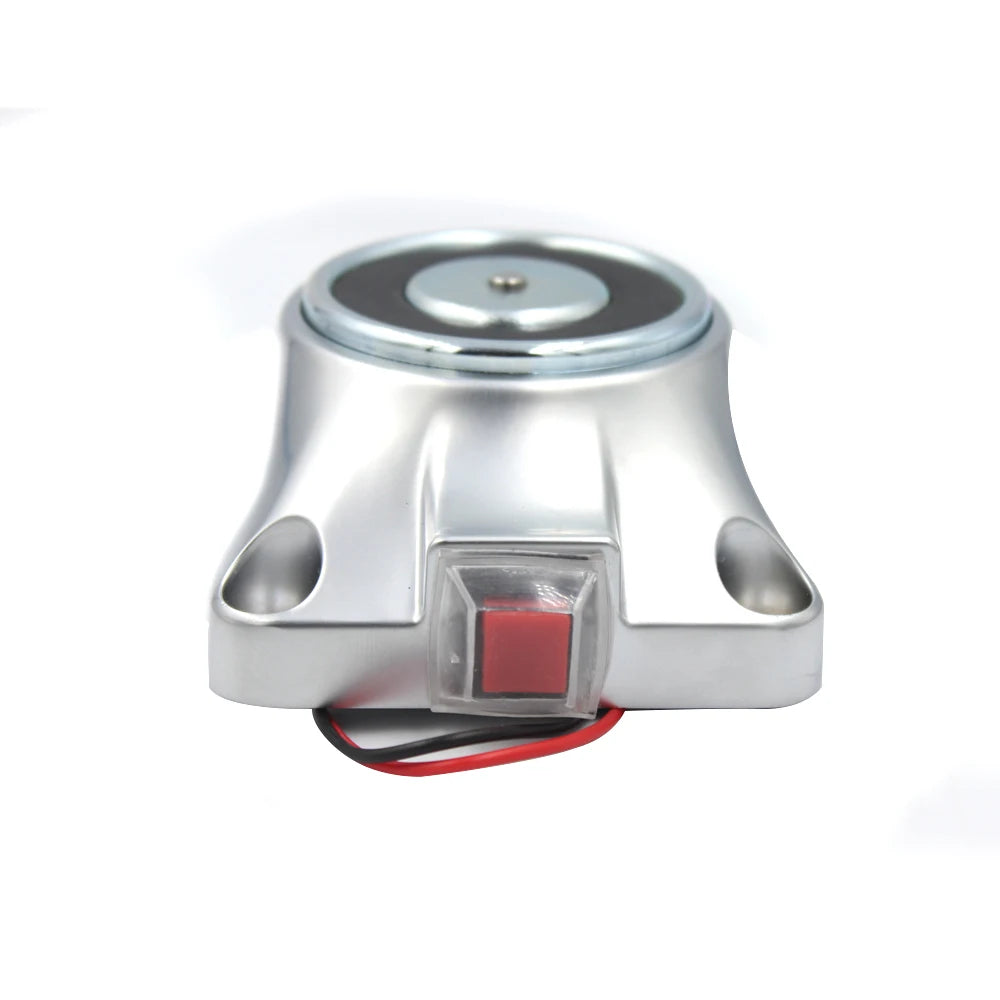

• Emergency Manual Release Button: Compliant with "Manual First" fire product application requirements — staff can release the door instantly without cutting power.
• Automatic Fire Alarm Release: Fire doors disengage automatically when the fire alarm triggers, helping maintain safe egress routes.
• Anti-Residual Magnetism Treatment: Professionally treated to eliminate residual magnetism, ensuring the door closes fully and reliably every time power is cut.
• 360° Rotating Catch Plate: The zinc alloy armature plate rotates a full 360°, accommodating slight door misalignments for a secure hold without stress on the mounting surface.
• Rivet Wall Mount Design: Simple and sturdy rivet-based wall installation; an optional floor-mount bracket is also available.

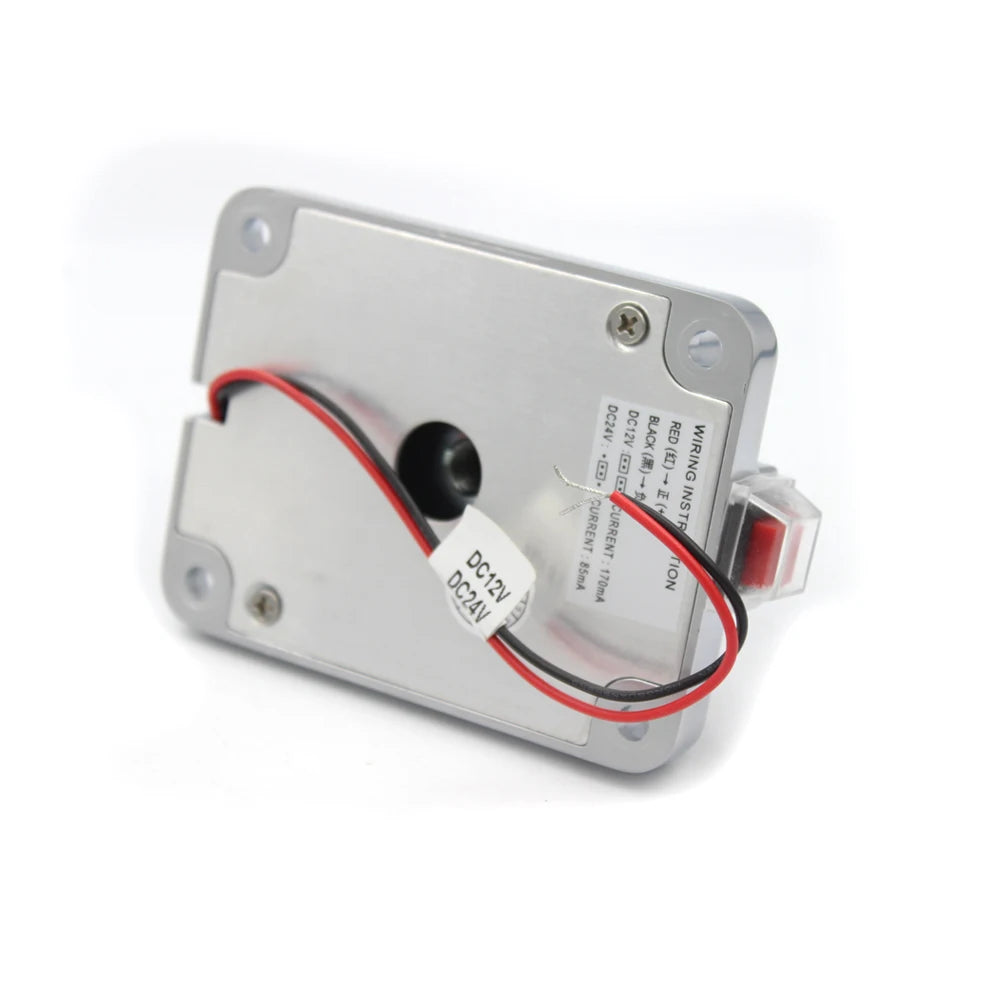

• Low Power Consumption: Energy-efficient design draws only 170 mA at 12V or 85 mA at 24V — environmentally friendly and cost-effective for continuous operation.
• Durable Finish: Shell finished in high-temperature iron-gray paint; armature finished in zinc — built for long-term performance in demanding environments.

Full Specifications

Why Choose an Electromagnetic Door Holder?

Electromagnetic door holders are a critical component in building safety systems. By integrating with your fire alarm system, they ensure that doors automatically close during an emergency to limit the spread of smoke and fire — a key requirement in many building codes. Learn more about door safety standards and fire egress guidelines from the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What types of doors is the Asia-Teco F39A electromagnetic door holder suitable for?

A: The F39A electromagnetic door holder is suitable for all kinds of single and double smokeproof and fireproof interior doors, making it ideal for commercial buildings, offices, hotels, hospitals, schools, and residential properties with fire-rated door systems.

Q: Does this electromagnetic door stopper work with both 12V and 24V systems?

A: Yes. The F39A features a dual-voltage design compatible with DC 12V and DC 24V systems (±10%), making it easy to integrate into most existing access control or fire alarm systems without additional converters.

Q: How does the automatic fire alarm release work?

A: When your building's fire alarm is triggered, the electromagnetic door holder is automatically de-energized, cutting the magnetic hold and allowing the fire door to close on its own via its door closer mechanism. This helps contain smoke and fire spread, in line with fire safety building standards.

Q: What is the purpose of the manual release button?

A: The emergency manual release button allows any person to physically disengage the door from the electromagnetic hold instantly, without needing to cut the power supply. This satisfies the "Manual First" requirement common in fire-safety product specifications.

Q: Is installation difficult?

A: Installation is straightforward thanks to the rivet wall-mount design included with the unit. An optional floor-mount bracket is available separately for installations where wall mounting is not practical. No specialist tools are required beyond a basic drill and screwdriver.
