Electric Vacuum Suction Cup 120kg LED – Tile & Glass Lifter
Electric Vacuum Suction Cup 120kg LED – Tile & Glass Lifter

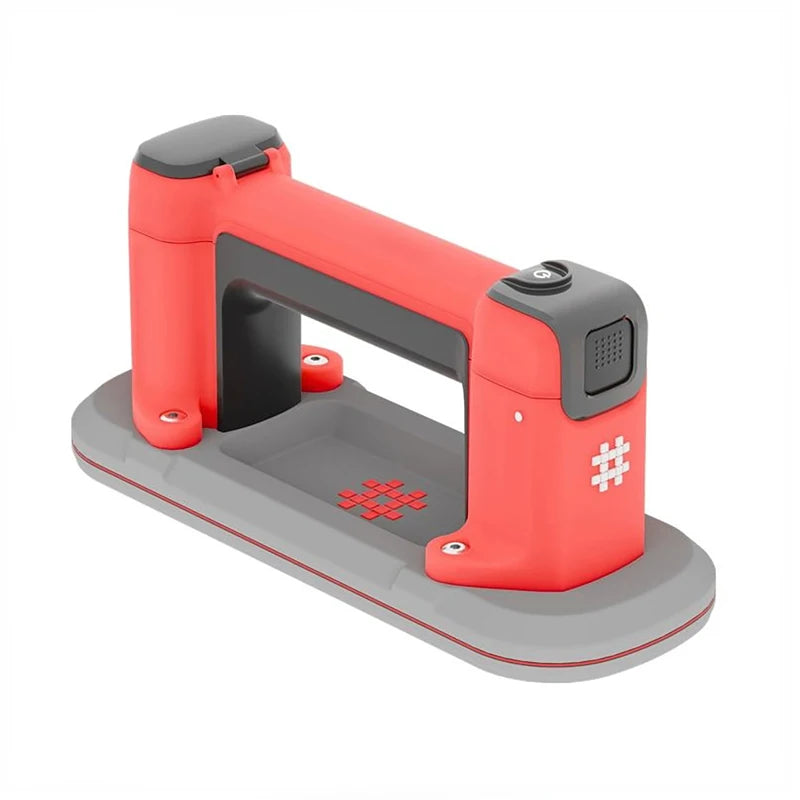

Mini Electric Vacuum Suction Cup with LED Intelligent Display
Handle narrow-strip tiles, granite, and glass with confidence using this powerful Electric Vacuum Suction Cup. Engineered for professionals and serious DIYers, this compact lifting tool delivers up to 120 kg (264 lbs) of vertical pulling force while featuring a real-time LED display so you always know your suction status and battery level at a glance. Made in Mainland China.
Why You'll Love It

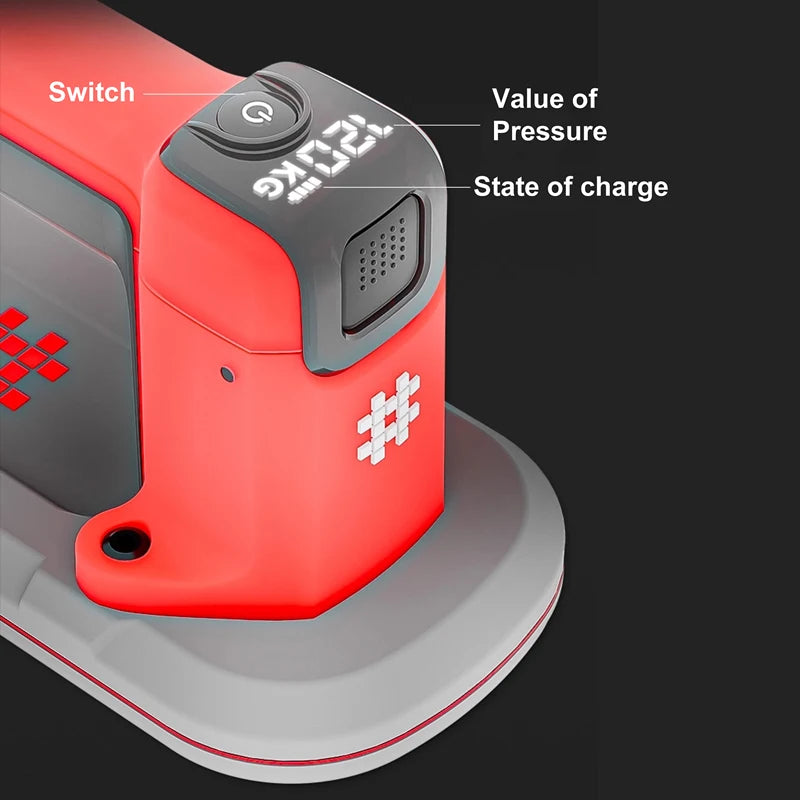

- LED Intelligent Display: Real-time air pressure and battery level readout keeps you in full control throughout every job — no guesswork, no surprises.

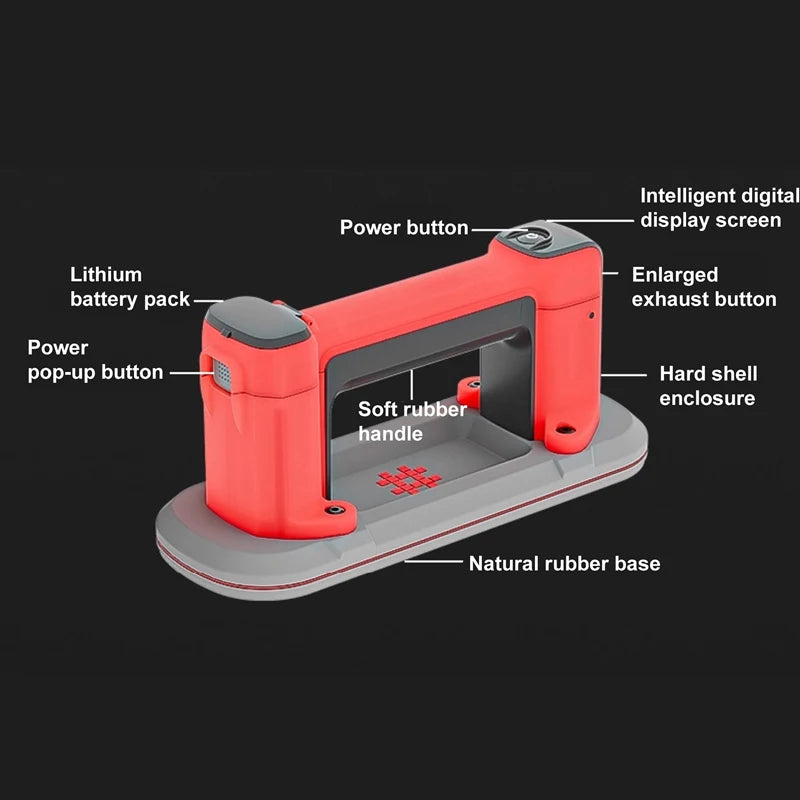

- One-Button Mechanical Exhaust: A dedicated mechanical exhaust button lets you release suction instantly, even when the device is powered off — simple, fast, and reliable.
- 120 kg Suction Force (Style A): Exceptional gripping power handles most narrow-strip building materials on the market safely, without chipping or scratching delicate ceramic surfaces.

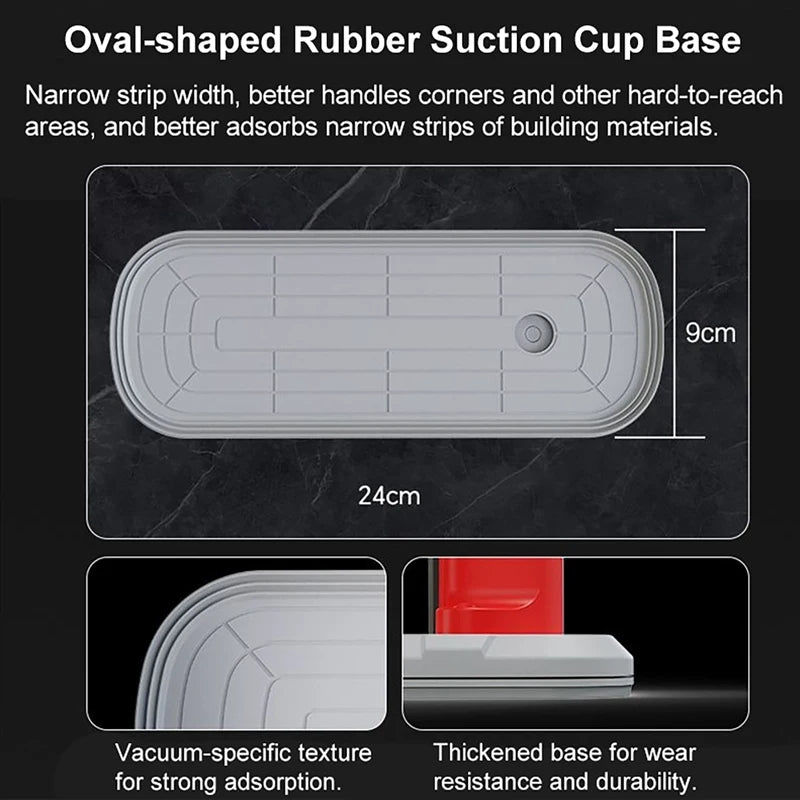

- 9 cm Narrow-Strip Compatible: The slim 24 × 9 cm cup profile is purpose-built to reach tight corners, windowsills, and narrow tile strips that standard suction cups simply can't access.
- Long-Lasting 2400 mAh Battery: Up to ~25 hours of standby time with fast Type-C charging (full charge in ~3 hours). A universal Type-C cable is included.
- Wide Surface Compatibility: Works on smooth surfaces including granite, ceramic tile, glass, porcelain, and similar polished materials.
Available Styles
Style A — 120 kg
- Voltage: 3.7 V | Power: 4 W
- Max Suction: 120 kg vertical pulling force
- Battery: 2400 mAh | Standby: ~25 hrs | Charge Time: ~3 hrs
- Cup Dimensions: 24 × 9 cm | Color: Red + Black
- Package includes: 1× Electric Vacuum Suction Cup, 1× Type-C Cable, 1× 2400 mAh Battery, 2× Wool Pads, 1× Product Manual
Style B — 200 kg
- Voltage: 3.7 V | Power: 4 W
- Max Suction: 200 kg pulling force
- Battery: 3000 mAh | Standby: ~25 hrs | Charge Time: ~3 hrs
- Cup Dimensions: 25 × 9 cm | Color: Red + Black
- Package includes: 1× Electric Vacuum Suction Cup (with 3000 mAh Battery), 1× Type-C Cable, 1× Plastic Storage Box
Specifications at a Glance
| Operating Voltage | 3.7 V |
| Power Consumption | 4 W |
| Max Suction Force | 120 kg (Style A) / 200 kg (Style B) |
| Battery Capacity | 2400 mAh (A) / 3000 mAh (B) |
| Standby Time | Approx. 25 hours |
| Charging Interface | Type-C (high-speed) |
| Cup Dimensions | 24 × 9 cm (A) / 25 × 9 cm (B) |
| Suitable Surfaces | Smooth surfaces — tile, granite, glass, porcelain |
| Country of Origin | Made in Mainland China |
Note: Due to manual measurement methods, please allow a 1–3 cm tolerance. Color may vary slightly between screen settings and real-life appearance.
For job-site safety best practices when using lifting and handling tools, refer to guidance from the U.S. Occupational Safety and Health Administration (OSHA) — Materials Handling.
Frequently Asked Questions
Q: What surfaces is this electric vacuum suction cup compatible with?
A: This electric vacuum suction cup is designed for smooth, non-porous surfaces such as polished ceramic tile, granite, glass, and porcelain. It is ideal for narrow-strip materials as thin as 9 cm wide, including windowsills and corner tile strips.
Q: How long does the battery last and how do I recharge it?
A: The Style A model features a 2400 mAh lithium battery with approximately 25 hours of standby time, while the Style B model includes a 3000 mAh battery with similar standby performance. Both charge fully in about 3 hours via the included Type-C cable, compatible with virtually any standard Type-C charger.
Q: Can I release the suction if the battery runs out mid-job?
A: Yes. The built-in one-button mechanical exhaust system allows you to manually release suction at any time, even when the device is powered off or the battery is depleted — providing a reliable safety release in all situations.
Q: What is the difference between Style A (120 kg) and Style B (200 kg)?
A: Style A offers a 120 kg vertical pulling force with a 24 × 9 cm cup and a 2400 mAh battery. Style B offers an increased 200 kg pulling force with a slightly larger 25 × 9 cm cup and a higher-capacity 3000 mAh battery, along with a plastic storage box for convenient transport and storage.
