Asia-Teco Electric Strike Door Lock – NC/NO Fail Safe & Fail Secure Mortise Deadbolt
Upgrade your access control system with the Asia-Teco F160D Electric Strike Door Lock. Built entirely from 304 stainless steel with a wire-draw finish, this heavy-duty electric deadbolt delivers an impressive 1,000 kg holding force, making it ideal for high-security commercial, industrial, and residential applications. Compatible with wooden, glass, metal, and PVC doors, it integrates seamlessly into any modern access control setup.
Made in Mainland China.
Key Features
- Dual Operating Mode: Supports both NC (Normally Closed / Fail Secure) and NO (Normally Open / Fail Safe) configurations — choose the right mode for your security needs.
- 1,000 kg Holding Force: CNC-machined 304 stainless steel solid bolt (16mm diameter, 13mm throw) engineered for maximum tamper resistance.
- Photoelectric Control System: Advanced photoelectricity sensing eliminates mechanical wear, extending product lifespan to 500,000+ cycles.
- Three-Step Current Management: Automatically transitions from start current (960mA) to low standby current (180mA), keeping surface temperatures low and energy consumption minimal.
- Adjustable Autolock Time Delay: Selectable auto-lock delay of 0, 3, 6, or 9 seconds for flexible access workflows.

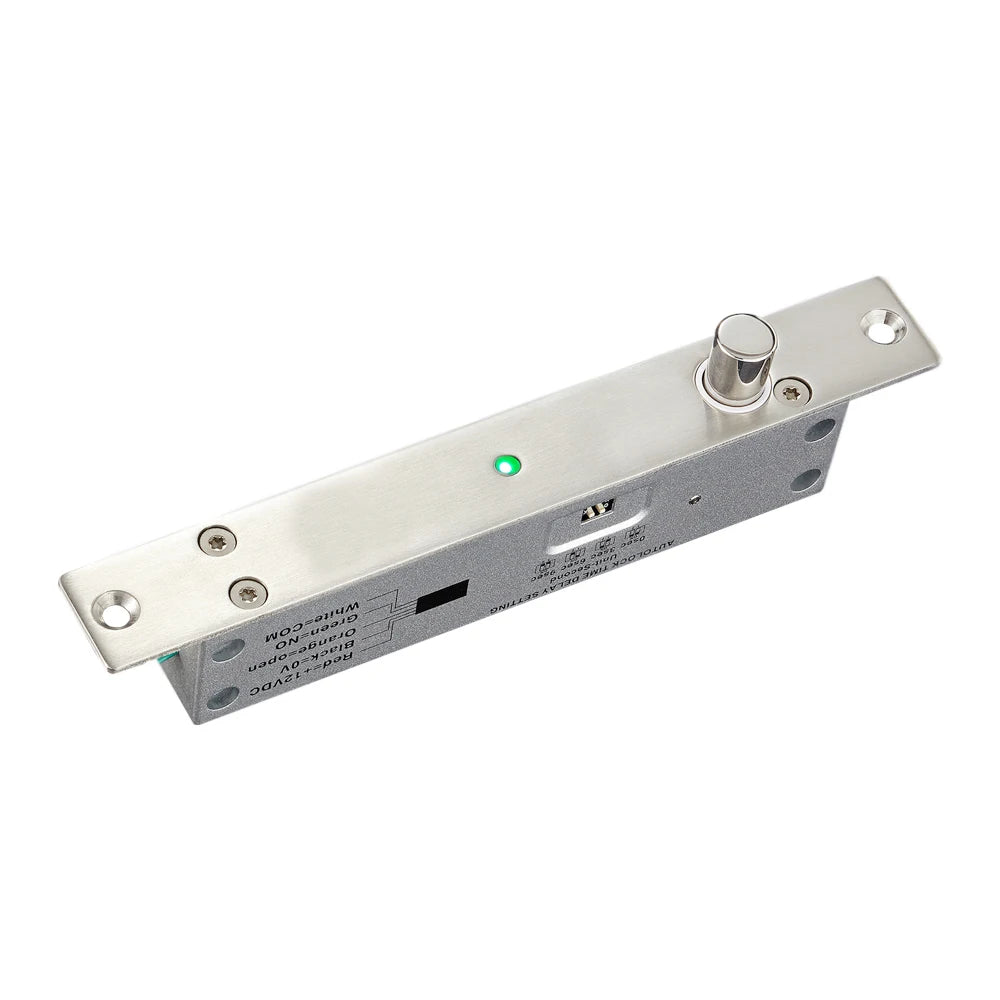

- LED Status Indicator: Built-in LED provides instant visual feedback — light ON = locked, light OFF = unlocked.
- Wide Temperature Range: Operates reliably from -40°C to +60°C thanks to all-metal linkage components.
- MOV Reverse Current Protection: Metal oxide varistor safeguards connected electronics from voltage spikes.
- Door Status Signal Output: NO/COM contact output allows integration with alarm panels and building management systems.

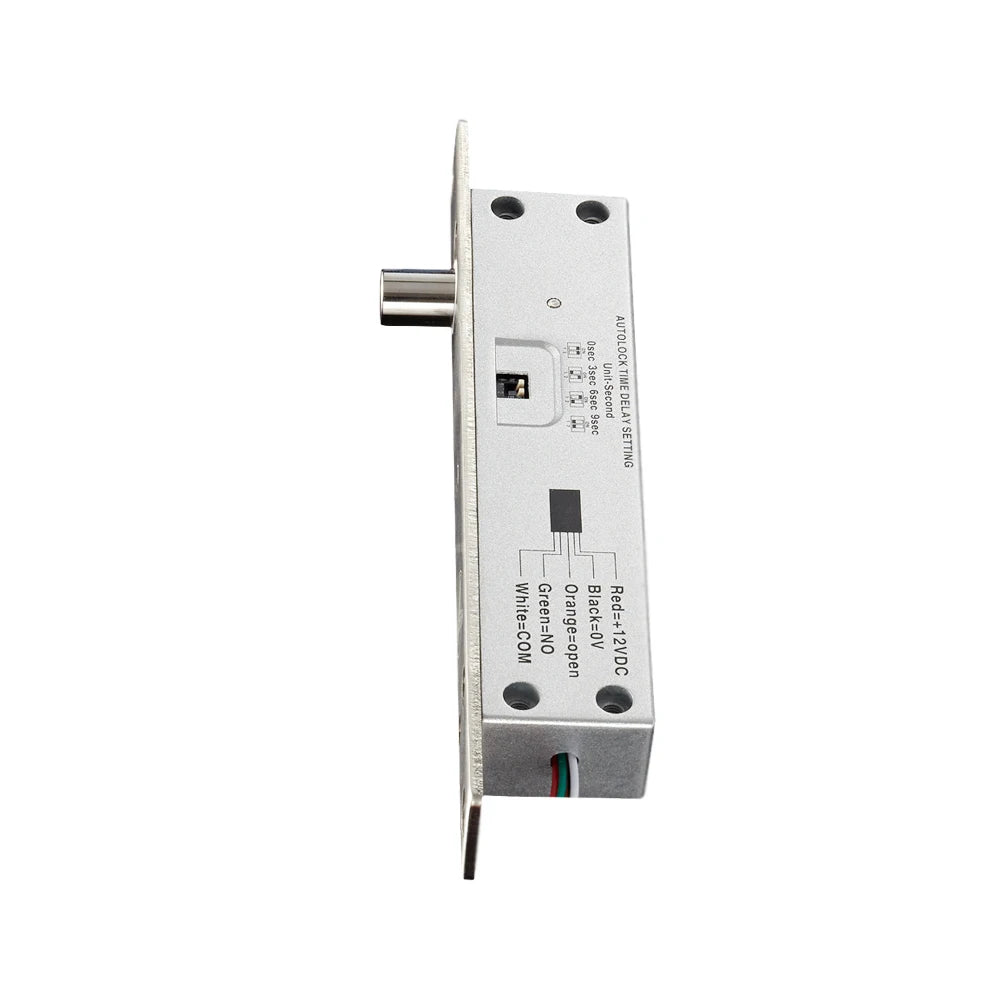

- 5/6 Cable Wiring: Supports 5 or 6-wire configurations for versatile installation options.
Specifications
| Model | F160D-NC / F160D-NO |
| Voltage | 12V DC (24V DC available on request) |
| Start Current | 960 mA |
| Standby Current | 180 mA |
| Holding Force | 1,000 kg |
| Bolt | 16mm diameter, 13mm throw, 304 stainless steel |

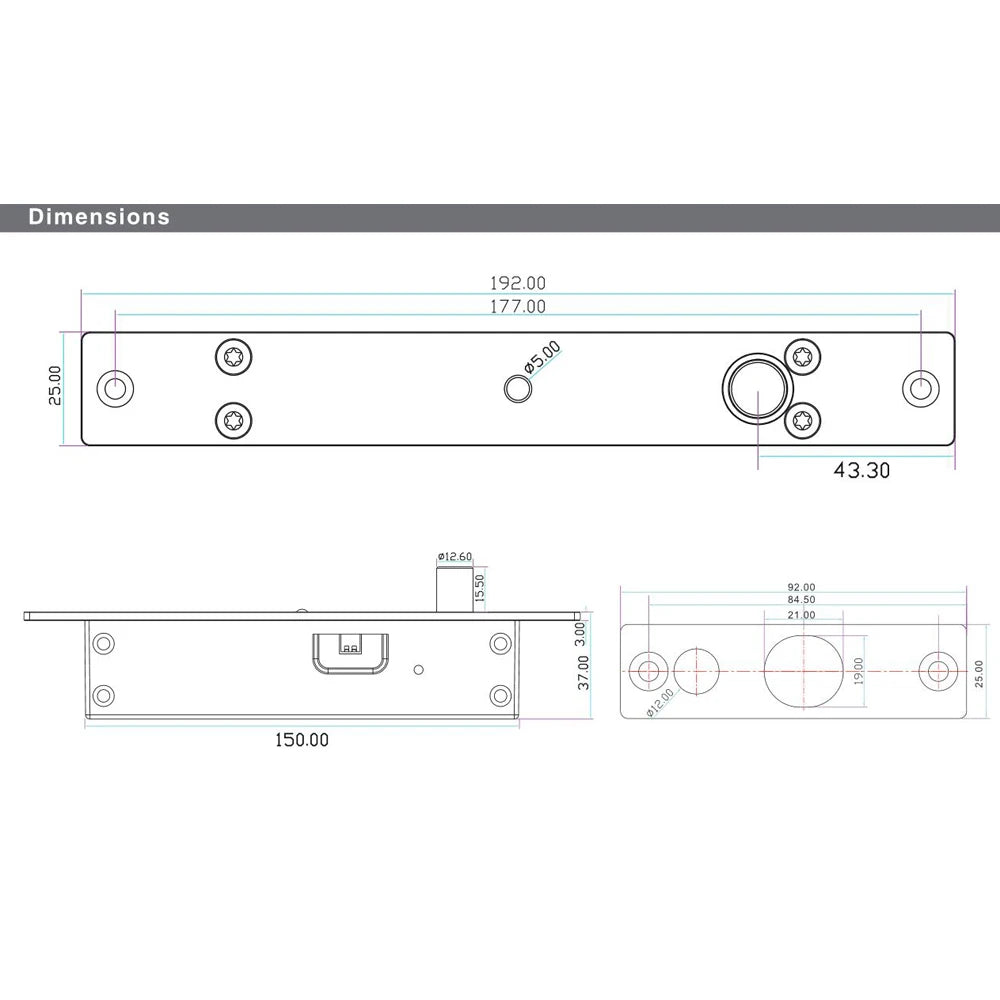

| Face Plate | 192L × 25W × 37H mm |
| Strike | 90L × 25W × 2H mm |
| Autolock Time Delay | 0 / 3 / 6 / 9 seconds |
| Induction Distance | 8 mm |
| Door Status Output | NO / COM |
| Material | 304 stainless steel body; zinc alloy (kirsite) face plate |
| Weight | 0.68 kg |
| Cycle Life | 500,000 operations |
| Compatible Doors | Wood, Glass, Metal, PVC |
| Patent No. | 201420531846.3 |
Why Choose This Electric Strike Lock?
- ✔ All-metal construction for long-term durability in demanding environments
- ✔ Fail Safe & Fail Secure options give you full control over power-loss behavior
- ✔ Low energy standby mode keeps operating costs down
- ✔ Easy integration with keypads, card readers, intercoms, and access controllers
- ✔ Anti-pry bolt design deters unauthorized entry attempts
For guidance on physical security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the difference between the NC (Fail Secure) and NO (Fail Safe) versions of this electric strike lock?
A: The NC / Fail Secure model (F160D-NC) remains locked when power is cut — ideal for high-security doors where you need the door to stay secured during a power outage. The NO / Fail Safe model (F160D-NO) releases (unlocks) when power is lost — this is preferred for emergency egress doors where occupants must be able to exit freely at all times.
Q: Can this electric deadbolt work with my existing access control system?
A: Yes. The Asia-Teco F160D electric strike lock operates on 12V DC (24V DC available by request) and is compatible with most standard access control panels, keypad entry systems, RFID card readers, and intercom systems. Its 5/6-cable wiring and NO/COM door status signal output make integration straightforward.
Q: What types of doors is this electric strike lock compatible with?
A: This electric mortise lock is designed to fit a wide range of door types, including wooden, glass, metal, and PVC doors. The included accessories and the lock's versatile face plate design ensure compatibility across most standard door frames and mortise cutouts.
Q: How long will this electric strike lock last?
A: The F160D has been rigorously tested to 500,000 operating cycles. Its photoelectric control system eliminates mechanical contact wear, and the all-stainless-steel bolt and corrosion-resistant materials ensure reliable performance over many years of daily use.
Q: Does the autolock time delay affect security?
A: The adjustable autolock delay (0, 3, 6, or 9 seconds) lets you balance convenience and security. Setting a shorter delay ensures the door re-locks quickly after access, while a longer delay provides more time for entry without the door closing on the user. Choose the setting that best fits your access flow.
