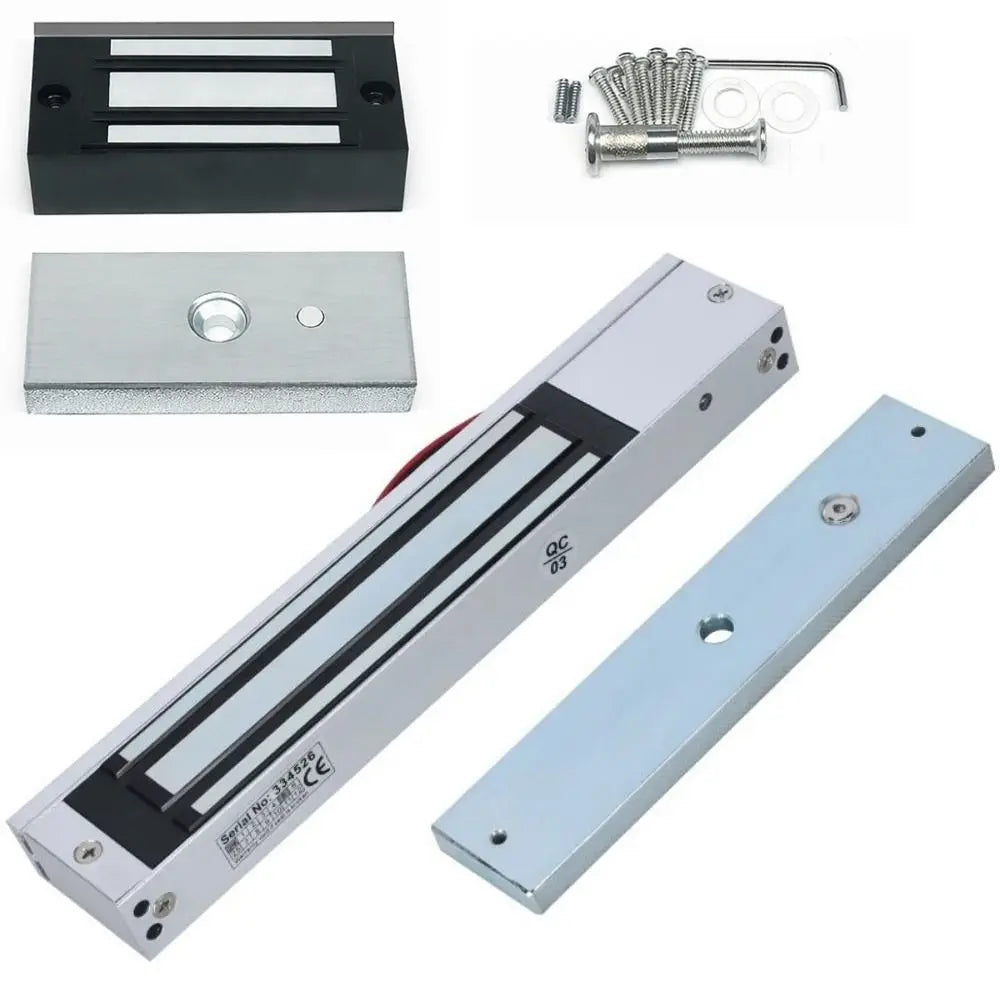

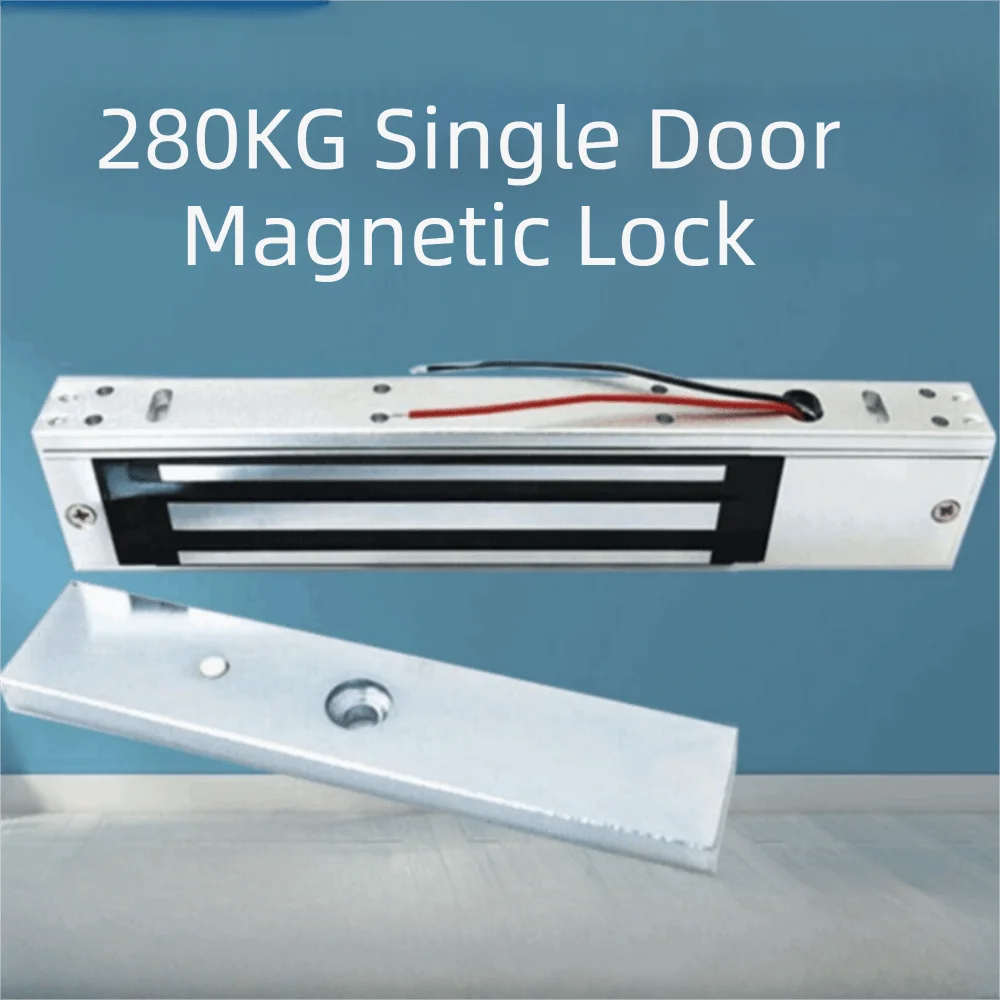

Electric Magnetic Door Lock 60/280KG 12V DC Electromagnet Lock

Secure Any Door with a Powerful Electromagnetic Lock

Upgrade your access control system with this reliable 12V DC Electric Magnetic Door Lock. Available in 60KG and 280KG holding force configurations, this compact aluminum alloy electromagnet lock is engineered for a wide variety of door types — including wooden, metal, glass, and fireproof doors. Whether you're securing a home office, utility room, warehouse, or commercial entry point, this exposed-mount electromagnet lock delivers consistent, dependable performance.

Key Features

• Dual Holding Force Options: Choose between 60KG (~132 lbs) or 280KG (~617 lbs) holding force to match your security requirements.
• 12V DC Power: Operates on a standard 12V DC power supply, making it easy to integrate with existing access control systems.
• Built-In Reverse Current Protection: Features an internal protection circuit that guards against electrical surges, enhancing the longevity and performance of the lock.
• Aluminum Alloy Construction: Lightweight yet durable silver-finish aluminum alloy body resists wear and corrosion for long-lasting use.
• Exposed Mount Design: Simple surface-mount installation under the door frame — no complex wiring or special tools required.
• Wide Compatibility: Compatible with wooden doors, metal doors, glass doors, fireproof doors, and more.

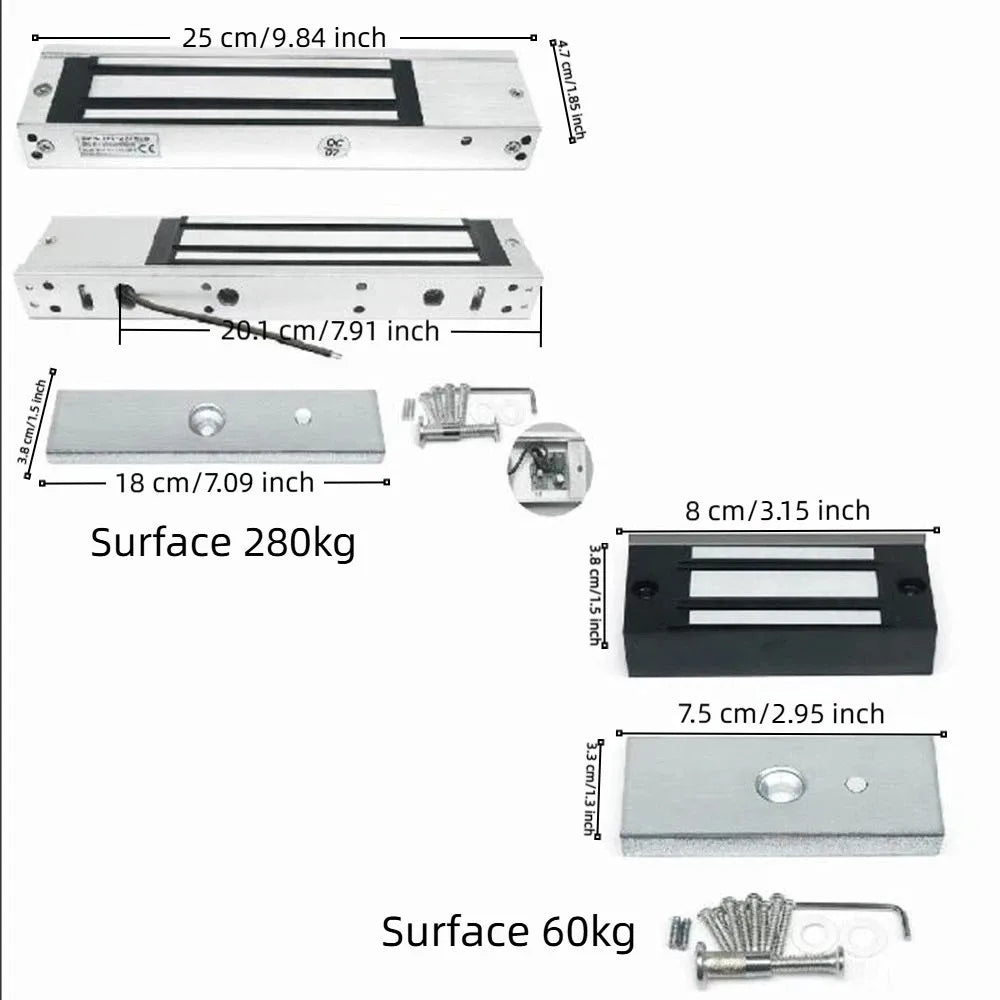

• Compact Size: Available in two sizes — 8×3.8×2.4 cm (3.15×1.50×0.94 in) and 25×4.7×2.5 cm (9.84×1.85×0.98 in).

Specifications

• Type: Electromagnet Lock
• Material: Aluminum Alloy
• Operating Voltage: 12V DC
• Holding Force: 60KG / 280KG
• Color: Silver
• Sizes: 8×3.8×2.4 cm or 25×4.7×2.5 cm
• Package Includes: 1× Electromagnet Lock
• Made in Mainland China

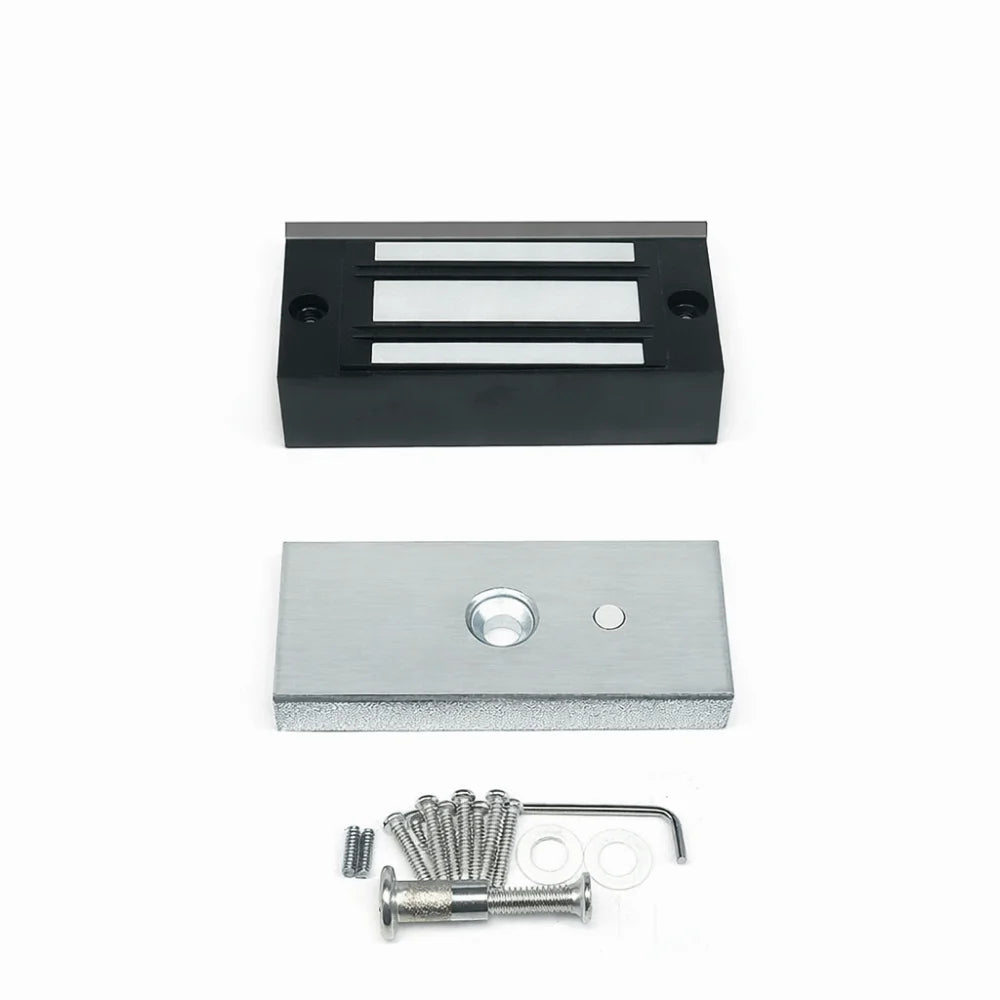

What's in the Box?

• 1× Electric Magnetic Door Lock (Electromagnet)

For general safety guidance on access control and door hardware, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.

Frequently Asked Questions

Q: What types of doors is this electromagnetic lock compatible with?

A: This 12V DC electromagnetic door lock is compatible with a wide range of door types, including wooden doors, metal doors, glass doors, and fireproof doors, making it highly versatile for both residential and commercial access control applications.

Q: What is the difference between the 60KG and 280KG holding force options?

A: The holding force indicates how much force is required to release the door when the electromagnet is energized. The 60KG version (~132 lbs) is ideal for lighter interior doors or low-traffic areas, while the 280KG version (~617 lbs) provides heavy-duty security for main entrances or high-traffic commercial doors.

Q: Does this lock require a special power supply?

A: No special power supply is needed. This lock operates on a standard 12V DC power supply, which is commonly used in access control systems. It also features a built-in reverse current protection circuit for added electrical safety.

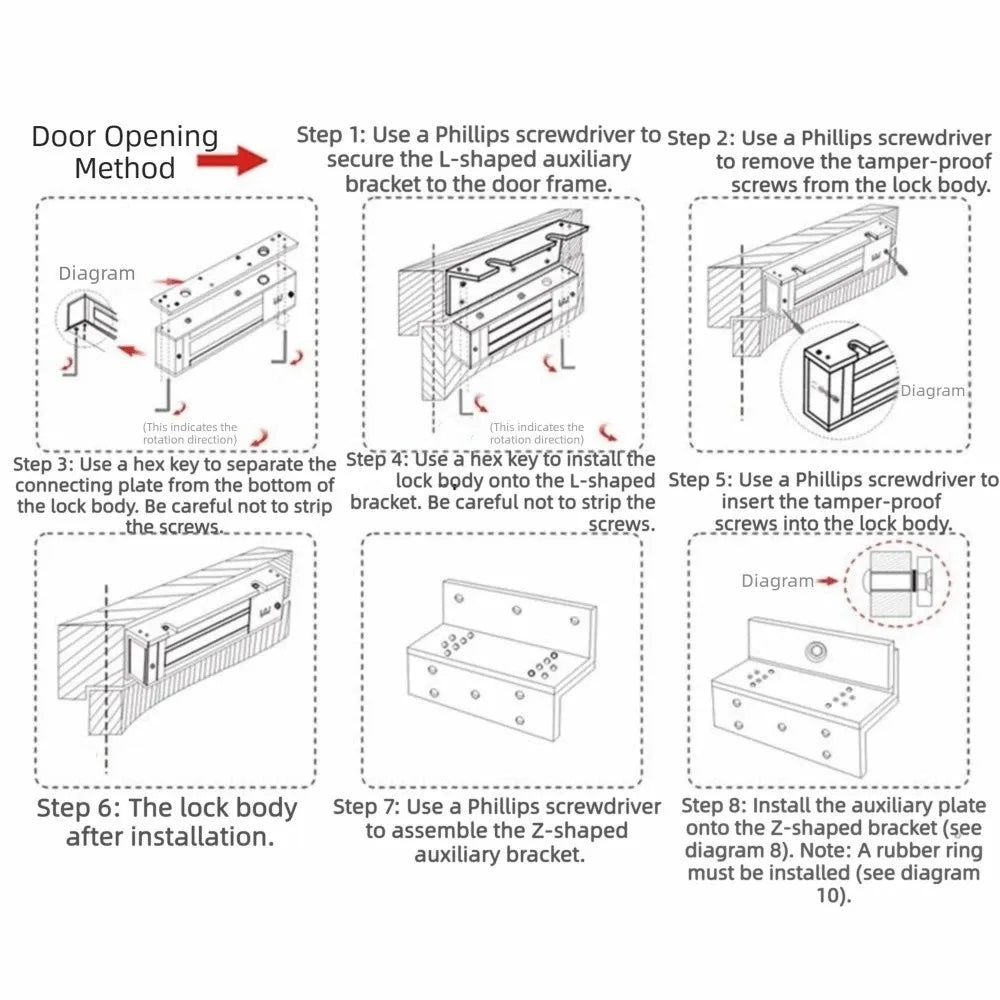

Q: Is installation difficult?

A: Installation is straightforward. The exposed-mount design allows you to fix the lock under the door frame without complex wiring. Basic DIY skills and standard tools are sufficient for most door types.
