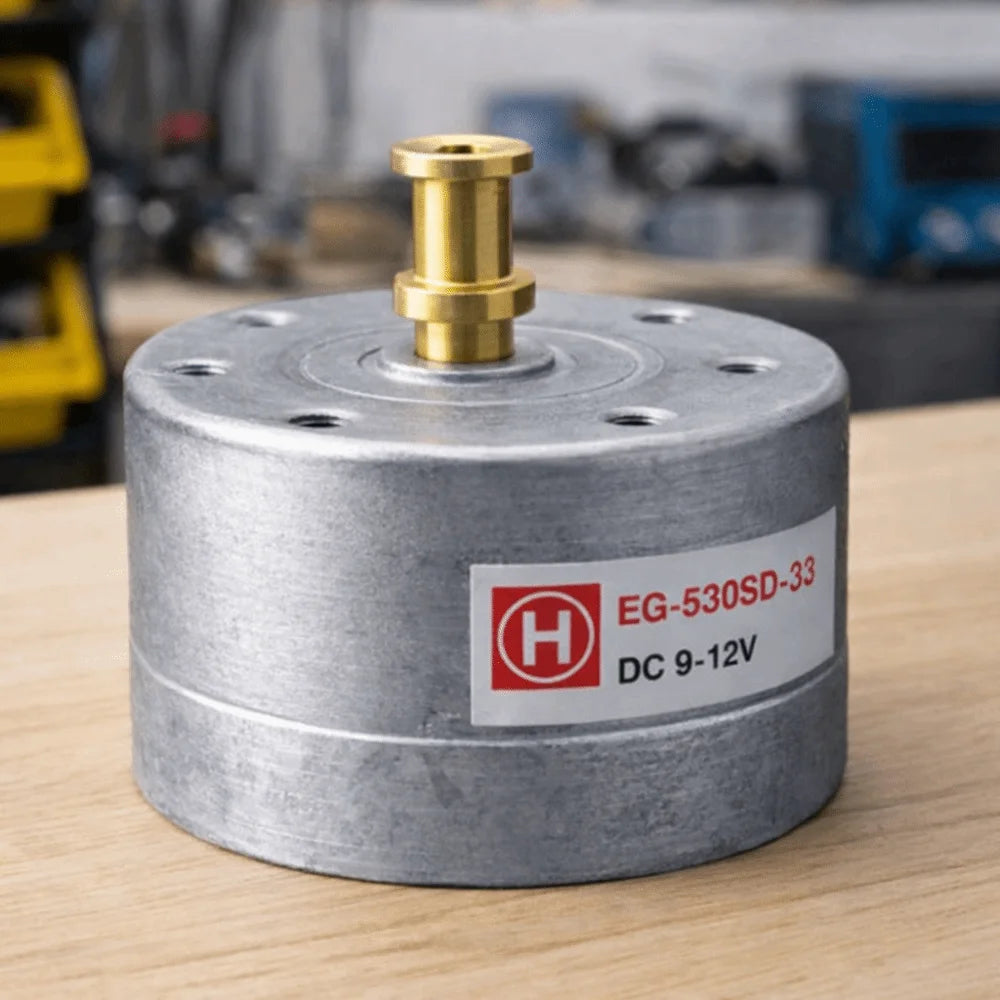

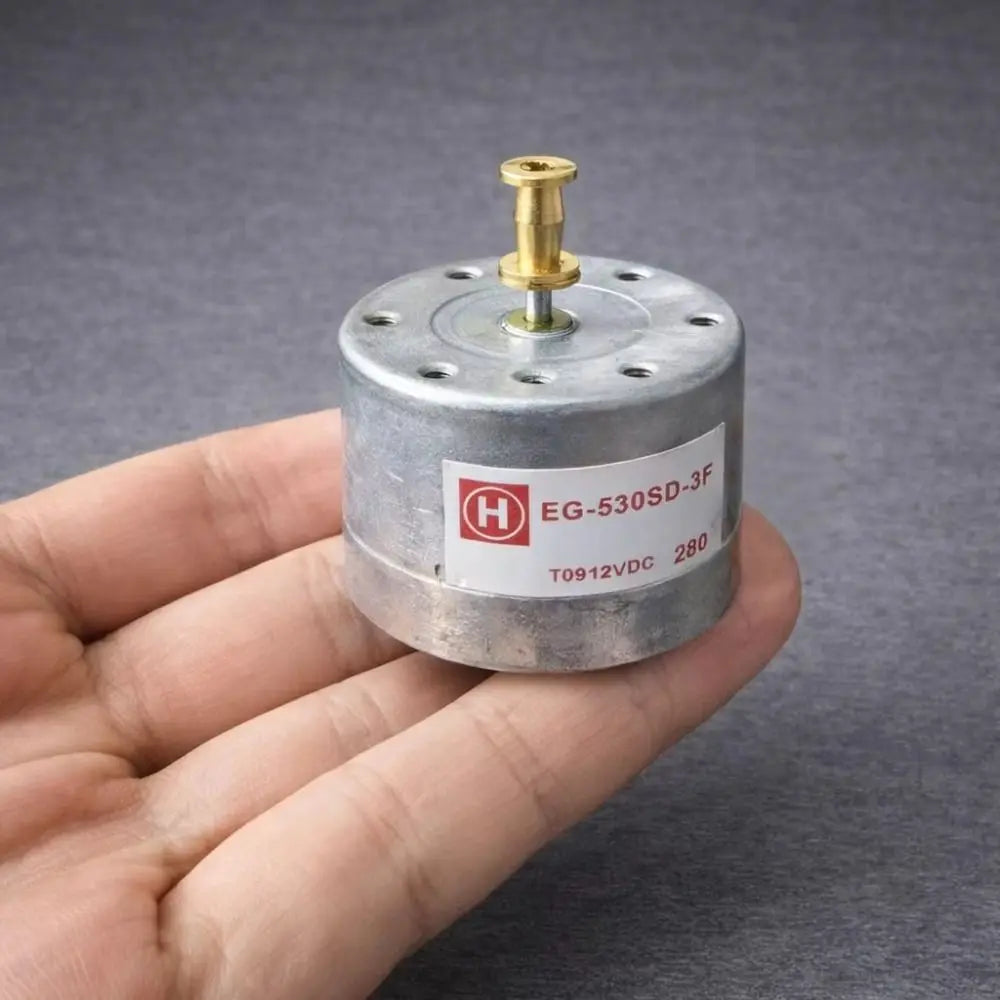

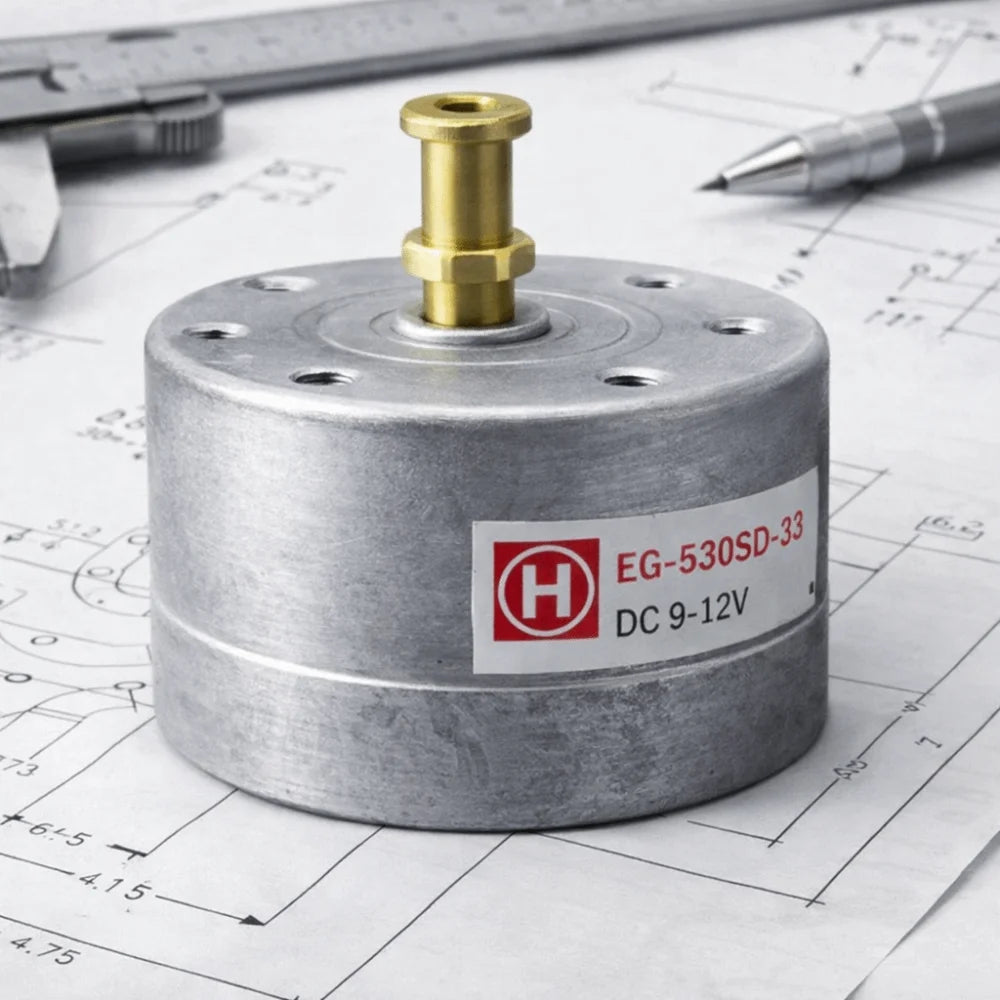

EG-530SD Low-Noise DC Turntable Motor — 9–12V, 33/45/78 RPM
Breathe new life into your vinyl record player with this professional-grade EG-530SD DC Turntable Replacement Motor. Engineered specifically for belt-drive turntables and electric gramophones, this motor delivers stable, quiet rotation at all three standard vinyl speeds — making it the ideal choice for restoration projects, DIY builds, and precision repairs.
Key Features
- Wide Voltage Range: Operates on 9–12V DC, compatible with most standard turntable power supplies.
- Supports All Standard Vinyl Speeds: 33 RPM, 45 RPM, and 78 RPM — final platter speed determined by pulley size and belt ratio, just like traditional turntable designs.
- H/L Fine Speed Trim: Dedicated terminals for precise speed calibration — one terminal fine-tunes 33 RPM, the other fine-tunes 45 RPM — so you can dial in perfect playback accuracy.
- Low Noise & Low Vibration: Optimized for audio equipment to minimize mechanical noise transferred to the platter, preserving sound quality.
- Removable Brass Pulley: Groove diameter Ø4 mm, width 7.5 mm — easily removed or swapped for custom belt configurations or restoration work.
- Standard 25mm Mount: Drop-in compatible with most belt-drive turntable chassis.
- Durable Metal Construction: Built for longevity and consistent performance in audio applications.
Specifications
| Model | EG-530SD |
| Voltage | 9–12V DC |
| Supported Speeds | 33 / 45 / 78 RPM |
| Motor Type | Brushed DC |
| Mount Size | 25mm standard |
| Motor Size | 3.3 × 2.5 cm (1.30 × 0.98 in) |
| Pulley Groove Diameter | Ø4 mm |
| Pulley Width | 7.5 mm |
| Material | Metal |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × EG-530SD Turntable Motor (with brass pulley)
Who Is This For?
Whether you're restoring a vintage record player, replacing a worn-out or noisy original motor, or building a custom belt-drive turntable from scratch, this EG-530SD motor is a dependable, purpose-built upgrade over generic DC motors. Its H/L speed trim terminals make installation and calibration straightforward even for DIY enthusiasts.
For guidance on vinyl record preservation and best practices, visit the Smithsonian Institution, a trusted resource for audio history and archival standards.
Frequently Asked Questions
Q: Is the EG-530SD turntable motor compatible with all belt-drive turntables?
A: This motor uses a standard 25mm mounting footprint and a removable brass pulley (Ø4 mm groove, 7.5 mm wide), making it compatible with most belt-drive turntable chassis. Final platter speed depends on your belt and pulley ratio, so verify your existing setup before installation.
Q: What does the H/L fine speed trim do on the EG-530SD motor?
A: The H/L terminals allow you to precisely adjust the motor speed during installation or calibration. One terminal is used to fine-tune 33 RPM playback, and the other is used for 45 RPM. This ensures your vinyl records play back at the correct speed for accurate audio reproduction.
Q: Can this motor support 78 RPM playback?
A: Yes. The EG-530SD supports 33, 45, and 78 RPM. However, 78 RPM operation depends on the appropriate pulley size and belt ratio configured in your turntable — the motor itself is capable of the required rotational speed within its 9–12V DC operating range.
Q: Is the brass pulley replaceable or removable?
A: Yes. The brass pulley is removable and can be replaced with an alternative pulley to suit custom belt configurations or specific restoration requirements. This makes the EG-530SD highly versatile for DIY turntable projects.
