EG-530SD Turntable Motor 33/45/78 RPM 9-12V DC Low Noise
EG-530SD Turntable Motor 33/45/78 RPM 9-12V DC Low Noise

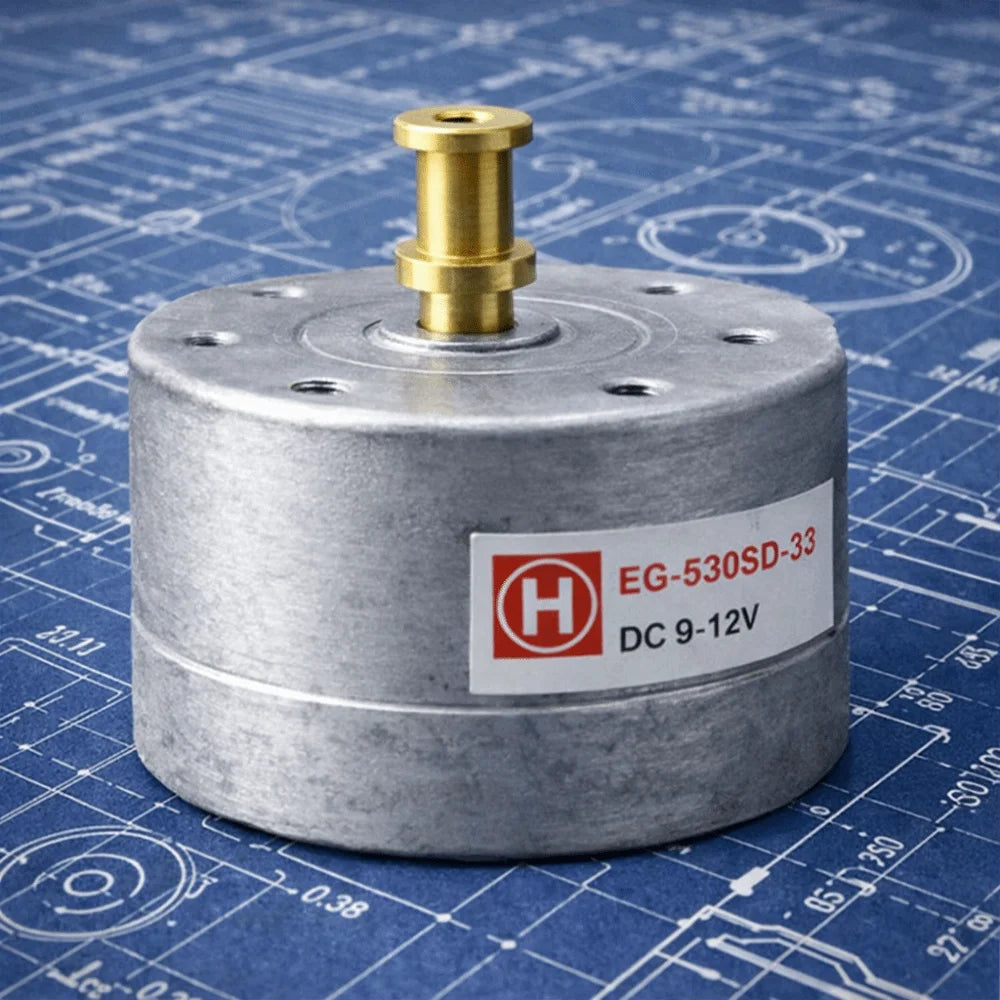

EG-530SD DC Turntable Motor — Quiet, Stable, and Built for Vinyl
Breathe new life into your vinyl record player or electric gramophone with this professional-grade EG-530SD DC brushed turntable motor. Engineered specifically for belt-drive turntable applications, it delivers stable, low-noise rotation at all standard vinyl speeds — 33, 45, and 78 RPM — making it ideal for restoration, repair, and custom DIY turntable builds.
Key Features
- Turntable-Specific Design: Purpose-built for vinyl record players and electric gramophones — not a generic DC motor.
- Supports 33 / 45 / 78 RPM: Compatible with all standard vinyl playback speeds. Final platter speed is determined by pulley size and belt ratio, as used in traditional turntable designs.
- H / L Fine Speed Adjustment: Dedicated terminals for precise speed trimming — one for 33 RPM calibration, one for 45 RPM calibration — allowing accurate tuning during installation.
- Low Noise & Low Vibration: Optimized for audio equipment to minimize mechanical noise transferred to the platter, preserving sound quality.

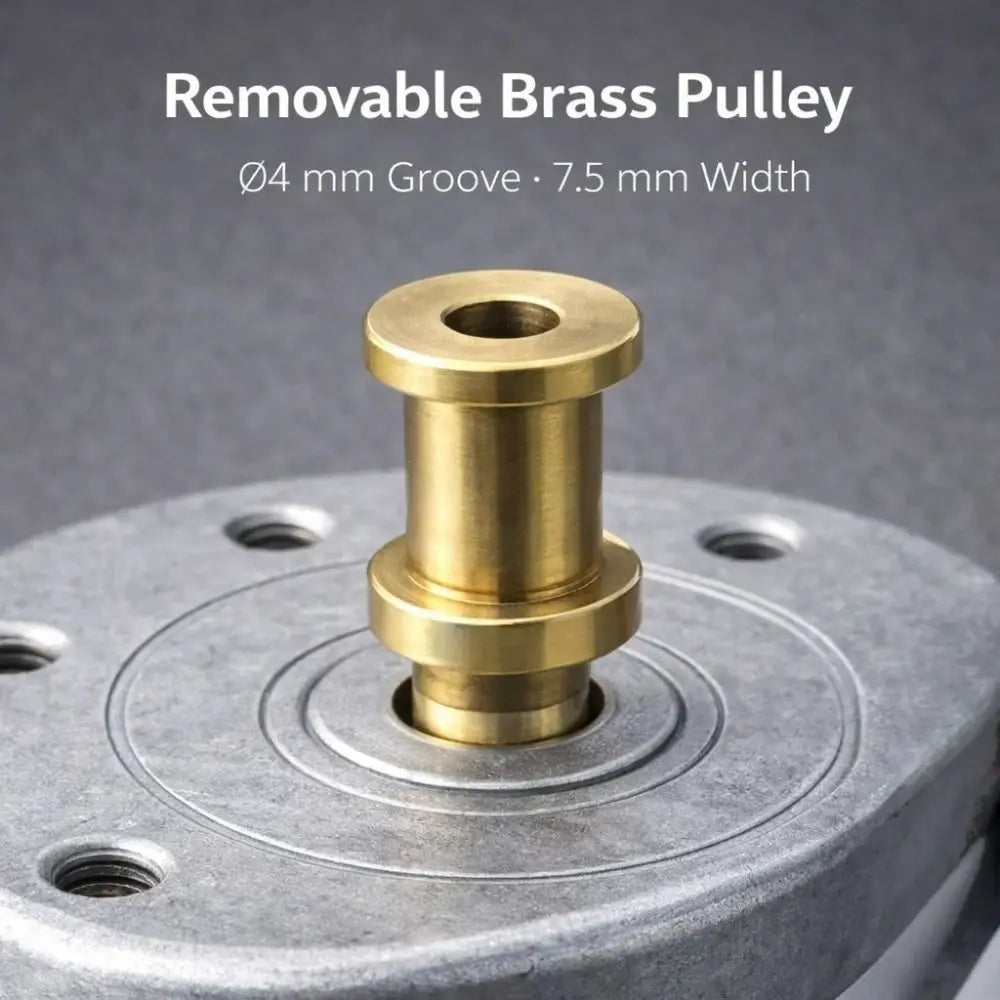

- Removable Brass Pulley: Groove diameter Ø4 mm, width 7.5 mm. Pulley can be removed or replaced to suit restoration projects or custom belt configurations.

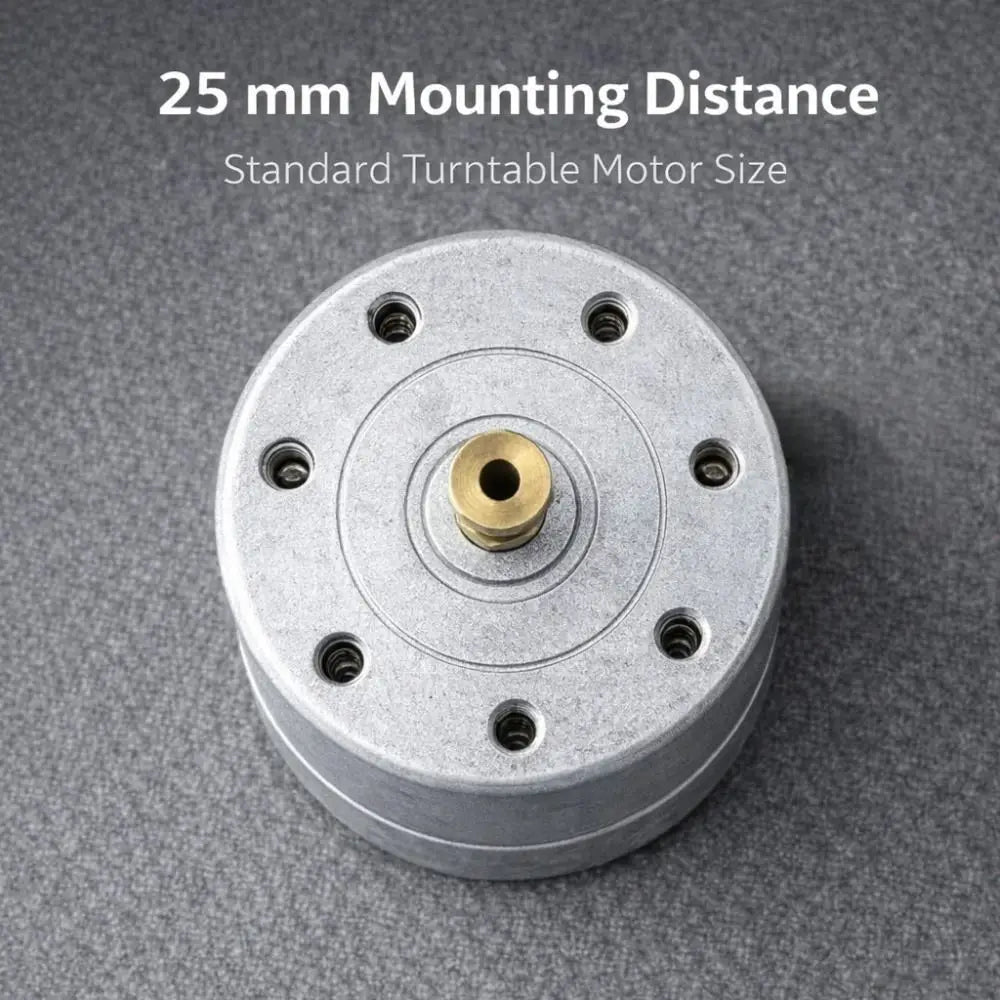

- Standard 25mm Mount: Drop-in compatible with a wide range of turntable chassis that use the standard mounting footprint.

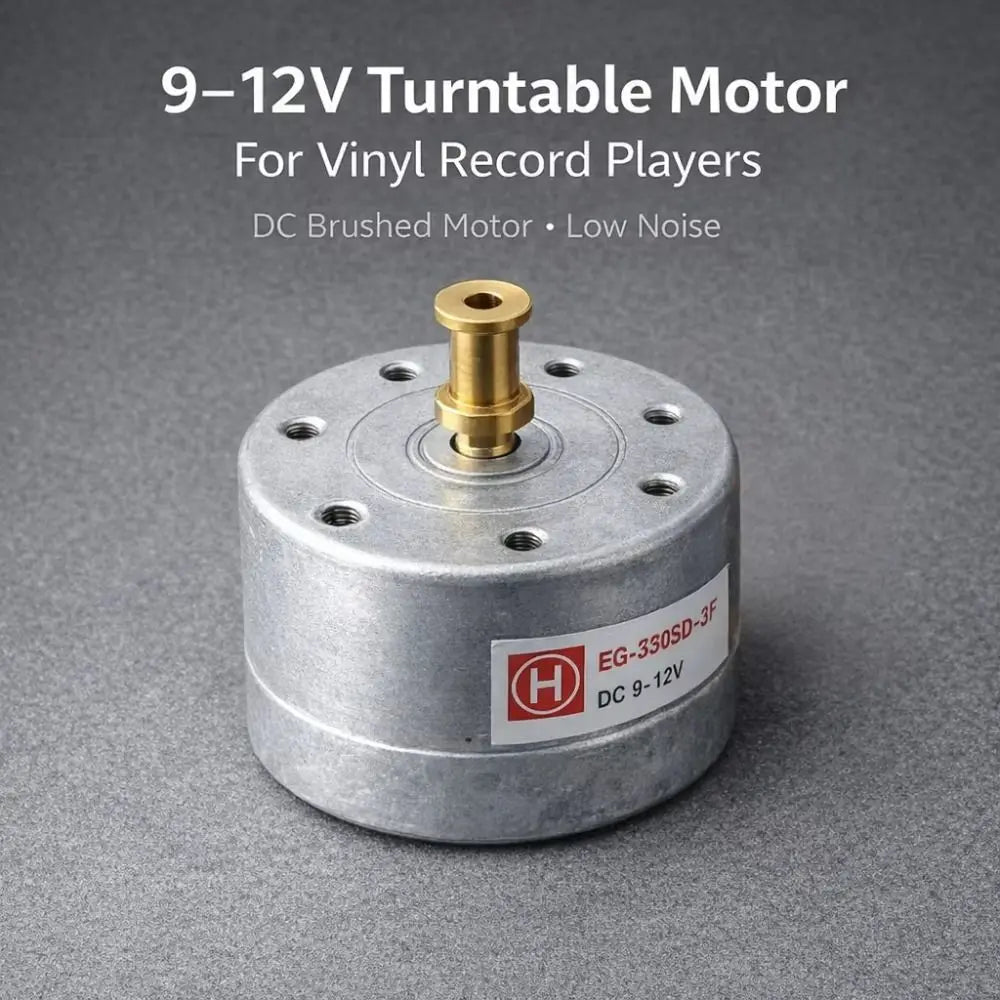

- 9–12V DC Operation: Flexible voltage range suits a variety of power supplies and turntable power circuits.
- Metal Construction: Durable metal body for longevity and consistent performance.
Specifications
| Model | EG-530SD |
| Type | Brushed DC Turntable Motor |
| Operating Voltage | 9–12V DC |
| RPM Support | 33 / 45 / 78 RPM |
| Mount Diameter | 25 mm |
| Pulley Groove Diameter | Ø4 mm |
| Pulley Width | 7.5 mm |

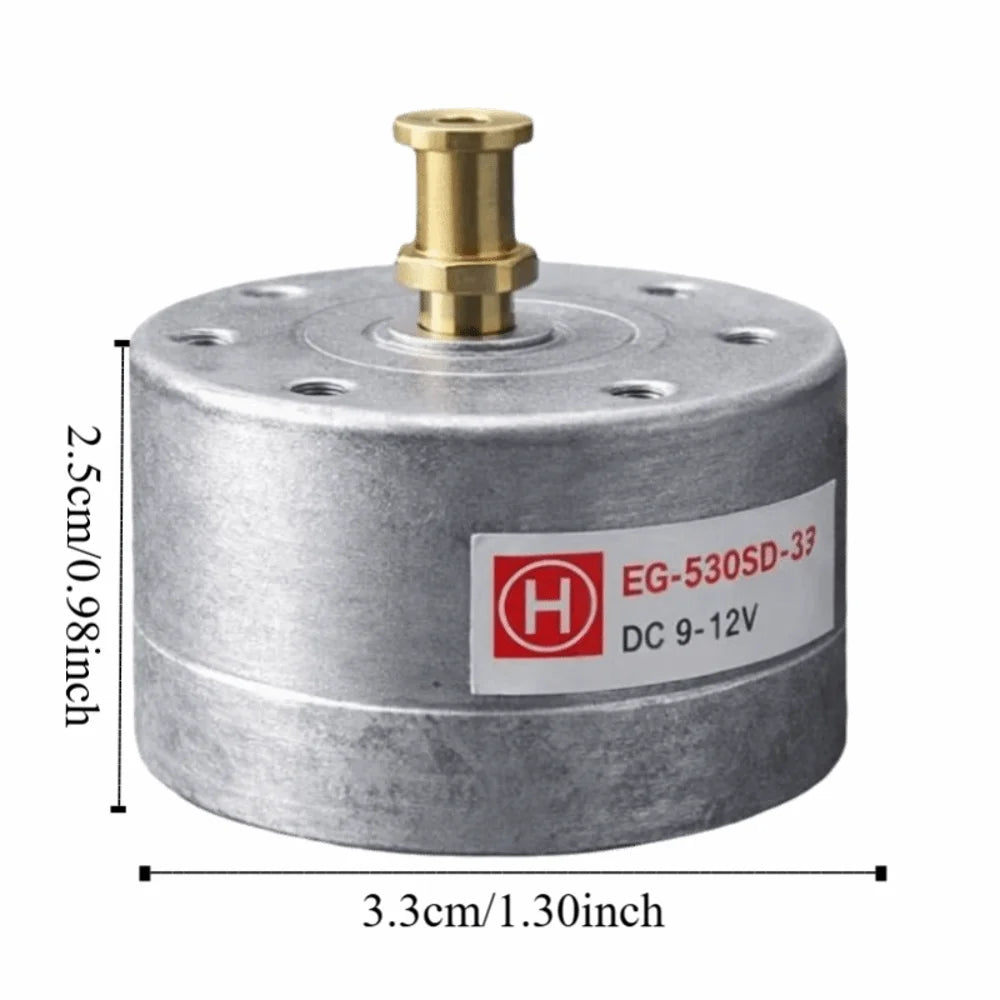

| Size | 3.3 × 2.5 cm (1.30 × 0.98 in) |
| Material | Metal |
| Country of Origin | Made in China |
Package Includes
- 1 × EG-530SD Turntable Motor (with brass pulley)
Who Is This For?
Whether you are restoring a vintage gramophone, repairing a beloved turntable with an aging or noisy motor, or building a custom belt-drive record player from scratch, the EG-530SD offers the precise speed control and quiet operation your audio project demands.
For general guidance on safe handling of small electronic components and tools, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the EG-530SD turntable motor compatible with my belt-drive record player?
A: The EG-530SD uses a standard 25 mm mount and a removable brass pulley (Ø4 mm groove, 7.5 mm wide), making it compatible with a wide range of belt-drive turntables and electric gramophones. Final RPM at the platter is determined by your existing belt and pulley ratio, so it works as a direct replacement in most standard designs.
Q: What voltage does the EG-530SD DC turntable motor require?
A: This motor operates on 9–12V DC, which is the standard voltage range used in most consumer and vintage turntable power supplies. Always verify your turntable's power supply voltage before installation.
Q: How do I adjust the speed on the EG-530SD motor?
A: The EG-530SD features dedicated H (High) and L (Low) fine speed adjustment terminals. One terminal is used to fine-tune 33 RPM and the other for 45 RPM, allowing precise calibration during or after installation without the need for additional components.
Q: Can the brass pulley be replaced or removed?
A: Yes. The brass pulley on the EG-530SD is fully removable and replaceable, making it straightforward to swap in custom pulleys for specific belt configurations or restoration requirements.
