EG-530SD Low-Noise DC Turntable Motor – 9-12V, 33/45/78 RPM

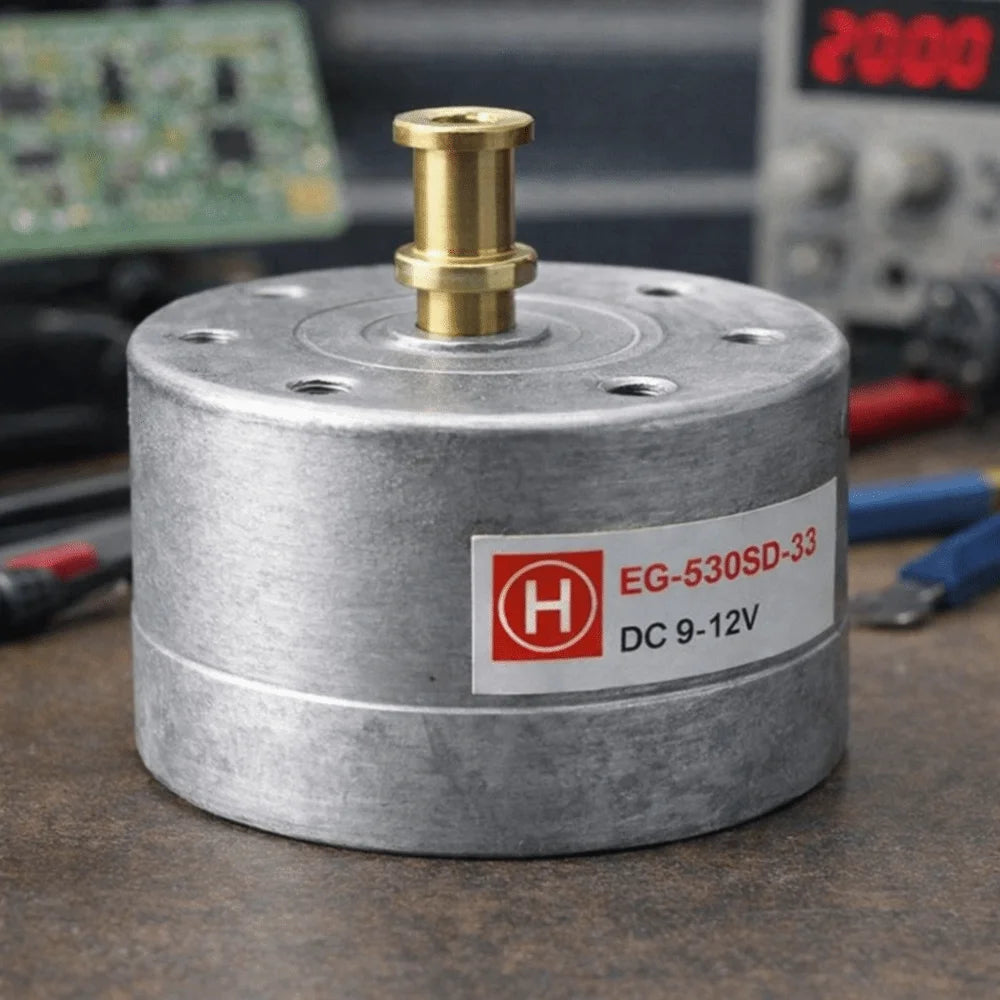

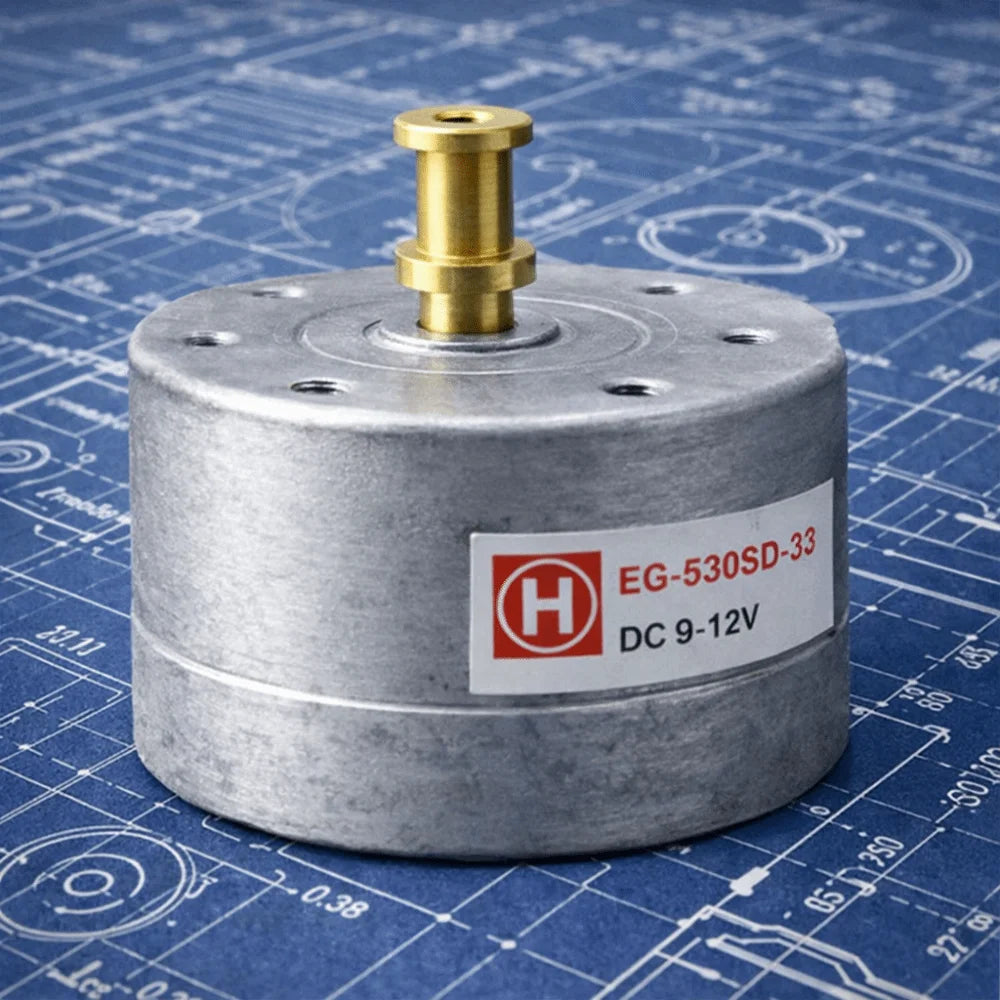

Restore your vinyl record player to peak performance with this professional-grade EG-530SD DC brushed turntable motor. Engineered specifically for belt-drive turntables and electric gramophones, this 9–12V DC motor delivers stable, smooth, and ultra-quiet rotation — making it the ideal drop-in replacement for aging, worn, or noisy original motors.
Why Choose the EG-530SD Turntable Motor?
Unlike generic DC motors, the EG-530SD is purpose-built for audio turntable applications. Its design prioritizes consistent platter speed, minimal mechanical vibration, and precise speed trimming — everything you need for accurate vinyl playback at 33, 45, and 78 RPM.
Key Features
- Supports All Standard Vinyl Speeds: Compatible with 33 RPM, 45 RPM, and 78 RPM playback. Final platter speed is determined by pulley size and belt ratio, as used in traditional turntable designs.
- H/L Fine Speed Adjustment: Dedicated trim terminals allow precise speed calibration — one terminal for fine-tuning 33 RPM, another for 45 RPM — ensuring accurate playback after installation.
- Low Noise & Low Vibration: Optimized for audio equipment to minimize mechanical noise transferred to the platter, preserving the integrity of your listening experience.
- Removable Brass Pulley: Groove diameter: Ø4 mm | Width: 7.5 mm. The pulley can be removed or swapped for restoration projects or custom belt-drive configurations.
- Standard 25mm Mounting Size: Designed for straightforward installation into a wide range of turntable chassis with a 25mm motor mount.
- Metal Construction: Durable all-metal build ensures longevity and consistent performance over time.
- 9–12V DC Input: Wide voltage compatibility for flexible use across different turntable power supplies.
Specifications
- Model: EG-530SD
- Voltage: 9–12V DC
- Motor Type: Brushed DC
- Supported Speeds: 33 / 45 / 78 RPM
- Mount Diameter: 25mm

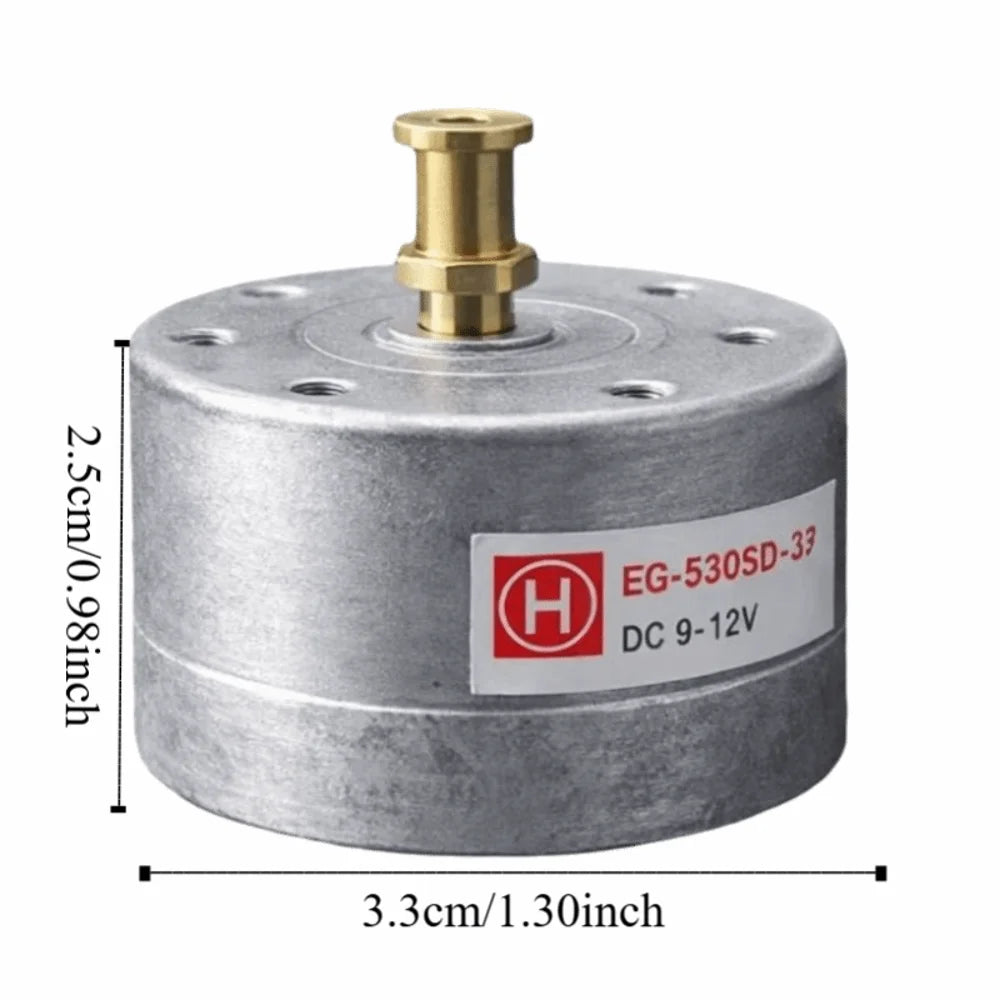

- Size: 3.3 × 2.5 cm (1.30 × 0.98 in)
- Pulley Groove Diameter: Ø4 mm | Width: 7.5 mm
- Material: Metal
- Country of Origin: Made in China
What's in the Box?
- 1 × EG-530SD Turntable Motor (with brass pulley)
Perfect For
- Turntable motor replacement & restoration
- DIY belt-drive turntable builds
- Electric gramophone repair
- Audiophile upgrade projects
For general guidance on maintaining audio equipment and consumer electronics, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Frequently Asked Questions
Q: What turntable models is the EG-530SD motor compatible with?
A: The EG-530SD turntable motor is designed for belt-drive vinyl record players and electric gramophones that use a standard 25mm motor mount and a 9–12V DC power supply. It supports 33, 45, and 78 RPM playback speeds, making it broadly compatible with a wide range of vintage and modern belt-drive turntables. Always verify your original motor's mounting dimensions and voltage before ordering.
Q: How does the H/L fine speed trim adjustment work?
A: The EG-530SD features two dedicated speed trim terminals — one for fine-adjusting 33 RPM playback and one for 45 RPM. After installation, you can use these terminals to precisely calibrate the motor speed, ensuring accurate vinyl playback. This is especially useful during restoration or DIY turntable builds where exact speed accuracy is critical.
Q: Can the brass pulley be replaced or customized?
A: Yes. The brass pulley on the EG-530SD is fully removable and can be replaced with a custom pulley to achieve different belt ratios or to match a specific turntable's belt-drive configuration. The pulley groove diameter is Ø4 mm with a 7.5 mm width, which suits most standard turntable belts.
Q: Is this motor suitable for a DIY turntable build?
A: Absolutely. The EG-530SD is a popular choice for DIY belt-drive turntable projects thanks to its stable low-noise operation, fine speed adjustment capability, standard 25mm mounting footprint, and wide 9–12V DC voltage range. Its removable pulley also allows flexibility in custom belt configurations.
