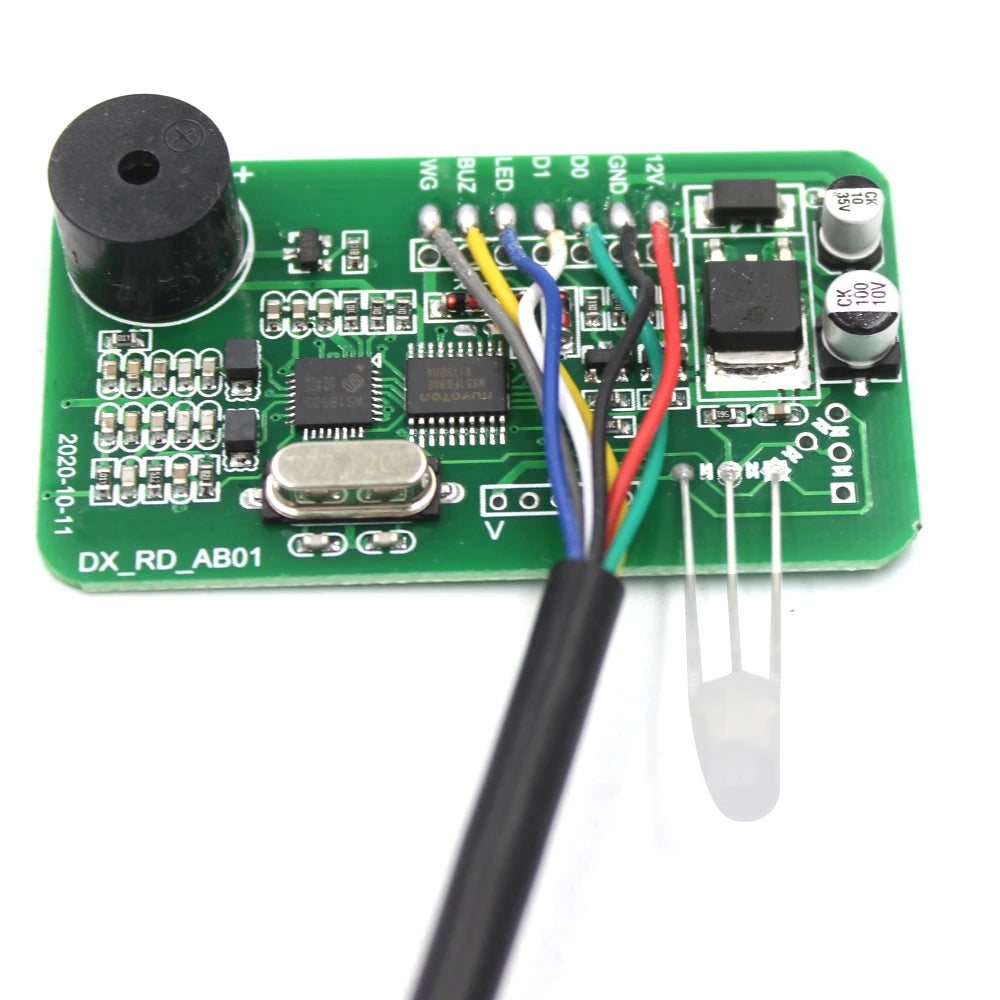

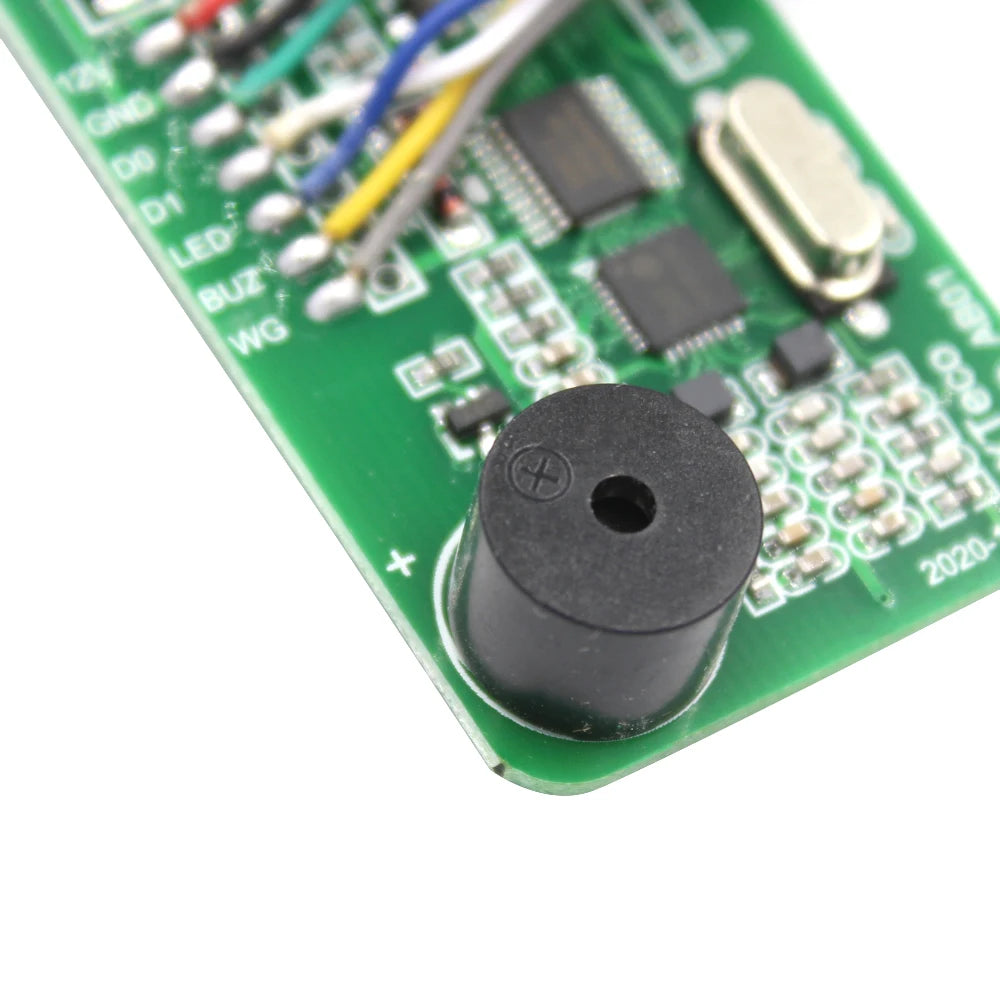

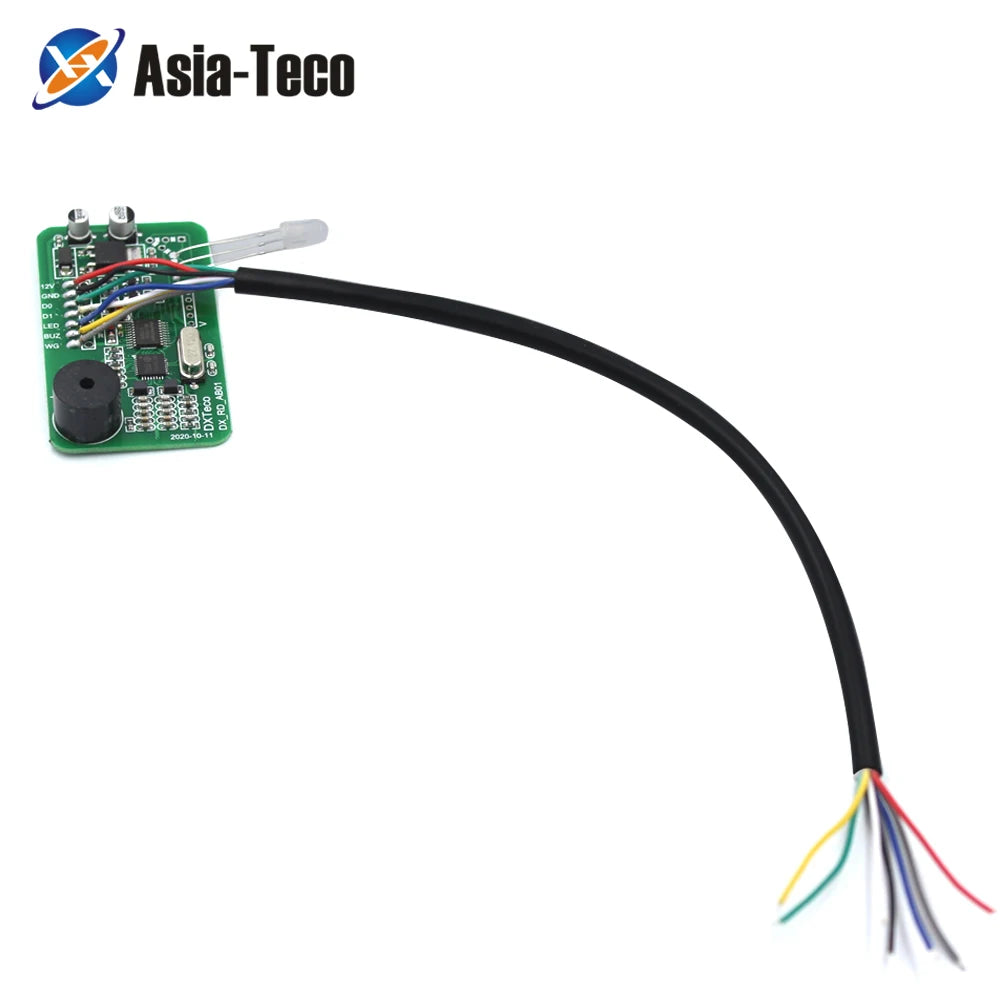

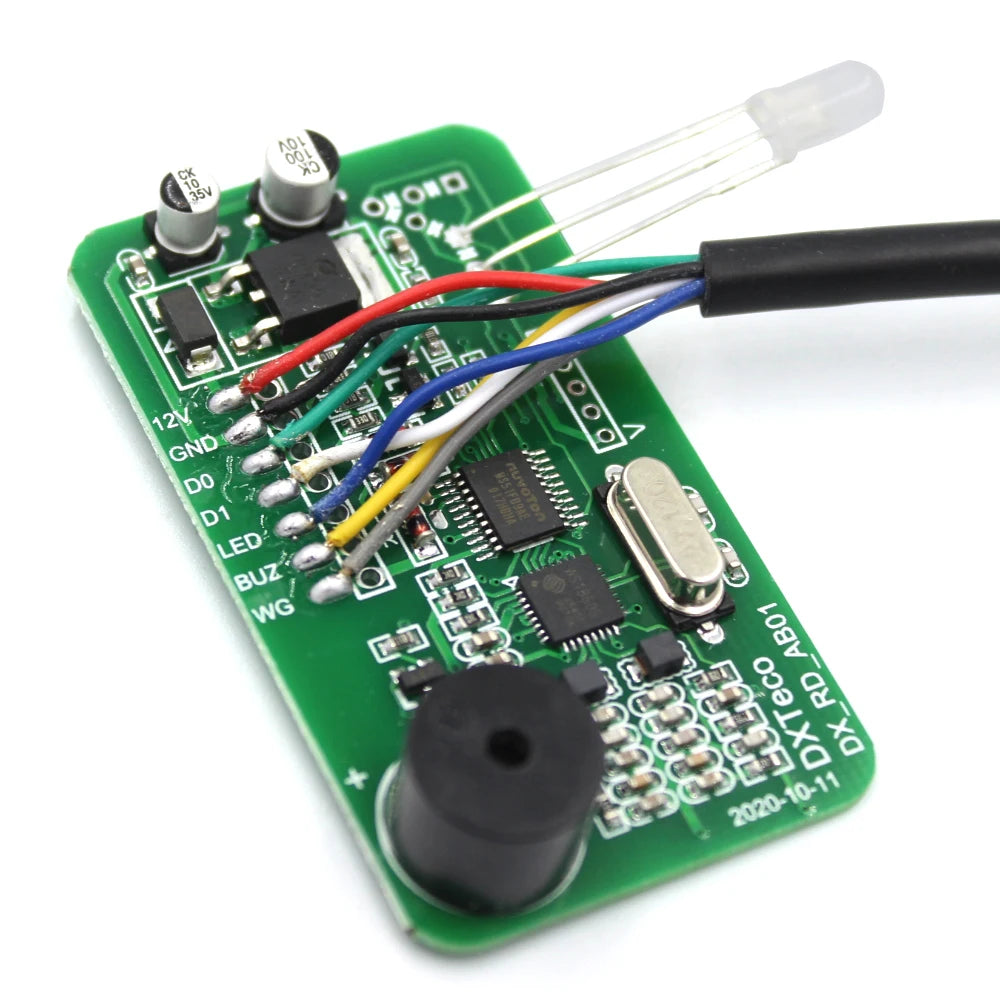

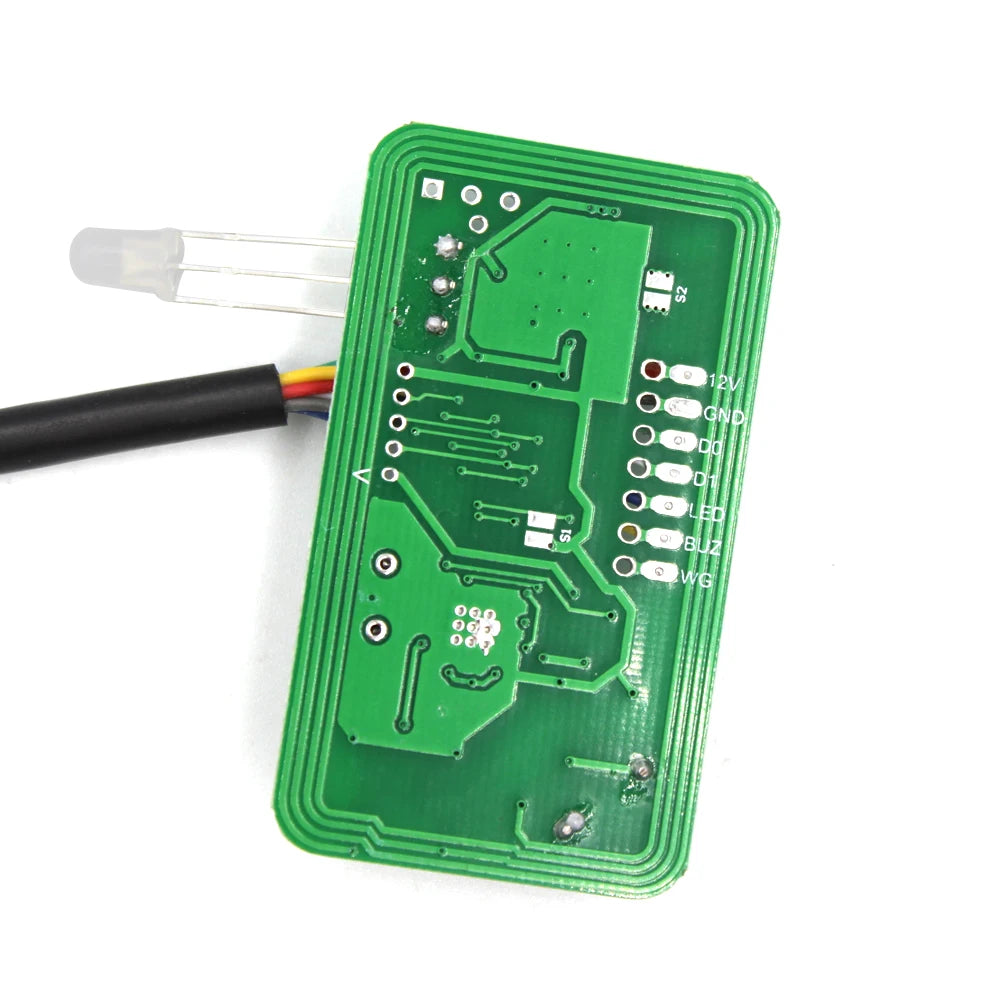

Dual Frequency RFID Card Reader Module — 125KHz & 13.56MHz
Upgrade or replace the reader in your access control system with this compact, high-performance Dual Frequency RFID Card Reader Chip Module (Model: D82R). Supporting both 125KHz ID and 13.56MHz IC card standards, this versatile module is an ideal spare part or DIY addition for doors, gates, offices, apartments, and security installations. Powered by just DC 5V, it's easy to integrate into existing setups without additional power converters.
Key Features
- Dual Frequency Support: Reads both 125KHz (EM, HID) ID cards and 13.56MHz (Mifare, ISO 14443A) IC cards — one module covers both card types.
- Compact Form Factor: Measures just 5.6 × 3.2 × 1 cm, making it easy to fit into existing enclosures or custom builds.
- Low Power Operation: Runs on DC 5V, compatible with standard access control system power supplies.
- Reliable Performance: Designed for consistent, stable card reading in access control, attendance, and security applications.
- Versatile Compatibility: Works as a replacement or spare part module for a wide range of access control panels and systems.
- Model Number: D82R Reader Module
- No High-Concern Chemicals: Safe for installation in offices, residential buildings, and commercial spaces.
Specifications
| Model | D82R Reader Module |
| Working Frequency | 125KHz / 13.56MHz (Dual Frequency) |
| Operating Voltage | DC 5V |
| Dimensions | 5.6 × 3.2 × 1 cm |
| Card Standards | EM4100, HID (125KHz); Mifare, ISO 14443A (13.56MHz) |
| Application | Access Control Systems, Time & Attendance, Security Gates |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × D82R Dual Frequency RFID Card Reader Module
Who Is This For?
This module is perfect for security system integrators, facility managers, electronics hobbyists, and anyone needing a reliable RFID reader replacement or spare part for their access control setup. Whether you're maintaining an existing system or building a new one, the D82R covers both legacy 125KHz and modern 13.56MHz card formats in a single board.
For general guidance on physical access control systems and electronic security best practices, visit CISA.gov. For electronic component safety and installation standards, refer to OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What card types does this dual frequency RFID reader module support?
A: The D82R module supports both 125KHz ID cards (such as EM4100 and HID format cards) and 13.56MHz IC cards (such as Mifare Classic and ISO 14443A compliant cards). This dual frequency capability means it can work with a wide range of common access cards used in residential and commercial settings.
Q: What power supply does this RFID reader module require?
A: This module operates on DC 5V, which is a standard voltage level compatible with most access control system power supplies and microcontroller development boards (such as Arduino or Raspberry Pi). No special power converter is needed for typical installations.
Q: Can I use this module as a replacement part for my existing access control system?

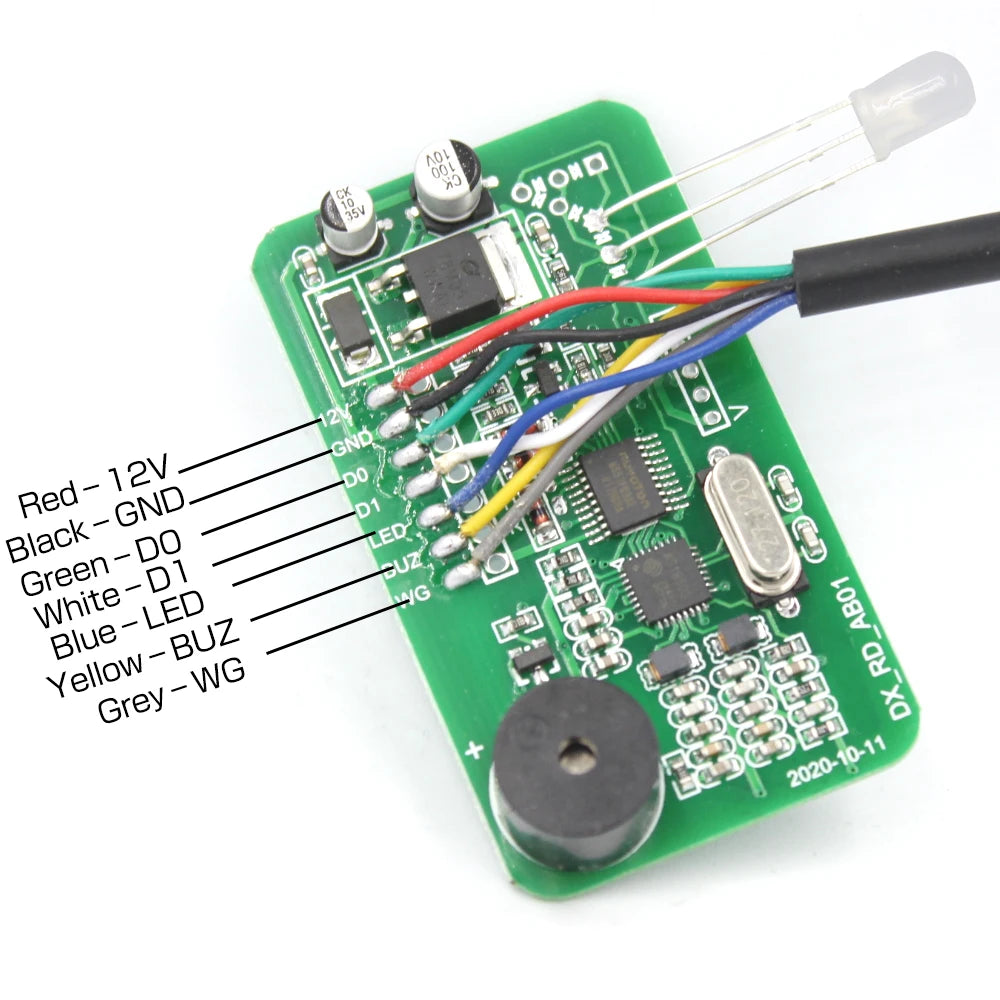

A: Yes — the D82R is designed as a spare and replacement reader module for access control systems. Its compact size (5.6 × 3.2 × 1 cm) allows it to fit into most standard enclosures. Always verify pinout and signal compatibility with your specific access control panel before installation.
Q: Is this module suitable for DIY access control projects?
A: Absolutely. Its dual frequency support, standard DC 5V power input, and compact form factor make the D82R an excellent choice for DIY electronic security and smart lock projects. It integrates easily with microcontrollers and access control panels.
