Dual Frequency RFID Card Reader 125KHz & 13.56MHz | Asia-Teco D82R

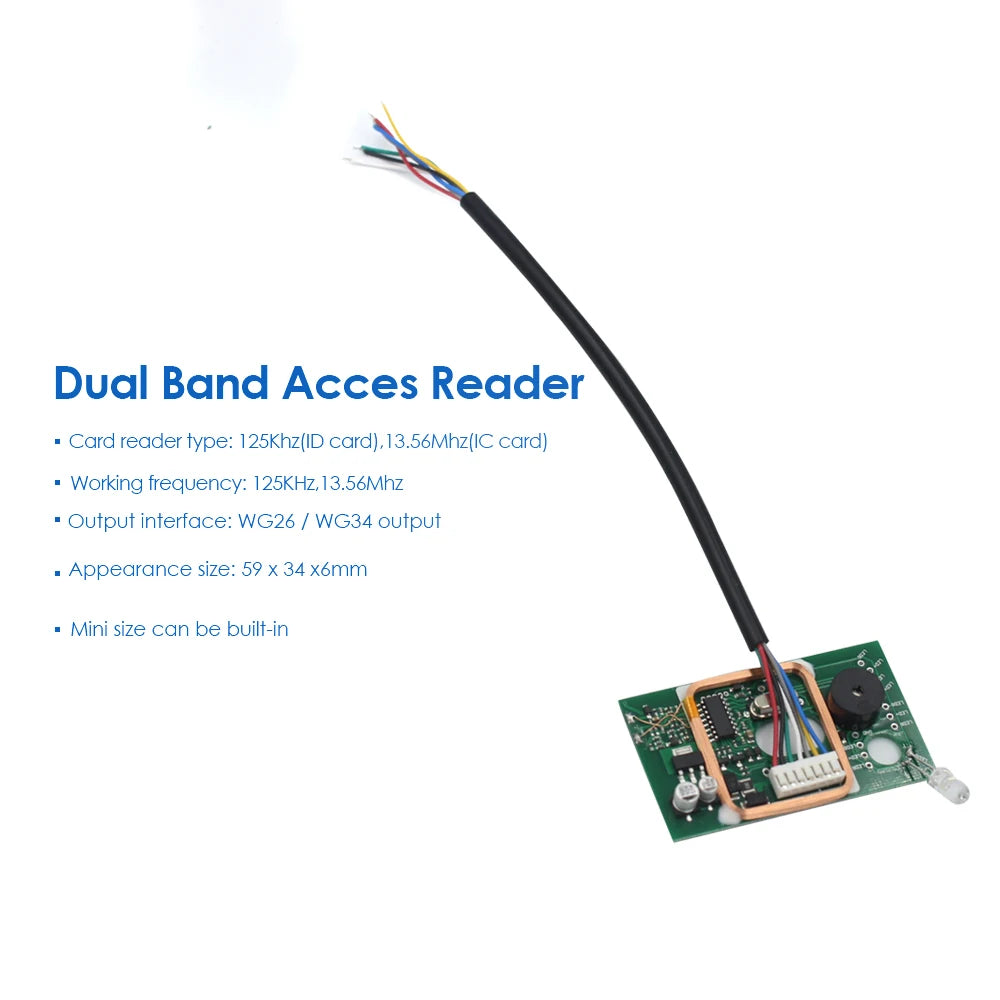

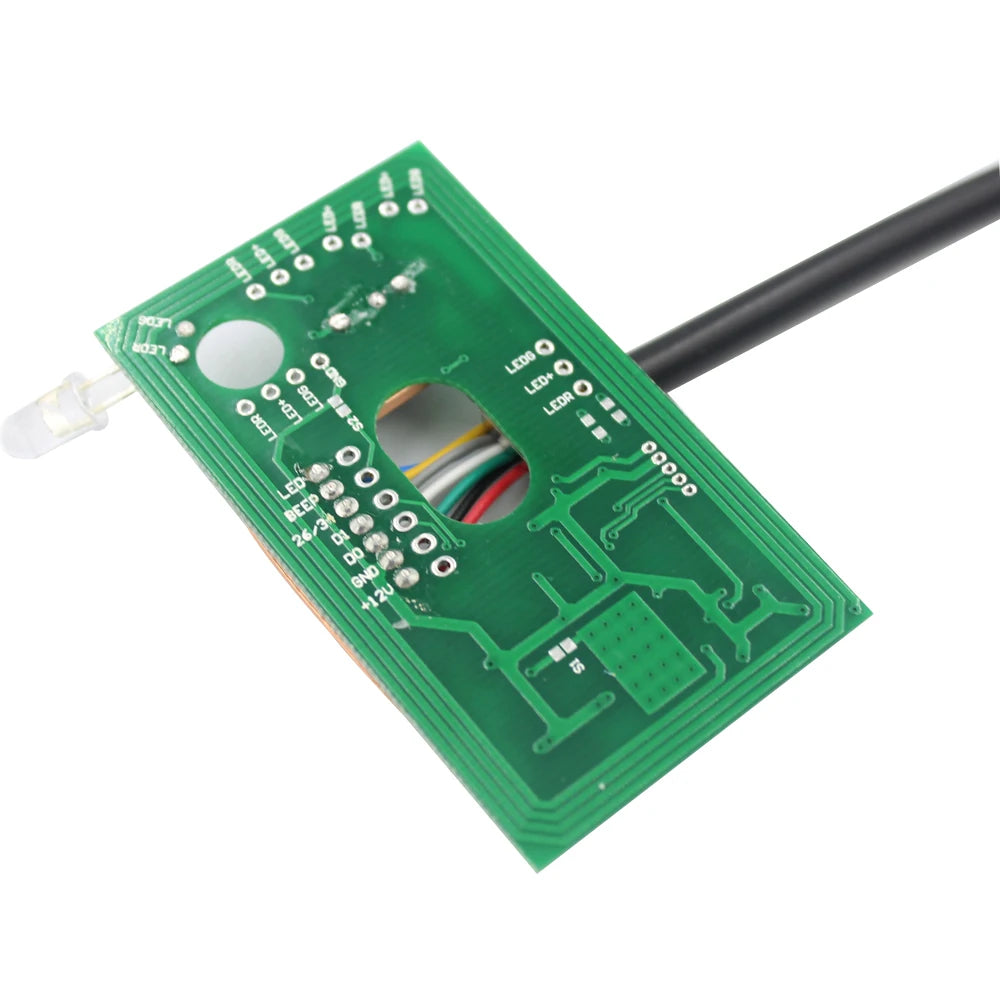

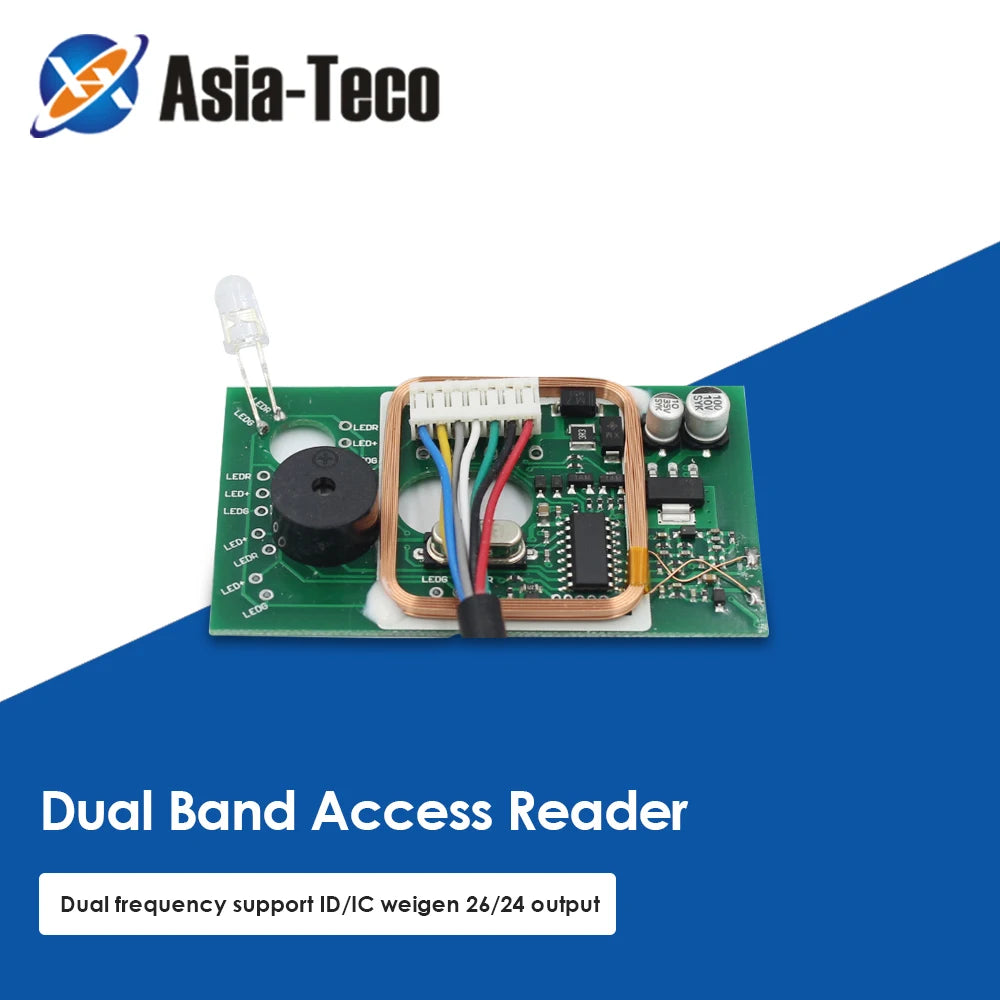

Asia-Teco D82R Dual Frequency RFID Card Reader — 125KHz & 13.56MHz

Upgrade your door security with the Asia-Teco D82R Dual Frequency RFID Card Reader, a compact and versatile access control solution that reads both 125KHz ID cards and 13.56MHz IC cards in a single device. Whether you're securing an office, server room, residential entry, or commercial facility, this reader delivers reliable, contactless access management with a sleek, low-profile form factor designed for seamless built-in installation.

Key Features

• Dual Frequency Technology: Reads 125KHz (EM/ID card) and 13.56MHz (IC/Mifare card) formats — no need for two separate readers.
• WG26 / WG34 Output: Industry-standard Wiegand interface ensures compatibility with the vast majority of access control panels and systems.
• Ultra-Compact Design: Measuring just 59 × 34 × 6mm, the slim profile allows for flush or built-in mounting into doors, frames, or panels.
• Broad Card Compatibility: Works with common ID and IC card standards, making it easy to integrate into existing credential systems.
• Reliable Contactless Reading: Fast and accurate card detection for smooth, uninterrupted entry management.
• Easy Integration: Plug-and-play Wiegand output means quick setup with most commercial and residential access controllers.

Technical Specifications

Who Is This For?

The D82R is ideal for system integrators, facility managers, IT administrators, and DIY home security enthusiasts who need a compact, dual-frequency reader that works right out of the box with standard Wiegand-based access control panels. Its miniature size makes it especially well-suited for installations where space is limited.

Learn More About Physical Access Control

For guidance on best practices in physical security and access control systems, visit the U.S. Cybersecurity & Infrastructure Security Agency (CISA). For general consumer product safety information, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the difference between 125KHz and 13.56MHz RFID cards?

A: 125KHz cards (commonly called ID or EM cards) are a traditional, widely used format typically found in older access control systems. 13.56MHz cards (IC or Mifare cards) are a newer, more secure standard with encrypted data capabilities. The Asia-Teco D82R dual frequency RFID card reader supports both formats, so it works with a wide variety of credential cards in use today.

Q: Is this RFID reader compatible with my existing access control panel?

A: The D82R outputs via WG26 and WG34 (Wiegand) interfaces, which are the most widely used protocols in the access control industry. The majority of commercial and residential access control panels support Wiegand input, making this reader compatible with most systems on the market.

Q: Can this reader be installed flush into a wall or door frame?

A: Yes. The ultra-slim profile (just 6mm thick) and compact footprint (59 × 34mm) are specifically designed to allow built-in installation. It can be integrated into custom housings, embedded into doors, or mounted behind thin panels for a clean, professional look.

Q: Does the D82R work with both ID cards and IC cards simultaneously?

A: Yes. The dual frequency technology allows the reader to detect and process both 125KHz ID cards and 13.56MHz IC cards. You do not need to configure it separately for each type — it automatically identifies the card frequency when presented.
