Dual Frequency RFID Access Control Keypad – IP65 Waterproof | 125KHz & 13.56MHz
Upgrade your entry security with this sleek, standalone Dual Frequency RFID Access Control Keypad. Designed for homes, offices, hotels, and apartments, this compact unit reads both 125KHz EM cards and 13.56MHz RFID cards, giving you flexible compatibility with a wide range of credentials — all in one weatherproof device.
With an IP65 waterproof rating, this keypad stands up to rain, dust, and outdoor conditions, making it equally suited for indoor and exterior door installations. Its low-power design and standalone operation mean no PC connection is required — simply install, program, and go.
Key Features
- Dual Frequency Support: Works with both 125KHz (EM) and 13.56MHz RFID cards for broad compatibility
- Three Unlocking Methods: RFID card only, PIN password only, or RFID card + PIN for enhanced two-factor entry
- 10,000 User Capacity: Manage large teams, buildings, or multi-tenant properties with ease
- IP65 Waterproof: Fully sealed against dust ingress and low-pressure water jets — ideal for outdoor use
- Integrated Doorbell Button: Convenient built-in doorbell for visitor notifications
- Standalone Operation: No computer or network connection needed — works independently right out of the box
- Fast, Sensitive Response: Quick card read within 1–5 cm for smooth, reliable access
- Wide Voltage Range: Operates on DC 12V–24V for flexible installation compatibility
- Compact Form Factor: Sleek 111mm × 70mm × 20mm profile fits most standard door frames
Technical Specifications
| Model | YS-AS31 |
| Working Frequency | 125KHz + 13.56MHz (Dual Frequency) |
| User Capacity | 10,000 user cards |
| Waterproof Rating | IP65 |
| Dimensions | 111mm × 70mm × 20mm (L × W × H) |
| Working Voltage | DC 12V – 24V |
| Working Current | <100mA |
| Reading Distance | 1–5 cm |
| Working Temperature | -10°C to +60°C |
| Relative Humidity | 20% – 80% |
| Country of Origin | Made in China |

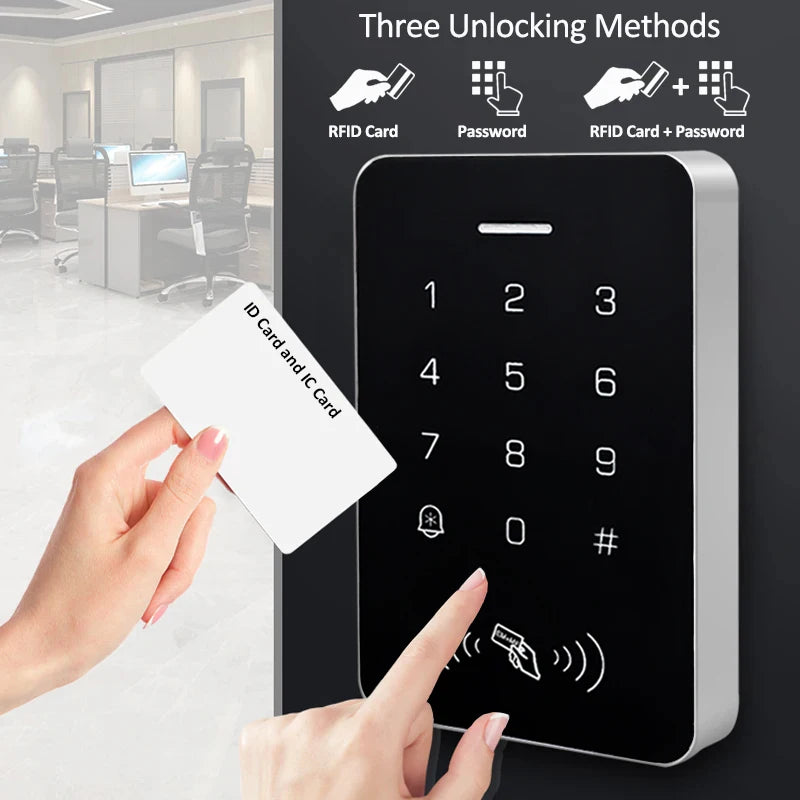

Three Unlocking Methods
This keypad supports three versatile entry modes to suit any security preference:
- RFID Card Only — Simply tap your card to unlock
- Password Only — Enter your PIN on the backlit keypad
- Card + Password — Use both for two-factor access control
Ideal Applications
Perfect for homes, apartments, offices, hotels, warehouses, schools, and any other property that requires reliable, keyless entry management for multiple users.
What's in the Box
- 1 × Dual Frequency RFID Access Control Keypad (YS-AS31)
Note: Power supply, electric lock, and exit button are NOT included and must be purchased separately.
For guidance on physical security standards and electronic access control best practices, visit the NIST Cybersecurity & Physical Security Resource.
Frequently Asked Questions
Q: What types of RFID cards does this access control keypad support?
A: This dual frequency keypad supports both 125KHz EM-format cards and 13.56MHz RFID cards, making it compatible with a wide range of standard access cards and key fobs commonly used in home and commercial security systems.
Q: Does this keypad require a computer or internet connection to operate?
A: No — this is a fully standalone access control unit. It operates independently without any computer, network, or smart home hub connection. All user card management and programming is done directly on the device.
Q: Is this keypad suitable for outdoor installation?
A: Yes. With an IP65 waterproof rating, the keypad is protected against dust and low-pressure water jets, making it suitable for both outdoor and indoor installations. It also operates in temperatures from -10°C to +60°C, handling a wide range of weather conditions.
Q: How many users can be stored on this access control system?
A: This keypad supports up to 10,000 individual user cards, making it well-suited for large offices, apartment complexes, hotels, and other multi-user environments.
Q: What power supply does this keypad require?

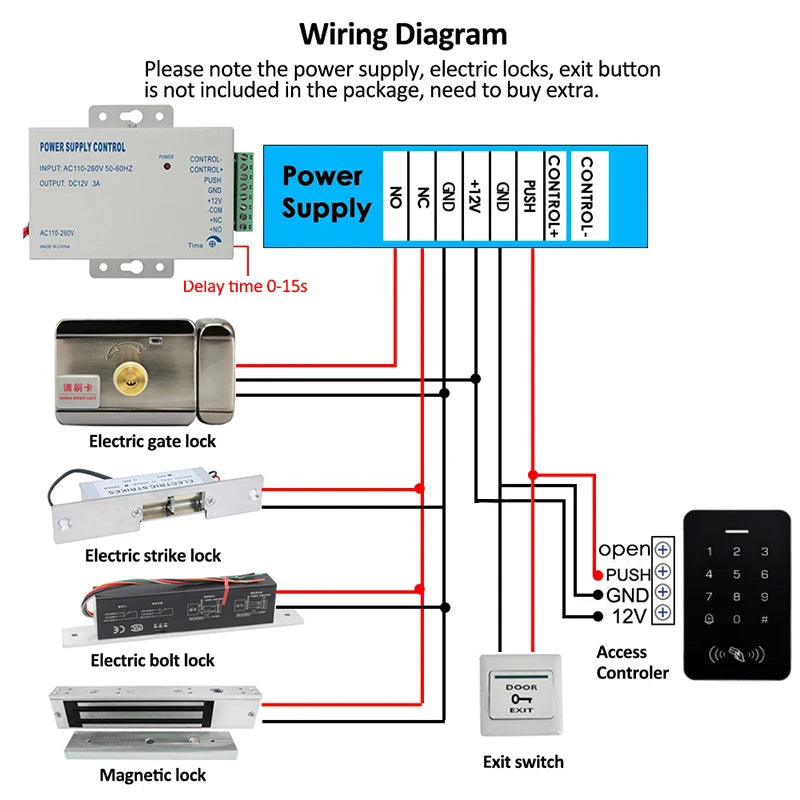

A: The keypad operates on DC 12V–24V with a working current of less than 100mA. The power supply is not included and must be purchased separately. It can directly drive an electric lock when properly wired.
