Asia-Teco S10DC-W Waterproof Dual-Frequency Access Control Keypad
Upgrade your entry security with the Asia-Teco S10DC-W — a powerful, all-in-one access control keypad built for offices, residential complexes, and commercial buildings. Supporting up to 10,000 users, dual-frequency card reading (125 kHz ID & 13.56 MHz IC), NFC smartphone unlock, PIN password entry, and Wiegand 26/34 output, this is one of the most versatile single-door controllers available today. Made in Mainland China.
Key Features
- 10,000-User Capacity: Manage a large user base with ease — ideal for high-traffic buildings and shared facilities.
- Dual-Frequency Card Reading: Seamlessly reads both 125 kHz (ID) and 13.56 MHz (IC) proximity cards — no need to standardize your card inventory.
- Multiple Unlock Methods: Card swipe, PIN password (4–6 digits), card + password combo, or mobile phone NFC — total flexibility for every user.
- Backlit Touch Keypad: Illuminated keys make nighttime entry effortless and convenient.

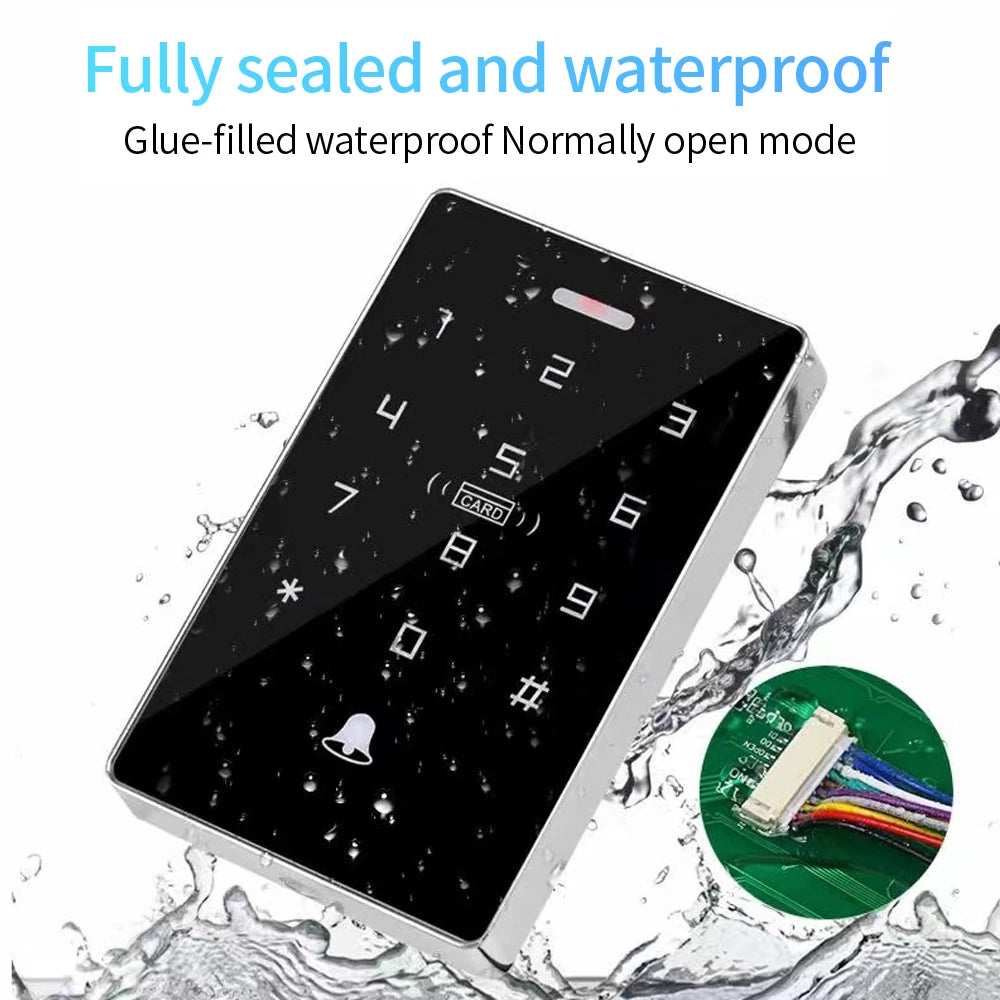

- Weatherproof Construction: Epoxy resin potting provides robust outdoor protection; operates reliably from -40°C to +70°C.
- Ultra-Fast Response: Card-to-door-open time under 0.1 seconds for a smooth, frictionless entry experience.
- Wiegand 26/34 Output: Integrates easily with existing access control panels and security infrastructure.
- Doorbell Interface: Connect an external wired doorbell for added functionality.

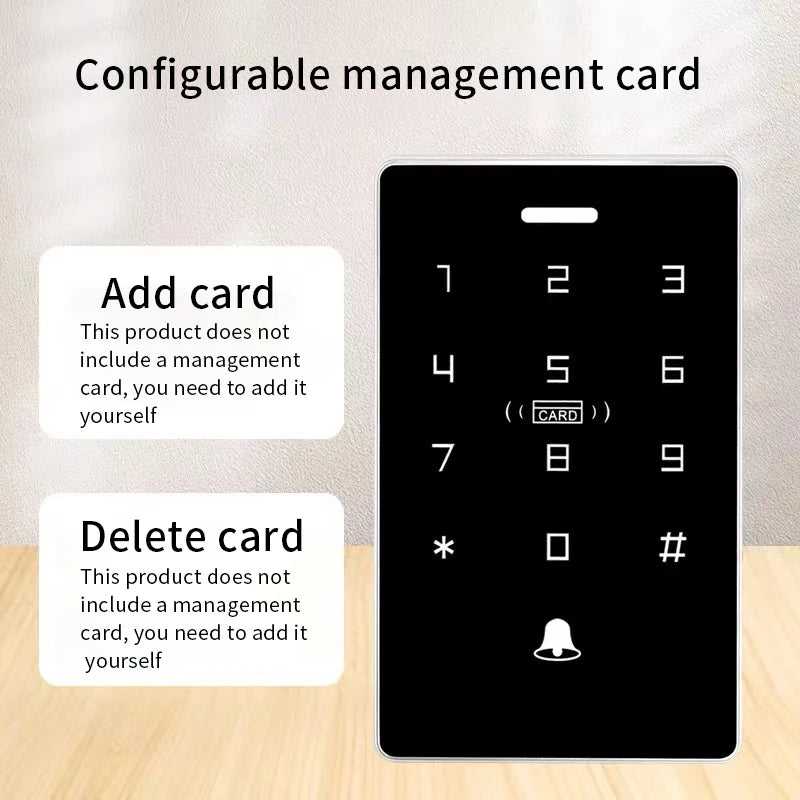

- Simple Card Management: Add or delete cards directly from the keypad — no software required. Delete lost cards instantly to maintain security.
- Independent Password: Set a standalone door-open password independent of any card credential.
- Low Power Consumption: Draws less than 100 mA, keeping operating costs minimal.
- ABS Flame-Retardant Shell: Durable, fire-resistant casing for long-lasting reliability.
Technical Specifications
| Model | S10DC-W |
| Working Voltage | DC 12V |
| Power Consumption | <100 mA |
| Card Reading Distance | 1–5 cm |
| Supported Card Types | 125 kHz (ID) & 13.56 MHz (IC) dual-frequency |
| Storage Capacity | 10,000 users |
| Password Length | 4–6 digits |
| Door Opening Time | 0–99 seconds (adjustable) |
| Wiegand Output | Wiegand 26 / Wiegand 34 |
| Operating Temperature | -40°C to +70°C |
| Shell Material | ABS flame-retardant |
| Dimensions | 115 × 27 × 16 mm |
| Certification | FCC |
| Country of Origin | Made in Mainland China |
Where to Use It
The S10DC-W is designed for a wide range of access control applications including:
- Office buildings and corporate campuses
- Residential apartment complexes and gated communities
- Schools, gyms, and co-working spaces
- Warehouses and storage facilities
- Any outdoor entry point requiring weatherproof access control
For guidance on best practices in physical access control and security systems, visit the Cybersecurity and Infrastructure Security Agency or refer to the NIST security resources for infrastructure protection standards.
Frequently Asked Questions
Q: Does this access control keypad work with both ID and IC cards at the same time?
A: Yes! The Asia-Teco S10DC-W operates on dual frequencies — 125 kHz for traditional ID proximity cards and 13.56 MHz for IC smart cards. Both card types can be enrolled and used simultaneously, so you don't need to replace existing cards when upgrading your system.
Q: Can I use my smartphone to unlock the door with this keypad?
A: Absolutely. The S10DC-W supports NFC-enabled smartphones. Simply place your NFC-capable phone near the reader and it will authenticate just like a proximity card, provided your phone's NFC credentials have been enrolled in the system.
Q: Is this keypad suitable for outdoor installation?
A: Yes. The unit features epoxy resin potting for waterproofing and an ABS flame-retardant enclosure, making it fully suitable for outdoor use. It operates reliably in temperatures as low as -40°C, covering even the harshest climates.
Q: How do I add or remove users on the S10DC-W access control keypad?
A: User management is handled directly via the keypad — no PC software is required. The system supports a master card for adding new users, a dedicated add-card function, and a delete-card function. You can also delete individual card numbers via the keypad if a card is lost, immediately removing access rights.
Q: What Wiegand output does this keypad support?
A: The S10DC-W supports both Wiegand 26 and Wiegand 34 output protocols, ensuring compatibility with most standard access control panels and third-party security systems.
