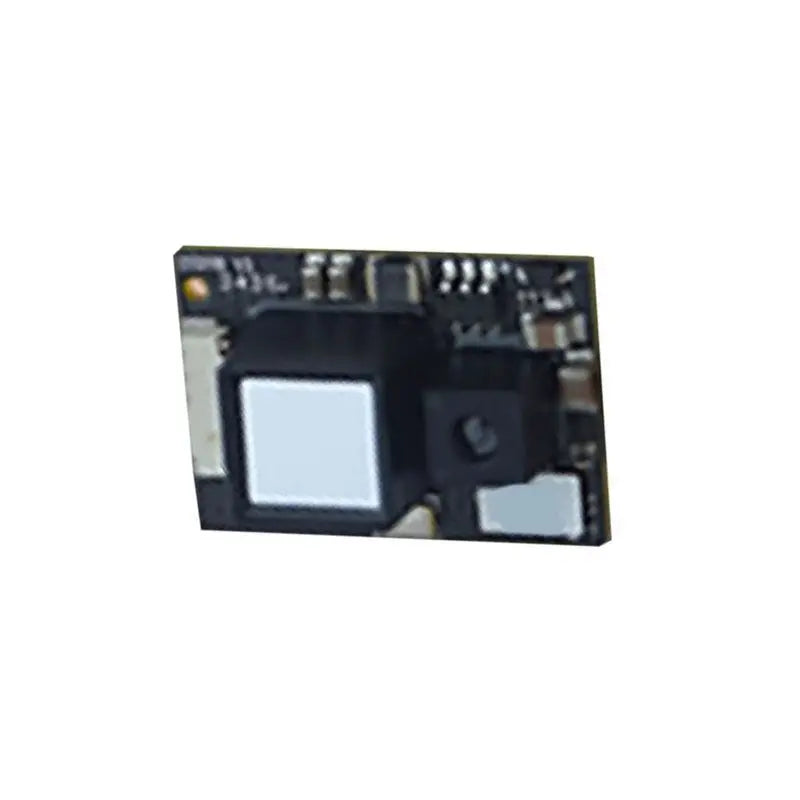

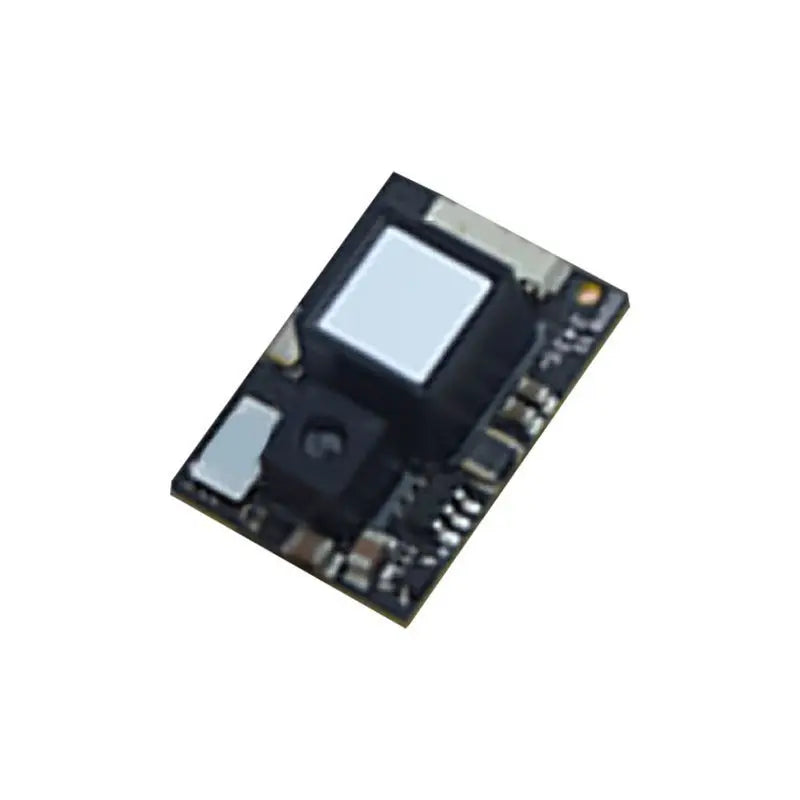

DTof Laser Ranging Sensor Module – 22M Range, Ultra-Compact Design
Take your projects to the next level with this highly integrated Direct Time-of-Flight (DTof) Laser Ranging Sensor Module. Engineered for developers and engineers who demand precision, this compact module delivers reliable distance measurements up to 22 meters while maintaining an incredibly small footprint and low power consumption — making it ideal for robotics, IoT devices, drones, industrial automation, and custom embedded systems.
Made in Mainland China.
Key Features
- Ultra-Compact Size: 21 × 15 × 7.87 mm — fits easily into space-constrained designs
- Featherlight: Just 1.35 g for minimal impact on weight-sensitive builds
- High Accuracy: ±3 cm at ranges under 6 m; less than 1% error beyond 6 m
- Maximum Range: 22 meters
- Dual-Peak Detection: Integrated histogram statistics algorithm outputs dual-peak positions for easy multi-target detection and calibration
- Ambient Light Immunity: Time-correlated photon burst algorithm — 88% immunity @ 160 KLux at 18 m; 18% @ 160 KLux at 15 m
- Configurable TDC Time Window: Adapts to a wide range of application scenarios
- Stable Periodic Data Output: Consistent readings according to your configured period
- Reflectivity Correction: Built-in, ensuring accurate measurements across surfaces
- Temperature Compensation: Maintains accuracy across varying thermal environments
- Laser Wavelength: 905 nm
- Interface: I2C & UART — easy integration with microcontrollers and development boards
- Connector Pins: 6
- Frame Rate: Default 100 fps
- Field of View (FoV): Less than 2°
- Operating Voltage: Typical 3.3 V (Min: 3.0 V / Max: 3.6 V)
- Material: PCB | Color: Black
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 21 × 15 × 7.87 mm |
| Weight | 1.35 g |
| Max Range | 22 m |
| Accuracy | ±3 cm (<6 m) / <1% (>6 m) |
| Laser Wavelength | 905 nm |
| Frame Rate | 100 fps (default) |
| Interface | I2C, UART |
| Operating Voltage | 3.0 V – 3.6 V (typ. 3.3 V) |
| FoV | < 2° |
| Connector Pins | 6 |
| Multi-Target Detection | Dual-peak |
What's in the Box
- 1 × DTof Laser Ranging Sensor Module
Note: Minor color variation may occur due to display differences. Measurement tolerance is ±1–3 cm.
Learn More About Time-of-Flight Sensing Technology
For background on laser and optical measurement technology standards, visit the National Institute of Standards and Technology (NIST) – Lasers.
Frequently Asked Questions
Q: What is a DTof Laser Ranging Sensor Module and how does it work?
A: A DTof (Direct Time-of-Flight) Laser Ranging Sensor Module measures distance by emitting a short laser pulse at 905 nm and calculating the time it takes for the pulse to reflect back from an object. This module supports ranges up to 22 m, outputs data via I2C or UART, and delivers high-accuracy results at up to 100 frames per second — making it ideal for secondary development in robotics, automation, and IoT projects.
Q: Is this DTof sensor module compatible with Arduino, Raspberry Pi, or other microcontrollers?
A: Yes. The module communicates via standard I2C and UART interfaces, which are natively supported by Arduino, Raspberry Pi, ESP32, STM32, and most popular development platforms. With 6 connector pins and a compact PCB form factor, integration into custom hardware projects is straightforward.
Q: How does the module perform in bright ambient light conditions?
A: This DTof module features an integrated time-correlated photon burst algorithm that provides strong ambient light immunity — up to 88% at 160 KLux at 18 m. This makes it suitable for both indoor and outdoor applications where significant ambient light may be present.
Q: What operating voltage does the DTof Laser Ranging Sensor Module require?
A: The module operates at a typical voltage of 3.3 V, with an accepted range of 3.0 V to 3.6 V. Ensure your power supply or development board provides a stable voltage within this range for optimal performance.
