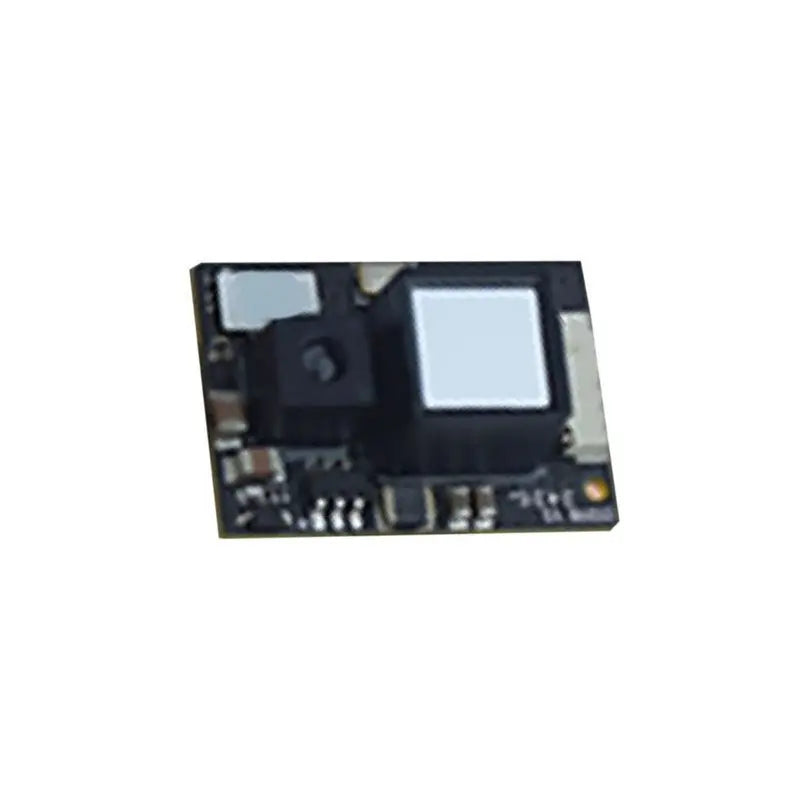

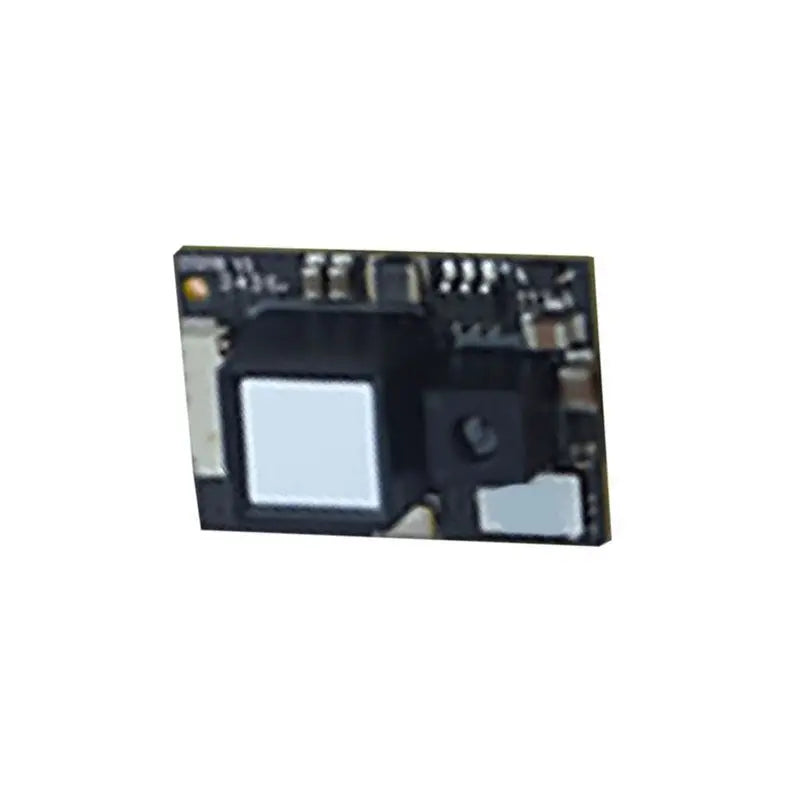

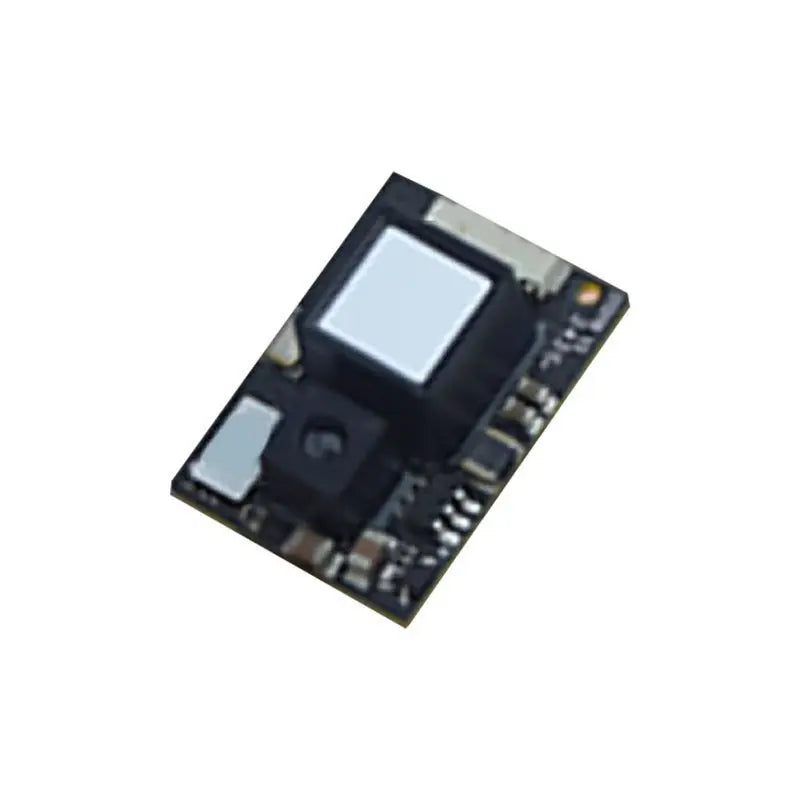

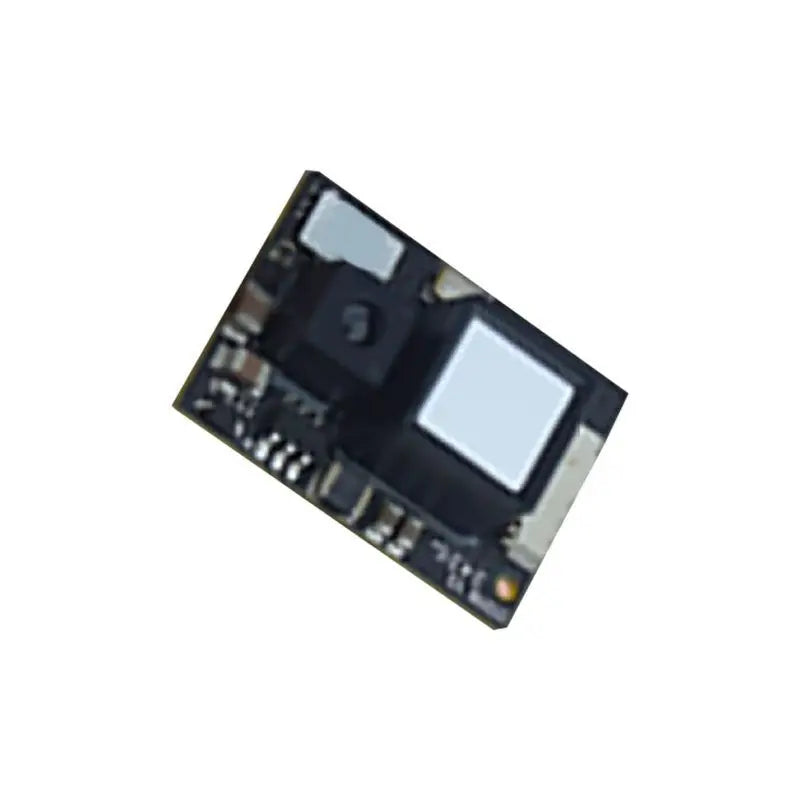

DTof Laser Ranging Sensor Module – 22M Range, Ultra-Compact Design
Take your electronics projects to the next level with this highly integrated Direct Time-of-Flight (DTof) Laser Ranging Sensor Module. Engineered for precision distance measurement up to 22 meters, this compact module is purpose-built for developers, hobbyists, and engineers who demand accuracy in a tiny footprint. With I2C and UART interface support, it drops seamlessly into a wide variety of microcontroller platforms and secondary development environments.
Key Features
- Ultra-Compact Dimensions: 21 × 15 × 7.87 mm — fits into the tightest enclosures
- Featherlight Weight: Only 1.35 g
- High Accuracy: ±3 cm at ranges under 6 m; less than 1% error beyond 6 m, up to 22 m
- Dual-Peak Detection: Integrated histogram statistics algorithm outputs dual-peak positions for easy multi-target calibration
- Ambient Light Immunity: Time-correlated photon burst algorithm — 88% immunity @ 160 KLux at 18 m / 18% @ 160 KLux at 15 m
- Configurable TDC Time Window: Adapts to diverse application scenarios with ease
- Reflectivity Correction: Built-in correction ensures reliable readings across varied surface types
- Temperature Compensation: Maintains consistent performance across changing environmental conditions
- Fast Frame Rate: Default 100 fps for rapid, stable data output
- Bluetooth-Compatible Communication: Flexible connectivity for wireless integration
Technical Specifications
| Maximum Range | 22 m |
| Accuracy | ±3 cm (≤6 m) / <1% (>6 m) |
| Interface | I2C, UART |
| Operating Voltage | Typical 3.3 V (Min: 3.0 V / Max: 3.6 V) |
| Frame Rate | 100 fps (default) |
| Field of View (FoV) | <2° |
| Laser Wavelength | 905 nm |
| Connector Pins | 6 |
| Module Weight | 1.35 g |
| Dimensions | 21 × 15 × 7.87 mm |
| Material | PCB |
| Color | Black |
Package Contents
- 1 × DTof Laser Ranging Sensor Module
Note: Only the above package content is included. Color may vary slightly due to display settings. Measurement tolerance is ±1–3 cm.
Made in Mainland China.
For a deeper understanding of laser-based measurement and photon detection technologies, refer to the NIST Photonics Technology resources.
Frequently Asked Questions
Q: What is a DTof Laser Ranging Sensor Module and how does it work?
A: A Direct Time-of-Flight (DTof) laser ranging sensor module measures distance by emitting a short laser pulse at 905 nm and calculating the time it takes for that pulse to reflect back from an object. The module's onboard processor converts this time measurement into a precise distance reading — up to 22 meters — making it ideal for robotics, obstacle detection, industrial automation, and IoT development projects.
Q: Which microcontrollers or development platforms are compatible with this DTof sensor module?
A: This DTof laser ranging sensor module supports both I2C and UART communication interfaces, making it compatible with a broad range of microcontrollers and development boards including Arduino, Raspberry Pi, ESP32, STM32, and other platforms that support these standard protocols. Its 3.3 V operating voltage aligns with most modern development boards.
Q: How does the module perform in bright ambient light conditions?
A: The module integrates a time-correlated photon burst algorithm specifically designed to counteract strong ambient light interference. It achieves up to 88% ambient light immunity at 160 KLux at 18 m range, ensuring reliable distance measurements even in challenging outdoor or brightly lit indoor environments.
Q: What is the measurement accuracy of this 22M DTof laser sensor module?
A: At distances under 6 meters, the sensor delivers an accuracy of ±3 cm. For distances beyond 6 meters and up to the maximum range of 22 meters, the accuracy is less than 1% of the measured distance, ensuring high reliability for both short-range and long-range applications.
