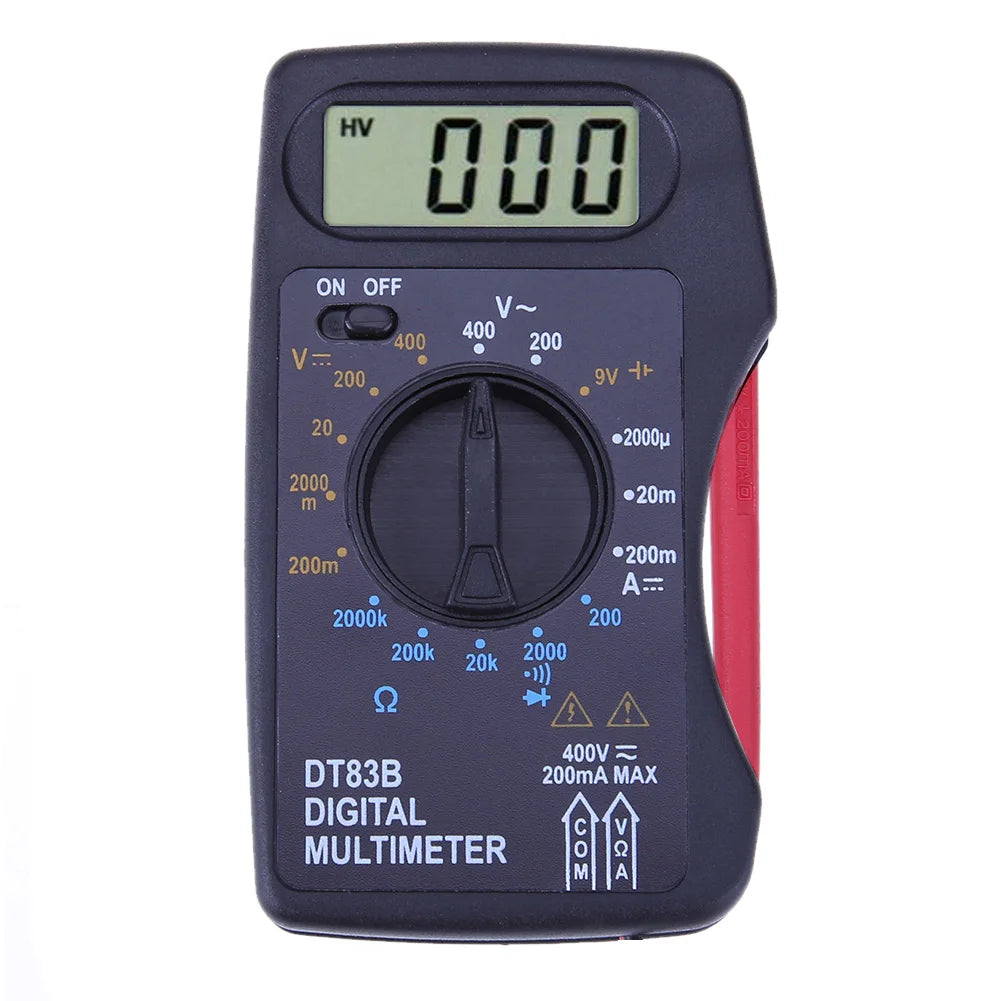

DT83B Mini Pocket Digital Multimeter — Compact, Accurate & Easy to Use
The DT83B Digital Multimeter is a slim, pocket-sized measurement tool designed for hobbyists, electricians, students, and DIY enthusiasts. Despite its ultra-compact form factor (just 102 × 60 × 24 mm), it delivers professional-grade accuracy across voltage, current, resistance, diode, continuity, and battery capacity measurements — all on a crisp 1999-count LCD display.
Key Features
- 1999-Count LCD Display — Large, easy-to-read 35 × 14 mm screen with low-battery indicator
- DC Voltage: 200 mV – 2000 mV – 20 V – 200 V – 400 V (±0.5% accuracy)
- AC Voltage: 200 V – 400 V (±1.0% accuracy)
- DC Current: 2000 µA – 20 mA – 200 mA (±1.8% accuracy)
- Resistance: 200 Ω – 2000 Ω – 20 kΩ – 200 kΩ – 2000 kΩ (±1.0% accuracy)
- Diode Test: Displays approximate forward voltage drop
- Continuity Buzzer: Audible alert for quick circuit checks
- 9V Battery Capacity Test: Instantly verify battery health
- Overload Protection: Built-in safeguard for added security
- Manual Range Selection for precise, user-controlled measurements
- CAT I Safety Rating | CE Certified

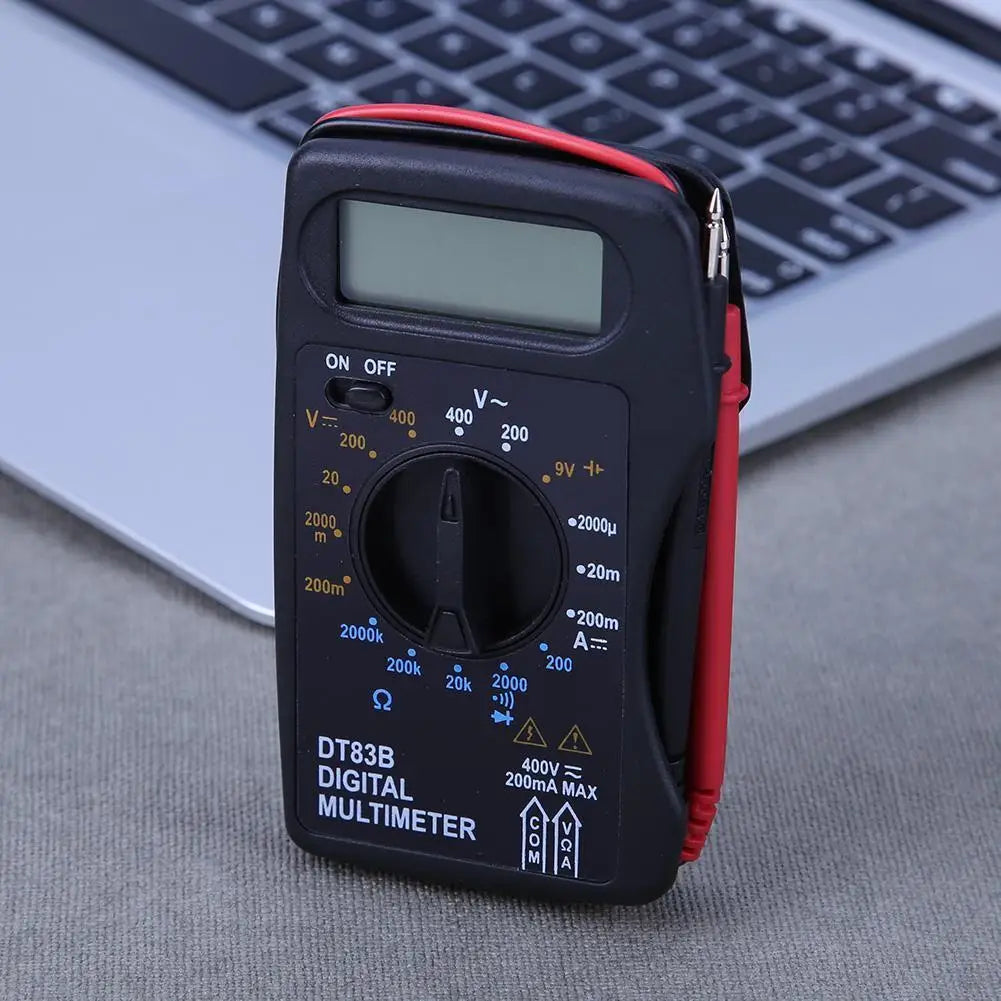

- Ultra-Thin Integrated Design: Pocket-friendly and easy to carry anywhere
Specifications at a Glance
| Model | DT83B |
| Display | 1999-count LCD (35 × 14 mm) |
| DC Voltage Range | 200 mV – 400 V |
| AC Voltage Range | 200 V – 400 V |
| DC Current Range | 2000 µA – 200 mA |
| Resistance Range | 200 Ω – 2000 kΩ |
| Battery Capacity Test | 9V |
| Power Supply | 12V 23A battery (not included) |

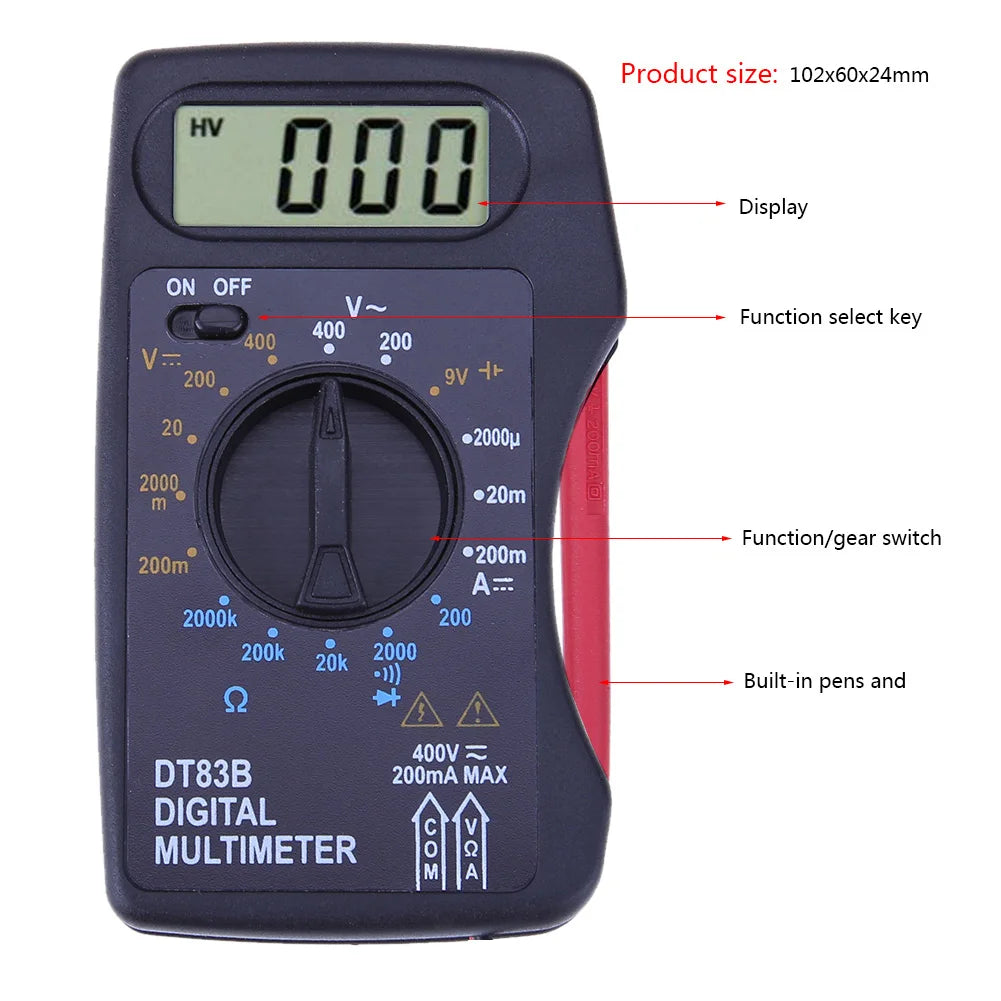

| Dimensions | 102 × 60 × 24 mm / 4.01 × 2.36 × 0.94 in |
| Safety Rating | CAT I, CE Certified |
| Country of Origin | Made in China |
What's in the Box
- 1 × DT83B Digital Multimeter
- 1 × User Manual
For guidance on safe electrical measurement practices, visit the OSHA Electrical Safety resource page.
Frequently Asked Questions
Q: What types of measurements can the DT83B Digital Multimeter perform?
A: The DT83B measures DC voltage (200 mV–400 V), AC voltage (200–400 V), DC current (2000 µA–200 mA), resistance (200 Ω–2000 kΩ), diode forward voltage drop, 9V battery capacity, and features a continuity buzzer — making it a versatile all-in-one handheld meter for home and workshop use.
Q: Does the DT83B come with batteries?
A: The DT83B requires a 12V 23A battery for operation, which is not included in the package. However, one DT83B multimeter unit and a user manual are included in the box.
Q: Is the DT83B Digital Multimeter safe to use for basic electrical work?
A: Yes. The DT83B carries a CAT I safety rating and CE certification, and includes built-in overload protection and a low-battery indicator — providing a reliable layer of safety for everyday electrical measurements and circuit testing.
Q: How compact is this multimeter — can I carry it in a pocket or toolbox?
A: Absolutely. At just 102 × 60 × 24 mm and featuring an ultra-thin, integrated design, the DT83B is one of the most pocket-friendly digital multimeters available, making it ideal for on-the-go technicians, hobbyists, and DIYers.
