DT-9205A Digital Multimeter — Professional 31-Range Manual Handheld Tester

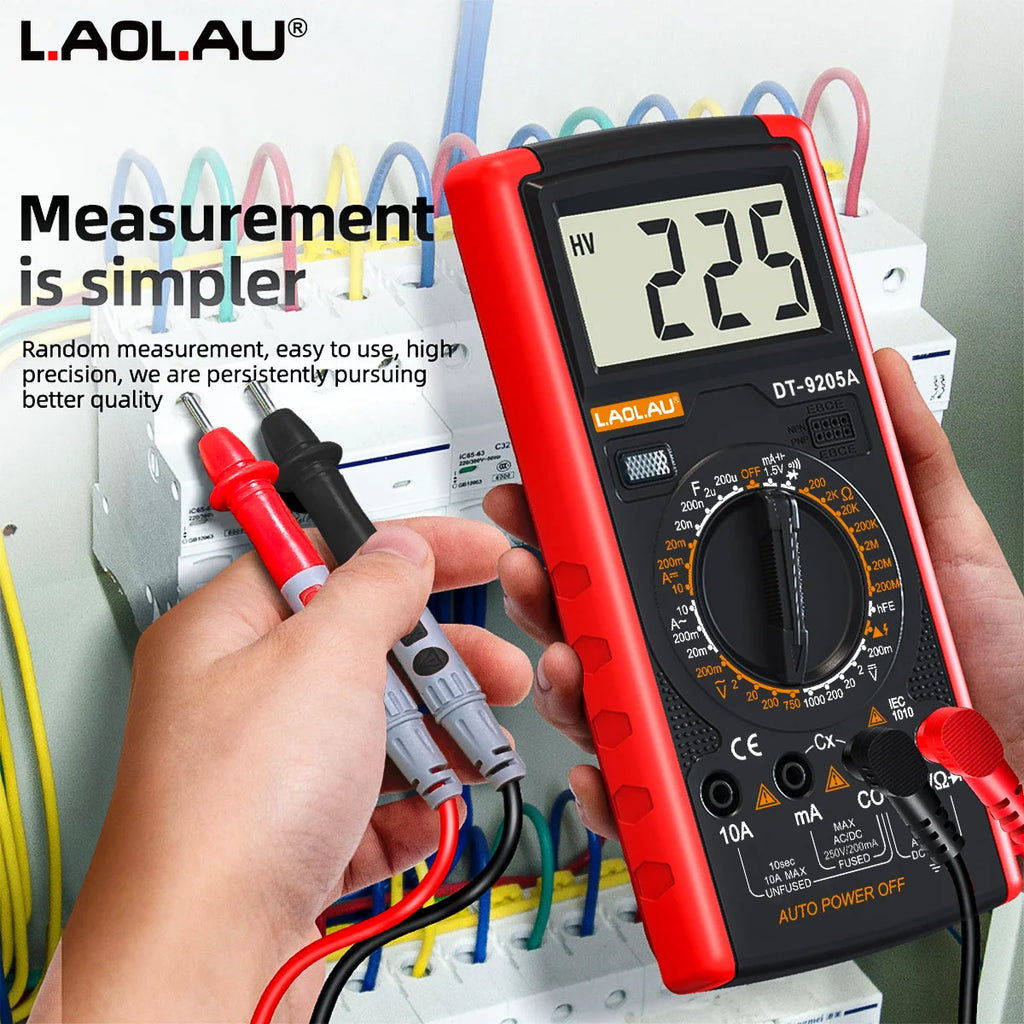

The DT-9205A Digital Multimeter is a versatile, professional-grade handheld instrument built for electricians, engineers, hobbyists, and DIY enthusiasts. With 31 selectable measuring ranges, it covers virtually every electrical measurement you need — from DC/AC voltage and current to resistance, capacitance, frequency, diode testing, and transistor hFE. Whether you're troubleshooting home wiring, testing batteries, or working in a lab or factory environment, this CE-certified meter delivers accurate, reliable readings every time.
Made in Mainland China.
Key Features

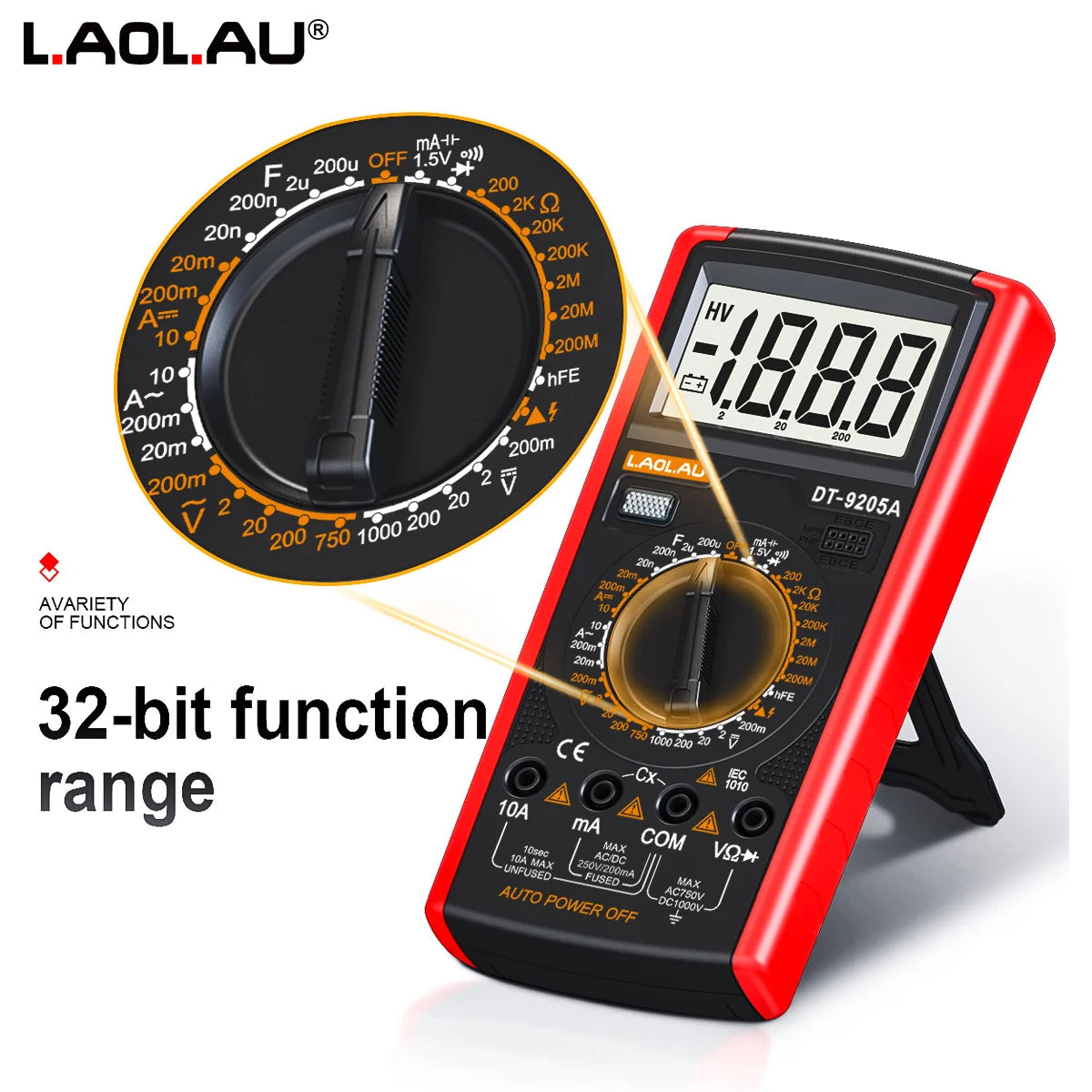

- Versatile 31-Range Measurement: Accurately measures DC/AC voltage, DC/AC current, resistance, capacitance, frequency, diodes, and NPN/PNP transistor hFE (0–1000 β) — ideal for labs, factories, and home use.
- Large, Backlit LCD Display: High-visibility LCD with 25 mm digit height and maximum display value of 1999 (3½ digits). Includes an over-range indicator ("1") and low-battery symbol for at-a-glance status.
- Advanced Overload Protection: Built on a large-scale integrated circuit with double integral A/D conversion. Full-range overload protection across all functions, plus dedicated fuse protection (0.2A/250V) for current measurement ranges.

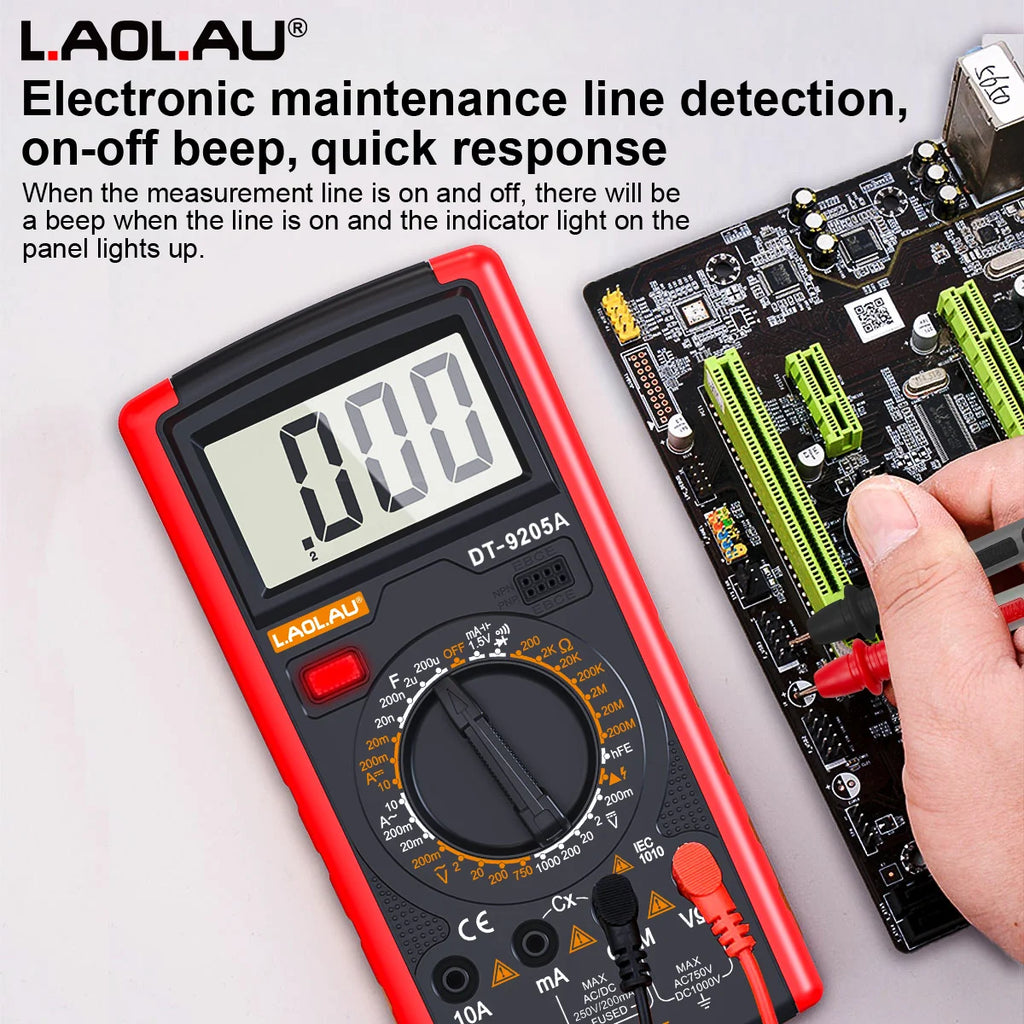

- Continuity Buzzer & Live Wire Detection: Audible buzzer activates for resistance below ~70Ω. A unique Live Wire Recognition mode flashes the "HV" symbol, blinks a red LED, and sounds a beep when a live conductor is detected — keeping you informed at all times.

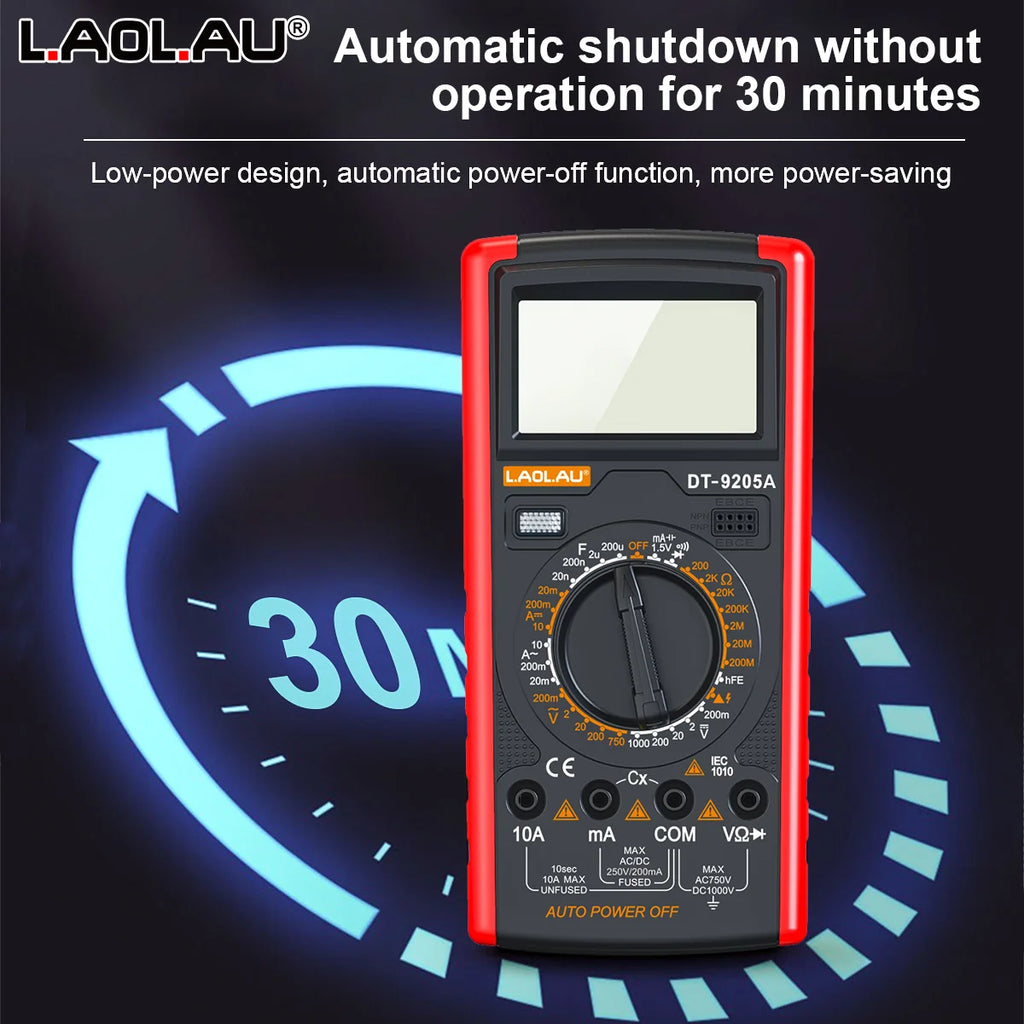

- Auto Power-Off & Energy Saving: Automatic shut-off circuit activates after approximately 30–60 minutes of inactivity, extending battery life significantly.
- Complete Package: Includes the multimeter unit, a set of test leads, and a detailed instruction manual so you can get started right away.

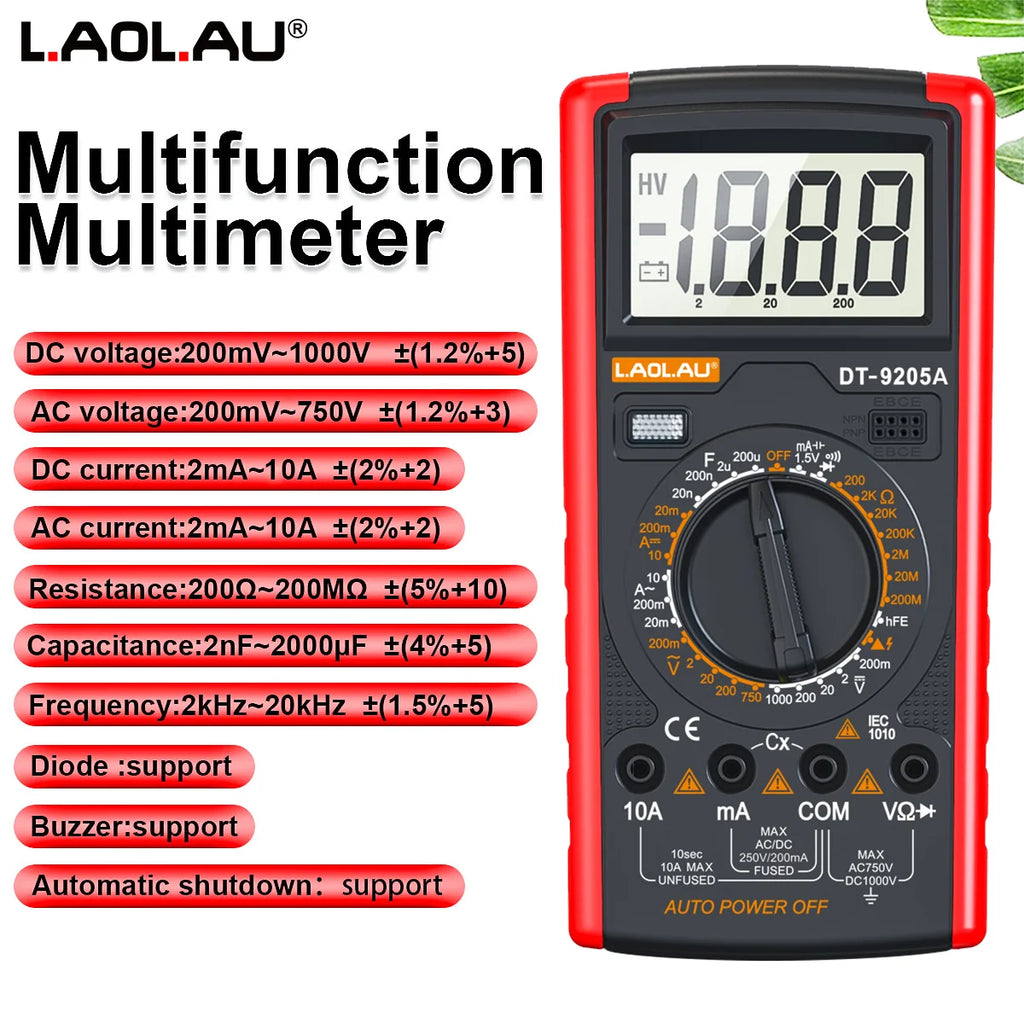

Full Specifications
| Function | Measuring Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V | ±(0.5%+2) ~ ±(1.2%+5) |
| AC Voltage | 200mV / 2V / 20V / 200V / 750V | ±(0.8%+3) ~ ±(1.2%+3) |
| DC Current | 20mA / 200mA / 10A | ±(1.2%+2) ~ ±(2.0%+2) |
| AC Current | 20mA / 200mA / 10A | ±(1.2%+2) ~ ±(20.0%+2) |
| Resistance | 200Ω to 200MΩ | ±(0.8%+2) ~ ±(5.0%+10) |
| Capacitance | 20nF / 200nF / 2μF / 200μF | ±(4.0%+5) |
| Frequency | 2kHz ~ 20kHz | ±(1.5%+5) |
| Transistor hFE | NPN/PNP, 0–1000 β | — |
| Diode Test | Forward voltage drop | — |
Additional Technical Details
- Max Display: 1999 (3½ digits)
- Input Impedance: 10MΩ (voltage ranges)
- AC Frequency Response: 40Hz – 400Hz
- Sampling Method: Double integral A/D conversion
- Certification: CE
- Battery: Not included (standard 9V battery required)
Electrical Safety Resource
For guidance on electrical safety best practices when working with test instruments, refer to the OSHA Electrical Safety guidelines.
Frequently Asked Questions
Q: What makes the DT-9205A digital multimeter suitable for professional electricians?
A: The DT-9205A offers 31 manual measurement ranges covering DC/AC voltage (up to 1000V DC / 750V AC), DC/AC current, resistance up to 200MΩ, capacitance, frequency, transistor hFE, and diode testing. Its full-range overload protection, fuse-protected current inputs, live wire detection with audible/visual alerts, and large backlit LCD make it a dependable choice for both professional electricians and serious DIY users.
Q: Does the DT-9205A digital multimeter come with test leads and is a battery included?
A: Yes, the package includes the multimeter unit and a set of test leads, as well as a detailed instruction manual. A battery is not included — you will need a standard 9V battery to power the device before first use.
Q: How does the auto power-off feature work on this multimeter?
A: The DT-9205A is equipped with an automatic power-off circuit that places the meter into sleep mode after approximately 30 to 60 minutes of inactivity. This conserves battery life and is particularly useful if you accidentally leave the meter on between uses.
Q: What is the Live Wire Recognition feature on the DT-9205A?
A: The Live Wire Recognition mode detects the presence of a live (energized) conductor. When live voltage is detected, the "HV" symbol flashes on the LCD, a red indicator light blinks, and an audible beep sounds — providing a clear, multi-sensory alert to help you work more confidently around electrical circuits.
