DSP0501 3-Axis CNC Router Controller Set & Remote Handle

DSP0501 3-Axis CNC Router Controller Set with Remote Handle

Take full command of your CNC router with the DSP0501 3-Axis Controller Set. Powered by a TI DSP motion processor and built on a reliable embedded system, this controller delivers precise 3-axis motion control for engraving machines, routing tables, and other CNC applications. With USB file transfer, multilingual support, and a compact 3-inch LCD display, it brings professional-grade control to your workshop.

Made in Mainland China.

Note: This is the 0501 system, which is not a mainstream variant but functions fully and normally. Please confirm compatibility with your setup before purchasing.

Key Features

• TI DSP Motion Processor — High-performance embedded system for accurate, responsive 3-axis control
• USB Storage & Slave Interface — Load G-code and PLT/HPGL files directly from a USB drive; USB slave port for system maintenance
• G-Code Error Checking — Built-in writing error check and process code pre-check to catch issues before machining begins
• Safety & Security — Machine tool safety size limit self-diagnostic system plus password-protected parameter settings
• Multilingual Switching — Easily switch between supported languages (English version included)
• Multiple File Formats — Supports G-code and PLT (HPGL) files for broad compatibility
• Large Memory Capacity — 521 MB built-in memory (expandable up to 1G) for storing complex projects
• Expandable I/O — 8 standard input/output channels, expandable up to 64 in / 64 out
• Independent Keyboard Interface — Supports up to 64 keys for custom control layouts
• Stepper & Servo Motor Compatible — Works with both stepper and servo drive systems

Technical Specifications

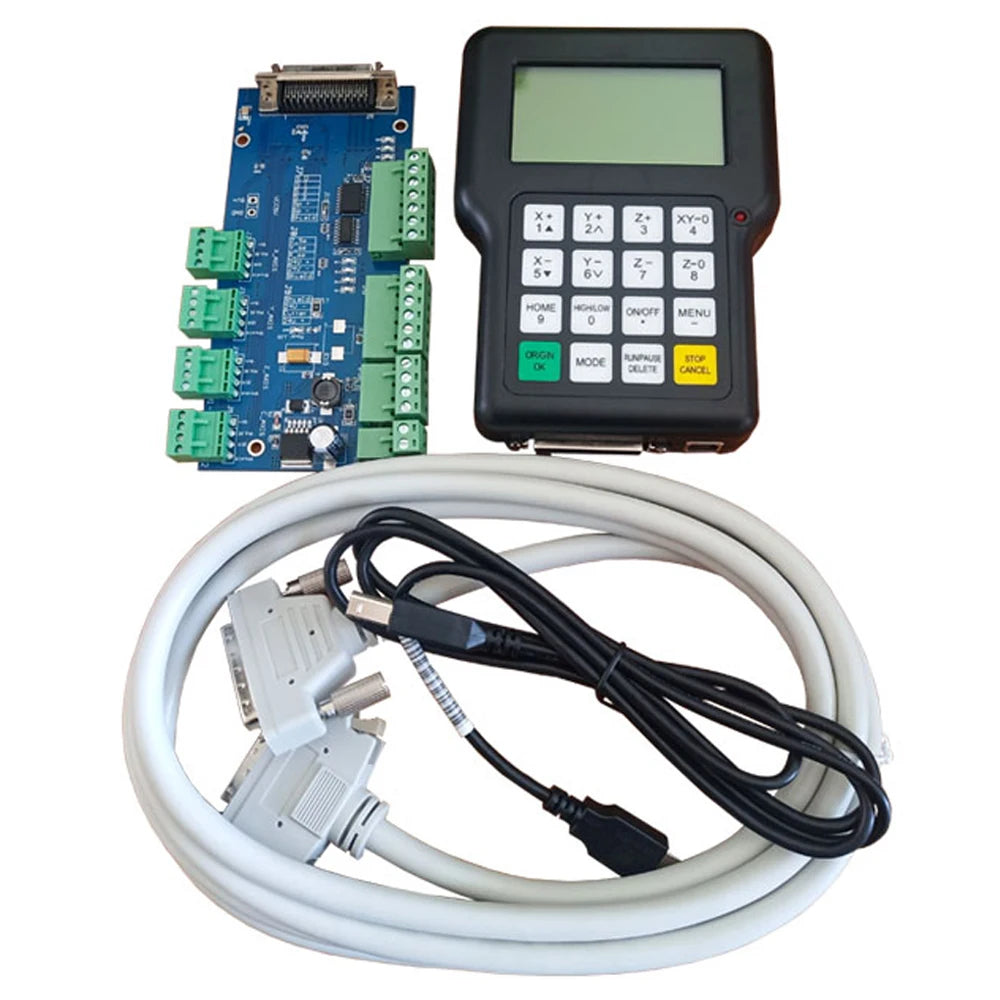

Package Includes

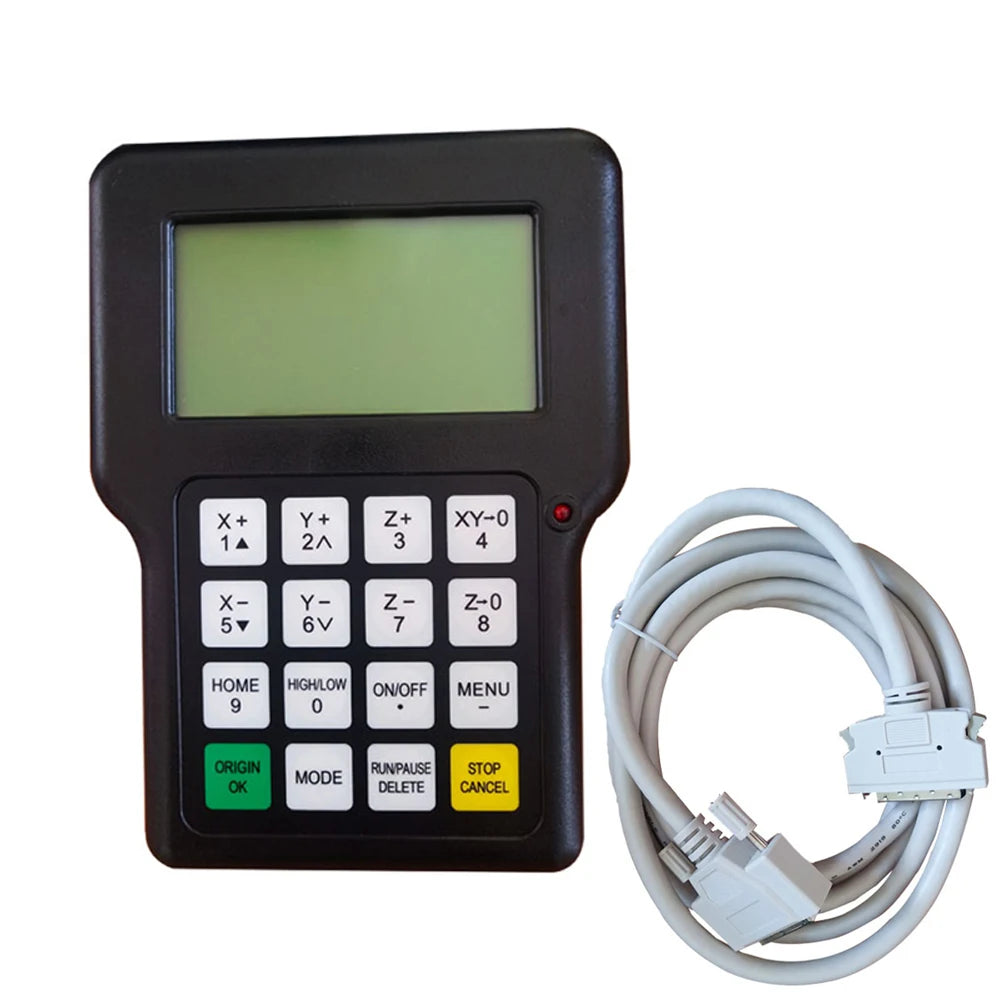

• 1× Remote Handle OR 1× Complete Handle Kit Set (depending on selected option)

Important Notes

• Colors may vary slightly due to lighting and screen differences.
• Please allow 1–10 mm variance due to manual measurement.
• This is the 0501 system — not a mainstream variant. It operates fully but please confirm compatibility before ordering.

For general guidance on CNC machine safety and safe operation of automated tools, refer to the OSHA Machine Guarding Resource.

Frequently Asked Questions

Q: What CNC machines is the DSP0501 3-axis controller compatible with?

A: The DSP0501 controller is designed for 3-axis CNC routers and engraving machines that use stepper or servo motor drive systems. It accepts G-code and PLT/HPGL file formats, making it broadly compatible with many standard CNC routing setups. Always verify your machine's interface requirements before purchasing.

Q: How do I load files onto the DSP0501 controller?

A: Files can be loaded via USB flash drive through the USB main interface, or via USB cable using the USB slave interface for system maintenance. The controller supports G-code and PLT (HPGL) files, and includes built-in error checking to validate files before machining begins.

Q: What is the difference between the Handle and the Handle Kit Set options?

A: The Handle option includes just the remote handle unit on its own, while the Handle Kit Set includes the handle along with the full controller set components. Choose the option that best suits your current setup and what you already have installed on your CNC machine.

Q: Does the DSP0501 controller support password protection for settings?

A: Yes. The DSP0501 features built-in parameter setting security with password protection, helping prevent unauthorized changes to your machine's configuration. It also includes a self-diagnostic system for machine tool safety size limits.
