DRV8833 Motor Driver Module — Dual H-Bridge DC & Stepper Motor Control
Take precise control of your motors with the DRV8833 Motor Driver Module. Designed for makers, engineers, and hobbyists, this compact board supports both DC gear motors and 4-wire stepper motors, delivering up to 1.5A per H-bridge channel across a wide 3V–10V input range. Whether you're building a robot, a 3D printer component, or any DIY motorized project, this versatile driver board has you covered.
Key Features
- Versatile Motor Support: Drives both DC motors and 4-wire stepper motors with currents up to 1.5A, giving you flexibility across a wide range of motor-driven applications.
- Comprehensive Built-In Protection: Overcurrent protection, short circuit protection, undervoltage lockout, and overheat protection all work together to safeguard your motors and module during operation.

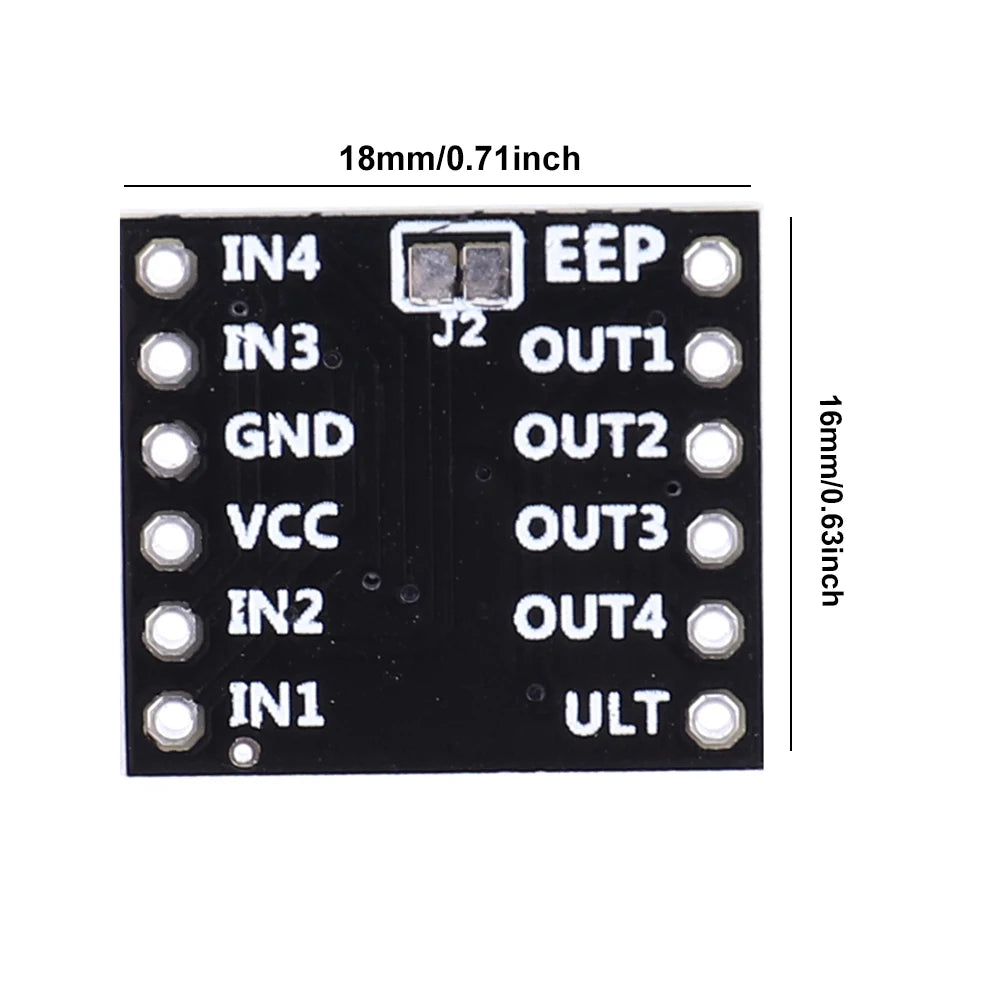

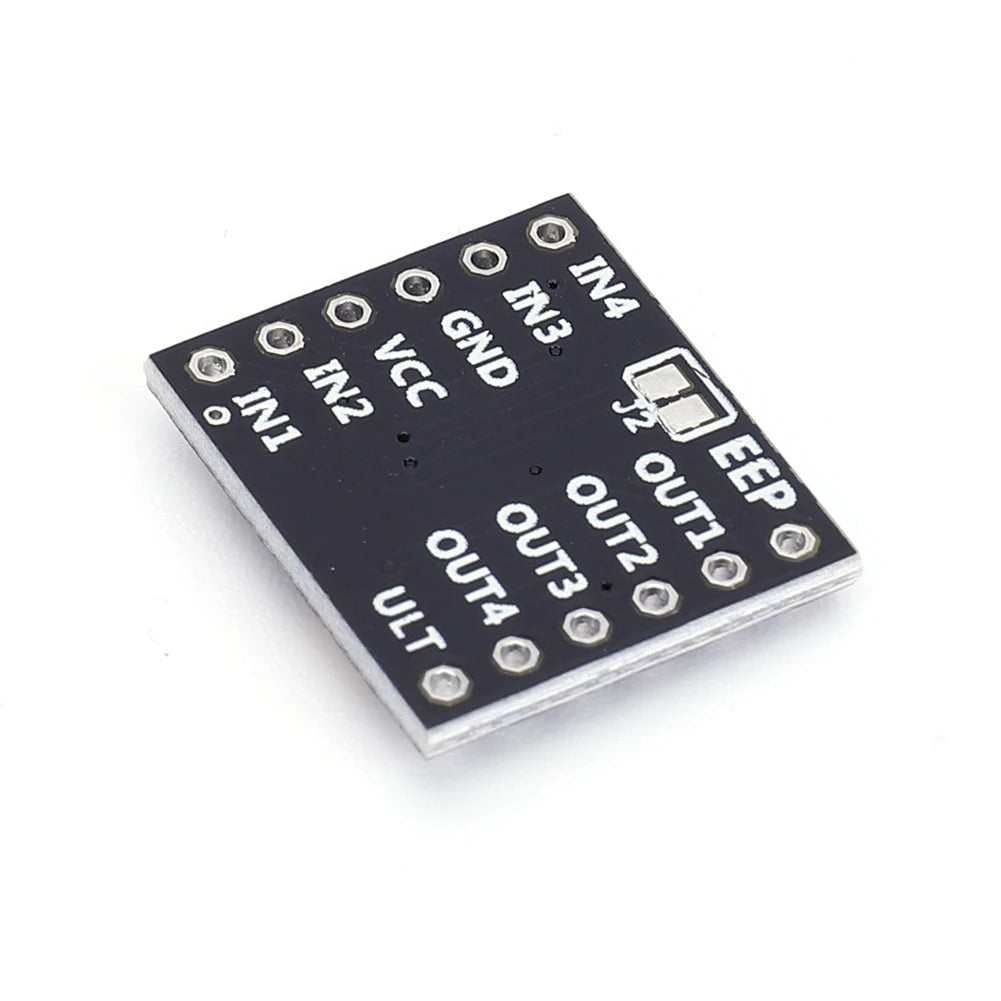

- Low-Power Sleep Mode: Simply disconnect the J2 solder joint on the back of the board to activate low-level sleep mode — an energy-saving feature that conserves power when the module is idle.
- Efficient Dual H-Bridge Design: Two sets of H-bridges (OUT1/OUT2 and OUT3/OUT4) correspond to control inputs (IN1/IN2 and IN3/IN4), enabling precise motor direction control and seamless reversals.
- Wide Voltage Compatibility: Supports input voltages from 3V to 10V, making it compatible with a broad range of power sources and microcontroller platforms including Arduino and Raspberry Pi.
- Compact Footprint: At just 18 × 16 × 3 mm, this board fits easily into tight project enclosures.
Specifications
| Model | DRV8833 Motor Drive Module |
| Input Voltage | 3V – 10V |
| Max Output Current (per H-bridge) | 1.5A |
| H-Bridge Channels | 2 (Dual H-Bridge) |
| Supported Motors | DC motors (<1.5A) & 4-wire stepper motors |
| Pin Configuration | 6-Pin |
| Dimensions | 18 × 16 × 3 mm (0.71 × 0.63 × 0.12 in) |
| Condition | New |
| Country of Origin | Made in China |
What's in the Box

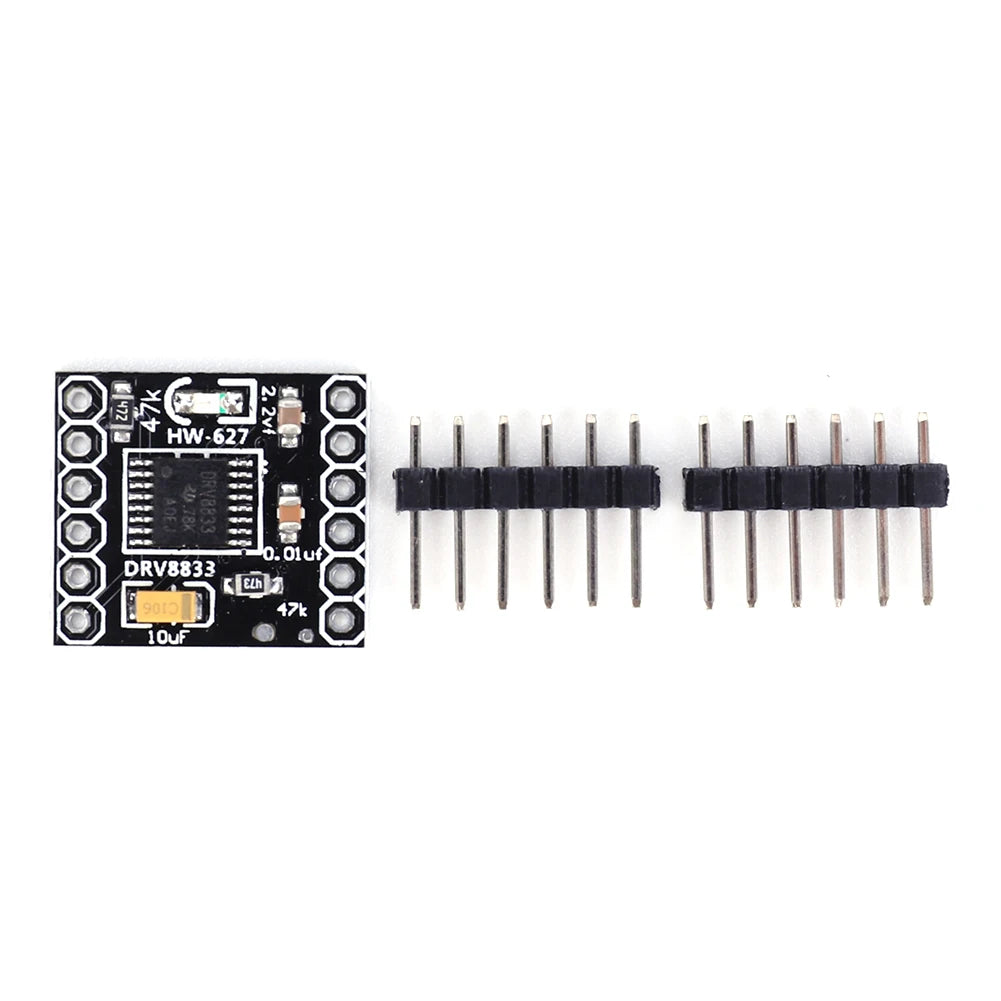

- 1 × DRV8833 Motor Drive Module
- 2 × 6-Pin Headers
Important Notes
Due to differences in monitor calibration and lighting conditions, the actual color of the item may vary slightly from images shown. Please allow ±1–2 cm measurement deviation due to manual measuring methods.
Learn More
For general electrical component safety guidelines, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of motors can the DRV8833 motor driver module control?
A: The DRV8833 module can drive two DC gear motors simultaneously or one 4-wire stepper motor. It supports any motor requiring up to 1.5A per H-bridge channel and operating within a 3V–10V input range, making it suitable for a wide variety of robotics and DIY electronics projects.
Q: Is the DRV8833 board compatible with Arduino and Raspberry Pi?
A: Yes. The DRV8833 motor driver module is compatible with most popular microcontroller and single-board computer platforms including Arduino, Raspberry Pi, and ESP32, thanks to its 3V–10V operating range and standard 6-pin interface.
Q: How does the overcurrent protection on the DRV8833 work?
A: The built-in overcurrent protection monitors current flow through the H-bridge channels and automatically limits or shuts off current if it exceeds safe thresholds, helping to protect both the module and your connected motors from damage during operation.
Q: How do I activate the sleep mode on the DRV8833 module?
A: To activate low-power sleep mode, simply disconnect (desolder) the J2 solder joint located on the back of the controller board. This puts the module into a low-energy standby state when it is not actively driving a motor, conserving power in battery-operated projects.
Q: What quantity options are available for the DRV8833 motor driver module?
A: This listing is available in multi-pack quantities ranging from 5 to 20 pieces, making it ideal for bulk orders, classroom projects, prototyping labs, and large-scale DIY builds.
