Drawer Slide Installation Jig Kit | Precision Cabinet Tool

Install Drawer Slides Perfectly Every Time

Take the guesswork out of cabinet hardware installation with this professional-grade Drawer Slide Installation Jig Kit. Engineered from stainless steel and high-quality plastic, this all-in-one jig system delivers perfectly aligned drawer slides across every cabinet in your project — no measuring tape frustration, no recalibration headaches. Whether you're a weekend DIYer or a seasoned cabinetmaker, this kit speeds up your workflow and delivers factory-precise results every single time.

Made in Mainland China.

Key Features

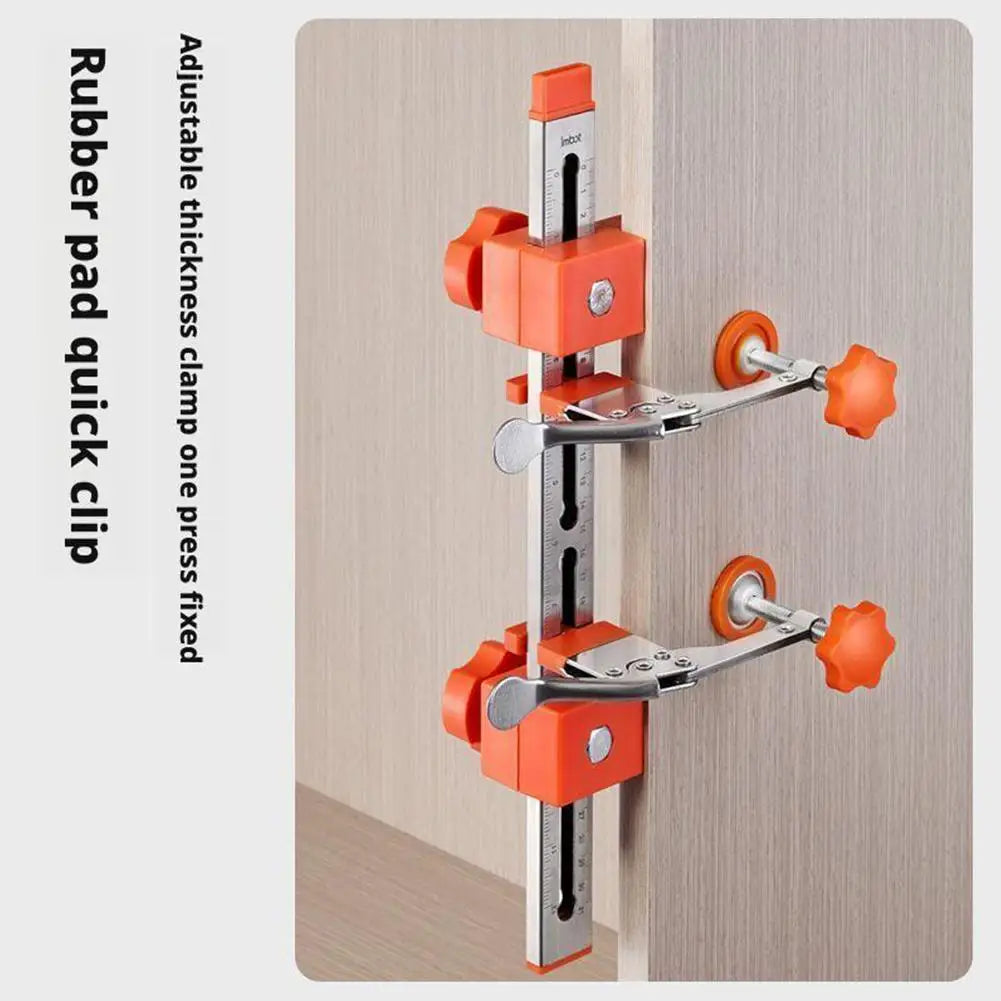

• Easy & Repeatable Setup: Adjustable fixtures with a 0–4 cm range lock and slide into place with a single press, eliminating measurement errors and keeping multiple drawers perfectly aligned without recalibration.
• User-Friendly, Hands-Free Design: Reversible rails adjustable from 1–5 cm, plus embedded magnets for completely tool-free operation. Flip it for handleless cabinet installations — your hands stay free while the jig holds everything securely in place.

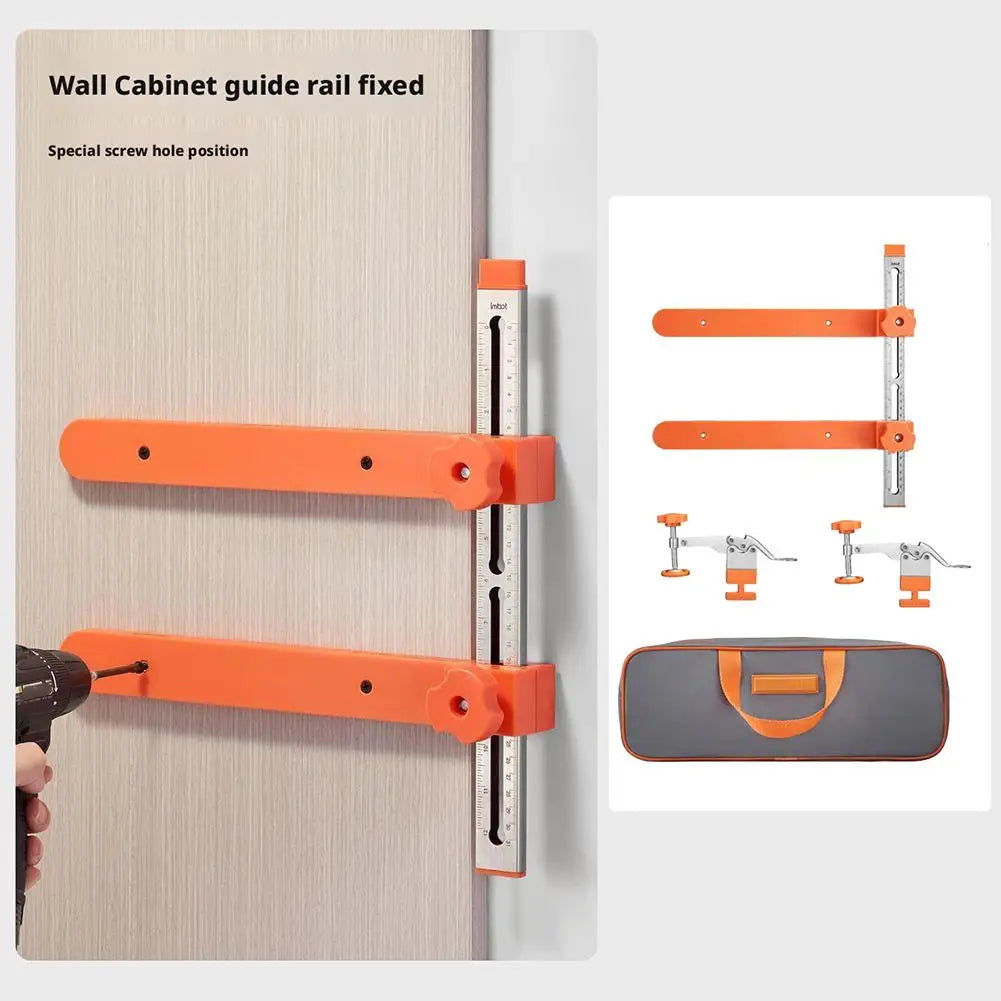

• Universal Compatibility: Works with all standard drawer slide types — side-mounted and bottom-mounted — across cabinet materials including solid wood, MDF, and plywood. The magnetic arm firmly holds the slide in position without scratching or damaging surfaces.
• Built to Last: Stainless steel guide rails resist bending and warping, maintaining accuracy through hundreds of installations. High-friction silicone pads prevent slipping during use for consistent, dependable results.
• Lightweight Yet Sturdy: The combination of durable plastic and stainless steel keeps the kit easy to handle without sacrificing strength — ideal for both professional contractors and home DIY enthusiasts.

Specifications

What's Included

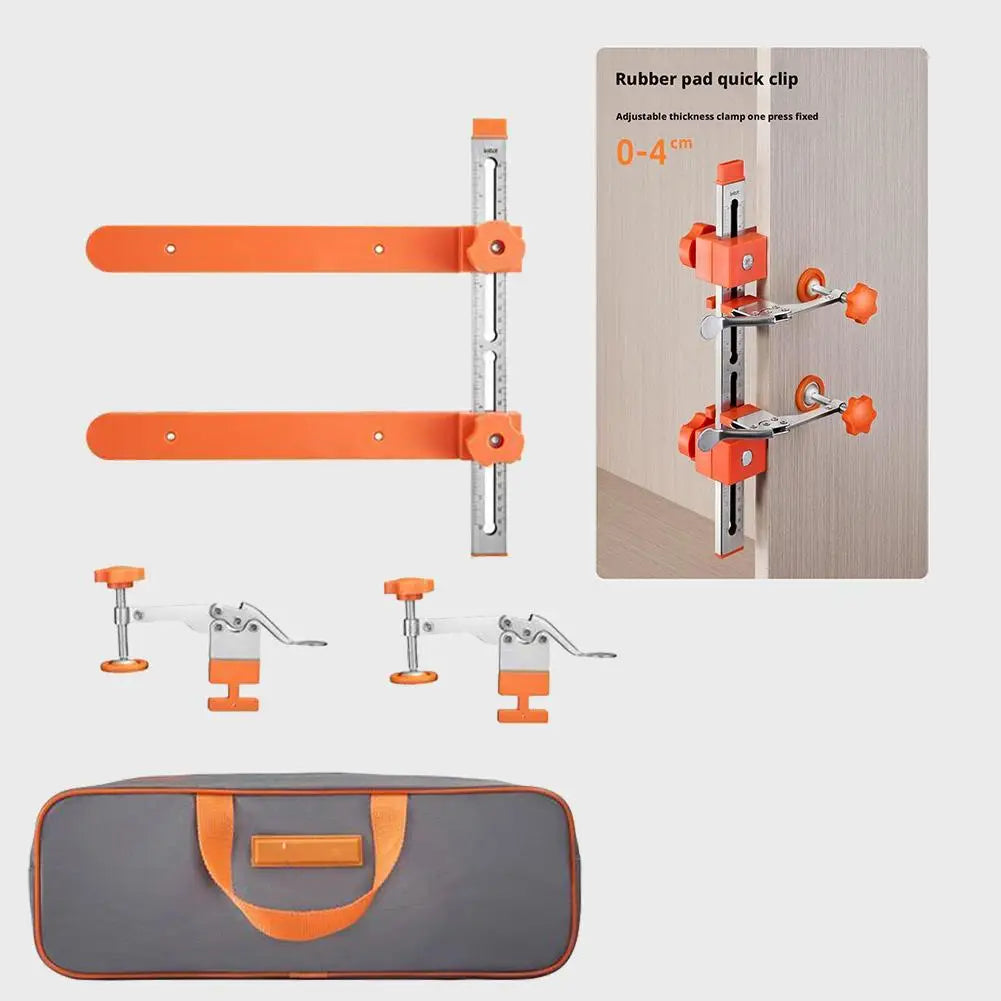

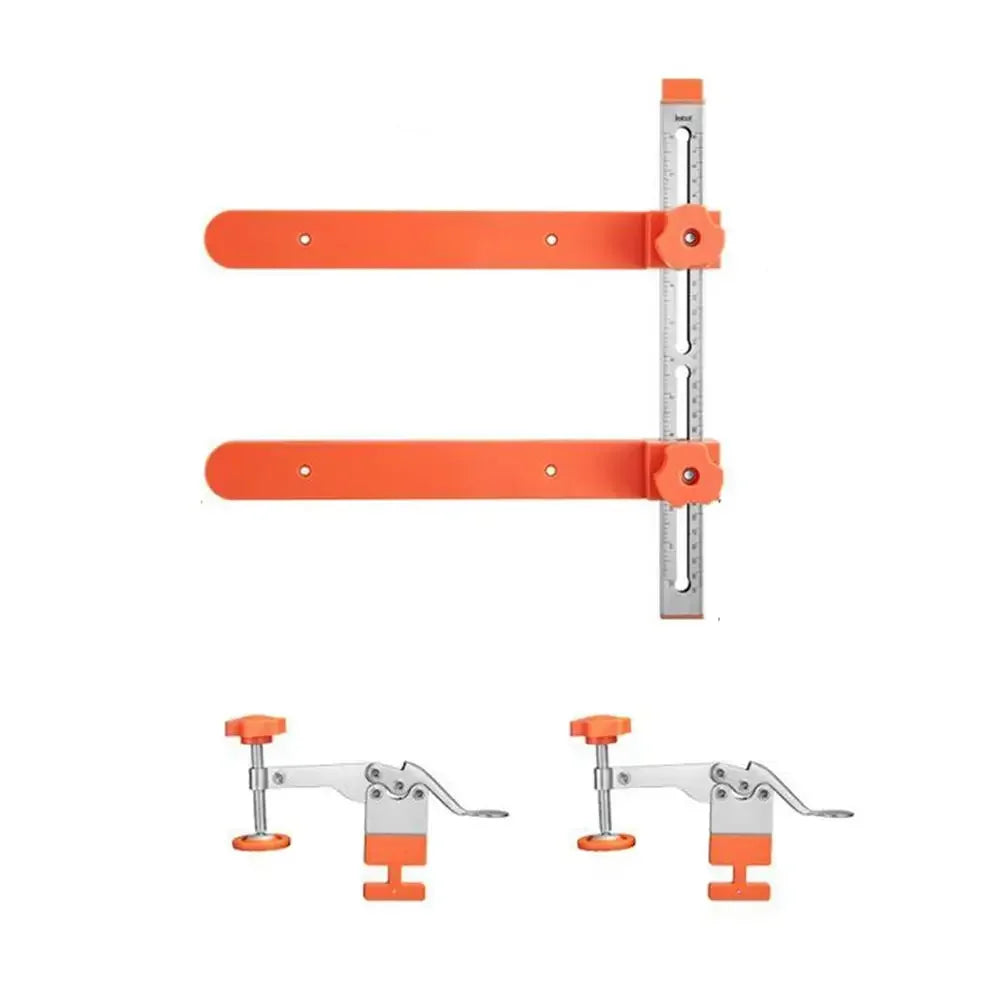

• Drawer Slide Installation Jig Kit (complete set)
• Reversible magnetic rails
• High-friction silicone pads

Why Choose This Jig Kit?

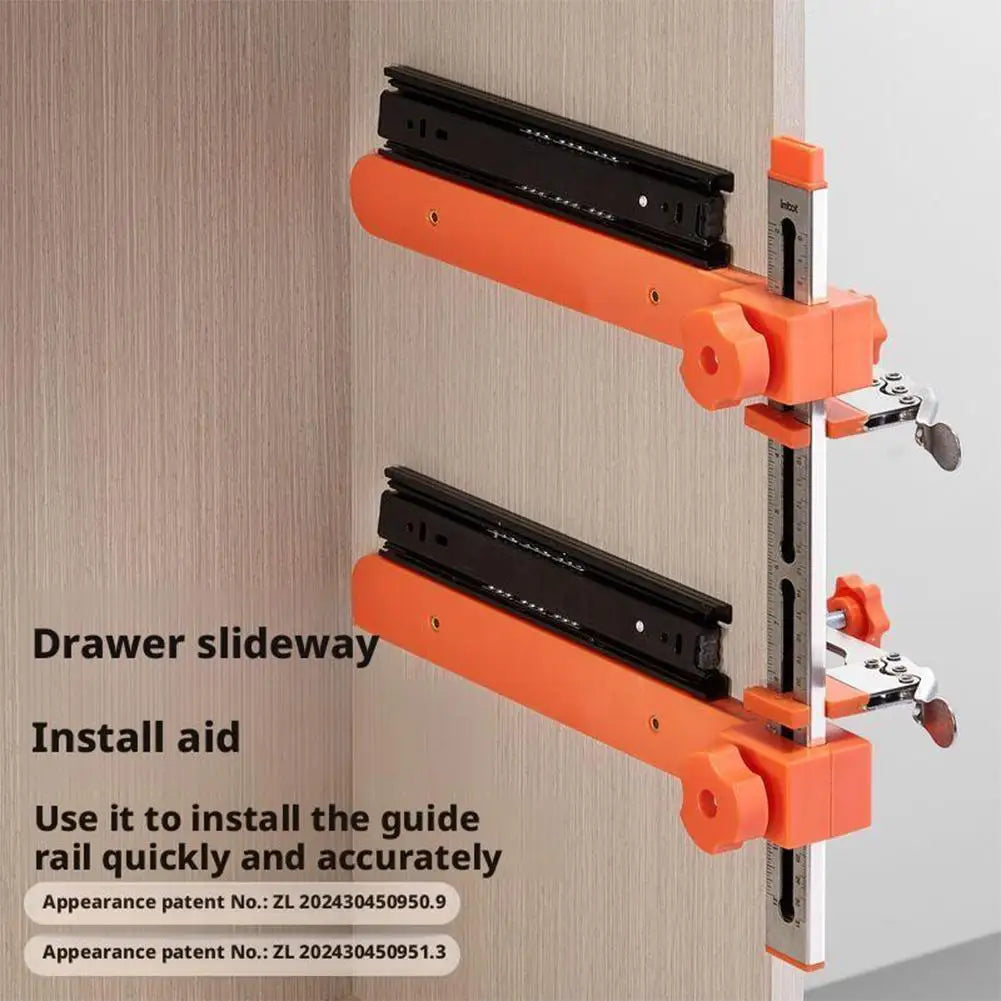

Traditional drawer slide installation is time-consuming and prone to alignment errors. This precision jig eliminates that entirely. With magnetic holding arms, one-press locking fixtures, and reversible rails, you can set up and install drawer slides in a fraction of the time it takes with conventional methods. It's the essential upgrade for any cabinet project — from a single bathroom vanity to an entire kitchen remodel.

For more information on safe tool handling and best practices for DIY home improvement, visit the U.S. Consumer Product Safety Commission (CPSC) Home Safety Guide.

Frequently Asked Questions

Q: Is this drawer slide jig kit compatible with all cabinet types?

A: Yes! The drawer slide installation jig kit is universally compatible with all standard drawer slide mounting types — including side-mounted and bottom-mounted slides — and works across common cabinet materials such as solid wood, MDF, and plywood.

Q: Do I need any additional tools to use this jig?

A: No additional tools are required for the jig itself. The embedded magnets and one-press locking mechanism allow for completely tool-free setup and adjustment. You will still need a screwdriver or drill to fasten the actual drawer slides to the cabinet.

Q: How many drawer slides can I install with this kit before it wears out?

A: The stainless steel guide rails are designed to resist bending and warping, maintaining their precision through hundreds of installations. The kit is built for long-term professional use, not just a one-time project.

Q: Can this jig be used for handleless or push-to-open cabinet drawers?

A: Absolutely. The reversible rail design allows you to flip the jig to accommodate handleless cabinet installations, adapting easily to this increasingly popular cabinet style.
