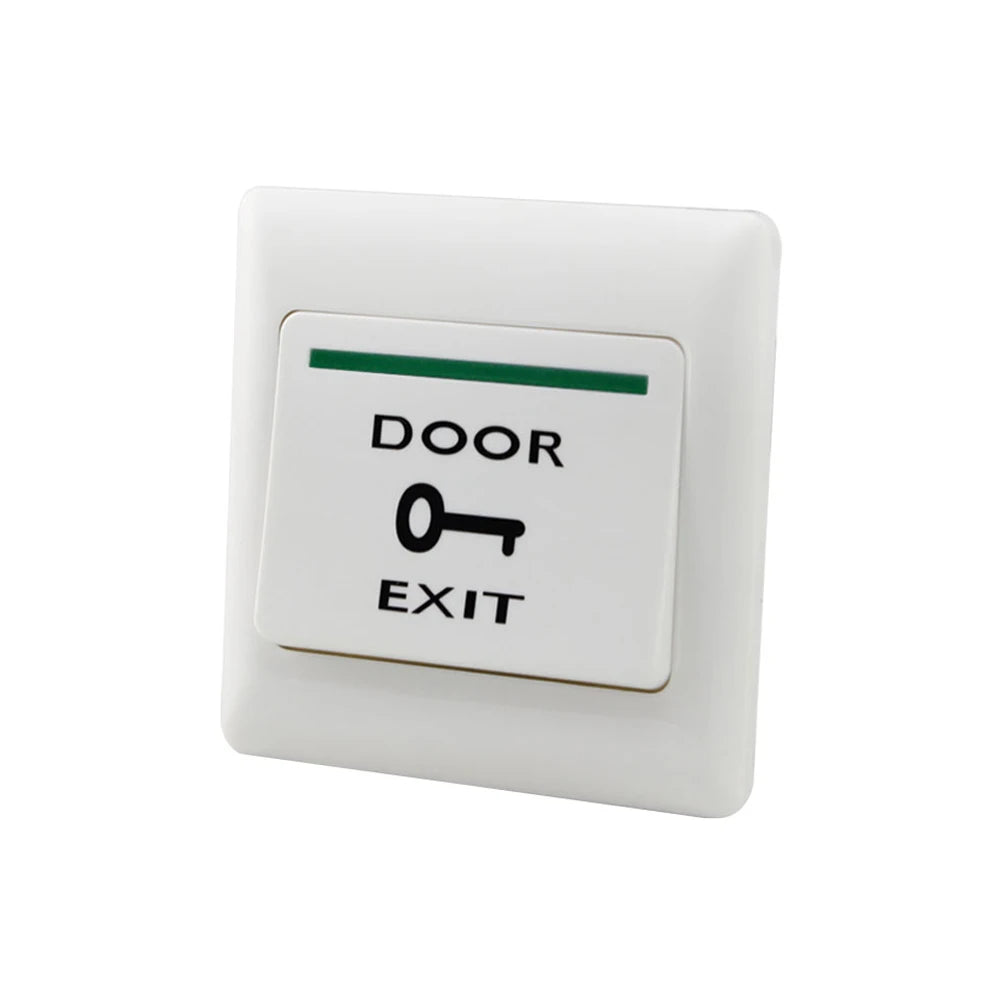

Asia-Teco PE6 Door Exit Push Button Switch – 86mm Panel with Back Case

Take control of your access control system with the Asia-Teco PE6 Door Exit Push Button Switch. Designed for seamless integration with electronic door locks, electric strikes, and magnetic locks, this 86mm flush-mount release switch delivers reliable, instant door release at the push of a button. Whether you're securing an office, apartment building, retail space, or warehouse, this exit switch is built for years of dependable service.

Key Features

  • Universal 86mm Standard Size: Fits standard 86×86mm wall mounting boxes for a clean, professional installation in any gate frame or door surround.

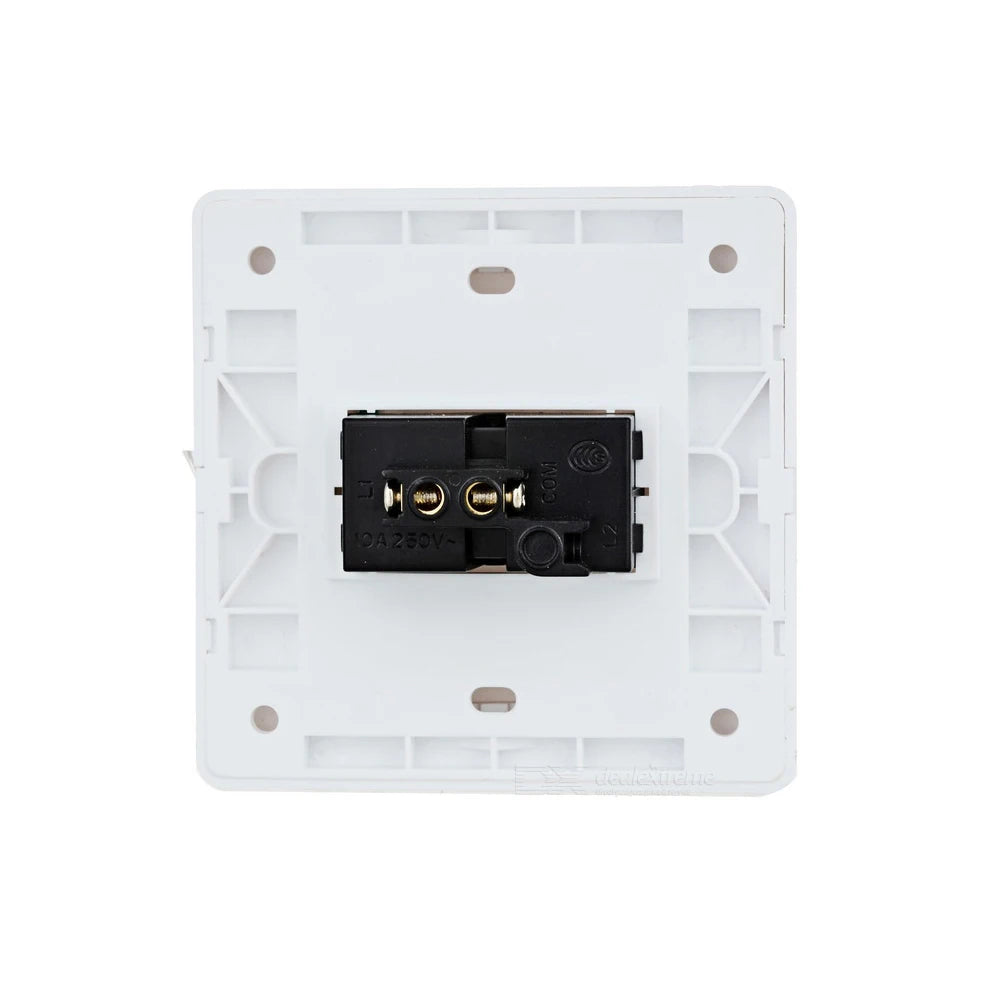

  • NO/COM Contact Output: Normally Open (NO) and Common (COM) contact terminals provide flexible wiring for a wide range of access control panels and electric locks.
  • Fail-Safe Security Mode: Designed to unlock in the event of a power failure, ensuring safe egress at all times — ideal for fire-safety compliance.
  • DC 12V Input, 3A Rated: Compatible with standard access control power supplies; handles up to 3A at 12VDC for robust, low-resistance switching.
  • 500,000-Cycle Durability Test Passed: Rigorously tested for longevity — engineered to withstand heavy daily use in high-traffic environments.
  • Wide Temperature & Humidity Range: Operates reliably from -20°C to +50°C and up to 95% relative humidity, suitable for indoor and sheltered outdoor locations.
  • Included Back Case: Comes with a sturdy back case for a tidy, secure wall installation right out of the box.

Technical Specifications

  • Brand: Asia-Teco
  • Model: PE6
  • Dimensions: 86mm × 86mm × 25mm
  • Input Voltage: DC 12V
  • Electrical Rating: 3A @ 12VDC
  • Contact Output: NO/COM
  • Security Mode: Fail Safe
  • Operating Temperature: -20°C to +50°C
  • Operating Humidity: 0% – 95% Relative Humidity
  • Country of Origin: Made in China

What's in the Box?

  • 1 × Asia-Teco PE6 Exit Push Button Switch
  • 1 × 86mm Back Case / Mounting Frame

Applications

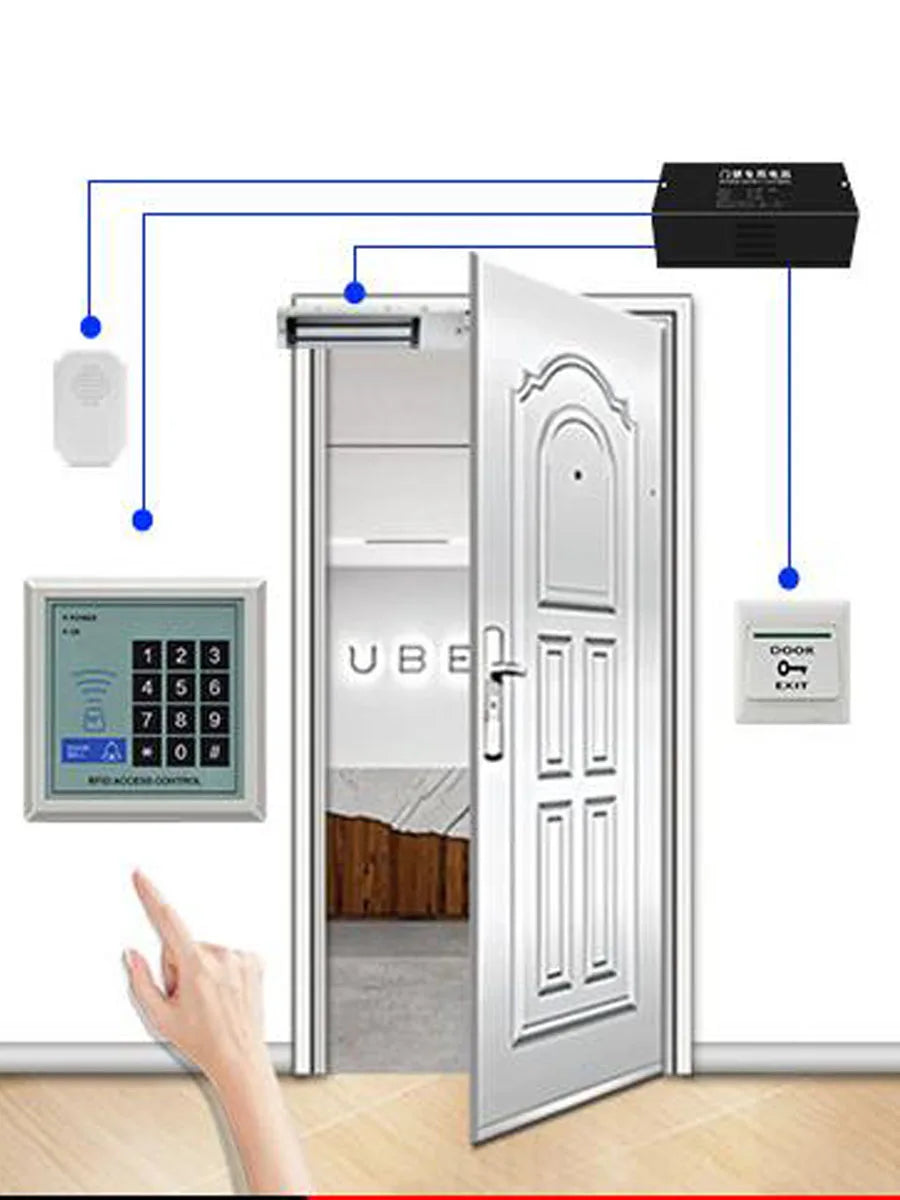

This exit push button switch is compatible with virtually all types of gate frames and electronic door lock systems, including magnetic locks (maglocks), electric strikes, and electromagnetic door holders. It is widely used in:

  • Office buildings and corporate lobbies
  • Residential apartment complexes
  • Retail shops and commercial premises
  • Warehouses and industrial facilities
  • Schools, hospitals, and government buildings

For guidance on best practices in building access control and door hardware security, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant safety standards and consumer resources.

Frequently Asked Questions

Q: Is this door exit push button switch compatible with magnetic locks and electric strikes?

A: Yes. The Asia-Teco PE6 exit push button switch features NO/COM contact output, making it compatible with most magnetic locks (maglocks), electric strikes, and other electronically controlled door lock systems that operate on DC 12V access control circuits.

Q: What does "Fail Safe" security mode mean for this exit button switch?

A: Fail Safe means that in the event of a power outage, the door defaults to the unlocked (open) position. This is a critical safety feature for emergency egress, ensuring occupants can always exit a building even if the power goes down — commonly required in fire safety and building codes.

Q: Can I install this 86mm exit push button switch in a standard wall box?

A: Absolutely. The PE6 is designed to the universal 86×86mm standard, so it fits directly into a standard 86mm wall mounting box. The included back case makes for a clean, professional installation without the need for additional hardware.

Q: What is the current rating of the PE6 exit switch?

A: The PE6 is rated at 3A at 12VDC, which is well within the operating range of virtually all standard access control systems and 12V electronic door locks.
