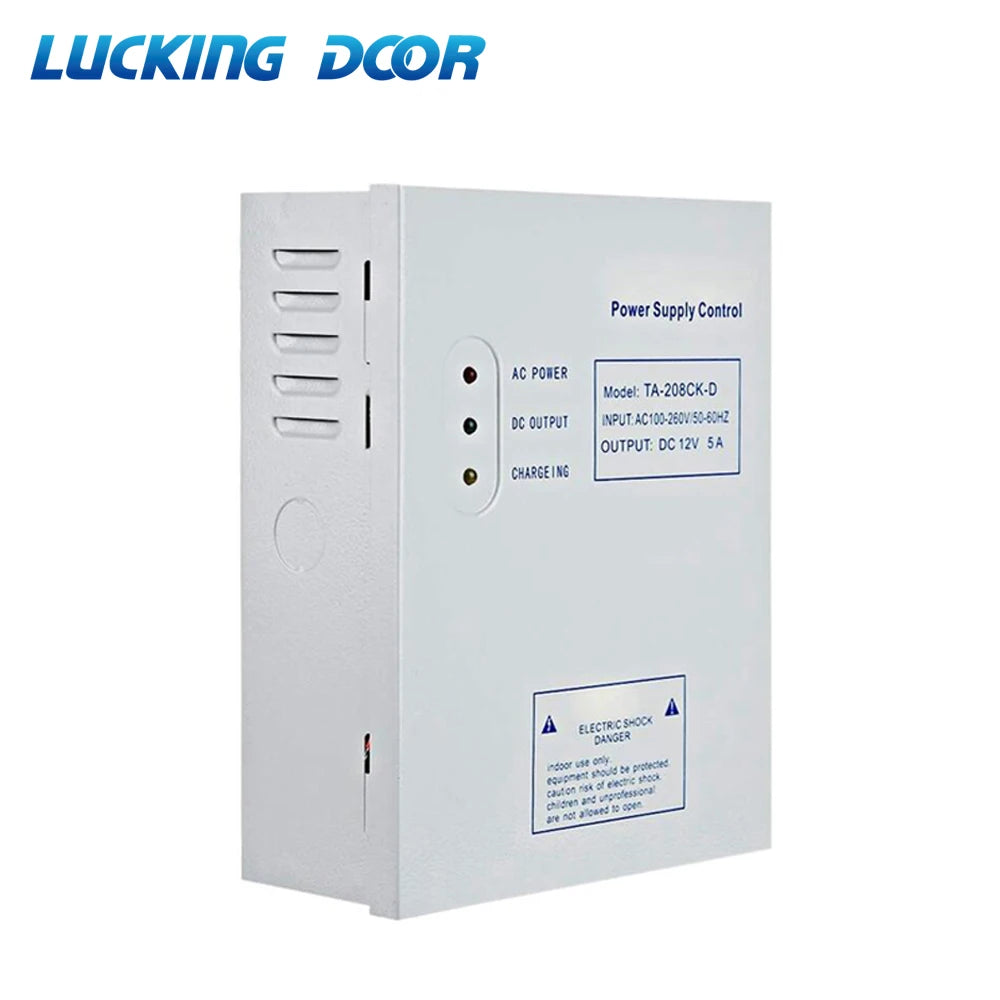

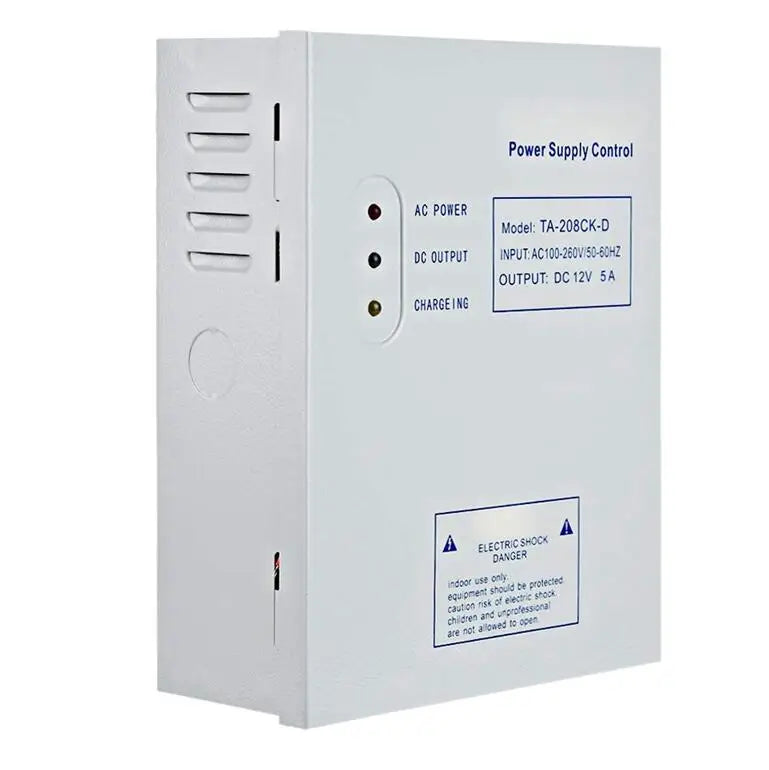

LUCKING DOOR Door Access Control Switch Power Supply – DC 12V 5A 50W
Keep your entry points secure and your access control system running smoothly with the LUCKING DOOR TA208CK-D Door Access Control Switch Power Supply. Designed for professional and residential installations alike, this 50W metal-housed power supply converts AC 110–240V input to a stable DC 12V / 5A output — delivering reliable, consistent power to electric locks, magnetic locks, and building intercom systems.
Why Choose This Access Control Power Supply?
- Wide Input Voltage Range: Accepts AC 100V–260V, making it compatible with electrical systems worldwide.
- Stable DC 12V / 5A Output: Delivers up to 5 amps of clean DC power to drive electric locking mechanisms without overloading your access controller.
- Adjustable Delay Timer (0–15 Seconds): Fine-tune the lock release delay from 0 to 15 seconds to match your security workflow.
- Three Control Methods: Supports high, low, and switch signal control for maximum compatibility with access control hardware.
- Multi-Layer Protection: Built-in overcurrent, overvoltage, and short-circuit protection keeps your equipment and wiring safe.
- Battery Backup Ready: Includes battery anti-polarity protection (only the fuse activates if connected in reverse — the main unit stays safe) and automatic overdischarge protection that disconnects the battery when voltage drops below 9.5V.
- Fail-Safe Mode with Signal: Supports NO/NC optional lock voltage output for fail-safe or fail-secure configurations.

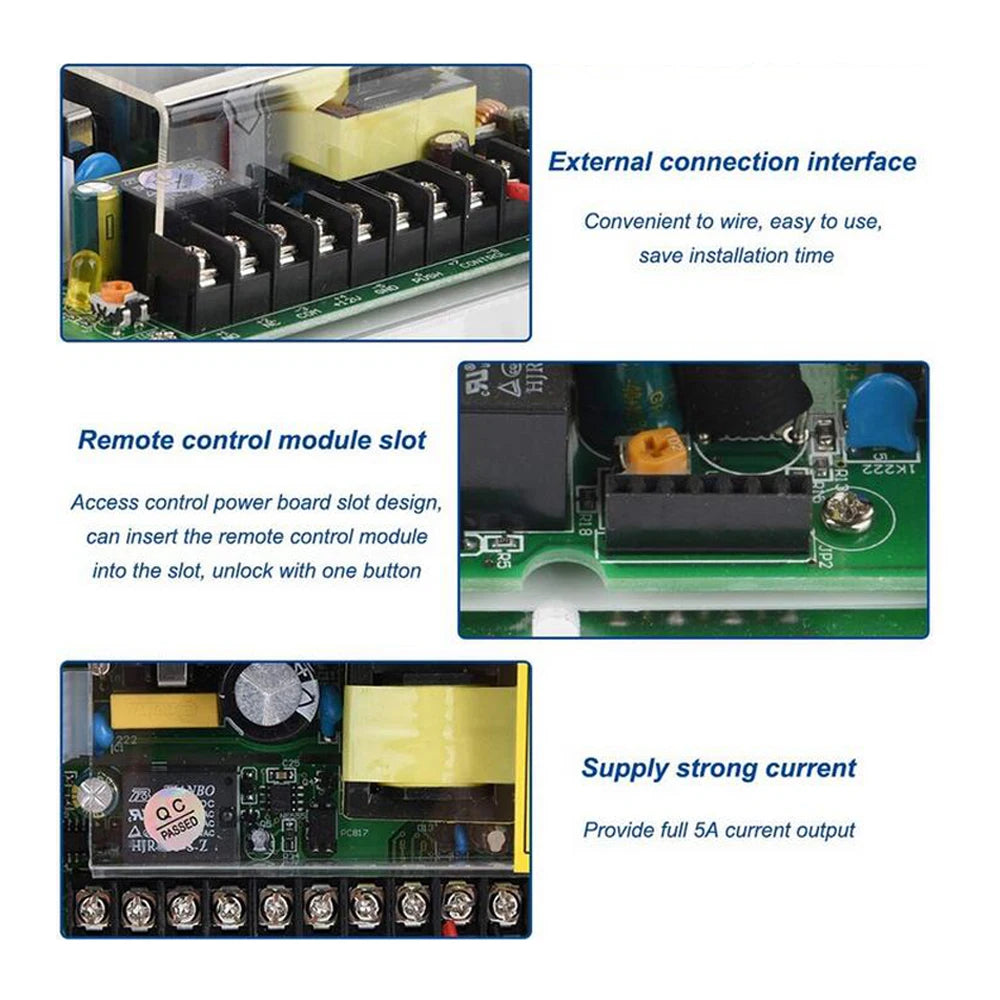

- Remote Control Module Slot: Integrated slot accommodates a remote control module for expanded access control capabilities.
- Robust Metal Construction: Durable metal enclosure for long-lasting, stable performance in demanding environments.
- Reduces Wiring Complexity: Offloads the power burden from your access controller, simplifying installation and reducing potential wiring issues.
Technical Specifications
| Brand | LUCKING DOOR |
| Model | TA208CK-D |
| Input Voltage | AC 100V–260V (50/60 Hz) |
| Output Voltage | DC 12V |
| Output Current | 5A |
| Power | 50W |
| Delay Range | 0–15 Seconds (Adjustable) |
| Security Mode | Fail Safe with Signal (NO / NC Optional) |
| Material | Metal |

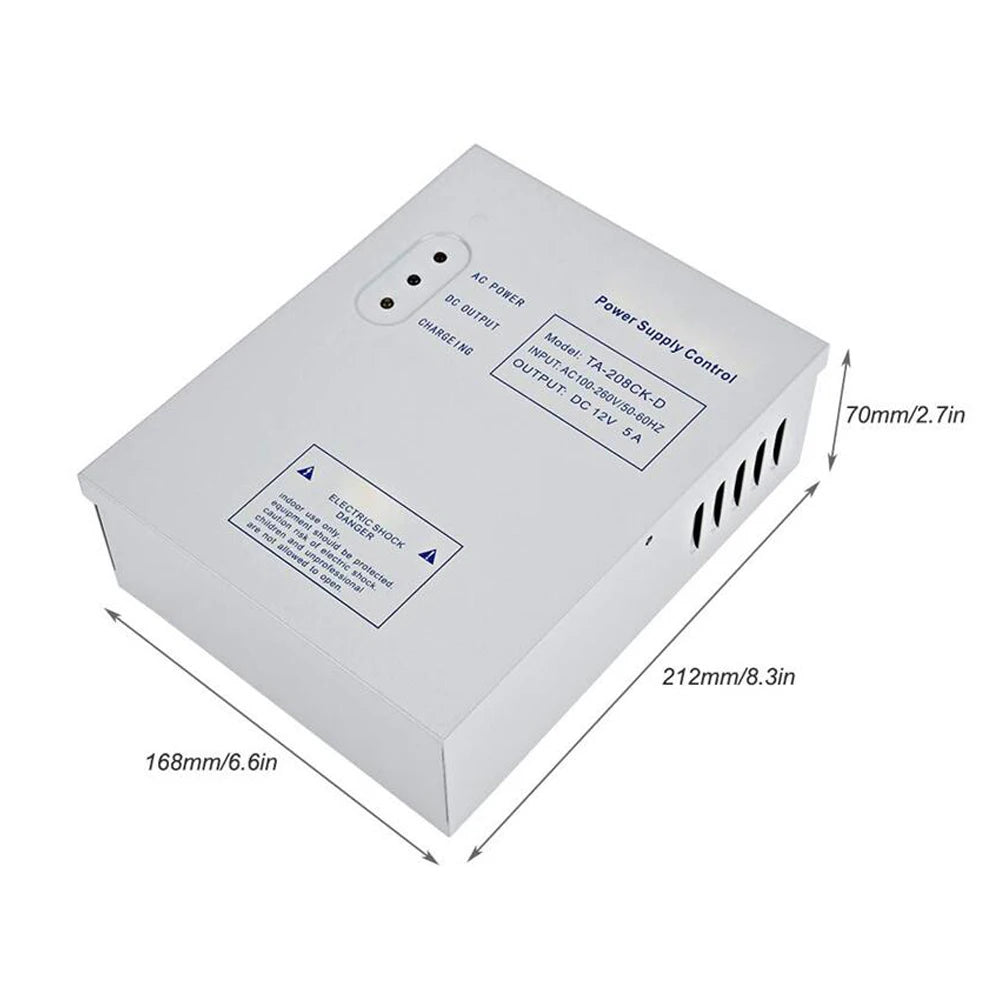

| Dimensions | Approx. 212 × 168 × 70 mm (8.3 × 6.6 × 2.7 in) |
| Weight | Approx. 1,041 g |
| Country of Origin | Made in China |
Ideal Applications
- Building intercom and door entry systems
- Electric strike locks and magnetic door locks
- Access control for offices, apartments, and commercial buildings
- Import/export control gates and barrier systems
Package Includes
- 1 × Power Supply Unit (TA208CK-D)
- 1 × User Manual (Chinese & English)
Note: Please allow ±1–3 cm measurement tolerance. Screen color calibration may cause slight color variation from the actual product.
For guidance on safe electrical installation practices, refer to the OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What types of locks is this door access control power supply compatible with?
A: This DC 12V 5A power supply is compatible with a wide range of electric locks, including electric strike locks, magnetic locks (maglocks), and other 12V DC locking devices. It supports both NO (Normally Open) and NC (Normally Closed) lock configurations, making it versatile for most access control installations.
Q: Can I use this power supply with a battery backup for uninterrupted operation?
A: Yes. This unit is designed to support a battery backup. It includes battery anti-polarity protection so that if a battery is accidentally connected in reverse, only the fuse activates and the main unit remains undamaged. It also features automatic overdischarge protection, disconnecting the battery when voltage falls below 9.5V to preserve battery life.
Q: How do I set the delay time on this access control power supply?
A: The delay time is fully adjustable from 0 to 15 seconds via the built-in adjustable design on the unit. You can fine-tune this setting to control how long the lock stays released after an access event, providing flexibility for different door types and security requirements.
Q: Is this power supply safe to use with my existing access controller?
A: Yes. This power supply is specifically designed to reduce the load on your access controller by providing dedicated power directly to the locking mechanism. It features overcurrent, overvoltage, and short-circuit protection, and its anti-interference design ensures stable, reliable operation alongside your existing access control hardware.
