DM542J Digital 2-Phase Stepper Motor Driver — Precision Control at DC 24–48V

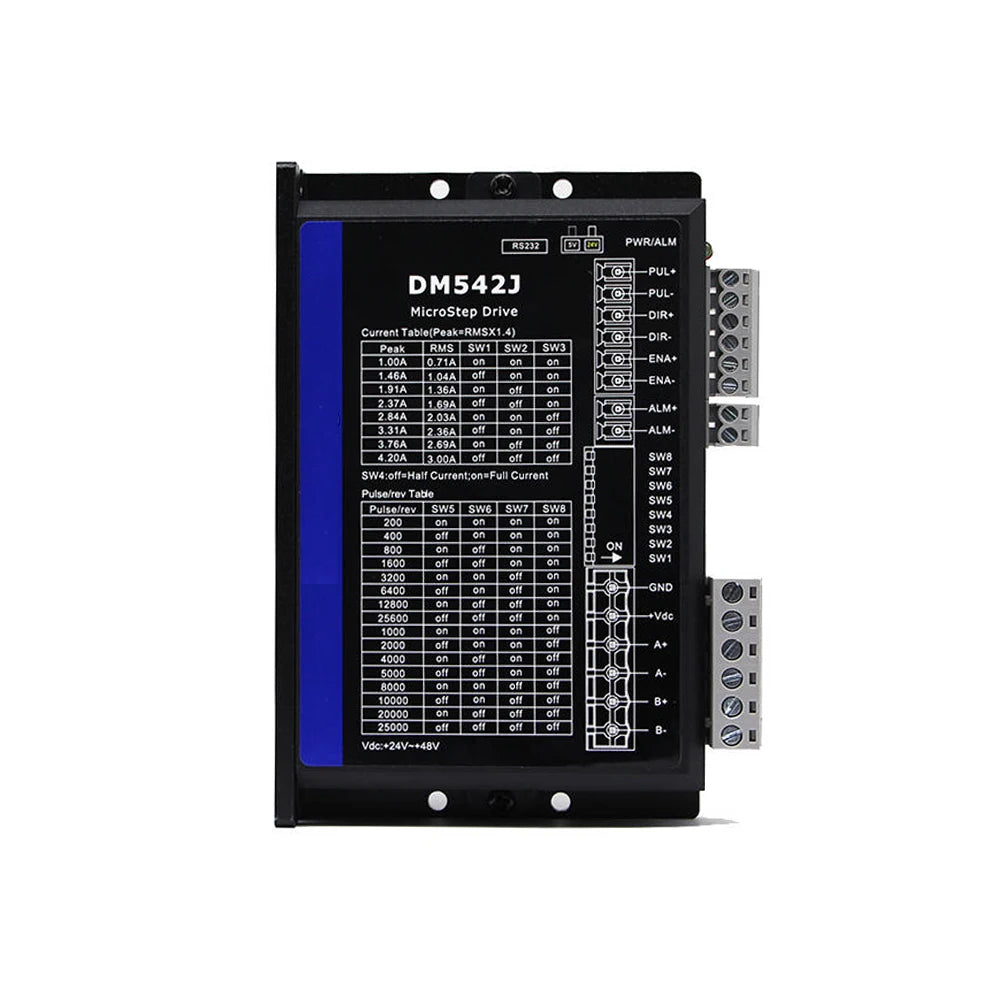

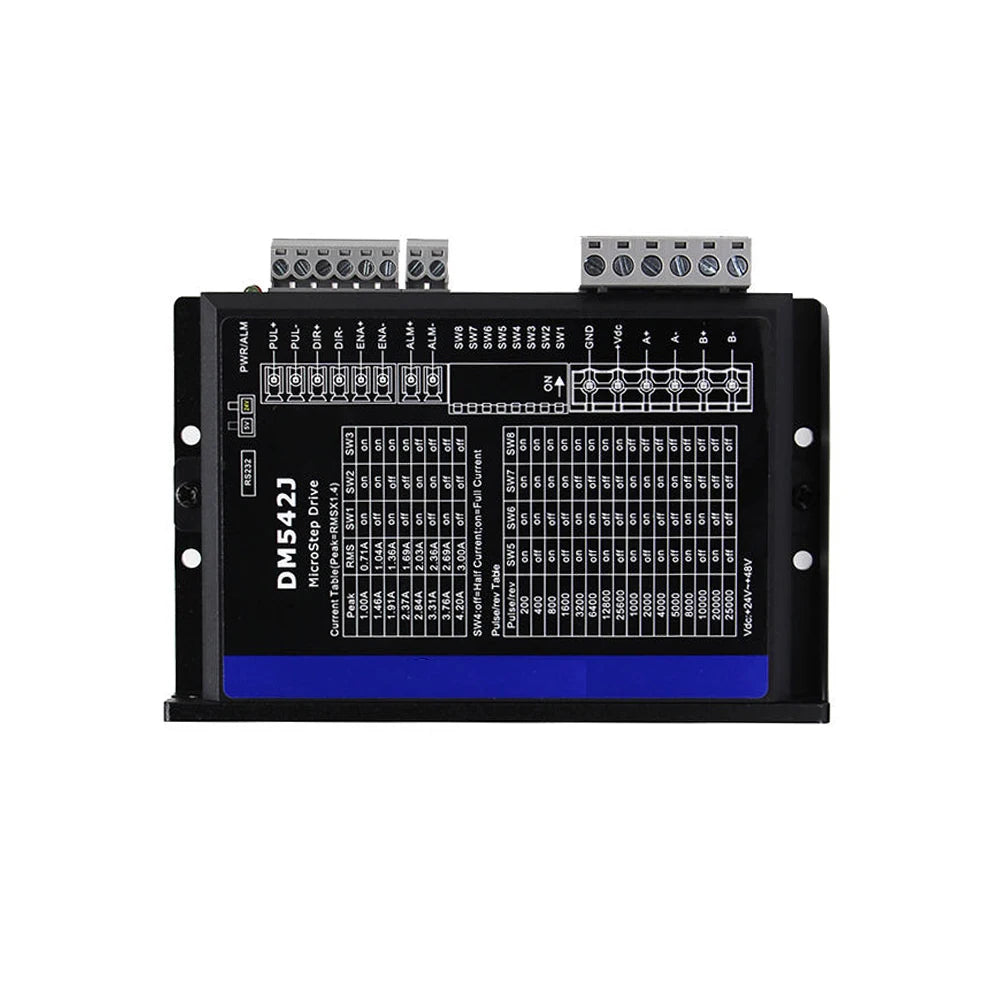

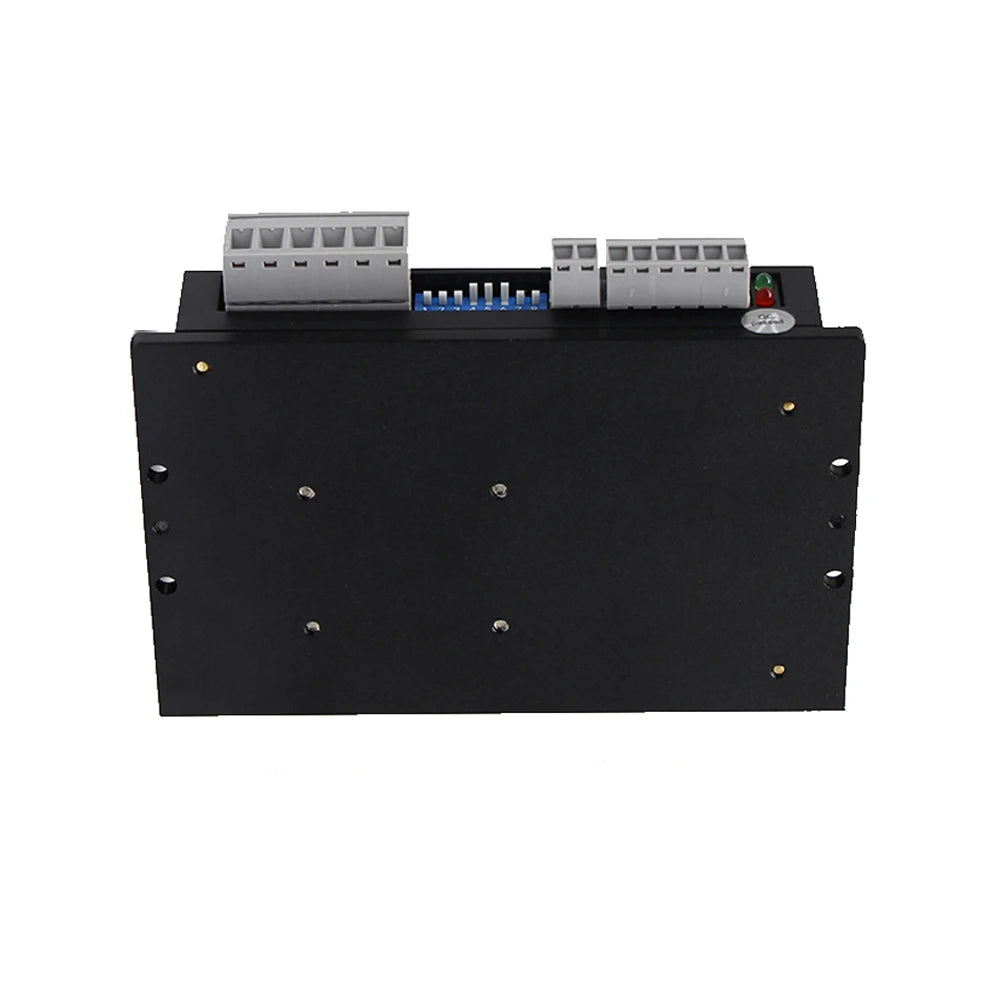

The DM542J Stepper Motor Driver is a high-performance, digital two-phase stepper motor drive module engineered for CNC machines, 3D printers, laser engravers, and other automated motion-control applications. Designed as a direct upgrade replacement for the DM542 V3.0, it delivers smooth, reliable, and precise motor control across a wide input voltage range of DC 24V to 48V.
Whether you're building a DIY CNC router, automating an industrial conveyor, or upgrading an existing stepper drive system, the DM542J provides the stability and digital precision your project demands.
Key Features
- Wide Voltage Range: Operates at DC 24V–48V to suit a variety of power supply setups
- Digital 2-Phase Drive: Smooth microstepping for reduced vibration and improved positional accuracy
- Drop-In Replacement: Compatible with DM542 V3.0 installations — no rewiring hassle
- Compact Module Design: Space-efficient form factor ideal for enclosures and control cabinets
- Operating Temperature: 0°C – 50°C for reliable performance in typical workshop environments
- Low Noise Operation: Digital signal processing minimizes motor noise and resonance
Specifications
| Parameter | Value |
|---|---|
| Model | DM542J |
| Input Voltage | DC 24V – 48V |
| Phase | Two-Phase (2-Phase) |
| Drive Type | Digital |
| Operating Temperature | 0°C – 50°C |
| Replaces | DM542 V3.0 |
What's in the Box
- 1× DM542J Stepper Motor Driver Module
Notes
- Due to monitor and lighting variations, actual product color may differ slightly from images shown.
- Please allow ±1mm–1cm variance due to manual measurement.
Made in Mainland China.
For general electrical safety guidance on motor control components and wiring, refer to OSHA's Electrical Safety Standards.
Frequently Asked Questions
Q: What motors is the DM542J stepper motor driver compatible with?
A: The DM542J is designed for standard two-phase (bipolar) stepper motors commonly used in CNC routers, 3D printers, laser cutters, and other automated systems. It operates on DC 24V–48V and is a direct replacement for the DM542 V3.0 driver module.
Q: What voltage power supply do I need for the DM542J stepper driver?
A: The DM542J supports an input voltage range of DC 24V to 48V. A 36V or 48V DC power supply is commonly recommended for optimal performance and torque output in most motion control applications.
Q: Can the DM542J replace my existing DM542 V3.0 driver without rewiring?
A: Yes — the DM542J is engineered as a drop-in replacement for the DM542 V3.0. It shares the same form factor and connection layout, making it a straightforward upgrade with minimal reconfiguration required.
Q: What operating temperature range does the DM542J support?
A: The DM542J operates reliably within an ambient temperature range of 0°C to 50°C (32°F to 122°F). For best results, ensure adequate ventilation or active cooling in enclosed enclosures.
