DIY IN14 Nixie Tube Clock Circuit Board Kit – PCBA, No Tubes

ABKW-3X DIY IN14 Nixie Tube Clock Circuit Board Kit (PCBA – Tubes Not Included)

Build your own stunning retro Nixie tube clock with this premium DIY IN14 Nixie Tube Clock Circuit Board Kit. Featuring the iconic warm glow of vintage Nixie tube technology, this kit gives electronics enthusiasts, hobbyists, and makers everything they need to assemble a beautiful, functional timepiece. The PCBA (Printed Circuit Board Assembly) arrives ready for your IN14 Nixie tubes — simply solder and enjoy a one-of-a-kind display piece. Please note: Nixie tubes are NOT included.

Made in Mainland China.

Key Features

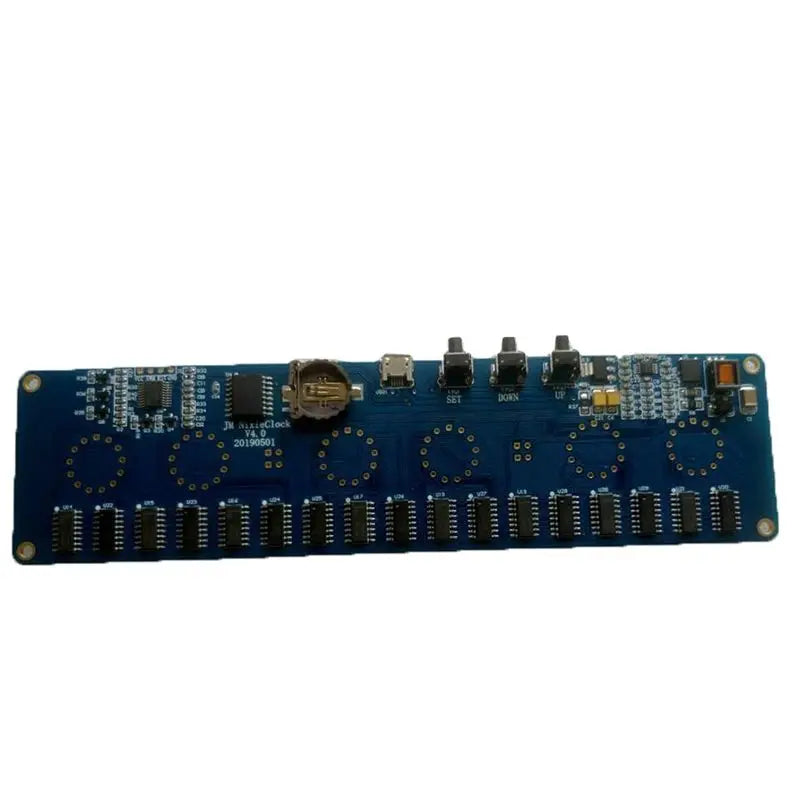

• Main Controller: STM8S005 microcontroller with built-in firmware — solder in your tubes and it works right away
• Power Input: Micro-USB 5V 1A — easy and convenient to power from any standard USB adapter

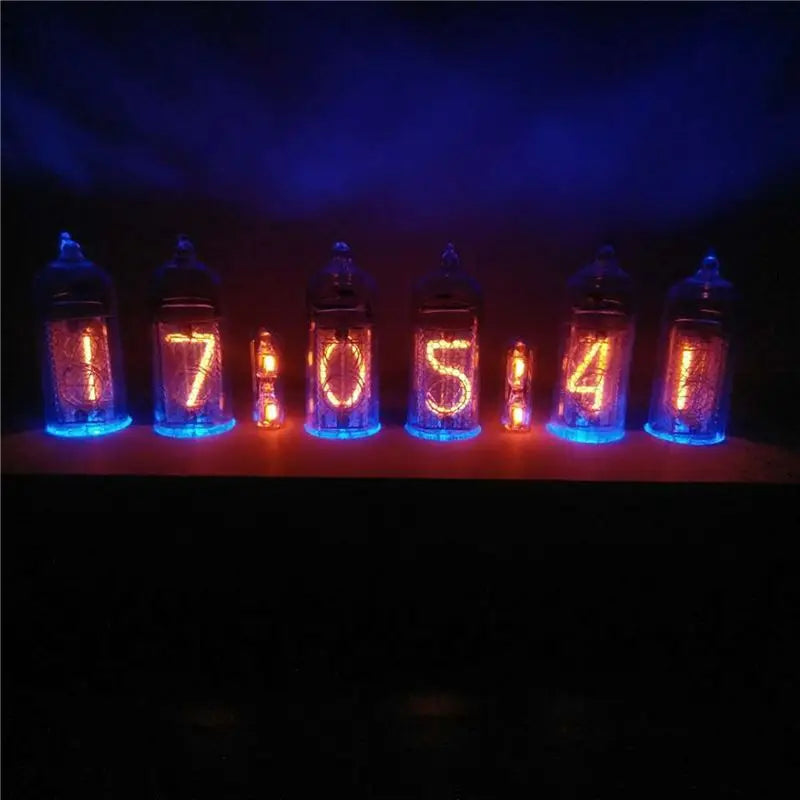

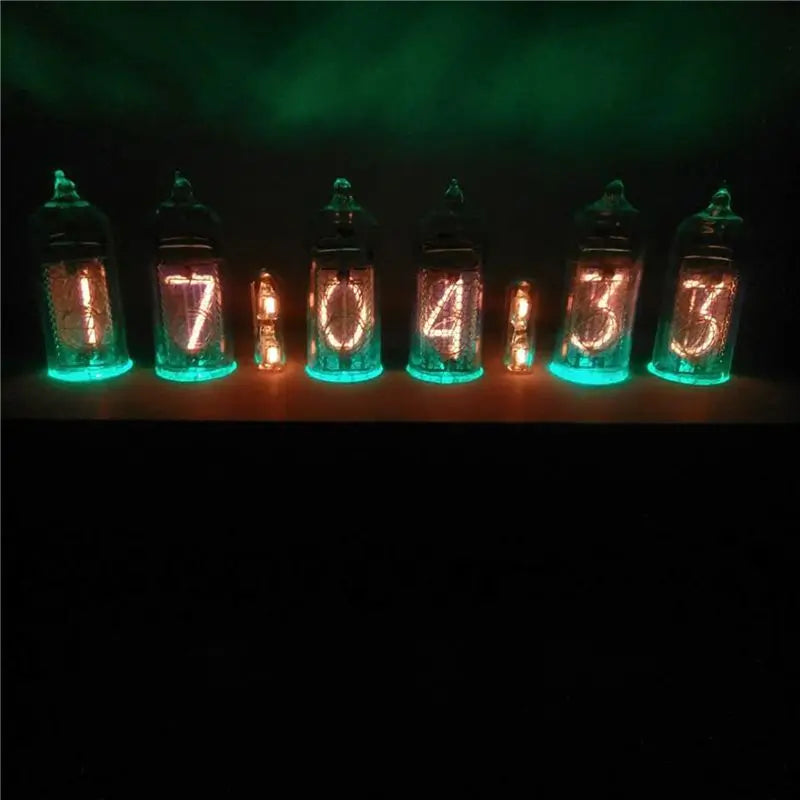

• 7-Color RGB Backlight: Choose from seven stunning backlight colors or set it to auto-cycle through colors daily
• High-Precision Clock Chip: Imported chip with less than 1 minute of drift per year for reliable timekeeping
• Integrated IC Driver: Stable, reliable display performance thanks to dedicated IC drive circuitry
• Anti-Poisoning Routine: Automatically cycles all digits every 10 minutes (adjustable 1–9 minutes) to extend the life of your Nixie tubes
• 24-Hour Display Mode: Clear, straightforward time display in 24-hour format
• Sleep Mode: Automatically blanks the display from 22:00 to 07:00 to save tube life overnight
• Board Dimensions: Approx. 187 × 48 mm
• Material: Metal + PC
• Color Accent: Blue

How to Use

• Set Time: Press the SET button to enter time-setting mode. Use Up / Down buttons to adjust, then press SET again to confirm.
• 12/24 Hour Mode: Press the Up button to toggle between 12 and 24-hour display.
• Sleep Mode: Long-press SET when the display is off to enable/disable the sleep schedule (22:00–07:00 no display).
• Adjust Refresh Interval: Long-press UP, then use Up / Down to set the anti-poisoning refresh interval from 1–9 minutes.
• Change Backlight Color: Press Down to cycle through the 7 available colors, or enter auto-color-change mode for a new color each day.

Assembly Note

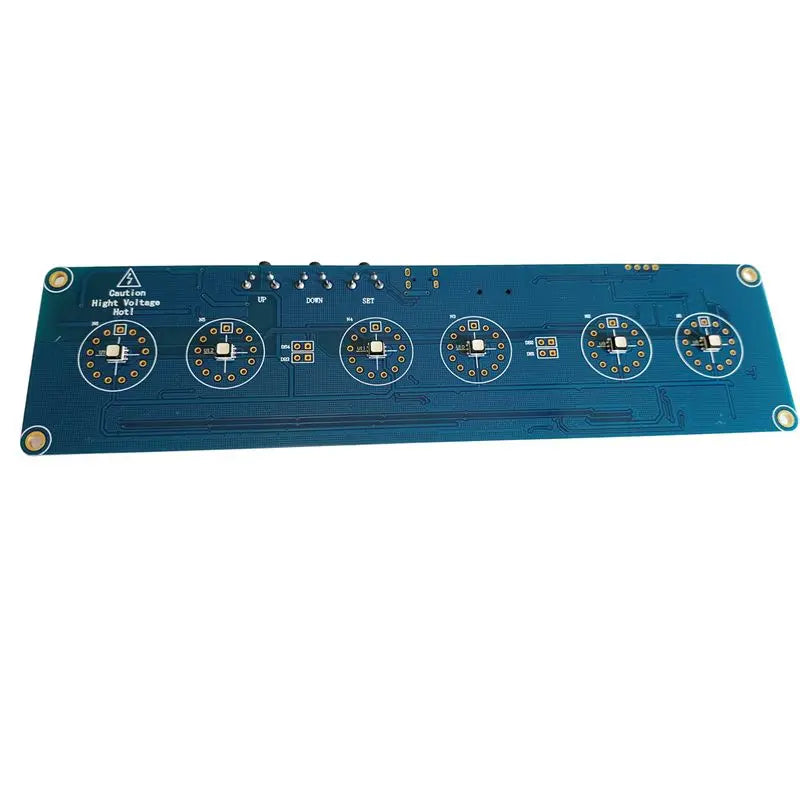

When installing your IN14 Nixie tubes, align and solder the white tube pins to the white PCB pin pads. The board is pre-programmed — no additional coding or programming required.

Package Contents

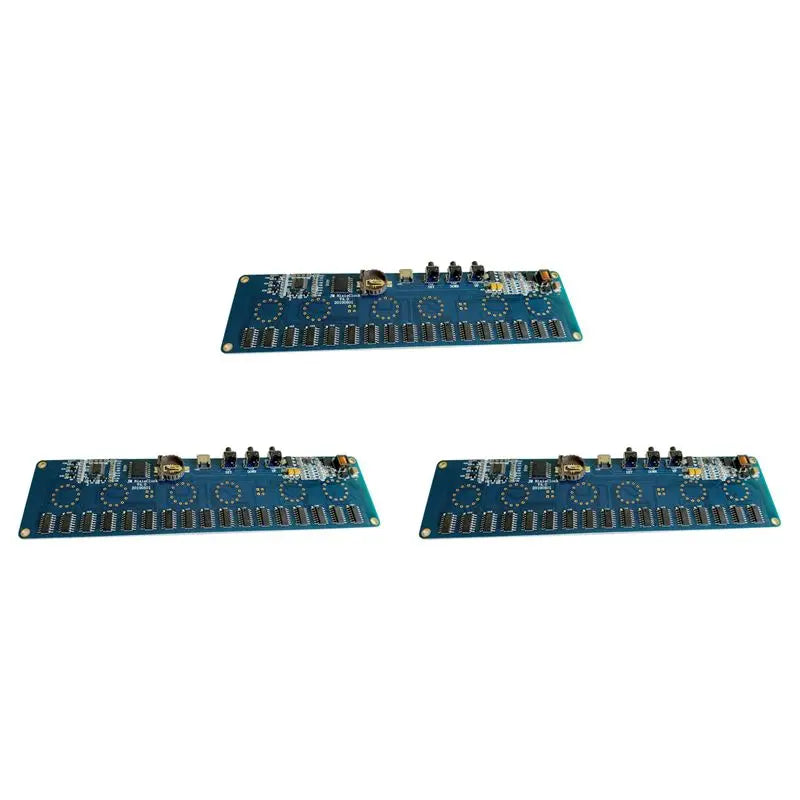

• 3× Circuit Board (PCBA)

Note: Nixie tubes, power adapter, and battery are NOT included. Colors shown in product images may vary slightly due to lighting and monitor settings. Measurement tolerance: ±1–3 cm.

Learn More About Electronics Safety

When working with DIY electronics kits, always follow safe soldering practices. The U.S. Consumer Product Safety Commission offers helpful guidance: CPSC.gov — Consumer Product Safety. For information on electrical safety standards, visit NIST.gov — National Institute of Standards and Technology.

Frequently Asked Questions

Q: Do the IN14 Nixie tubes come included with this kit?

A: No — this listing is for the PCBA circuit board kit only. The IN14 Nixie tubes are NOT included and must be purchased separately. The board is designed to accept standard IN14 Nixie tubes, which you solder onto the white PCB pin pads.

Q: Do I need programming skills to assemble this Nixie tube clock kit?

A: No programming is required. The STM8S005 microcontroller comes with built-in firmware already loaded. Once you solder your Nixie tubes and power tubes onto the board and connect a Micro-USB 5V 1A power source, the clock is ready to use. Basic soldering skills are recommended for assembly.

Q: What backlight colors are available on this DIY Nixie clock?

A: The clock features an RGB LED backlight system supporting 7 different colors. You can manually cycle through colors using the Down button, or activate auto-color-change mode, which automatically switches to a new color each day for a dynamic, ever-changing display.

Q: How accurate is the timekeeping on this Nixie tube clock kit?

A: This kit uses a high-precision imported clock chip that keeps exceptional time — with less than 1 minute of drift per year. This makes it highly reliable for everyday use as a display timepiece.

Q: What is the anti-poisoning feature and why does it matter?

A: Nixie tube "poisoning" occurs when certain digits are displayed infrequently, causing those cathode elements to degrade faster. The anti-poisoning routine cycles through all digits at regular intervals (every 1–9 minutes, user-adjustable) to promote even wear and extend the lifespan of your Nixie tubes.
