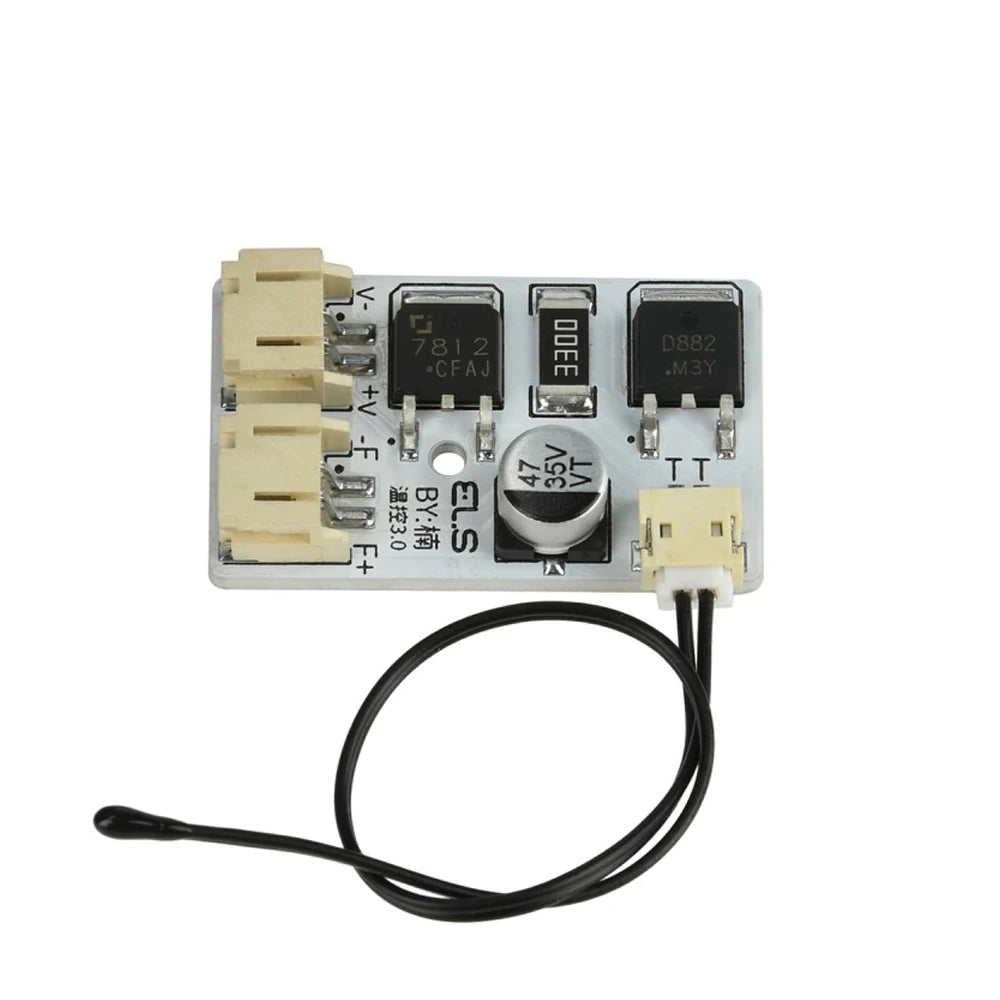

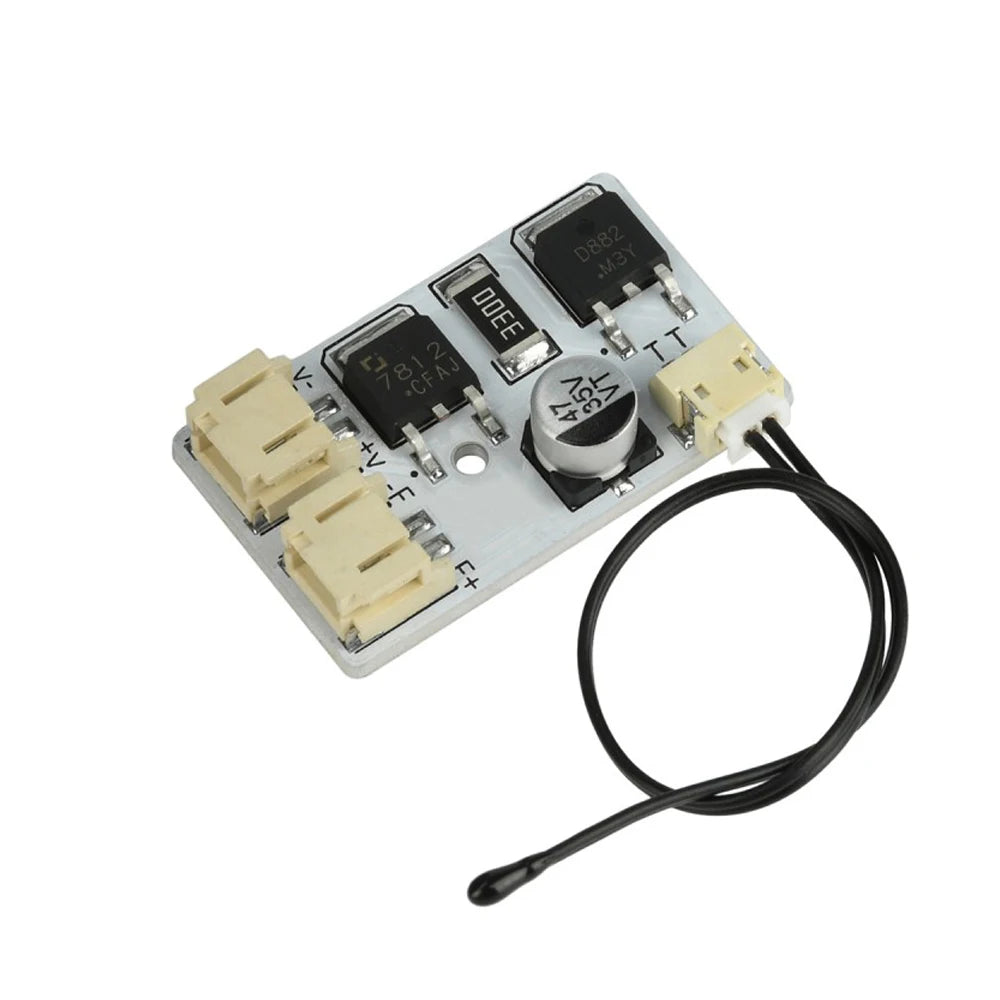

DIY Automatic Fan Temperature Control Board
Take full control of your cooling setup with this compact, easy-to-install Fan Temperature Control Board. Designed for makers, hobbyists, and electronics enthusiasts, this step-down type module automatically adjusts DC fan speed based on ambient temperature — keeping your projects running cool without manual intervention. Made in Mainland China.
Key Features
- Wide Voltage Input (12–32V): Compatible with a broad range of DC power supplies, making it versatile for diverse DIY and electronics projects.
- Step-Down Circuit Design: High-quality buck converter outputs a stable DC 12V to protect your fan motor from voltage fluctuations.
- Automatic Temperature-Based Speed Control: Integrated thermal-sensitive probe triggers fan start-up at 35°C and modulates speed as temperatures rise — fully hands-free operation.
- Solder-Free, Plug-and-Play Wiring: No complex configuration required. Simple terminal connections get you up and running in minutes.

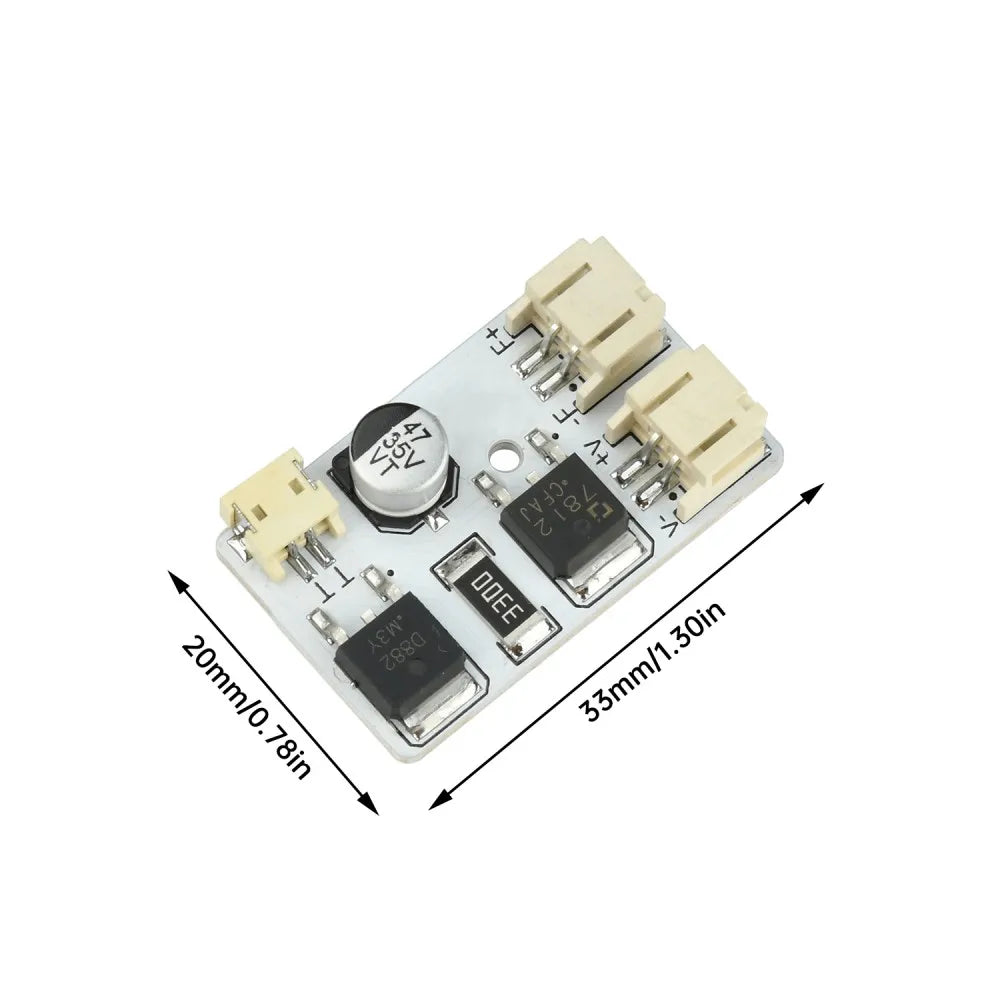

- Compact PCB with Aluminum Substrate: Space-saving form factor with built-in heat dissipation support — ideal for tight enclosures and custom builds.
- Modular Design: Easily integrates into a wide variety of DIY electronics projects, server cooling builds, enclosure ventilation systems, and more.
Specifications
| Input Voltage | DC 12V – 32V (constant voltage) |
| Output Voltage | DC 12V |
| Temperature Sensing | Thermal-sensitive probe |
| Start-Up Temperature | 35°C (subject to actual probe temperature) |
| Recommended Fan Parameters | DC 12V, ≤ 0.4A |
| Number of Fans Supported | 1 (multiple fans require additional modules) |
| Motor Type | DC Motor |
What's in the Box
Choose from two package options:
- Option A: 1× Fan Temperature Control Board + 1× Probe

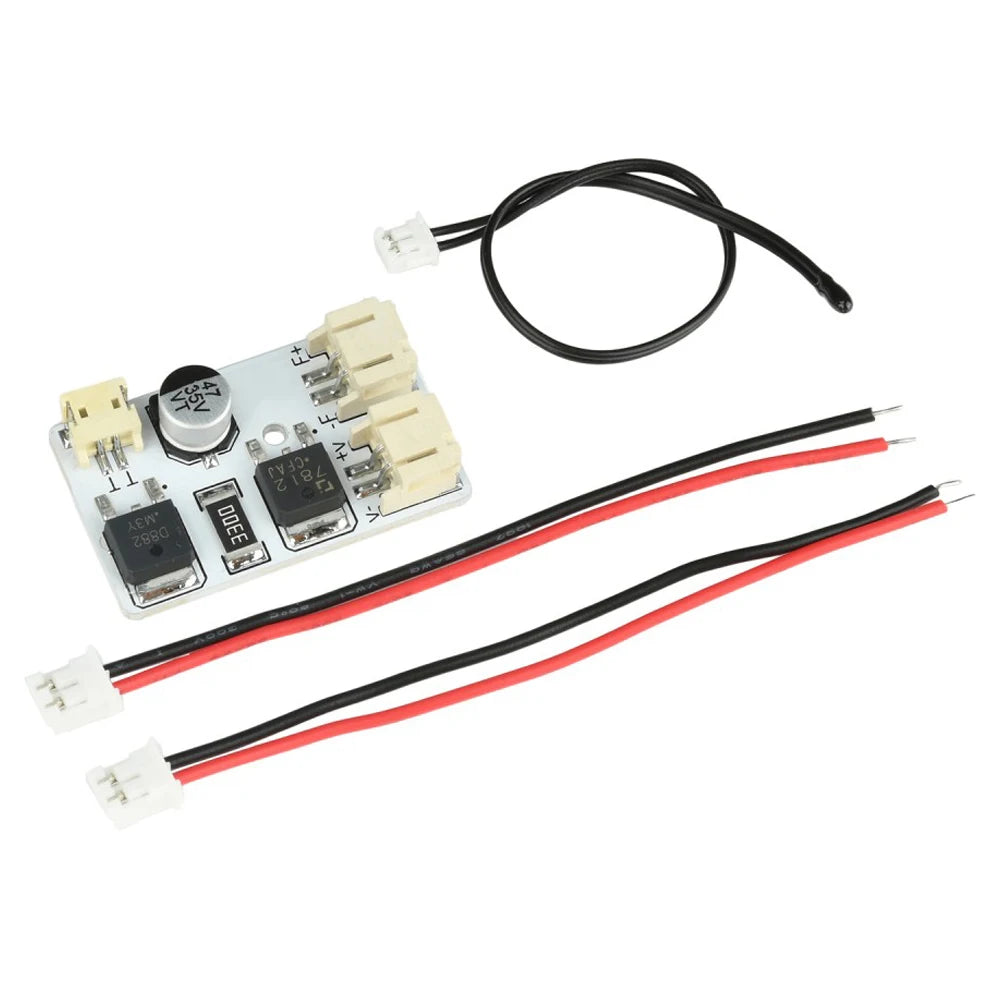

- Option B: 1× Fan Temperature Control Board + 1× Probe + 2× Cables
Important Notes
- Due to lighting and screen variations, the product color in images may slightly differ from the actual item.
- Please allow a 1mm–1cm variance due to manual measurement.
- For setups requiring multiple fans, use one temperature control module per fan for best performance.
For general guidance on electronics safety and DIY project best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What input voltage does the fan temperature control board support?
A: The board accepts a constant DC input voltage of 12V to 32V, making it compatible with a wide range of power supplies commonly used in DIY electronics and custom builds.
Q: How does the automatic temperature control work?
A: The included thermal-sensitive probe monitors ambient or component temperature. Once the probe detects a temperature of 35°C or above, the board activates the fan and adjusts its speed proportionally as the temperature changes — automatically, with no manual input needed.
Q: Can I connect more than one fan to this control board?
A: The board is designed to control one DC fan (12V, ≤ 0.4A) at a time. If you need to run multiple fans, it is recommended to use one temperature control module per fan for optimal performance and motor protection.
Q: Do I need soldering skills to install this board?
A: No soldering is required. The board features a solder-free design with simple terminal wiring, making it accessible for beginners and seasoned hobbyists alike.
