DIN Rail Surge Protective Device (SPD) – 40kA Max Discharge

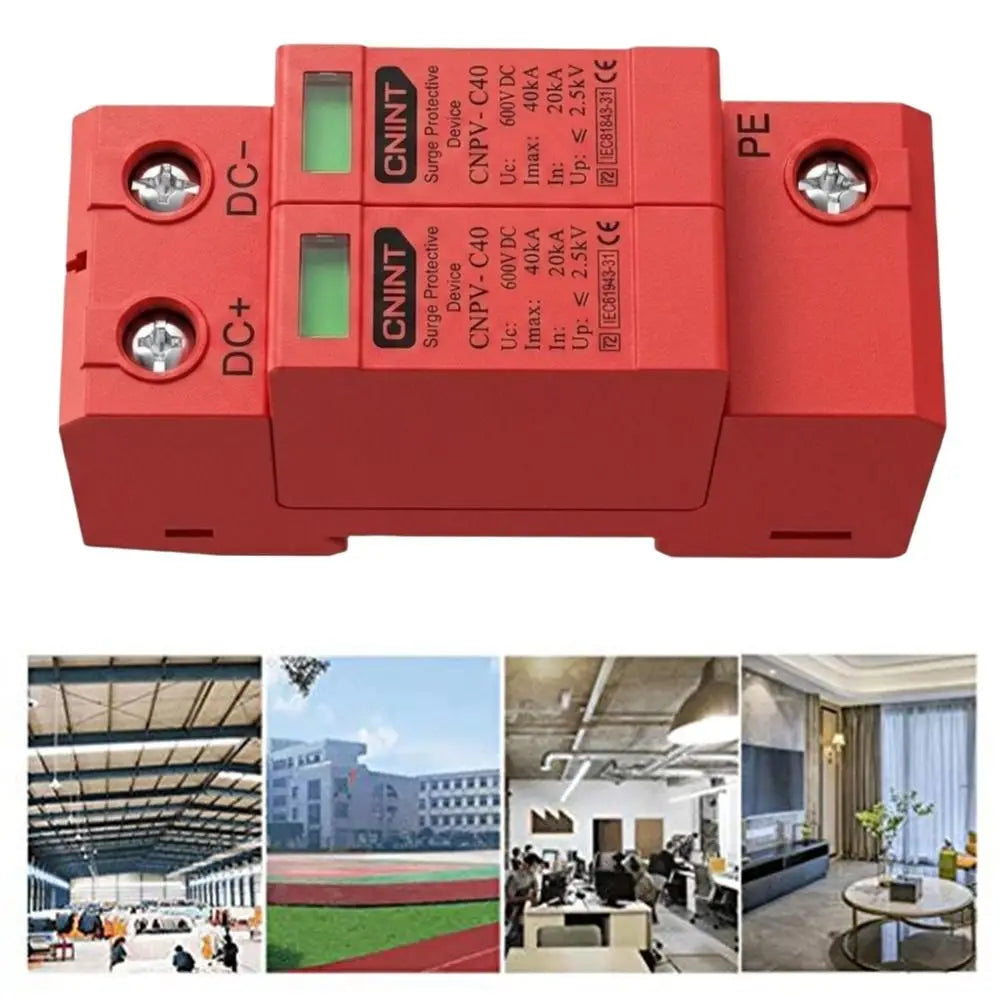

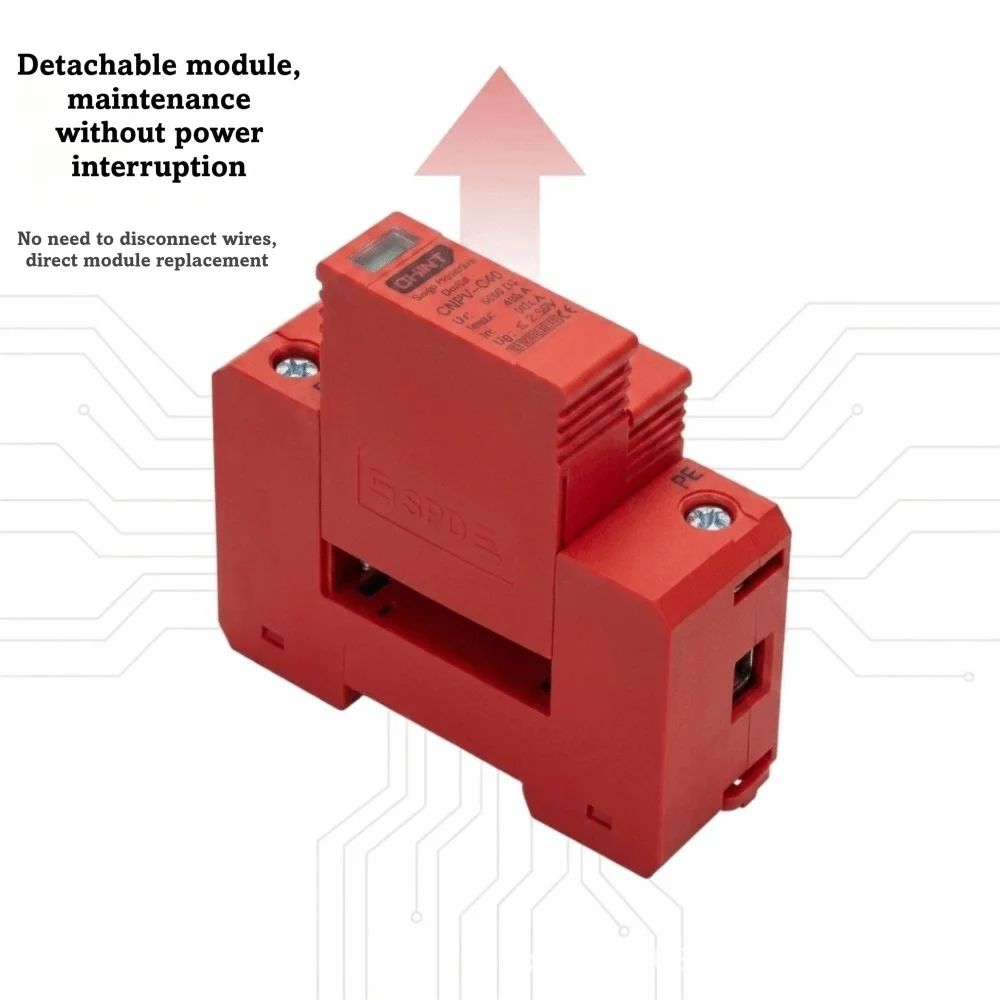

Keep your electrical systems safe and running smoothly with this robust DIN Rail Surge Protective Device (SPD). Designed for straightforward 2P rail installation, this moulded-case surge protector is ideal for residential, commercial, and light industrial low-voltage electrical panels. Built from premium PC flame-retardant material and engineered for long service life, it delivers dependable overvoltage protection for your circuits and connected equipment.
Key Features
- Simple 2P DIN Rail Installation: Snaps directly onto standard DIN rails — no complex wiring or special tools required. Get it installed in minutes.
- PC Flame-Retardant Housing: The enclosure is constructed from high-grade, flame-retardant polycarbonate (PC) for enhanced safety and durability in demanding environments.
- Visual Status Window: The built-in traffic-light indicator window lets you confirm operational status at a glance — no guesswork, no need to remove the device for inspection.
- High Discharge Capacity: Handles a maximum discharge current of 40kA, with a nominal discharge current of 20kA and a voltage protection level of 3.5kV, providing robust transient overvoltage suppression.
- Stable Structure & Long Service Life: Built with a solid, stable internal structure and quality components for lasting, consistent performance over many years of use.
- Moulded Case Design: Compact moulded-case form factor (9 × 6.7 × 3.6 cm) integrates neatly into standard electrical enclosures and distribution boards.
Specifications
- Type: Moulded Case SPD (Surge Protective Device)
- Installation: 2P DIN Rail
- Maximum Discharge Current (Imax): 40kA
- Nominal Discharge Current (In): 20kA
- Voltage Protection Level (Up): 3.5kV
- Operating Voltage: Low voltage — below 50Vac or 75Vdc
- Material: PC Flame-Retardant
- Color: Red
- Dimensions: 9 × 6.7 × 3.6 cm
- Country of Origin: Made in China
What's in the Box
- 1 × DIN Rail Surge Protective Device (SPD)
Safety & Standards Reference
For general guidance on electrical safety standards and surge protection device requirements, visit the U.S. Consumer Product Safety Commission: CPSC — Consumer Product Safety Commission. For occupational electrical safety information, see OSHA Electrical Safety.
Note: Due to monitor calibration differences, on-screen colors may vary slightly from the actual product. Please allow ±1–3mm tolerance due to manual measurement.
Frequently Asked Questions
Q: What type of DIN rail does this surge protective device (SPD) fit?
A: This SPD is designed for standard 2P DIN rail mounting, compatible with the widely used 35mm (TS 35) DIN rail found in most residential and commercial electrical enclosures and distribution boards.
Q: What does the visual window indicator show?
A: The built-in traffic-light style visual window displays the operational status of the device at a glance. It allows you to quickly determine whether the SPD is functioning normally or needs attention, without removing it from the rail.
Q: What is the maximum discharge current this SPD can handle?
A: This DIN rail surge protector supports a maximum discharge current (Imax) of 40kA and a nominal discharge current (In) of 20kA, with a voltage protection level (Up) of 3.5kV — providing strong transient overvoltage suppression for connected equipment.
Q: Is this surge protector suitable for outdoor or industrial use?
A: This SPD is designed for low-voltage applications (below 50Vac or 75Vdc) and is best suited for use inside electrical enclosures, distribution panels, or control cabinets in residential, commercial, or light industrial settings. Its PC flame-retardant housing adds an extra layer of safety in enclosed panel environments.
