Dial Indicator Magnetic Base Stand – Flexible Arm Holder for Equipment Calibration & Machining

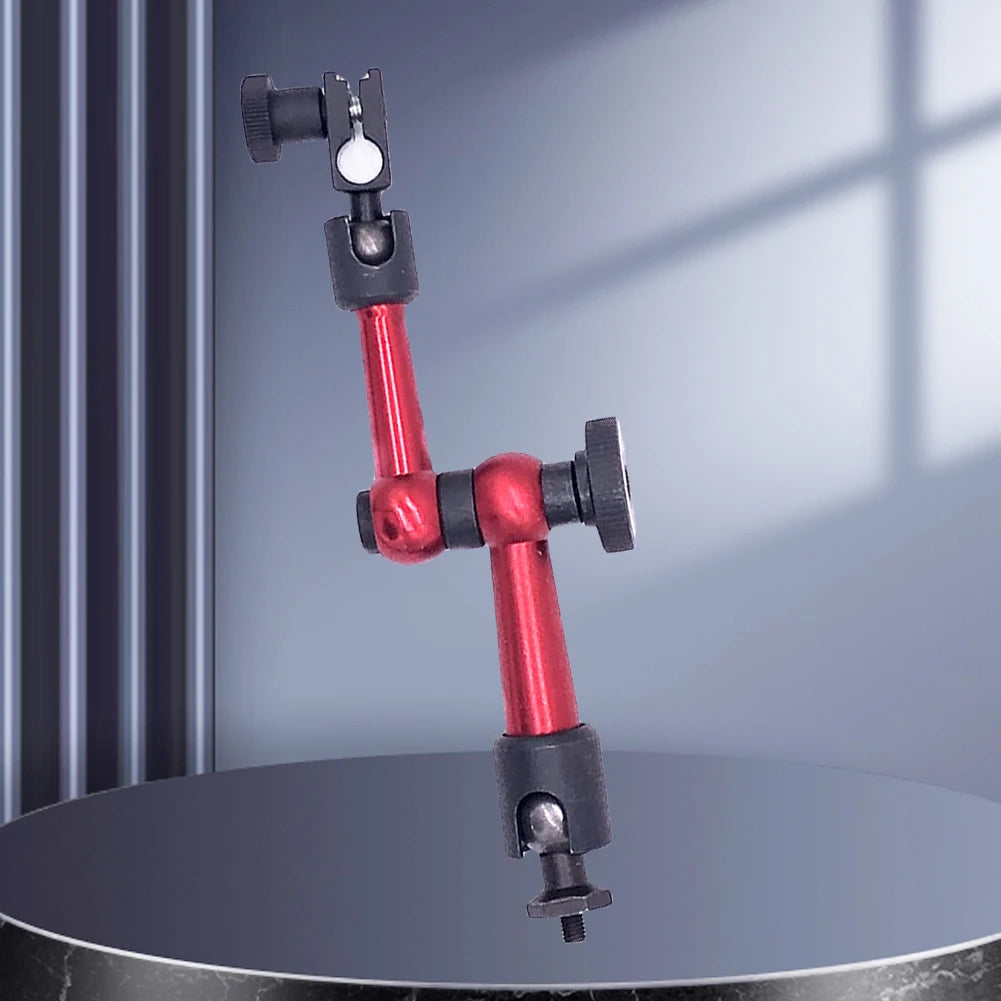

Achieve precise, repeatable positioning every time with this Dial Indicator Magnetic Base Stand. Engineered from durable alloy, this flexible arm holder is designed for machinists, toolmakers, and DIY enthusiasts who demand accuracy during centering operations and equipment calibration. The articulating arm locks securely at any angle via a single knob, giving you maximum flexibility without sacrificing stability.
Please Note: This listing is for the stand only. No switch base or dial indicator is included.
Key Features
- Versatile Compatibility: Works seamlessly with standard dial indicators and lever dial indicators, making it a go-to tool for machine tool centering operations.
- Hydraulic-Style Arm Lock: The flexible magnetic arm can be locked in any position using the column knob, ensuring your indicator stays exactly where you set it.
- Strong Rotating Joint: Precision-engineered rotating joint adjusts in any direction, giving you 360° freedom to position your indicator for exact measurements.
- Durable Alloy Construction: Built from robust alloy materials for long-lasting performance in workshop and machining environments.

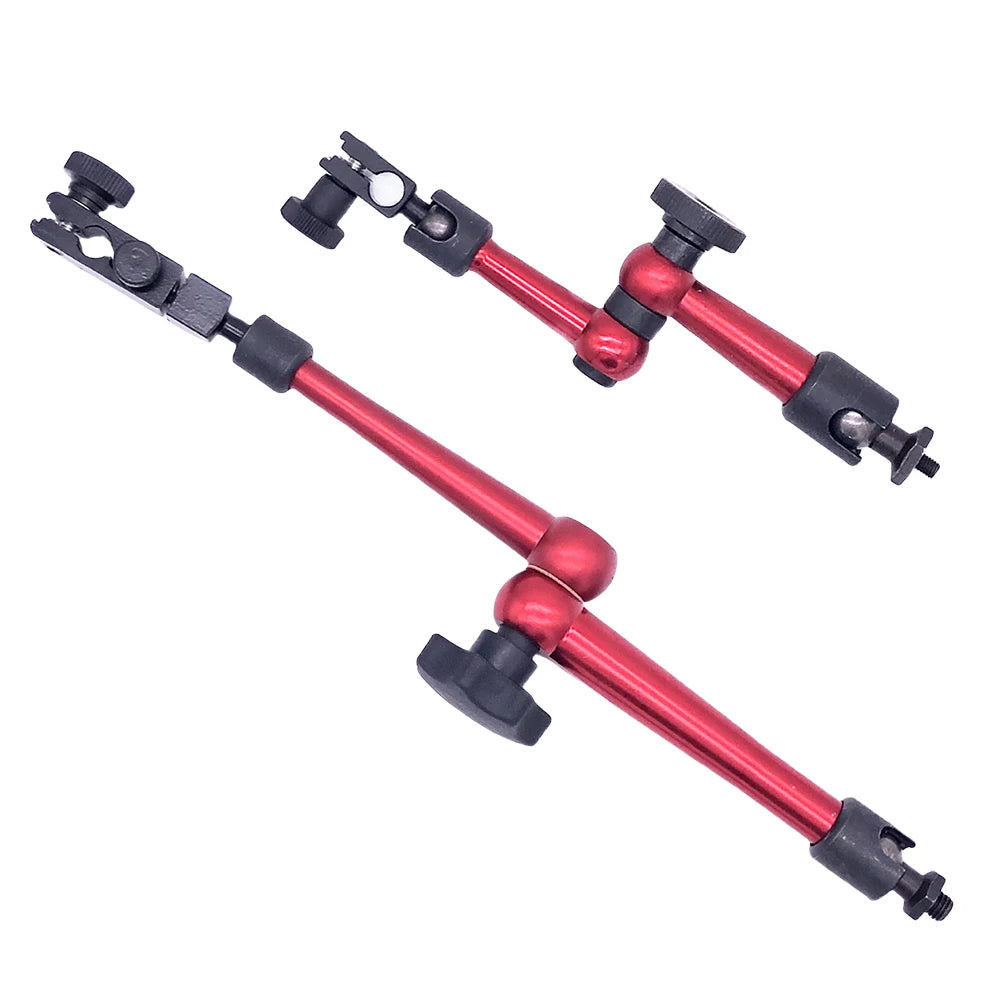

- Two Size Options: Available in Small (~165 mm total length) and Large (~300 mm total length) to suit a variety of setups and workpiece sizes.
- Wide Application: Ideal for centering operations on lathes, mills, drill presses, and other machine tools wherever a magnetic surface is available.
Specifications
| Material | Alloy |
| Total Length – Small | ~165 mm |

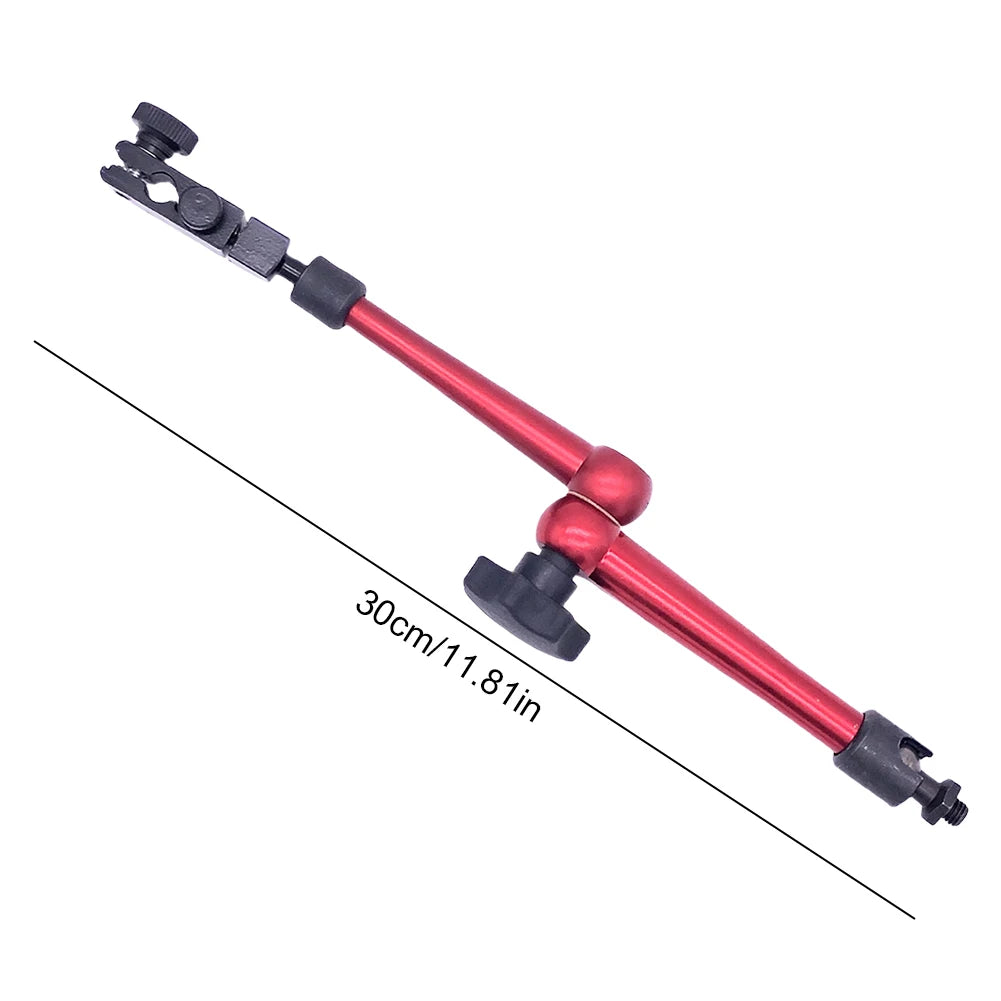

| Total Length – Large | ~300 mm |
| Compatibility | Dial indicators & lever dial indicators |
| Country of Origin | Made in Mainland China |
| Package Includes | 1 × Magnetic Stand (stand only) |
Important Notes
- Please allow a 1–2 cm tolerance in measurements due to manual measuring.
- Actual color may vary slightly from product images due to monitor settings and lighting conditions.
For guidance on measurement best practices and calibration standards in machining, visit the NIST Manufacturing page — an authoritative resource for dimensional measurement and precision engineering.
Frequently Asked Questions
Q: Does this magnetic base stand include a dial indicator or switch base?
A: No — this listing is for the magnetic base stand only. A dial indicator and switch base are sold separately. Please ensure you select a compatible dial indicator or lever dial indicator to use with this stand.
Q: What sizes are available for the flexible arm magnetic stand?
A: Two sizes are available: a Small version with a total length of approximately 165 mm, and a Large version with a total length of approximately 300 mm. Choose based on your machine tool setup and the reach you need.
Q: Can this magnetic stand be used on any machine tool?
A: This stand is designed to attach to any ferromagnetic (metal) surface, making it compatible with lathes, milling machines, drill presses, surface plates, and similar machine tools. It is not suitable for non-magnetic surfaces.
Q: How do I lock the flexible arm in position?
A: Simply adjust the flexible arm to your desired angle and tighten the knob on the column. The hydraulic-style locking mechanism secures the arm firmly in place, keeping your dial indicator stable throughout your measurement or centering operation.
